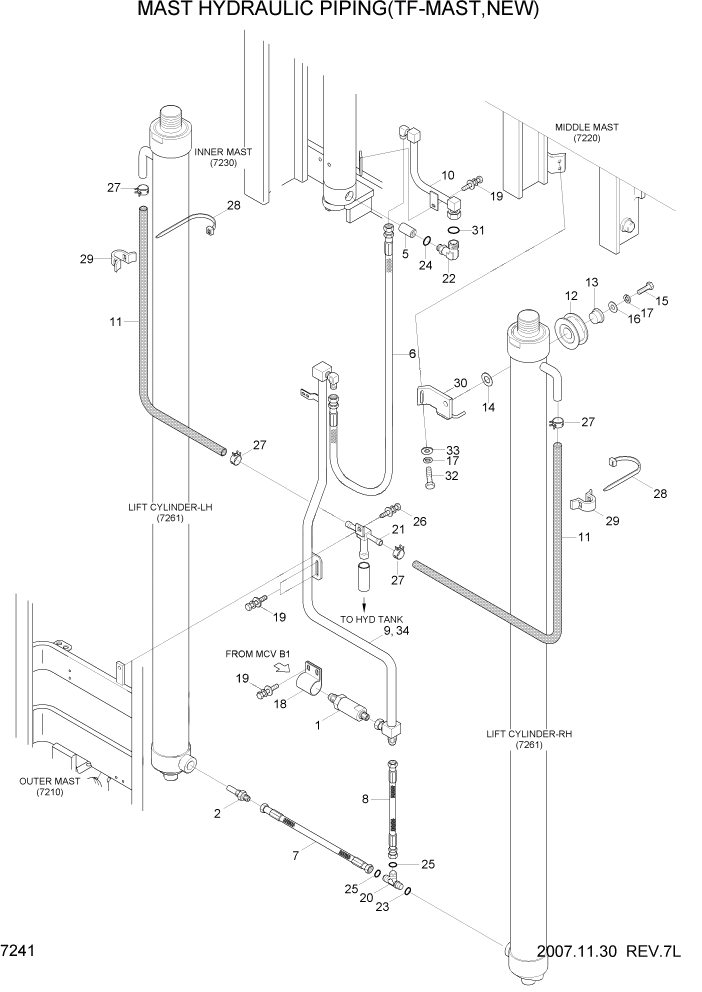

Запчасти Hyundai HBF20/HBF25/HBF30/HBF32/HBF20-7 PAGE 7241 MAST HYDRAULIC PIPING(TF-MAST,NEW) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

@

MAST HYERAULIC PIPING

NOT #0031

1шт.

*

@

MAST HYERAULIC PIPING

NOT #0098

1шт.

*

@

MAST HYERAULIC PIPING

NOT #0013

1шт.

*

@

MAST HYERAULIC PIPING

NOT #0008

1шт.

1

31FG-05000

FLOW REGULATOR

HBF20/25-7

1шт.

1

31FG-05100

VALVE-FLOW REGULATOR

HBF30/32-7

1шт.

2

31FG-05200

VALVE-VELOCITY FUSE

1шт.

5

EE19170100

DOWN SAFETY VALVE

1шт.

6

P910-104025

HOSE ASSY-ORFS 0X0

TF370,HBF20-7 #0043

1шт.

6

P910-104032

HOSE ASSY-ORFS 0X0

TF370,HBF20-7 #0044

1шт.

6

P910-104025

HOSE ASSY-ORFS 0X0

TF370,HBF25-7 #0135

1шт.

6

P910-104032

HOSE ASSY-ORFS 0X0

TF370,HBF25-7 #0136

1шт.

6

P910-104025

HOSE ASSY-ORFS 0X0

TF370,HBF30-7 #0014

1шт.

6

P910-104032

HOSE ASSY-ORFS 0X0

TF370,HBF30-7 #0015

1шт.

6

P910-104025

HOSE ASSY-ORFS 0X0

TF370,HBF32-7 #0011

1шт.

6

P910-104032

HOSE ASSY-ORFS 0X0

TF370,HBF32-7 #0012

1шт.

6

P910-104029

HOSE ASSY-ORFS 0X0

TF400,HBF20-7 #0043

1шт.

6

P910-104034

HOSE ASSY-ORFS 0X0

TF400,HBF20-7 #0044

1шт.

6

P910-104029

HOSE ASSY-ORFS 0X0

TF400,HBF25-7 #0135

1шт.

6

P910-104034

HOSE ASSY-ORFS 0X0

TF400,HBF25-7 #0136

1шт.

6

P910-104029

HOSE ASSY-ORFS 0X0

TF400,HBF30-7 #0014

1шт.

6

P910-104034

HOSE ASSY-ORFS 0X0

TF400,HBF30-7 #0015

1шт.

6

P910-104029

HOSE ASSY-ORFS 0X0

TF400,HBF32-7 #0011

1шт.

6

P910-104034

HOSE ASSY-ORFS 0X0

TF400,HBF32-7 #0012

1шт.

6

P910-104033

HOSE ASSY-ORFS 0X0

TF430,HBF20-7 #0043

1шт.

6

P910-104036

HOSE ASSY-ORFS 0X0

TF430,HBF20-7 #0044

1шт.

6

P910-104033

HOSE ASSY-ORFS 0X0

TF430,HBF25-7 #0135

1шт.

6

P910-104036

HOSE ASSY-ORFS 0X0

TF430,HBF25-7 #0136

1шт.

6

P910-104033

HOSE ASSY-ORFS 0X0

TF430,HBF30-7 #0014

1шт.

6

P910-104036

HOSE ASSY-ORFS 0X0

TF430,HBF30-7 #0015

1шт.

6

P910-104033

HOSE ASSY-ORFS 0X0

TF430,HBF32-7 #0011

1шт.

6

P910-104036

HOSE ASSY-ORFS 0X0

TF430,HBF32-7 #0012

1шт.

6

P910-104036

HOSE ASSY-ORFS 0X0

TF450,HBF20-7 #0043

1шт.

6

P910-104038

HOSE ASSY-ORFS 0X0

TF450,HBF20-7 #0044

1шт.

6

P910-104036

HOSE ASSY-ORFS 0X0

TF450,HBF25-7 #0135

1шт.

6

P910-104038

HOSE ASSY-ORFS 0X0

TF450,HBF25-7 #0136

1шт.

6

P910-104036

HOSE ASSY-ORFS 0X0

TF450,HBF30-7 #0014

1шт.

6

P910-104038

HOSE ASSY-ORFS 0X0

TF450,HBF30-7 #0015

1шт.

6

P910-104036

HOSE ASSY-ORFS 0X0

TF450,HBF32-7 #0011

1шт.

6

P910-104038

HOSE ASSY-ORFS 0X0

TF450,HBF32-7 #0012

1шт.

6

P910-104038

HOSE ASSY-ORFS 0X0

TF470,HBF20-7 #0043

1шт.

6

P910-104039

HOSE ASSY-ORFS 0X0

TF470,HBF20-7 #0044

1шт.

6

P910-104038

HOSE ASSY-ORFS 0X0

TF470,HBF25-7 #0135

1шт.

6

P910-104039

HOSE ASSY-ORFS 0X0

TF470,HBF25-7 #0136

1шт.

6

P910-104038

HOSE ASSY-ORFS 0X0

TF470,HBF30-7 #0014

1шт.

6

P910-104039

HOSE ASSY-ORFS 0X0

TF470,HBF30-7 #0015

1шт.

6

P910-104038

HOSE ASSY-ORFS 0X0

TF470,HBF32-7 #0011

1шт.

6

P910-104039

HOSE ASSY-ORFS 0X0

TF470,HBF32-7 #0012

1шт.

6

P910-104042

HOSE ASSY-ORFS 0X0

TF500,HBF20-7 #0043

1шт.

6

P910-104041

HOSE ASSY-ORFS 0X0

TF500,HBF20-7 #0044

1шт.

6

P910-104042

HOSE ASSY-ORFS 0X0

TF500,HBF25-7 #0135

1шт.

6

P910-104041

HOSE ASSY-ORFS 0X0

TF500,HBF25-7 #0136

1шт.

6

P910-104042

HOSE ASSY-ORFS 0X0

TF500,HBF30-7 #0014

1шт.

6

P910-104041

HOSE ASSY-ORFS 0X0

TF500,HBF30-7 #0015

1шт.

6

P910-104042

HOSE ASSY-ORFS 0X0

TF500,HBF32-7 #0011

1шт.

6

P910-104041

HOSE ASSY-ORFS 0X0

TF500,HBF32-7 #0012

1шт.

6

P910-104050

HOSE ASSY-ORFS 0X0

TF550,HBF20-7 #0043

1шт.

6

P910-104045

HOSE ASSY-ORFS 0X0

TF550,HBF20-7 #0044

1шт.

6

P910-104050

HOSE ASSY-ORFS 0X0

TF550,HBF25-7 #0135

1шт.

6

P910-104045

HOSE ASSY-ORFS 0X0

TF550,HBF25-7 #0136

1шт.

6

P910-104050

HOSE ASSY-ORFS 0X0

TF550,HBF30-7 #0014

1шт.

6

P910-104045

HOSE ASSY-ORFS 0X0

TF550,HBF30-7 #0015

1шт.

6

P910-104050

HOSE ASSY-ORFS 0X0

TF550,HBF32-7 #0011

1шт.

6

P910-104045

HOSE ASSY-ORFS 0X0

TF550,HBF32-7 #0012

1шт.

6

P910-104058

HOSE ASSY-ORFS 0X0

TF600,HBF20-7 #0043

1шт.

6

P910-104049

HOSE ASSY-ORFS 0X0

TF600,HBF20-7 #0044

1шт.

6

P910-104058

HOSE ASSY-ORFS 0X0

TF600,HBF25-7 #0135

1шт.

6

P910-104049

HOSE ASSY-ORFS 0X0

TF600,HBF25-7 #0136

1шт.

6

P910-104058

HOSE ASSY-ORFS 0X0

TF600,HBF30-7 #0014

1шт.

6

P910-104049

HOSE ASSY-ORFS 0X0

TF600,HBF30-7 #0015

1шт.

6

P910-104058

HOSE ASSY-ORFS 0X0

TF600,HBF32-7 #0011

1шт.

6

P910-104049

HOSE ASSY-ORFS 0X0

TF600,HBF32-7 #0012

1шт.

6

P910-104065

HOSE ASSY-ORFS 0X0

TF650,HBF20-7 #0043

1шт.

6

P910-104053

HOSE ASSY-ORFS 0X0

TF650,HBF20-7 #0044

1шт.

6

P910-104065

HOSE ASSY-ORFS 0X0

TF650,HBF25-7 #0135

1шт.

6

P910-104053

HOSE ASSY-ORFS 0X0

TF650,HBF25-7 #0136

1шт.

6

P910-104065

HOSE ASSY-ORFS 0X0

TF650,HBF30-7 #0014

1шт.

6

P910-104053

HOSE ASSY-ORFS 0X0

TF650,HBF30-7 #0015

1шт.

6

P910-104065

HOSE ASSY-ORFS 0X0

TF650,HBF32-7 #0011

1шт.

6

P910-104053

HOSE ASSY-ORFS 0X0

TF650,HBF32-7 #0012

1шт.

6

P910-104073

HOSE ASSY-ORFS 0X0

TF700,HBF20-7 #0043

1шт.

6

P910-104057

HOSE ASSY-ORFS 0X0

TF700,HBF20-7 #0044

1шт.

6

P910-104073

HOSE ASSY-ORFS 0X0

TF700,HBF25-7 #0135

1шт.

6

P910-104057

HOSE ASSY-ORFS 0X0

TF700,HBF25-7 #0136

1шт.

6

P910-104073

HOSE ASSY-ORFS 0X0

TF700,HBF30-7 #0014

1шт.

6

P910-104057

HOSE ASSY-ORFS 0X0

TF700,HBF30-7 #0015

1шт.

6

P910-104073

HOSE ASSY-ORFS 0X0

TF700,HBF32-7 #0011

1шт.

6

P910-104057

HOSE ASSY-ORFS 0X0

TF700,HBF32-7 #0012

1шт.

7

34FG-84010

HOSE ASSY-ORFS 0X0

1шт.

8

33FG-83000

HOSE ASSY

1шт.

9

34FG-81001

PIPE WA

TF370

1шт.

9

34FG-81011

PIPE WA

TF400

1шт.

9

34FG-81021

PIPE WA

TF430

1шт.

9

34FG-81031

PIPE WA

TF450

1шт.

9

34FG-81041

PIPE WA

TF470

1шт.

9

34FG-81051

PIPE WA

TF500,HBF20-7 #0043

1шт.

9

34FG-85050

PIPE WA

TF500,HBF20-7 #0044

1шт.

9

34FG-81051

PIPE WA

TF500,HBF25-7 #0135

1шт.

9

34FG-85050

PIPE WA

TF500,HBF25-7 #0136

1шт.

9

34FG-81051

PIPE WA

TF500,HBF30-7 #0014

1шт.

9

34FG-85050

PIPE WA

TF500,HBF30-7 #0016

1шт.

9

34FG-81051

PIPE WA

TF500,HBF32-7 #0011

1шт.

9

34FG-85050

PIPE WA

TF500,HBF32-7 #0012

1шт.

9

34FG-81061

PIPE WA

TF550,HBF20-7 #0043

1шт.

9

34FG-85060

PIPE WA

TF550,HBF20-7 #0044

1шт.

9

34FG-81061

PIPE WA

TF550,HBF25-7 #0135

1шт.

9

34FG-85060

PIPE WA

TF550,HBF25-7 #0136

1шт.

9

34FG-81061

PIPE WA

TF550,HBF30-7 #0014

1шт.

9

34FG-85060

PIPE WA

TF550,HBF30-7 #0015

1шт.

9

34FG-81061

PIPE WA

TF550,HBF32-7 #0011

1шт.

9

34FG-85060

PIPE WA

TF550,HBF32-7 #0012

1шт.

9

34FG-81071

PIPE WA

TF600,HBF20-7 #0043

1шт.

9

34FG-85070

PIPE WA

TF600,HBF20-7 #0044

1шт.

9

34FG-81071

PIPE WA

TF600,HBF25-7 #0135

1шт.

9

34FG-85070

PIPE WA

TF600,HBF25-7 #0136

1шт.

9

34FG-81071

PIPE WA

TF600,HBF30-7 #0014

1шт.

9

34FG-85070

PIPE WA

TF600,HBF30-7 #0015

1шт.

9

34FG-81071

PIPE WA

TF600,HBF32-7 #0011

1шт.

9

34FG-85070

PIPE WA

TF600,HBF32-7 #0012

1шт.

9

34FG-81081

PIPE WA

TF650,HBF20-7 #0043

1шт.

9

34FG-85080

PIPE WA

TF650,HBF20-7 #0044

1шт.

9

34FG-81081

PIPE WA

TF650,HBF25-7 #0135

1шт.

9

34FG-85080

PIPE WA

TF650,HBF25-7 #0136

1шт.

9

34FG-81081

PIPE WA

TF650,HBF30-7 #0014

1шт.

9

34FG-85080

PIPE WA

TF650,HBF30-7 #0015

1шт.

9

34FG-81081

PIPE WA

TF650,HBF32-7 #0011

1шт.

9

34FG-85080

PIPE WA

TF650,HBF32-7 #0012

1шт.

9

34FG-81091

PIPE WA

TF700,HBF20-7 #0043

1шт.

9

34FG-85090

PIPE WA

TF700,HBF20-7 #0044

1шт.

9

34FG-81091

PIPE WA

TF700,HBF25-7 #0135

1шт.

9

34FG-85090

PIPE WA

TF700,HBF25-7 #0136

1шт.

9

34FG-81091

PIPE WA

TF700,HBF30-7 #0014

1шт.

9

34FG-85090

PIPE WA

TF700,HBF30-7 #0015

1шт.

9

34FG-81091

PIPE WA

TF700,HBF32-7 #0011

1шт.

9

34FG-85090

PIPE WA

TF700,HBF32-7 #0012

1шт.

10

34FG-82001

PIPE WA

HBF20-7 #0043

1шт.

10

34FG-82002

PIPE WA

HBF20-7 #0044

1шт.

10

34FG-82001

PIPE WA

HBF25-7 #0135

1шт.

10

34FG-82002

PIPE WA

HBF25-7 #0136

1шт.

10

34FG-82001

PIPE WA

HBF30-7 #0014

1шт.

10

34FG-82002

PIPE WA

HBF30-7 #0015

1шт.

10

34FG-82001

PIPE WA

HBF32-7 #0011

1шт.

10

34FG-82002

PIPE WA

HBF32-7 #0012

1шт.

11

P760-013075

HOSE-RUBBER LOW

TF370

2шт.

11

P760-013085

HOSE-RUBBER LOW

TF400

2шт.

11

P760-013095

HOSE-RUBBER LOW

TF430

2шт.

11

P760-013105

HOSE-RUBBER LOW

TF450

2шт.

11

P760-013110

HOSE-RUBBER LOW

TF470

2шт.

11

P760-013120

HOSE-RUBBER LOW

TF500

2шт.

11

P760-013140

HOSE-RUBBER LOW

TF550

2шт.

11

P760-013160

HOSE-RUBBER LOW

TF600

2шт.

11

P760-013180

HOSE-RUBBER LOW

TF650

2шт.

11

P760-013200

HOSE-RUBBER LOW

TF700

2шт.

12

FMB0200610

PULLEY-HOSE

1шт.

13

S731-020025

BUSHING-DU

1шт.

14

FMB0201150

PIN-HOSE PULLEY

1шт.

15

S017-100552

BOLT-HEX

1шт.

16

232110000

WASHER

1шт.

17

S411-100002

WASHER-SPRING

HBF20-7 #0043

1шт.

17

S411-100002

WASHER-SPRING

HBF20-7 #0044

3шт.

17

S411-100002

WASHER-SPRING

HBF25-7 #0135

1шт.

17

S411-100002

WASHER-SPRING

HBF25-7 #0136

3шт.

17

S411-100002

WASHER-SPRING

HBF30-7 #0014

1шт.

17

S411-100002

WASHER-SPRING

HBF30-7 #0015

3шт.

17

S411-100002

WASHER-SPRING

HBF32-7 #0011

1шт.

17

S411-100002

WASHER-SPRING

HBF32-7 #0012

3шт.

18

F12500182

CLAMP-F/REG

1шт.

19

S035-082032

BOLT-W/WASHER

7шт.

20

X820-085353

TEE-R/TYPE,ORFS

1шт.

21

31FG-80501

TEE-RETURN

1шт.

22

X520-110023

ELBOW-90,ORFS

1шт.

23

S631-018004

O-RING

1шт.

24

S631-024004

O-RING

1шт.

25

S621-014001

O-RING

2шт.

26

S037-102022

BOLT-W/WASHER

HBF20-7 #0043

3шт.

26

S037-102022

BOLT-W/WASHER

HBF20-7 #0044

1шт.

26

S037-102022

BOLT-W/WASHER

HBF25-7 #0135

3шт.

26

S037-102022

BOLT-W/WASHER

HBF25-7 #0136

1шт.

26

S037-102022

BOLT-W/WASHER

HBF30-7 #0014

3шт.

26

S037-102022

BOLT-W/WASHER

HBF30-7 #0015

1шт.

26

S037-102022

BOLT-W/WASHER

HBF32-7 #0011

3шт.

26

S037-102022

BOLT-W/WASHER

HBF32-7 #0012

1шт.

27

S520-015000

CLAMP-HOSE

HBF20-7 #0246

4шт.

27

33HA-83350

CLIP-HOSE

HBF20-7 #0247

4шт.

27

S520-015000

CLAMP-HOSE

HBF25-7 #0901

4шт.

27

33HA-83350

CLIP-HOSE

HBF25-7 #0902

4шт.

27

S520-015000

CLAMP-HOSE

HBF30-7 #0202

4шт.

27

33HA-83350

CLIP-HOSE

HBF30-7 #0203

4шт.

27

S520-015000

CLAMP-HOSE

HBF32-7 #0156

4шт.

27

33HA-83350

CLIP-HOSE

HBF32-7 #0157

4шт.

28

S552-102370

CLAMP-BAND

4шт.

29

31FA-80110

CLAMP-HOSE

4шт.

30

34FG-83010

PLATE WA

HBF20-7 #0043

1шт.

30

34FG-83011

PLATE WA

HBF20-7 #0044

1шт.

30

34FG-83010

PLATE WA

HBF25-7 #0135

1шт.

30

34FG-83011

PLATE WA

HBF25-7 #0136

1шт.

30

34FG-83010

PLATE WA

HBF30-7 #0014

1шт.

30

34FG-83011

PLATE WA

HBF30-7 #0015

1шт.

30

34FG-83010

PLATE WA

HBF32-7 #0011

1шт.

30

34FG-83011

PLATE WA

HBF32-7 #0012

1шт.

31

S621-016001

O-RING

1шт.

32

S017-100202

BOLT-HEX

HBF20-7 #0044

2шт.

32

S017-100202

BOLT-HEX

HBF25-7 #0136

2шт.

32

S017-100202

BOLT-HEX

HBF30-7 #0015

2шт.

32

S017-100202

BOLT-HEX

HBF32-7 #0012

2шт.

33

S441-100002

WASHER-HARDENED

HBF20-7 #0044

2шт.

33

S441-100002

WASHER-HARDENED

HBF25-7 #0136

2шт.

33

S441-100002

WASHER-HARDENED

HBF30-7 #0015

2шт.

33

S441-100002

WASHER-HARDENED

HBF32-7 #0012

2шт.

34

34FG-86000

PIPE WA

HBF20-7 #0044

1шт.

34

34FG-86000

PIPE WA

HBF25-7 #0136

1шт.

34

34FG-86000

PIPE WA

HBF30-7 #0015

1шт.

34

34FG-86000

PIPE WA

HBF32-7 #0012

1шт.
