Запчасти Hyundai HBF20/HBF25/HBF30/HBF32/HBF20-7 PAGE 7240 MAST HYDRAULIC PIPING(TF-MAST,OLD) РАБОЧЕЕ ОБОРУДОВАНИЕ

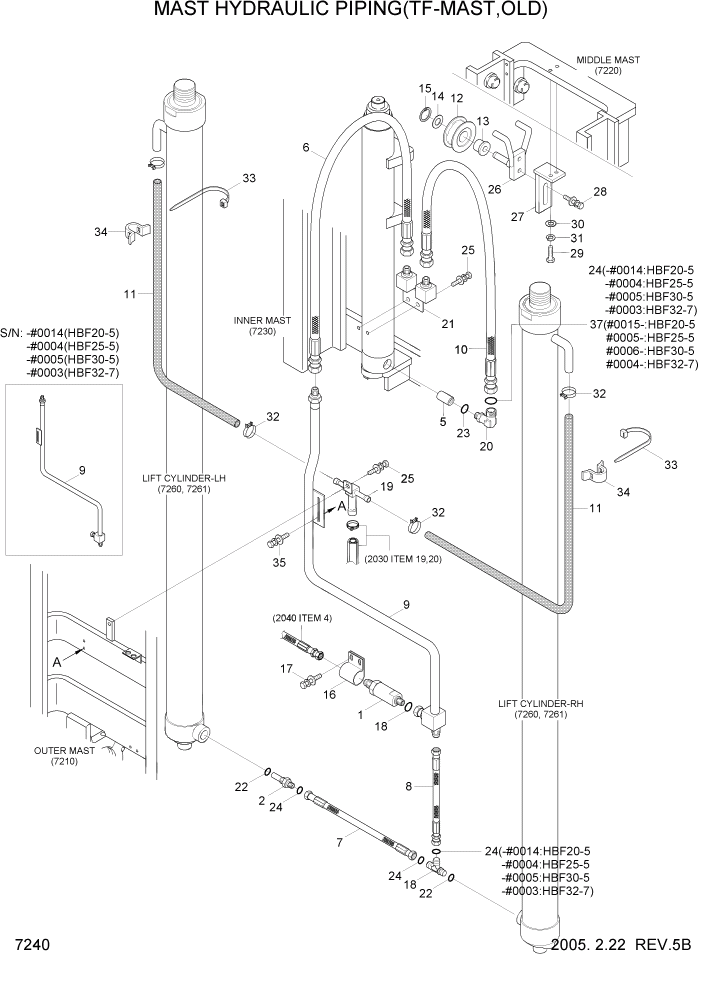

Схема запчастей Hyundai HBF20/HBF25/HBF30/HBF32/HBF20-7 - PAGE 7240 MAST HYDRAULIC PIPING(TF-MAST,OLD) РАБОЧЕЕ ОБОРУДОВАНИЕ

Артикул

Название

Примечание

Количество

*

@

MAST HYERAULIC PIPING

NOT #0030

1шт.

*

@

MAST HYERAULIC PIPING

NOT #0097

1шт.

*

@

MAST HYERAULIC PIPING

NOT #0012

1шт.

*

@

MAST HYERAULIC PIPING

NOT #0007

1шт.

1

31FG-05000

VALVE-FLOW REGULATOR

HBF20/25-7

1шт.

1

31FG-05100

VALVE-FLOW REGULATOR

HBF30/32-7

1шт.

2

31FG-05200

VALVE-VELOCITY FUSE

1шт.

5

EE19170100

DOWN SAFETY VALVE

1шт.

6

P910-084040

HOSE ASSY-ORFS 0X0

HBF20-7,TF370 #0014

1шт.

6

P910-104040

HOSE ASSY-ORFS 0X0

HBF20-7,TF370 #0015

1шт.

6

P910-084040

HOSE ASSY-ORFS 0X0

HBF25-7,TF370 #0004

1шт.

6

P910-104040

HOSE ASSY-ORFS 0X0

HBF25-7,TF370 #0005

1шт.

6

P910-084040

HOSE ASSY-ORFS 0X0

HBF30-7,TF370 #0005

1шт.

6

P910-104040

HOSE ASSY-ORFS 0X0

HBF30-7,TF370 #0006

1шт.

6

P910-104040

HOSE ASSY-ORFS 0X0

HBF32-7,TF370 #0003

1шт.

6

P910-104040

HOSE ASSY-ORFS 0X0

HBF32-7,TF370 #0004

1шт.

6

P910-084044

HOSE ASSY-ORFS 0X0

HBF20-7,TF400 #0014

1шт.

6

P910-104044

HOSE ASSY-ORFS 0X0

HBF20-7,TF400 #0015

1шт.

6

P910-084044

HOSE ASSY-ORFS 0X0

HBF25-7,TF400 #0004

1шт.

6

P910-104044

HOSE ASSY-ORFS 0X0

HBF25-7,TF400 #0005

1шт.

6

P910-084044

HOSE ASSY-ORFS 0X0

HBF30-7,TF400 #0005

1шт.

6

P910-104044

HOSE ASSY-ORFS 0X0

HBF30-7,TF400 #0006

1шт.

6

P910-104044

HOSE ASSY-ORFS 0X0

HBF32-7,TF400 #0003

1шт.

6

P910-104044

HOSE ASSY-ORFS 0X0

HBF32-7,TF400 #0004

1шт.

6

P910-084048

HOSE ASSY-ORFS 0X0

HBF20-7,TF430 #0014

1шт.

6

P910-104048

HOSE ASSY-ORFS 0X0

HBF20-7,TF430 #0015

1шт.

6

P910-084048

HOSE ASSY-ORFS 0X0

HBF25-7,TF430 #0004

1шт.

6

P910-104048

HOSE ASSY-ORFS 0X0

HBF25-7,TF430 #0005

1шт.

6

P910-084048

HOSE ASSY-ORFS 0X0

HBF30-7,TF430 #0005

1шт.

6

P910-104048

HOSE ASSY-ORFS 0X0

HBF30-7,TF430 #0006

1шт.

6

P910-104048

HOSE ASSY-ORFS 0X0

HBF32-7,TF430 #0003

1шт.

6

P910-104048

HOSE ASSY-ORFS 0X0

HBF32-7,TF430 #0004

1шт.

6

P910-084051

HOSE ASSY-ORFS 0X0

HBF20-7,TF450 #0014

1шт.

6

P910-104051

HOSE ASSY-ORFS 0X0

HBF20-7,TF450 #0015

1шт.

6

P910-084051

HOSE ASSY-ORFS 0X0

HBF25-7,TF450 #0004

1шт.

6

P910-104051

HOSE ASSY-ORFS 0X0

HBF25-7,TF450 #0005

1шт.

6

P910-084051

HOSE ASSY-ORFS 0X0

HBF30-7,TF450 #0005

1шт.

6

P910-104051

HOSE ASSY-ORFS 0X0

HBF30-7,TF450 #0006

1шт.

6

P910-104051

HOSE ASSY-ORFS 0X0

HBF32-7,TF450 #0003

1шт.

6

P910-104051

HOSE ASSY-ORFS 0X0

HBF32-7,TF450 #0004

1шт.

6

P910-084053

HOSE ASSY-ORFS 0X0

HBF20-7,TF470 #0014

1шт.

6

P910-104053

HOSE ASSY-ORFS 0X0

HBF20-7,TF470 #0015

1шт.

6

P910-084053

HOSE ASSY-ORFS 0X0

HBF25-7,TF470 #0004

1шт.

6

P910-104053

HOSE ASSY-ORFS 0X0

HBF25-7,TF470 #0005

1шт.

6

P910-084053

HOSE ASSY-ORFS 0X0

HBF30-7,TF470 #0005

1шт.

6

P910-104053

HOSE ASSY-ORFS 0X0

HBF30-7,TF470 #0006

1шт.

6

P910-104053

HOSE ASSY-ORFS 0X0

HBF32-7,TF470 #0003

1шт.

6

P910-104053

HOSE ASSY-ORFS 0X0

HBF32-7,TF470 #0004

1шт.

6

P910-084057

HOSE ASSY-ORFS 0X0

HBF20-7,TF500 #0014

1шт.

6

P910-104057

HOSE ASSY-ORFS 0X0

HBF20-7,TF500 #0015

1шт.

6

P910-084057

HOSE ASSY-ORFS 0X0

HBF25-7,TF500 #0004

1шт.

6

P910-104057

HOSE ASSY-ORFS 0X0

HBF25-7,TF500 #0005

1шт.

6

P910-084057

HOSE ASSY-ORFS 0X0

HBF30-7,TF500 #0005

1шт.

6

P910-104057

HOSE ASSY-ORFS 0X0

HBF30-7,TF500 #0006

1шт.

6

P910-104057

HOSE ASSY-ORFS 0X0

HBF32-7,TF500 #0003

1шт.

6

P910-104057

HOSE ASSY-ORFS 0X0

HBF32-7,TF500 #0004

1шт.

6

P910-084065

HOSE ASSY-ORFS 0X0

HBF20-7,TF550 #0014

1шт.

6

P910-104065

HOSE ASSY-ORFS 0X0

HBF20-7,TF550 #0015

1шт.

6

P910-084065

HOSE ASSY-ORFS 0X0

HBF25-7,TF550 #0004

1шт.

6

P910-104065

HOSE ASSY-ORFS 0X0

HBF25-7,TF550 #0005

1шт.

6

P910-084065

HOSE ASSY-ORFS 0X0

HBF30-7,TF550 #0005

1шт.

6

P910-104065

HOSE ASSY-ORFS 0X0

HBF30-7,TF550 #0006

1шт.

6

P910-104065

HOSE ASSY-ORFS 0X0

HBF32-7,TF550 #0003

1шт.

6

P910-104065

HOSE ASSY-ORFS 0X0

HBF32-7,TF550 #0004

1шт.

6

P910-084073

HOSE ASSY-ORFS 0X0

HBF20-7,TF600 #0014

1шт.

6

P910-104073

HOSE ASSY-ORFS 0X0

HBF20-7,TF600 #0015

1шт.

6

P910-084073

HOSE ASSY-ORFS 0X0

HBF25-7,TF600 #0004

1шт.

6

P910-104073

HOSE ASSY-ORFS 0X0

HBF25-7,TF600 #0005

1шт.

6

P910-084073

HOSE ASSY-ORFS 0X0

HBF30-7,TF600 #0005

1шт.

6

P910-104073

HOSE ASSY-ORFS 0X0

HBF30-7,TF600 #0006

1шт.

6

P910-084073

HOSE ASSY-ORFS 0X0

HBF32-7,TF600 #0003

1шт.

6

P910-104073

HOSE ASSY-ORFS 0X0

HBF32-7,TF600 #0004

1шт.

6

P910-084080

HOSE ASSY-ORFS 0X0

HBF20-7,TF650 #0014

1шт.

6

P910-104080

HOSE ASSY-ORFS 0X0

HBF20-7,TF650 #0015

1шт.

6

P910-084080

HOSE ASSY-ORFS 0X0

HBF25-7,TF650 #0004

1шт.

6

P910-104080

HOSE ASSY-ORFS 0X0

HBF25-7,TF650 #0005

1шт.

6

P910-084080

HOSE ASSY-ORFS 0X0

HBF30-7,TF650 #0005

1шт.

6

P910-104080

HOSE ASSY-ORFS 0X0

HBF30-7,TF650 #0006

1шт.

6

P910-084080

HOSE ASSY-ORFS 0X0

HBF32-7,TF650 #0003

1шт.

6

P910-104080

HOSE ASSY-ORFS 0X0

HBF32-7,TF650 #0004

1шт.

6

P910-084088

HOSE ASSY-ORFS 0X0

HBF20-7,TF700 #0014

1шт.

6

P910-104088

HOSE ASSY-ORFS 0X0

HBF20-7,TF700 #0015

1шт.

6

P910-084088

HOSE ASSY-ORFS 0X0

HBF25-7,TF700 #0004

1шт.

6

P910-104088

HOSE ASSY-ORFS 0X0

HBF25-7,TF700 #0005

1шт.

6

P910-084088

HOSE ASSY-ORFS 0X0

HBF30-7,TF700 #0005

1шт.

6

P910-104088

HOSE ASSY-ORFS 0X0

HBF30-7,TF700 #0006

1шт.

6

P910-084088

HOSE ASSY-ORFS 0X0

HBF32-7,TF700 #0003

1шт.

6

P910-104088

HOSE ASSY-ORFS 0X0

HBF32-7,TF700 #0004

1шт.

7

31FG-80100

HOSE ASSY

1шт.

8

33FG-83000

HOSE ASSY

1шт.

9

33FG-81000

PIPE WA

HBF20-7 #0014

1шт.

9

33FG-81001

PIPE WA

HBF20-7 #0015

1шт.

9

33FG-81000

PIPE WA

HBF25-7 #0004

1шт.

9

33FG-81001

PIPE WA

HBF25-7 #0005

1шт.

9

33FG-81000

PIPE WA

HBF30-7 #0005

1шт.

9

33FG-81001

PIPE WA

HBF30-7 #0006

1шт.

9

33FG-81000

PIPE WA

HBF32-7 #0003

1шт.

9

33FG-81001

PIPE WA

HBF32-7 #0004

1шт.

10

P910-084011

HOSE ASSY-ORFS 0X0

HBF20-7 #0014

1шт.

10

P910-104011

HOSE ASSY-ORFS 0X0

HBF20-7 #0015

1шт.

10

P910-084011

HOSE ASSY-ORFS 0X0

HBF25-7 #0004

1шт.

10

P910-104011

HOSE ASSY-ORFS 0X0

HBF25-7 #0005

1шт.

10

P910-084011

HOSE ASSY-ORFS 0X0

HBF30-7 #0005

1шт.

10

P910-104011

HOSE ASSY-ORFS 0X0

HBF30-7 #0006

1шт.

10

P910-084011

HOSE ASSY-ORFS 0X0

HBF32-7 #0003

1шт.

10

P910-104011

HOSE ASSY-ORFS 0X0

HBF32-7 #0004

1шт.

11

P760-013075

HOSE-RUBBER LOW

TF370

2шт.

11

P760-013085

HOSE-RUBBER LOW

TF400

2шт.

11

P760-013095

HOSE-RUBBER LOW

TF430

2шт.

11

P760-013105

HOSE-RUBBER LOW

TF450

2шт.

11

P760-013110

HOSE-RUBBER LOW

TF470

2шт.

11

P760-013120

HOSE-RUBBER LOW

TF500

2шт.

11

P760-013140

HOSE-RUBBER LOW

TF550

2шт.

11

P760-013160

HOSE-RUBBER LOW

TF600

2шт.

11

P760-013180

HOSE-RUBBER LOW

TF650

2шт.

11

P760-013200

HOSE-RUBBER LOW

TF700

2шт.

12

FMB0200610

PULLEY-HOSE

1шт.

13

S731-020025

DU BUSH

1шт.

14

FMC0200060

WASHER

1шт.

15

S601-020004

RING-RETAINING

1шт.

16

F12500182

CLAMP-F/REG

1шт.

17

S035-082032

BOLT-W/WASHER

NOT USED

2шт.

18

X820-085353

TEE-R/TYPE,ORFS

1шт.

19

31FG-80500

TEE-RETURN

1шт.

20

X520-110016

ELBOW-90,ORFS

HBF20-7 #0014

1шт.

20

X520-110023

ELBOW-90,ORFS

HBF20-7 #0015

1шт.

20

X520-110016

ELBOW-90,ORFS

HBF25-7 #0004

1шт.

20

X520-110023

ELBOW-90,ORFS

HBF25-7 #0005

1шт.

20

X520-110016

ELBOW-90,ORFS

HBF30-7 #0005

1шт.

20

X520-110023

ELBOW-90,ORFS

HBF30-7 #0006

1шт.

20

X520-110016

ELBOW-90,ORFS

HBF32-7 #0003

1шт.

20

X520-110023

ELBOW-90,ORFS

HBF32-7 #0004

1шт.

21

33FJ-80120

ELBOW WA

HBF20-7 #0014

1шт.

21

33FJ-80121

ELBOW WA

HBF20-7 #0015

1шт.

21

33FJ-80120

ELBOW WA

HBF25-7 #0004

1шт.

21

33FJ-80121

ELBOW WA

HBF25-7 #0005

1шт.

21

33FJ-80120

ELBOW WA

HBF30-7 #0005

1шт.

21

33FJ-80121

ELBOW WA

HBF30-7 #0006

1шт.

21

33FJ-80120

ELBOW WA

HBF32-7 #0003

1шт.

21

33FJ-80121

ELBOW WA

HBF32-7 #0004

1шт.

22

S631-018004

O-RING

2шт.

23

S631-024004

O-RING

1шт.

24

S621-014001

O-RING,ORFS

6шт.

25

S037-102022

BOLT-W/WASHER

3шт.

26

6600343200B-01

BRACKET

1шт.

27

33FK-80220

BRACKET WA

1шт.

28

S037-123522

BOLT-W/WASHER

2шт.

29

S017-120502

BOLT-HEX

2шт.

30

S403-121002

WASHER-PLAIN

2шт.

31

S411-120002

WASHER-SPRING

2шт.

32

S520-015000

CLAMP-HOSE

4шт.

33

S552-102370

CLAMP-HOSE

4шт.

34

31FA-80110

CLAMP-HOSE

#0014

4шт.

35

S035-082522

BOLT-W/WASHER

HBF20-7 #0015

2шт.

35

S035-082032

BOLT-W/WASHER

HBF20-7 #0004

4шт.

35

S035-082522

BOLT-W/WASHER

HBF25-7 #0005

2шт.

35

S035-082032

BOLT-W/WASHER

HBF25-7 #0005

4шт.

35

S035-082522

BOLT-W/WASHER

HBF30-7 #0006

2шт.

35

S035-082032

BOLT-W/WASHER

HBF30-7 #0003

4шт.

35

S035-082522

BOLT-W/WASHER

HBF32-7 #0004

2шт.

35

S035-082032

BOLT-W/WASHER

HBF32-7

4шт.

37

S621-016001

O-RING,ORFS

HBF20-7 #0015

1шт.

37

S621-016001

O-RING,ORFS

HBF25-7 #0005

1шт.

37

S621-016001

O-RING,ORFS

HBF30-7 #0006

1шт.

37

S621-016001

O-RING,ORFS

HBF32-7 #0004

1шт.

Выбрано товаров: 165
