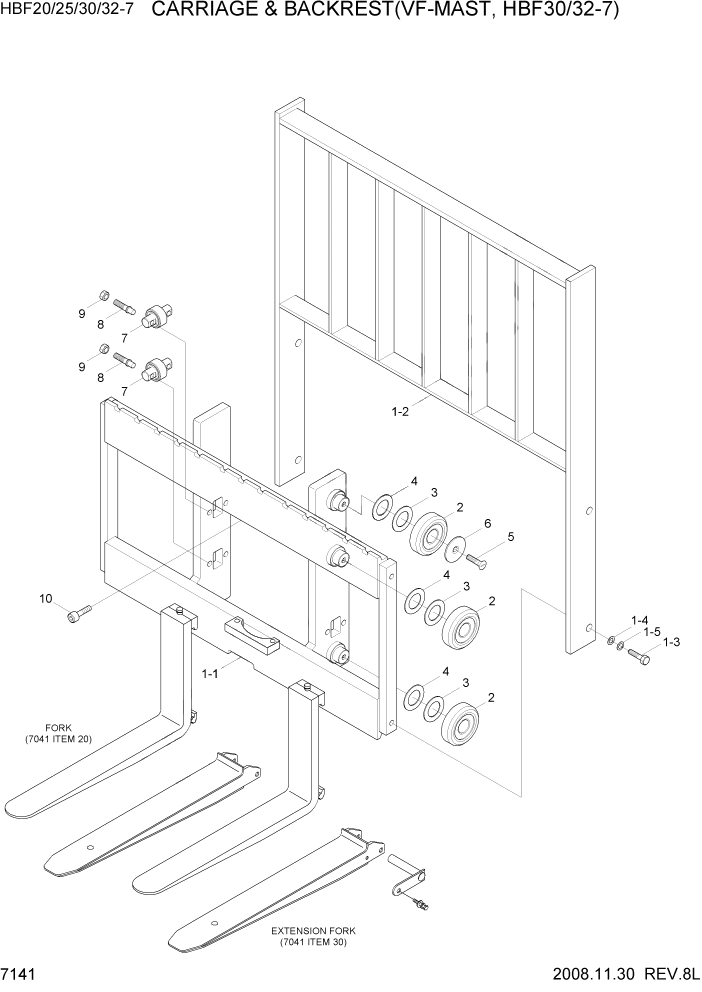

Запчасти Hyundai HBF20/HBF25/HBF30/HBF32/HBF20-7 PAGE 7141 CARRIAGE & BACKREST(VF-MAST,HBF30/32-7) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

62FG-28050

CARR & BACKREST ASSY

#0001

1шт.

1

62FG-26050

CARR & BACKREST ASSY

1шт.

1-1

62FG-22050

CARRIAGE WA

1шт.

1-2

61FG-24430

BACKREST WA

1шт.

1-3

S107-160352

BOLT-SOCKET

4шт.

1-4

S403-163002

WASHER-PLAIN

4шт.

1-5

S411-160002

WASHER-SPRING

4шт.

2

6600181100-01

BEARING-ROLLER

HBF30-7 #0236

6шт.

2

63HK-18100

LOAD R/BRG ASSY

HBF30-7,STD #0237

6шт.

2

63HK-18110

LOAD R/BRG ASSY(117.2)

30,UNDERSIZE #0237

6шт.

2

63HK-18120

LOAD R/BRG ASSY(117.8)

30,OVERSIZE #0237

6шт.

2

63HK-18130

LOAD R/BRG ASSY(116.9)

30,SMALLSIZE #0237

6шт.

2

6600181100-01

BEARING-ROLLER

HBF32-7 #0178

6шт.

2

63HK-18100

LOAD R/BRG ASSY

HBF32-7,STD #0179

6шт.

2

63HK-18110

LOAD R/BRG ASSY(117.2)

32,UNDERSIZE #0179

6шт.

2

63HK-18120

LOAD R/BRG ASSY(117.8)

32,OVERSIZE #0179

6шт.

2

63HK-18130

LOAD R/BRG ASSY(116.9)

32,SMALLSIZE #0179

6шт.

2

6600181100-01

BEARING-ROLLER

6шт.

3

6600187900

SHIM(0.5T)

6шт.

4

6600188000

SHIM(1.0T)

6шт.

5

61F7-28010

BOLT-FLAT HD

2шт.

6

61F7-28020

WASHER-RETAINING

2шт.

7

61F7-28100

SIDE ROLLER ASSY

4шт.

8

61F4-28040

ADJUSTABLE SCREW

8шт.

9

S205-161002

NUT-HEX

8шт.

10

S109-120306

BOLT-SOCKET

HBF30-7 #0136

1шт.

10

S109-120306

BOLT-SOCKET

HBF32-7 #0105

1шт.
