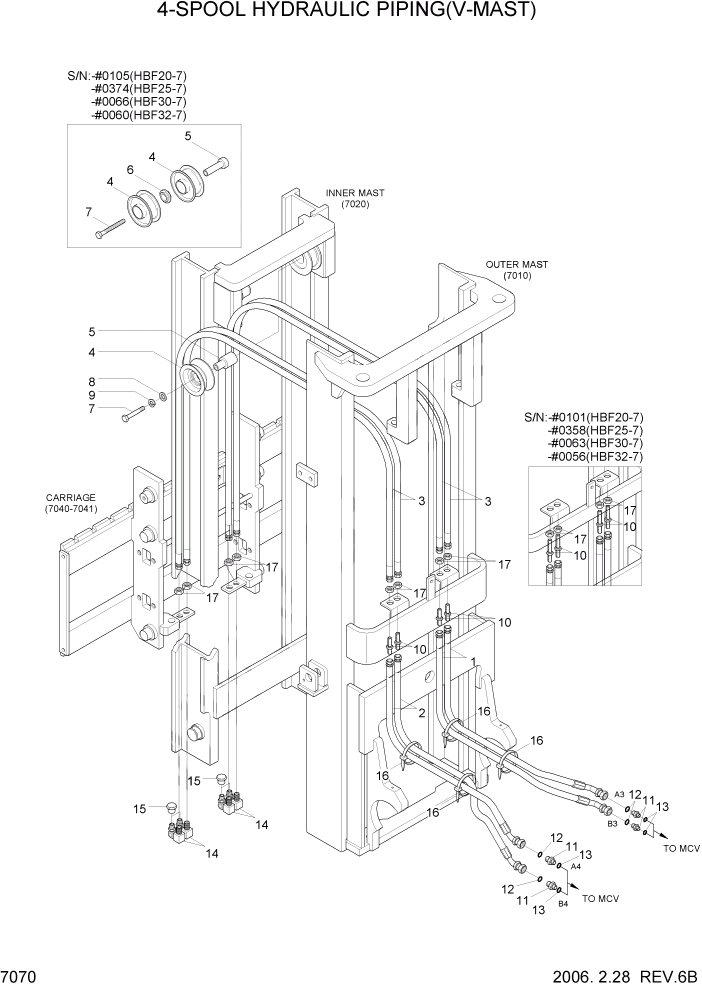

Запчасти Hyundai HBF20/HBF25/HBF30/HBF32/HBF20-7 PAGE 7070 4-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P923-064021

HOSE ASSY-ORFS 0X45

2шт.

2

P923-064025

HOSE ASSY-ORFS 0X45

2шт.

3

P910-064050

HOSE ASSY-ORFS 0X0

V290,32-7

4шт.

3

P910-064050

HOSE ASSY-ORFS 0X0

V300,20/25/30-7

4шт.

3

P910-064056

HOSE ASSY-ORFS 0X0

V320,32-7

4шт.

3

P910-064056

HOSE ASSY-ORFS 0X0

V330,20/25/30-7

4шт.

3

P910-064060

HOSE ASSY-ORFS 0X0

V340,32-7

4шт.

3

P910-064060

HOSE ASSY-ORFS 0X0

V350,20/25/30-7

4шт.

3

P910-064066

HOSE ASSY-ORFS 0X0

V370

4шт.

3

P910-064072

HOSE ASSY-ORFS 0X0

V400

4шт.

3

P910-064078

HOSE ASSY-ORFS 0X0

V430

4шт.

3

P910-064084

HOSE ASSY-ORFS 0X0

V450

4шт.

3

P910-064088

HOSE ASSY-ORFS 0X0

V470

4шт.

3

P910-064094

HOSE ASSY-ORFS 0X0

V500

4шт.

4

F42500010

PULLEY-HOSE

HBF20-7 #0105

4шт.

4

34FG-90201

PULLEY-HOSE

HBF20-7 #0106

2шт.

4

F42500010

PULLEY-HOSE

HBF25-7 #0374

4шт.

4

34FG-90201

PULLEY-HOSE

HBF25-7 #0375

2шт.

4

F42500010

PULLEY-HOSE

HBF30-7 #0066

4шт.

4

34FG-90201

PULLEY-HOSE

HBF30-7 #0067

2шт.

4

F42500010

PULLEY-HOSE

HBF32-7 #0060

4шт.

4

34FG-90201

PULLEY-HOSE

HBF32-7 #0061

2шт.

5

F42500020

PIN

HBF20-7 #0105

2шт.

5

34FG-90310

PIN-HOSE PULLEY

HBF20-7 #0106

2шт.

5

F42500020

PIN

HBF25-7 #0374

2шт.

5

34FG-90310

PIN-HOSE PULLEY

HBF25-7 #0375

2шт.

5

F42500020

PIN

HBF30-7 #0066

2шт.

5

34FG-90310

PIN-HOSE PULLEY

HBF30-7 #0067

2шт.

5

F42500020

PIN

HBF32-7 #0060

2шт.

5

34FG-90310

PIN-HOSE PULLEY

HBF32-7 #0061

2шт.

6

F42500040

COLLAR

HBF20-7 #0105

2шт.

6

F42500040

COLLAR

HBF25-7 #0374

2шт.

6

F42500040

COLLAR

HBF30-7 #0066

2шт.

6

F42500040

COLLAR

HBF32-7 #0060

2шт.

7

S017-100752

BOLT-HEX

HBF20-7 #0105

2шт.

7

S017-100602

BOLT-HEX

HBF20-7 #0106

2шт.

7

S017-100752

BOLT-HEX

HBF25-7 #0374

2шт.

7

S017-100602

BOLT-HEX

HBF25-7 #0375

2шт.

7

S017-100752

BOLT-HEX

HBF30-7 #0066

2шт.

7

S017-100602

BOLT-HEX

HBF30-7 #0067

2шт.

7

S017-100752

BOLT-HEX

HBF32-7 #0060

2шт.

7

S017-100602

BOLT-HEX

HBF32-7 #0061

2шт.

8

232110000

WASHER-PLAIN

2шт.

9

S411-100002

WASHER-SPRING

2шт.

10

31FG-80200

CONNECTOR-LONG

HBF20-7 #0101

4шт.

10

31FG-80210

CONNECTOR

HBF20-7 #0102

4шт.

10

31FG-80200

CONNECTOR-LONG

HBF25-7 #0358

4шт.

10

31FG-80210

CONNECTOR

HBF25-7 #0359

4шт.

10

31FG-80200

CONNECTOR-LONG

HBF30-7 #0063

4шт.

10

31FG-80210

CONNECTOR

HBF30-7 #0064

4шт.

10

31FG-80200

CONNECTOR-LONG

HBF32-7 #0056

4шт.

10

31FG-80210

CONNECTOR

HBF32-7 #0057

4шт.

11

X500-110002

CONNECTOR-ORFS

4шт.

12

S621-012001

O-RING

4шт.

13

S631-014001

O-RING

4шт.

14

31FS-90500

ELBOW WA

4шт.

15

X710-100103

CAP-ORFS

4шт.

16

S552-050203

CLAMP-BAND

4шт.

17

31FG-80430

NUT-HEX

HBF20-7 #0101

12шт.

17

31FG-80430

NUT-HEX

HBF20-7 #0102

8шт.

17

31FG-80430

NUT-HEX

HBF25-7 #0358

12шт.

17

31FG-80430

NUT-HEX

HBF25-7 #0359

8шт.

17

31FG-80430

NUT-HEX

HBF30-7 #0063

12шт.

17

31FG-80430

NUT-HEX

HBF30-7 #0064

8шт.

17

31FG-80430

NUT-HEX

HBF32-7 #0056

12шт.

17

31FG-80430

NUT-HEX

HBF32-7 #0057

8шт.
