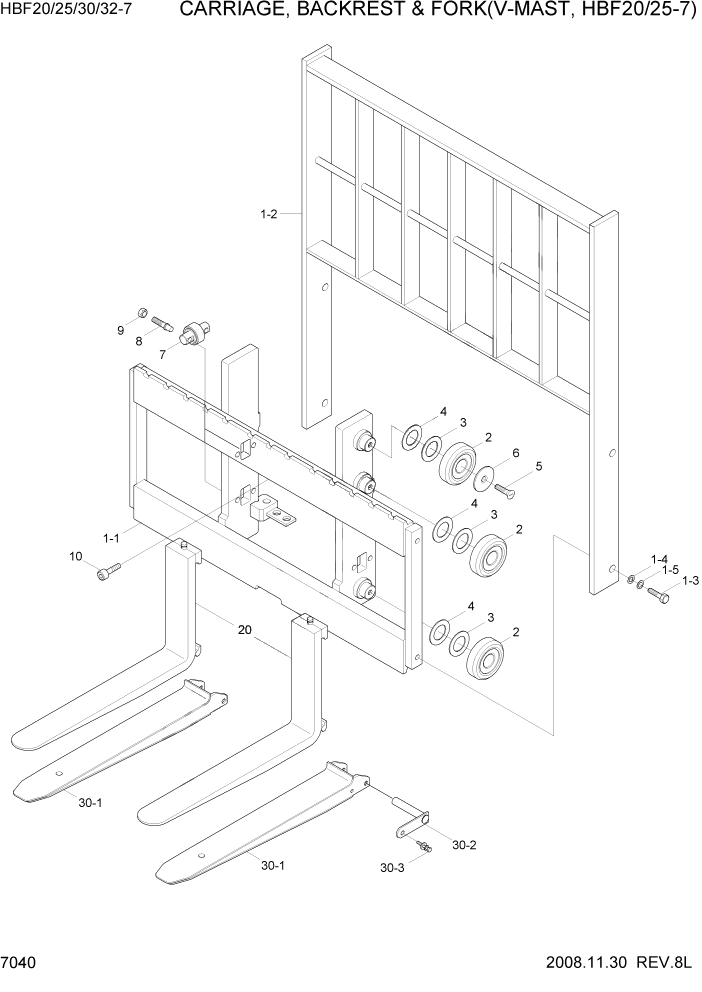

Запчасти Hyundai HBF20/HBF25/HBF30/HBF32/HBF20-7 PAGE 7040 CARR, BACKREST & FORK(V-MAST,HBF20/25-7) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

61FG-27043

CARR & BACKREST ASSY

SINGLE #0001

1шт.

1

61FG-25043

CARR & BKR SUB ASSY

1шт.

1-1

61FG-21043

CARRIAGE WA

1шт.

1-2

61FG-23430

BACKREST WA

1шт.

1-3

S017-160352

BOLT-HEX

4шт.

1-4

S403-163002

WASHER-PLAIN

4шт.

1-5

S411-160002

WASHER-SPRING

4шт.

2

6600181100-01

BEARING-ROLLER

HBF20-7 #0306

6шт.

2

63HK-18100

LOAD R/BRG ASSY

HBF20-7,STD #0307

6шт.

2

63HK-18110

LOAD R/BRG ASSY(117.2)

20,UNDERSIZE #0307

6шт.

2

63HK-18120

LOAD R/BRG ASSY(117.8)

20,OVERSIZE #0307

6шт.

2

63HK-18130

LOAD R/BRG ASSY(116.9)

20,SMALLSIZE #0307

6шт.

2

6600181100-01

BEARING-ROLLER

HBF25-7 #1045

6шт.

2

63HK-18100

LOAD R/BRG ASSY

HBF25-7,STD #1046

6шт.

2

63HK-18110

LOAD R/BRG ASSY(117.2)

25,UNDERSIZE #1046

6шт.

2

63HK-18120

LOAD R/BRG ASSY(117.8)

25,OVERSIZE #1046

6шт.

2

63HK-18130

LOAD R/BRG ASSY(116.9)

25,SMALLSIZE #1046

6шт.

2

6600181100-01

BEARING-ROLLER

HBF30-7 #0236

6шт.

2

63HK-18100

LOAD R/BRG ASSY

HBF30-7,STD #0237

6шт.

2

63HK-18110

LOAD R/BRG ASSY(117.2)

30,UNDERSIZE #0237

6шт.

2

63HK-18120

LOAD R/BRG ASSY(117.8)

30,OVERSIZE #0237

6шт.

2

63HK-18130

LOAD R/BRG ASSY(116.9)

30,SMALLSIZE #0237

6шт.

2

6600181100-01

BEARING-ROLLER

HBF32-7 #0178

6шт.

2

63HK-18100

LOAD R/BRG ASSY

HBF32-7,STD #0179

6шт.

2

63HK-18110

LOAD R/BRG ASSY(117.2)

32,UNDERSIZE #0179

6шт.

2

63HK-18120

LOAD R/BRG ASSY(117.8)

32,OVERSIZE #0179

6шт.

2

63HK-18130

LOAD R/BRG ASSY(116.9)

32,SMALLSIZE #0179

6шт.

2

6600181100-01

BEARING-ROLLER

6шт.

3

6600187900

SHIM(0.5T)

6шт.

4

6600188000

SHIM(1.0T)

6шт.

5

61F7-28010

BOLT-FLAT HD

2шт.

6

61F7-28020

WASHER-RETAINING

2шт.

7

61F7-28100

SIDE ROLLER ASSY

4шт.

8

61F4-28040

ADJUSTABLE SCREW

8шт.

9

S205-161002

NUT-HEX

8шт.

10

S109-120306

BOLT-SOCKET

HBF20-7 #0191

1шт.

10

S109-120306

BOLT-SOCKET

HBF25-7 #0657

1шт.

20

F173796-01

FORK ASSY(900)

2шт.

20

F173796-02

FORK ASSY(1050)

2шт.

20

F173796-03

FORK ASSY(1200)

2шт.

20

F173796-04

FORK ASSY(1350)

2шт.

20

F173796-05

FORK ASSY(1500)

2шт.

20

F173796-06

FORK ASSY(1650)

2шт.

20

F173796-07

FORK ASSY(1800)

2шт.

20

F173796-08

FORK ASSY(1000)

2шт.

30

69FG-82010

EXT FORK ASSY(1300)

2шт.

30

69FG-82020

EXT FORK ASSY(1500)

2шт.

30

69FG-82030

EXT FORK ASSY(1700)

2шт.

30

69FG-82040

EXT FORK ASSY(1800)

2шт.

30-1

69FG-82100

EXT FORK (1300)

1шт.

30-1

69FG-82200

EXT FORK (1500)

1шт.

30-1

69FG-82300

EXT FORK (1700)

1шт.

30-1

69FG-82400

EXT FORK (1800)

1шт.

30-2

69FJ-81500

LOCKING PIN

1шт.

30-3

S037-102022

BOLT-W/WASHER

1шт.
