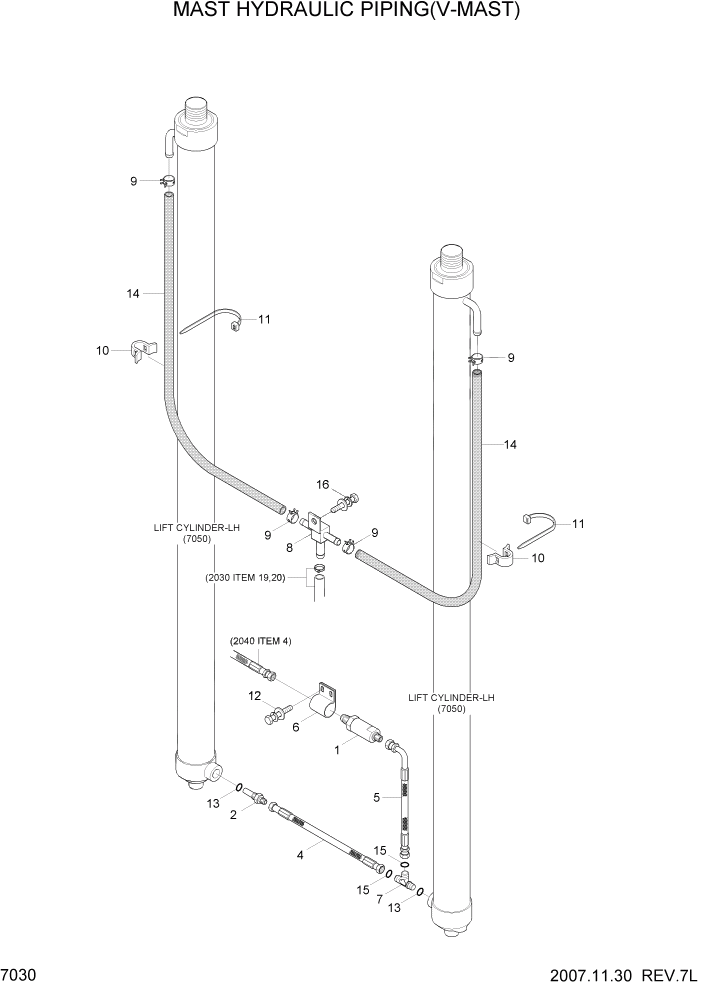

Запчасти Hyundai HBF20/HBF25/HBF30/HBF32/HBF20-7 PAGE 7030 MAST HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

31FG-05000

FLOW REGULATOR

1шт.

2

31FG-05200

VALVE-VELOCITY FUSE

1шт.

2

31FG-05200

VALVE-VELOCITY FUSE

1шт.

4

31FG-80100

HOSE ASSY

#0311

1шт.

4

31HA-82000

HOSE ASSY-ORFS 0X0

HBF20-7 #0312

1шт.

4

31FG-80100

HOSE ASSY

#1059

1шт.

4

31HA-82000

HOSE ASSY-ORFS 0X0

HBF25-7 #1060

1шт.

4

31FG-80100

HOSE ASSY

#0242

1шт.

4

31HA-82000

HOSE ASSY-ORFS 0X0

HBF30-7 #0243

1шт.

4

31FG-80100

HOSE ASSY

#0185

1шт.

4

31HA-82000

HOSE ASSY-ORFS 0X0

HBF32-7 #0186

1шт.

5

P930-084006

HOSE ASSY-ORFS 0X90

1шт.

5

31HN-80500

TEE-RETURN

1шт.

6

F12500182

CLAMP-F/REG

1шт.

7

X820-085353

TEE-R/TYPE,ORFS

#0311

1шт.

7

31HA-81000

TEE

HBF20-7 #0312

1шт.

7

X820-085353

TEE-R/TYPE,ORFS

#1059

1шт.

7

31HA-81000

TEE

HBF25-7 #1060

1шт.

7

X820-085353

TEE-R/TYPE,ORFS

#0242

1шт.

7

31HA-81000

TEE

HBF30-7 #0243

1шт.

7

X820-085353

TEE-R/TYPE,ORFS

#0185

1шт.

7

31HA-81000

TEE

HBF32-7 #0186

1шт.

8

31FG-80501

TEE-RETURN

HBF20-7 #0311

1шт.

8

31HN-80500

TEE-RETURN

HBF20-7 #0312

1шт.

8

31FG-80501

TEE-RETURN

HBF25-7 #1059

1шт.

8

31HN-80500

TEE-RETURN

HBF25-7 #1060

1шт.

8

31FG-80501

TEE-RETURN

HBF30-7 #0242

1шт.

8

31HN-80500

TEE-RETURN

HBF30-7 #0243

1шт.

8

31FG-80501

TEE-RETURN

HBF32-7 #0185

1шт.

8

31HN-80500

TEE-RETURN

HBF32-7 #0186

1шт.

9

S520-015000

CLAMP-HOSE

HBF20-7 #0246

4шт.

9

33HA-83350

CLIP-HOSE

HBF20-7 #0247 - #0310

4шт.

9

33HA-83340

HOSE-CLIP

HBF20-7 #0311

4шт.

9

S520-015000

CLAMP-HOSE

HBF25-7 #0901

4шт.

9

33HA-83350

CLIP-HOSE

HBF25-7 #0902 - #1057

4шт.

9

33HA-83340

HOSE-CLIP

HBF25-7 #1058

4шт.

9

S520-015000

CLAMP-HOSE

HBF30-7 #0202

4шт.

9

33HA-83350

CLIP-HOSE

HBF30-7 #0203 - #0240

4шт.

9

33HA-83340

HOSE-CLIP

HBF30-7 #0241

4шт.

9

S520-015000

CLAMP-HOSE

HBF32-7 #0156

4шт.

9

33HA-83350

CLIP-HOSE

HBF32-7 #0157 - #0182

4шт.

9

33HA-83340

HOSE-CLIP

HBF32-7 #0183

4шт.

10

31FA-80110

CLAMP-HOSE

4шт.

11

S552-102370

CLAMP-BAND

4шт.

12

S035-082022

BOLT-W/WASHER

2шт.

5

P930-084006

HOSE ASSY-ORFS 0X90

1шт.

14

P760-013100

HOSE-RUBBER

V300

2шт.

14

P760-013115

HOSE-RUBBER

V330

2шт.

14

P760-013125

HOSE-RUBBER

V350

2шт.

14

P760-013140

HOSE-RUBBER

V370

2шт.

14

P760-013155

HOSE-RUBBER

V400

2шт.

14

P760-013170

HOSE-RUBBER

V430

2шт.

14

P760-013185

HOSE-RUBBER

V450

2шт.

14

P760-013195

HOSE-RUBBER

V470

2шт.

14

P760-013210

HOSE-RUBBER

V500

2шт.

7

X820-085353

TEE-R/TYPE,ORFS

1шт.

16

S037-102026

BOLT-W/WASHER

1шт.

9

S520-015000

CLAMP-HOSE

HBF20-7 #0246

4шт.

9

33HA-83350

CLIP-HOSE

HBF20-7 #0247

4шт.

9

S520-015000

CLAMP-HOSE

HBF25-7 #0901

4шт.

9

33HA-83350

CLIP-HOSE

HBF25-7 #0902

4шт.

9

S520-015000

CLAMP-HOSE

HBF30-7 #0202

4шт.

9

33HA-83350

CLIP-HOSE

HBF30-7 #0203

4шт.

9

S520-015000

CLAMP-HOSE

HBF32-7 #0156

4шт.

9

33HA-83350

CLIP-HOSE

HBF32-7 #0157

4шт.

10

31FA-80110

CLAMP-HOSE

4шт.

11

S552-102370

CLAMP-BAND

4шт.

12

S035-082022

BOLT-W/WASHER

2шт.

13

S631-018004

O-RING

2шт.

14

P760-013100

HOSE-RUBBER LOW

V290,32-7

2шт.

14

P760-013100

HOSE-RUBBER

V300

2шт.

14

P760-013115

HOSE-RUBBER LOW

V320,32-7

2шт.

14

P760-013115

HOSE-RUBBER

V330

2шт.

14

P760-013125

HOSE-RUBBER LOW

V340,32-7

2шт.

14

P760-013125

HOSE-RUBBER

V350

2шт.

14

P760-013140

HOSE-RUBBER

V370

2шт.

14

P760-013155

HOSE-RUBBER

V400

2шт.

14

P760-013170

HOSE-RUBBER

V430

2шт.

14

P760-013185

HOSE-RUBBER

V450

2шт.

14

P760-013195

HOSE-RUBBER

V470

2шт.

14

P760-013210

HOSE-RUBBER

V500

2шт.

15

S621-014001

O-RING

2шт.

16

S037-102022

BOLT-W/WASHER

1шт.
