Запчасти Hyundai HBF20/HBF25/HBF30/HBF32/HBF20-7 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

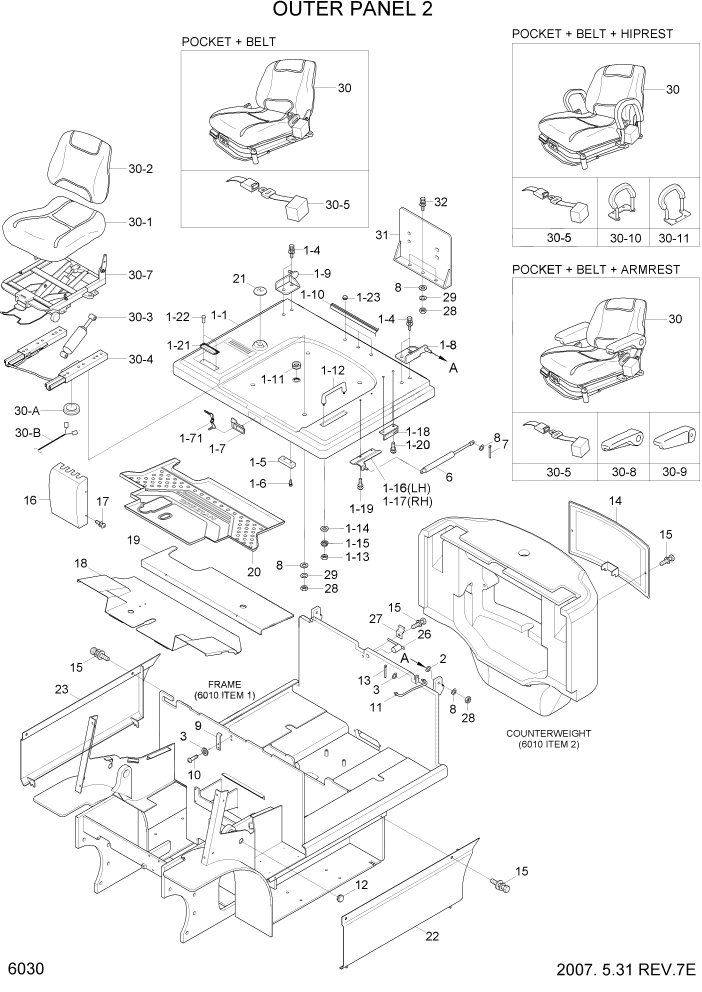

Схема запчастей Hyundai HBF20/HBF25/HBF30/HBF32/HBF20-7 - PAGE 6030 OUTER PANEL 2 СТРУКТУРА

Артикул

Название

Примечание

Количество

1

71FH-10012

BATT COVER ASSY

HBF20/25-7

1шт.

1

71FH-11012

BATT COVER ASSY

HBF30/32-7

1шт.

1-1

71FH-10212

COVER-BATTERY

HBF20/25-7

1шт.

1-1

71FH-11212

COVER-BATTERY

HBF30/32-7

1шт.

1-4

S035-082556

BOLT-W/WASHER

4шт.

1-5

F12100190

CUSHION

2шт.

1-6

S131-051546

SCREW-W/WASHER

4шт.

1-7

71LB-01220

LATCH ASSY

HBF20-7 #0066

1шт.

1-7

71FH-10380

LATCH ASSY

HBF20-7 #0067

1шт.

1-7

71LB-01220

LATCH ASSY

HBF25-7 #0194

1шт.

1-7

71FH-10380

LATCH ASSY

HBF25-7 #0195

1шт.

1-7

71LB-01220

LATCH ASSY

HBF30-7 #0041

1шт.

1-7

71FH-10380

LATCH ASSY

HBF30-7 #0042

1шт.

1-7

71LB-01220

LATCH ASSY

HBF32-7 #0031

1шт.

1-7

71FH-10380

LATCH ASSY

HBF32-7 #0032

1шт.

1-71

71FH-10390

KEY

HBF20-7 #0067

1шт.

1-71

71FH-10390

KEY

HBF25-7 #0195

1шт.

1-71

71FH-10390

KEY

HBF30-7 #0042

1шт.

1-71

71FH-10390

KEY

HBF32-7 #0032

1шт.

1-8

71FH-10121

HINGE-LH

1шт.

1-9

71FH-10131

HINGE-RH

1шт.

1-1

S772-008200

WEATHER STRIP

1шт.

1-11

S681-230800

GROMMET

1шт.

1-12

71FH-10140

HANDLE

1шт.

1-13

S205-081006

NUT-HEX

2шт.

1-14

S403-082006

WASHER-PLAIN

2шт.

1-15

S411-080006

WASHER-SPRING

2шт.

1-16

71FH-10150

LH BRKT-SPRING

HBF20/25-7

1шт.

1-16

71FH-11150

LH BRKT-SPRING

HBF30/32-7

1шт.

1-17

71FH-10160

RH BRKT-SPRING

HBF20/25-7

1шт.

1-17

71FH-11160

RH BRKT-SPRING

HBF30/32-7

1шт.

1-18

71FH-10170

PLATE-SAFETY

NOT USED

1шт.

1-19

S035-062026

BOLT-W/WASHER

4шт.

1-2

S035-061526

BOLT-W/WASHER

NOT USED

2шт.

1-21

71FH-10181

CLIP

1шт.

1-22

9055000309

RIVET

2шт.

1-23

FAC0800110

CLIP

3шт.

2

S403-122006

WASHER-PLAIN

2шт.

3

S403-062006

WASHER-PLAIN

NOT USED

2шт.

6

71FH-10041

GAS SPRING

HBF20/25-7

2шт.

6

71FH-11041

GAS SPRING

HBF30/32-7

2шт.

7

S461-080206

PIN-SPLIT

4шт.

8

S403-082006

WASHER-PLAIN

16шт.

9

71FH-10190

BRACKET-LOCK

1шт.

10

S175-060156

SCREW-SOCKET RD HD

2шт.

11

71FH-10220

BAR-SAFETY

NOT USED

1шт.

12

S661-300800

CAP-RUBBER

2шт.

13

S461-060206

PIN-SPLIT

NOT USED

2шт.

14

71FH-10113

COVER-REAR

1шт.

15

S035-082056

BOLT-W/WASHER

7шт.

16

B51110111

COVER-CONTROL VLV

HBF20-7 #0063

1шт.

16

B51110112

COVER-CONTROL VLV

HBF20-7 #0064

1шт.

16

B51110111

COVER-CONTROL VLV

HBF25-7 #0186

1шт.

16

B51110112

COVER-CONTROL VLV

HBF25-7 #0187

1шт.

16

B51110111

COVER-CONTROL VLV

HBF30-7 #0036

1шт.

16

B51110112

COVER-CONTROL VLV

HBF30-7 #0037

1шт.

16

B51110111

COVER-CONTROL VLV

HBF32-7 #0029

1шт.

16

B51110112

COVER-CONTROL VLV

HBF32-7 #0030

1шт.

17

S131-051046

SCREW-W/WASHER

4шт.

18

71FH-10052

FLOOR PLATE-FRONT

1шт.

19

71FH-10062

FLOOR PLATE-REAR

1шт.

20

71FH-10072

MAT-FLOOR

1шт.

21

71FH-10230

CAP-COVER

1шт.

22

71FH-10092

SIDE COVER-LH

HBF20/25-7

1шт.

22

71FH-11092

SIDE COVER-LH

HBF30/32-7

1шт.

23

71FH-10102

SIDE COVER-RH

HBF20/25-7

1шт.

23

71FH-11102

SIDE COVER-RH

HBF30/32-7

1шт.

26

B51110210

BATT STOPPER

1шт.

27

B51110220

CLIP

NOT USED

1шт.

28

S205-081006

NUT-HEX

NOT USED

8шт.

29

S411-080006

WASHER-SPRING

NOT USED

6шт.

30

71FH-10510

SEAT ASSY(PKT)

HBF20-7 #0231

1шт.

30

71FH-10511

SEAT ASSY(PKT)

HBF20-7 #0232

1шт.

30

71FH-10510

SEAT ASSY(PKT)

HBF25-7 #0812

1шт.

30

71FH-10511

SEAT ASSY(PKT)

HBF25-7 #0813

1шт.

30

71FH-10510

SEAT ASSY(PKT)

HBF30-7 #0176

1шт.

30

71FH-10511

SEAT ASSY(PKT)

HBF30-7 #0177

1шт.

30

71FH-10510

SEAT ASSY(PKT)

HBF32-7 #0134

1шт.

30

71FH-10511

SEAT ASSY(PKT)

HBF32-7 #0135

1шт.

30

71FH-10520

SEAT ASSY(PKT+BT)

HBF20-7 #0231

1шт.

30

71FH-10521

SEAT ASSY(PKT+BT)

HBF20-7 #0232

1шт.

30

71FH-10520

SEAT ASSY(PKT+BT)

HBF25-7 #0812

1шт.

30

71FH-10521

SEAT ASSY(PKT+BT)

HBF25-7 #0813

1шт.

30

71FH-10520

SEAT ASSY(PKT+BT)

HBF30-7 #0176

1шт.

30

71FH-10521

SEAT ASSY(PKT+BT)

HBF30-7 #0177

1шт.

30

71FH-10520

SEAT ASSY(PKT+BT)

HBF32-7 #0134

1шт.

30

71FH-10521

SEAT ASSY(PKT+BT)

HBF32-7 #0135

1шт.

30

71FH-10530

SEAT ASSY(PKT+BT+HR)

HBF20-7 #0231

1шт.

30

71FH-10531

SEAT ASSY(PKT+BT+HR)

HBF20-7 #0232

1шт.

30

71FH-10530

SEAT ASSY(PKT+BT+HR)

HBF25-7 #0812

1шт.

30

71FH-10531

SEAT ASSY(PKT+BT+HR)

HBF25-7 #0813

1шт.

30

71FH-10530

SEAT ASSY(PKT+BT+HR)

HBF30-7 #0176

1шт.

30

71FH-10531

SEAT ASSY(PKT+BT+HR)

HBF30-7 #0177

1шт.

30

71FH-10530

SEAT ASSY(PKT+BT+HR)

HBF32-7 #0134

1шт.

30

71FH-10531

SEAT ASSY(PKT+BT+HR)

HBF32-7 #0135

1шт.

30

71FH-10540

SEAT ASSY(PKT+BT+AR)

HBF20-7 #0231

1шт.

30

71FH-10541

SEAT ASSY(PKT+BT+AR)

HBF20-7 #0232

1шт.

30

71FH-10540

SEAT ASSY(PKT+BT+AR)

HBF25-7 #0812

1шт.

30

71FH-10541

SEAT ASSY(PKT+BT+AR)

HBF25-7 #0813

1шт.

30

71FH-10540

SEAT ASSY(PKT+BT+AR)

HBF30-7 #0176

1шт.

30

71FH-10541

SEAT ASSY(PKT+BT+AR)

HBF30-7 #0177

1шт.

30

71FH-10540

SEAT ASSY(PKT+BT+AR)

HBF32-7 #0134

1шт.

30

71FH-10541

SEAT ASSY(PKT+BT+AR)

HBF32-7 #0135

1шт.

30-A

310006540

SWITCH-SEAT

#0001

1шт.

30-B

B51800050

HARNESS-SEAT

#0001

1шт.

30-1

H31013-100

CUSION ASSY

HBF20-7 #0001 - #0231

1шт.

30-1

H31013-100C

CUSION ASSY

HBF20-7 #0232

1шт.

30-1

H31013-100

CUSION ASSY

HBF25-7 #0001 - #0812

1шт.

30-1

H31013-100C

CUSION ASSY

HBF25-7 #0813

1шт.

30-1

H31013-100

CUSION ASSY

HBF30-7 #0001 - #0176

1шт.

30-1

H31013-100C

CUSION ASSY

HBF30-7 #0177

1шт.

30-1

H31013-100

CUSION ASSY

HBF32-7 #0001 - #0134

1шт.

30-1

H31013-100C

CUSION ASSY

HBF32-7 #0135

1шт.

30-2

H31013-200

BACK ASSY

HBF20-7 #0001 - #0231

1шт.

30-2

H31013-200B

BACK ASSY

HBF20-7 #0232

1шт.

30-2

H31013-200

BACK ASSY

HBF25-7 #0001 - #0812

1шт.

30-2

H31013-200B

BACK ASSY

HBF25-7 #0813

1шт.

30-2

H31013-200

BACK ASSY

HBF30-7 #0001 - #0176

1шт.

30-2

H31013-200B

BACK ASSY

HBF30-7 #0177

1шт.

30-2

H31013-200

BACK ASSY

HBF32-7 #0001 - #0134

1шт.

30-2

H31013-200B

BACK ASSY

HBF32-7 #0135

1шт.

30-3

H31013-360

SHOCK ABSORBER ASSY

#0001

1шт.

30-4

H31013-600

SLIDE TRACK ASSY

HBF20-7 #0001 - #0231

1шт.

30-4

H31013-600B

SLIDE TRACK ASSY

HBF20-7 #0232

1шт.

30-4

H31013-600

SLIDE TRACK ASSY

HBF25-7 #0001 - #0812

1шт.

30-4

H31013-600B

SLIDE TRACK ASSY

HBF25-7 #0813

1шт.

30-4

H31013-600

SLIDE TRACK ASSY

HBF30-7 #0001 - #0176

1шт.

30-4

H31013-600B

SLIDE TRACK ASSY

HBF30-7 #0177

1шт.

30-4

H31013-600

SLIDE TRACK ASSY

HBF32-7 #0001 - #0134

1шт.

30-4

H31013-600B

SLIDE TRACK ASSY

HBF32-7 #0135

1шт.

30-5

89890-8A610

BELT-SEAT

WITH BELT #0001

1шт.

30-7

H31023-301

SUSPENSION

HBF20-7 #0001 - #0231

1шт.

30-7

H31023-301G

SUSPENSION

HBF20-7 #0232

1шт.

30-7

H31023-301

SUSPENSION

HBF25-7 #0001 - #0812

1шт.

30-7

H31023-301G

SUSPENSION

HBF25-7 #0813

1шт.

30-7

H31023-301

SUSPENSION

HBF30-7 #0001 - #0176

1шт.

30-7

H31023-301G

SUSPENSION

HBF30-7 #0177

1шт.

30-7

H31023-301

SUSPENSION

HBF32-7 #0001 - #0134

1шт.

30-7

H31023-301G

SUSPENSION

HBF32-7 #0135

1шт.

30-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST #0001

1шт.

30-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST #0001

1шт.

30-1

H31010-700

HIP RESTRAINT-LH

WITH HIP-REST #0001

1шт.

30-11

H31015-700

HIP RESTRAINT-RH

WITH HIP-REST #0001

1шт.

31

71FH-10270

PLATE-LICENSE

PNEUMATIC TIRE

1шт.

32

S035-082526

BOLT-W/WASHER

PNEUMATIC TIRE

2шт.

Выбрано товаров: 145
