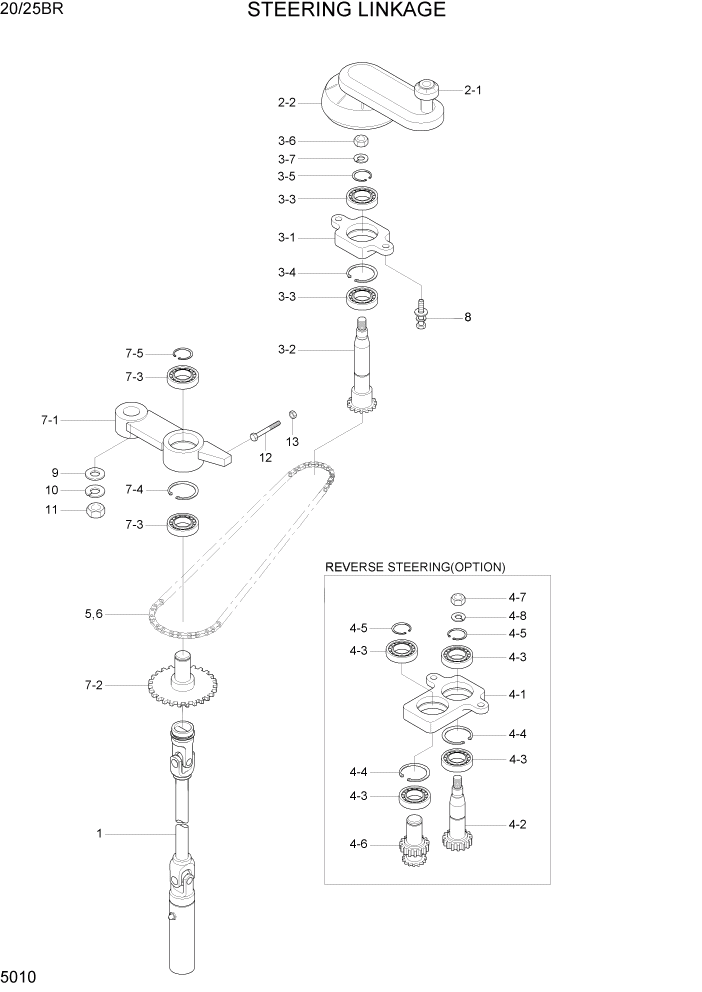

Запчасти Hyundai 20/25BR PAGE 5010 STEERING LINKAGE СИСТЕМА УПРАВЛЕНИЯ

1

31FP-10510

U-JOINT ASSY

1шт.

2

31FP-10070

WHEEL-STEERING

1шт.

2-1

31FS-10060

STEER WHEEL ASSY

1шт.

2-2

31FS-10070

KNOB-WHEEL

1шт.

3

31FP-10090

SHAFT SUB ASSY

1шт.

3-1

31FP-10030

BRACKET-STEER WHEEL

1шт.

3-2

31FP-10061

SHAFT-STEER WHEEL

1шт.

3-3

9021051204

BEARING

2шт.

3-4

S601-020004

RING-RETAINING

1шт.

3-5

S602-047004

RING-RETAINING

1шт.

3-6

S205-12100B

NUT-HEX

1шт.

3-7

S411-120006

WASHER-SPRING

1шт.

4

31FP-10100

SHAFT SUB ASSY-REVERSE

REVERSE LEVER

1шт.

4-1

31FP-10110

BRACKET-STEER WHEEL

REVERSE LEVER

1шт.

4-2

31FP-10120

SHAFT-STEER WHEEL

REVERSE LEVER

1шт.

4-3

9021051204

BEARING

REVERSE LEVER

4шт.

4-4

S601-020004

RING-RETAINING

REVERSE LEVER

2шт.

4-5

S602-047004

RING-RETAINING

REVERSE LEVER

2шт.

4-6

31FP-10130

IDLER

REVERSE LEVER

1шт.

4-7

S205-121006

NUT-HEX

REVERSE LEVER

1шт.

4-8

S411-120006

WASHER-SPRING

REVERSE LEVER

1шт.

5

31FS-10021

CHAIN-ROLLER

1шт.

6

31FS-10090

CHAIN-ROLLER

REVERSE LEVER

1шт.

7

31FS-10080

SPROCKET SUB ASSY

1шт.

7-1

31FP-10040

BRACKET-STEERING

1шт.

7-2

31FS-10050

SPROCKET ASSY

1шт.

7-3

9021051204

BEARING

2шт.

7-4

S601-020004

RING-RETAINING

1шт.

7-5

S602-047004

RING-RETAINING

1шт.

8

S037-103526

BOLT-W/WASHER

2шт.

9

S403-162006

WASHER-PLAIN

1шт.

10

S411-160006

WASHER-SPRING

1шт.

11

S205-16100B

NUT-HEX

1шт.

12

909267100-DA

BOLT

1шт.

13

S205-08100B

NUT-HEX

1шт.
