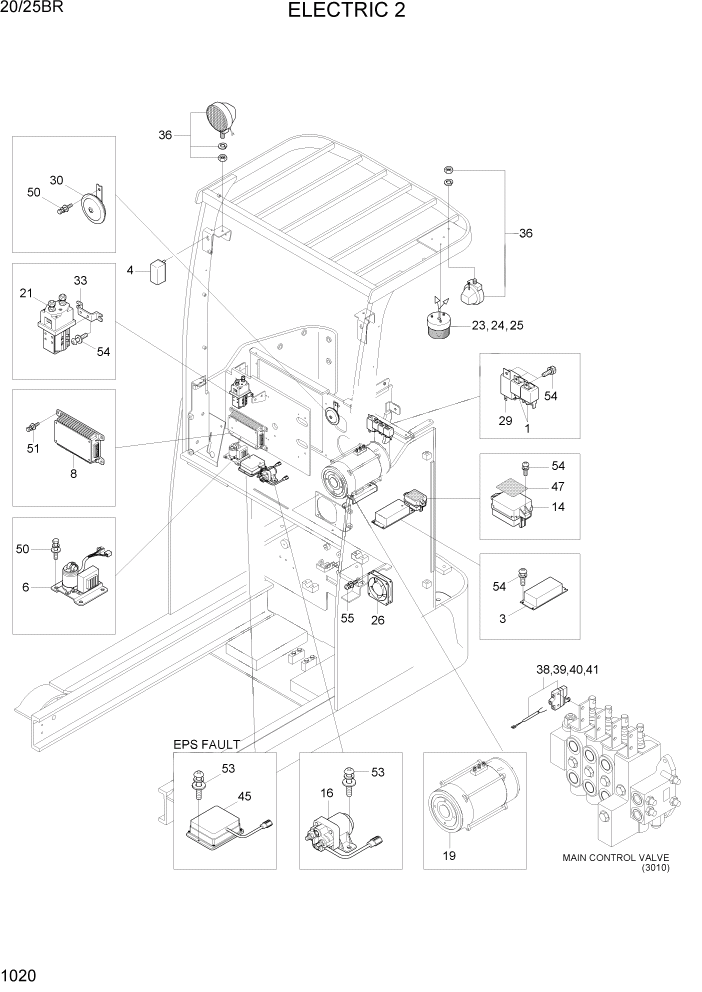

Запчасти Hyundai 20/25BR PAGE 1020 ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

21E3-0011

RELAY

STD

2шт.

3

21FH-72260

DC-DC CONVERTER

1шт.

4

21FH-77030

LAMP-TURN SIGNAL

2шт.

4-1

S861-072100

BULB-12V/21W

NOT SHOWN

1шт.

6

21FP-52080

EPS FILTER ASSY

1шт.

8

21FP-58030

EPS CONTROLLER ASSY

1шт.

14

21FS-02061

FUSE BOX ASSY

1шт.

14-1

21FS-02080

COVER & DECAL

NOT SHOWN

1шт.

14-2

S810-004201

HOUSING-PLUG

NOT SHOWN

1шт.

14-3

S814-008100

HOUSING-RECEP

NOT SHOWN

1шт.

14-4

21HB-79030

FUSE(15A)

NOT SHOWN

2шт.

14-5

21HB-79020

FUSE(10A)

NOT SHOWN

11шт.

14-6

S814-002100

HOUSING

NOT SHOWN

1шт.

14-7

21HB-79060

FUSE(30A)

NOT SHOWN

2шт.

16

21FS-02120

CONTACTOR-EPS

1шт.

19

21FY-72020

MOTOR-PUMP,AC

SEE 1070

1шт.

21

21FY-72090

CONTACTOR-SW200B

1шт.

23

21HA-20310

LAMP-BEACON, AMBER

AMBER

1шт.

23-1

21HA-21110

LENS-BEACON, AMBER

AMBER

1шт.

23-2

21HA-21140

XENON LAMP

NOT SHOWN

1шт.

24

21HA-20320

LAMP-BEACON, RED

RED

1шт.

24-1

21HA-21120

LENS-BEACON, RED

RED

1шт.

24-2

21HA-21140

XENON LAMP

NOT SHOWN

1шт.

25

21HA-20330

LAMP-BEACON, BLUE

BLUE

1шт.

25-1

21HA-21130

LENS-BEACON, BLUE

BLUE

1шт.

25-2

21HA-21140

XENON LAMP

NOT SHOWN

1шт.

26

21HE-72060

FAN

1шт.

29

21M6-40052

FLASHER UNIT ASSY

1шт.

30

21M8-00070

HORN-HIGH

#0007

1шт.

30

21M8-00071

HORN-HIGH

20BR #0008

1шт.

30

21M8-00070

HORN-HIGH

#0014

1шт.

30

21M8-00071

HORN-HIGH

25BR #0015

1шт.

33

310005130

BRACKET-SW200

1шт.

36

F12840011

LAMP SUB ASSY-WORK

FRONT, REAR

3шт.

36-1

21HA-12010

BULB(12V-55W,H3)

NOT SHOWN

1шт.

38

21FS-02140

SWITCH ASSY-3 SPOOL

FRONT, REAR

3шт.

38-1

310006190

SWITCH-MICRO

NOT SHOWN

3шт.

38-2

21FS-05060

HARNESS-3 SPOOL

NOT SHOWN

1шт.

39

21FS-02150

SWITCH ASSY-3 SPOOL

3-SP, REVERSE

1шт.

39-1

310006190

SWITCH-MICRO

NOT SHOWN

3шт.

39-2

21FS-05070

HARNESS-3 SPOOL

NOT SHOWN

1шт.

40

21FS-02041

SWITCH ASSY-4 SPOOL

4-SP, NORMAL

1шт.

40-1

310006190

SWITCH-MICRO

NOT SHOWN

4шт.

40-2

21FS-05011

HARNESS-4 SPOOL

NOT SHOWN

1шт.

41

21FS-02130

SWITCH ASSY-4 SPOOL

4-SP, REVERSE

1шт.

41-1

310006190

SWITCH-MICRO

NOT SHOWN

4шт.

41-2

21FS-05040

HARNESS-ACCESSORY

NOT SHOWN

1шт.

45

21FS-08030

EPS CONTROLLER-FAULT

EPS FAULT

1шт.

45-1

21FS-02170

CURRENT SENSOR

NOT SHOWN

1шт.

47

91HE-00580

WARNING-UL

UL

1шт.

50

S035-081526

BOLT-W/WASHER

5шт.

51

S035-082026

BOLT-W/WASHER

4шт.

53

S131-051246

SCREW-W/WASHER

2шт.

53

S131-051246

SCREW-W/WASHER

EPS FAULT

4шт.

54

S132-061526

SCREW-W/WASHER

11шт.

55

S151-050156

SCREW-TAPPING

4шт.
