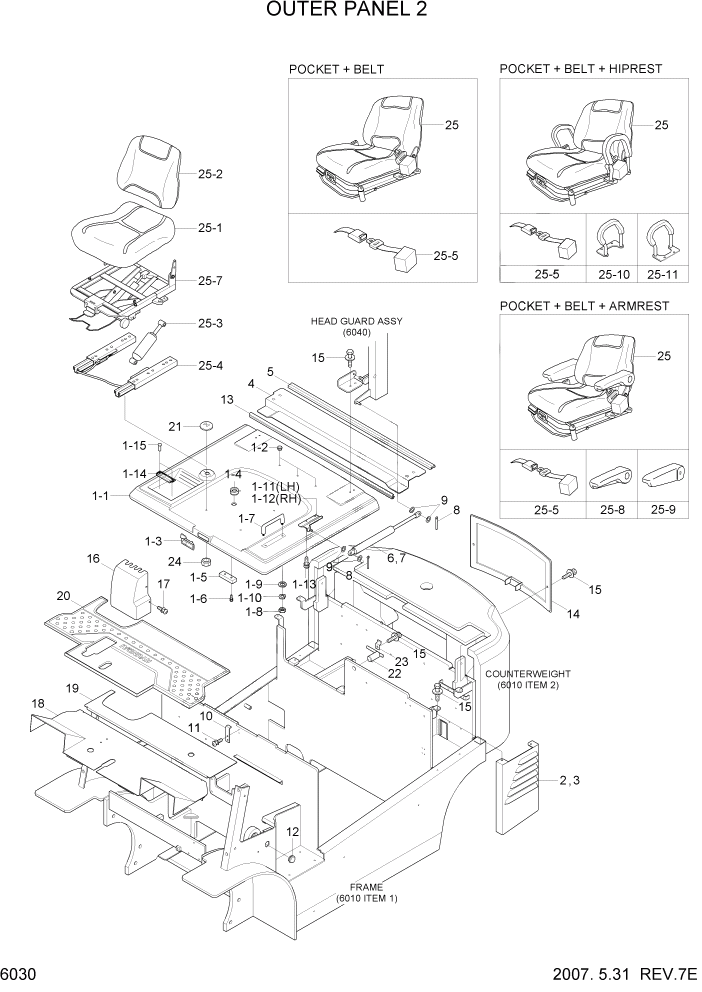

Запчасти Hyundai 20/25/30BH-7 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

1

71FH-12001

BATT COVER ASSY

20BH/25BH-7 #0001

1шт.

1

71FH-13001

BATT COVER ASSY

30BH-7 #0001

1шт.

1-1

71FH-12011

BATTERY COVER

1шт.

1-2

FAC0800110

CLIP

3шт.

1-3

71LB-01220

LATCH ASSY

1шт.

1-4

S681-230800

GROMMET

1шт.

1-5

F12100190

CUSHION

2шт.

1-6

S131-051546

SCREW-W/WASHER

4шт.

1-7

71FH-10140

HANDLE

1шт.

1-8

S205-081006

NUT-HEX

2шт.

1-9

S403-082006

WASHER-PLAIN

2шт.

1-1

S411-080006

WASHER-SPRING

2шт.

1-11

71FH-12151

LH BRKT-SPRING

20BH/25BH-7

1шт.

1-11

71FH-13151

LH BRKT-SPRING

30BH-7

1шт.

1-12

71FH-12161

RH BRKT-SPRING

20BH/25BH-7

1шт.

1-12

71FH-13161

RH BRKT-SPRING

30BH-7

1шт.

1-13

S035-062026

BOLT-W/WASHER

4шт.

1-14

71FH-10181

CLIP

1шт.

1-15

9055000309

RIVET

2шт.

2

71FH-12273

SIDE COVER-LH

1шт.

3

71FH-12283

SIDE COVER-RH

1шт.

4

71FH-12091

COVER

1шт.

5

S772-008800

WEATHER STRIP

1шт.

6

71FH-12302

GAS SPRING

1шт.

7

71FH-12041

GAS SPRING

1шт.

8

S461-080202

PIN-SPLIT

4шт.

9

S403-08200V

WASHER-PLAIN

12шт.

10

71FH-10190

BRACKET-LOCK

1шт.

11

S175-06015V

SCREW-SOCKET RD HD

2шт.

12

S661-300800

CAP-RUBBER

2шт.

13

S771-008800

WEATHER STRIP

1шт.

14

71FH-12112

COVER-REAR

1шт.

15

S035-08205V

BOLT-W/WASHER

15шт.

16

71FH-12080

COVER-MCV

1шт.

17

S131-05104V

SCREW-W/WASHER C/RD

3шт.

18

71FH-12052

FLOOR PLATE-FRONT

1шт.

19

71FH-12062

FLOOR PLATE-REAR

1шт.

20

71FH-12073

MAT-FLOOR

1шт.

21

71FH-10230

CAP-COVER

1шт.

22

71FH-10280

STOPPER-BATTERY

1шт.

23

B51110220

CLIP

1шт.

24

S275-080002

NUT-SELF LOCKING

4шт.

25

71FH-10510

SEAT ASSY(PKT)

20BH-7 #0001

1шт.

25

71FH-10511

SEAT ASSY(PKT)

20BH-7 #0002

1шт.

25

71FH-10510

SEAT ASSY(PKT)

25BH-7 #0059

1шт.

25

71FH-10511

SEAT ASSY(PKT)

25BH-7 #0060

1шт.

25

71FH-10510

SEAT ASSY(PKT)

30BH-7 #0026

1шт.

25

71FH-10511

SEAT ASSY(PKT)

30BH-7 #0027

1шт.

25

71FH-10520

SEAT ASSY(PKT+BT)

20BH-7 #0001

1шт.

25

71FH-10521

SEAT ASSY(PKT+BT)

20BH-7 #0002

1шт.

25

71FH-10520

SEAT ASSY(PKT+BT)

25BH-7 #0059

1шт.

25

71FH-10521

SEAT ASSY(PKT+BT)

25BH-7 #0060

1шт.

25

71FH-10520

SEAT ASSY(PKT+BT)

30BH-7 #0026

1шт.

25

71FH-10521

SEAT ASSY(PKT+BT)

30BH-7 #0027

1шт.

25

71FH-10530

SEAT ASSY(PKT+BT+HR)

20BH-7 #0001

1шт.

25

71FH-10531

SEAT ASSY(PKT+BT+HR)

20BH-7 #0002

1шт.

25

71FH-10530

SEAT ASSY(PKT+BT+HR)

25BH-7 #0059

1шт.

25

71FH-10531

SEAT ASSY(PKT+BT+HR)

25BH-7 #0060

1шт.

25

71FH-10530

SEAT ASSY(PKT+BT+HR)

30BH-7 #0026

1шт.

25

71FH-10531

SEAT ASSY(PKT+BT+HR)

30BH-7 #0027

1шт.

25

71FH-10540

SEAT ASSY(PKT+BT+AR)

20BH-7 #0001

1шт.

25

71FH-10541

SEAT ASSY(PKT+BT+AR)

20BH-7 #0002

1шт.

25

71FH-10540

SEAT ASSY(PKT+BT+AR)

25BH-7 #0059

1шт.

25

71FH-10541

SEAT ASSY(PKT+BT+AR)

25BH-7 #0060

1шт.

25

71FH-10540

SEAT ASSY(PKT+BT+AR)

30BH-7 #0026

1шт.

25

71FH-10541

SEAT ASSY(PKT+BT+AR)

30BH-7 #0027

1шт.

25-1

H31013-100

CUSION ASSY

20BH-7 #0001 - #0001

1шт.

25-1

H31013-100C

CUSION ASSY

20BH-7 #0002

1шт.

25-1

H31013-100

CUSION ASSY

25BH-7 #0001 - #0059

1шт.

25-1

H31013-100C

CUSION ASSY

25BH-7 #0060

1шт.

25-1

H31013-100

CUSION ASSY

30BH-7 #0001 - #0026

1шт.

25-1

H31013-100C

CUSION ASSY

30BH-7 #0027

1шт.

25-2

H31013-200

BACK ASSY

20BH-7 #0001 - #0001

1шт.

25-2

H31013-200B

BACK ASSY

20BH-7 #0002

1шт.

25-2

H31013-200

BACK ASSY

25BH-7 #0001 - #0059

1шт.

25-2

H31013-200B

BACK ASSY

25BH-7 #0060

1шт.

25-2

H31013-200

BACK ASSY

30BH-7 #0001 - #0026

1шт.

25-2

H31013-200B

BACK ASSY

30BH-7 #0027

1шт.

25-3

H31013-360

SHOCK ABSORBER ASSY

#0001

1шт.

25-4

H31013-600

SLIDE TRACK ASSY

20BH-7 #0001 - #0001

1шт.

25-4

H31013-600B

SLIDE TRACK ASSY

20BH-7 #0002

1шт.

25-4

H31013-600

SLIDE TRACK ASSY

25BH-7 #0001 - #0059

1шт.

25-4

H31013-600B

SLIDE TRACK ASSY

25BH-7 #0060

1шт.

25-4

H31013-600

SLIDE TRACK ASSY

30BH-7 #0001 - #0026

1шт.

25-4

H31013-600B

SLIDE TRACK ASSY

30BH-7 #0027

1шт.

25-5

89890-8A610

BELT-SEAT

WITH BELT #0001

1шт.

25-7

H31023-301

SUSPENSION

20BH-7 #0001 - #0001

1шт.

25-7

H31023-301G

SUSPENSION

20BH-7 #0002

1шт.

25-7

H31023-301

SUSPENSION

25BH-7 #0001 - #0059

1шт.

25-7

H31023-301G

SUSPENSION

25BH-7 #0060

1шт.

25-7

H31023-301

SUSPENSION

30BH-7 #0001 - #0026

1шт.

25-7

H31023-301G

SUSPENSION

30BH-7 #0027

1шт.

25-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST #0001

1шт.

25-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST #0001

1шт.

25-1

H31010-700

HIP RESTRAINT-LH

WITH HIP-REST #0001

1шт.

25-11

H31015-700

HIP RESTRAINT-RH

WITH HIP-REST #0001

1шт.
