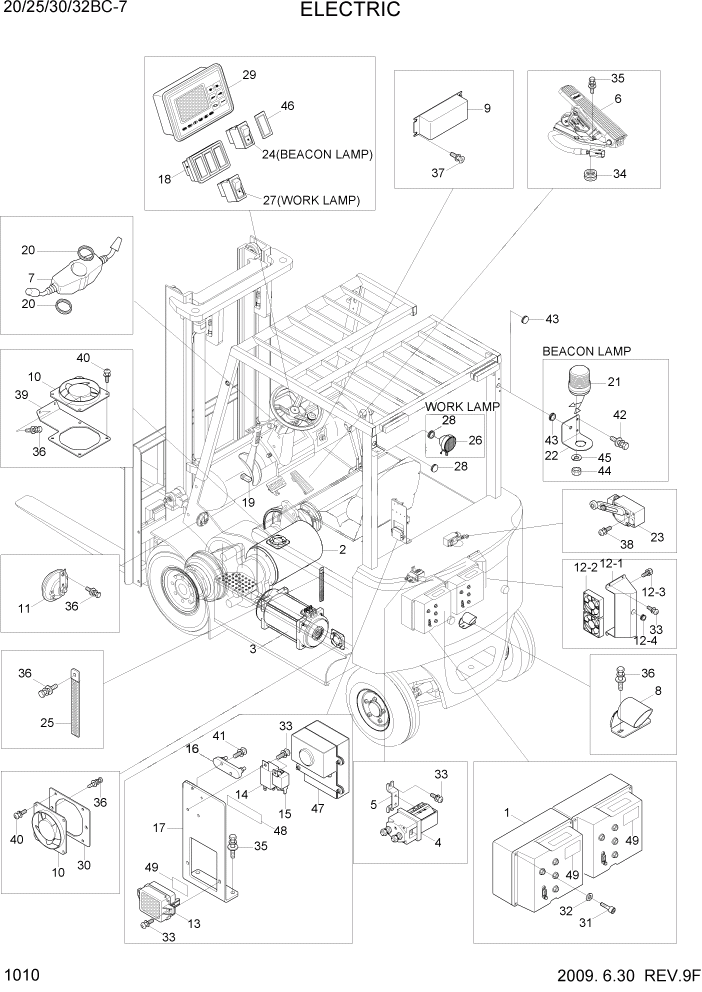

Запчасти Hyundai 20BC-7 PAGE 1010 ELECTRIC ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

21FH-08010

INVERTER-AC3

2шт.

2

21FM-02010

MOTOR-TRACTION

1шт.

3

21FH-02020

MOTOR-PUMP

1шт.

4

21FY-72090

CONTACTOR-SW200B

1шт.

5

310005130

BRACKET-SW200

1шт.

6

21FY-78171

ACCELERATOR ASSY

20BC-7

1шт.

6

21FY-78170

ACCELERATOR ASSY

#0033

1шт.

6

21FY-78171

ACCELERATOR ASSY

25BC-7 #0034

1шт.

6

21FY-78170

ACCELERATOR ASSY

#0025

1шт.

6

21FY-78171

ACCELERATOR ASSY

30BC-7 #0026

1шт.

6

21FY-78170

ACCELERATOR ASSY

#0004

1шт.

6

21FY-78171

ACCELERATOR ASSY

32BC-7 #0005

1шт.

7

B51830010

SWITCH-COMBINATION

1шт.

8

21FD-30311

BACK BUZZER(12V)

1шт.

8

21FD-30312

BUZZER-BACK

20BC-7 #0001

1шт.

8

21FD-30311

BUZZER-BACK, 12V

#0007

1шт.

8

21FD-30312

BUZZER-BACK

25BC-7 #0008

1шт.

8

21FD-30312

BUZZER-BACK

#0001

1шт.

8

21FD-30311

BUZZER-BACK, 12V

30BC-7 #0003

1шт.

8

21FD-30312

BUZZER-BACK

32BC-7 #0004

1шт.

9

21FH-72260

DC-DC CONVERTER

1шт.

10

21HE-72060

FAN

1шт.

11

21M8-00070

HORN-HIGH

1шт.

12

21HD-72080

FAN ASSY

1шт.

12-1

71HD-10290

DUCT-FAN

NOT SHOWN

1шт.

12-2

21HD-72110

FAN-4312

NOT SHOWN

2шт.

12-3

S151-050156

SCREW-TAPPING

NOT SHOWN

8шт.

12-4

S681-100400

GROMMET

NOT SHOWN

1шт.

13

21FH-02030

FUSE BOX ASSY

1шт.

13-1

21FH-02040

COVER & DECAL

NOT SHOWN

1шт.

13-2

21HB-79030

FUSE(15A)

NOT SHOWN

3шт.

13-3

21HB-79020

FUSE(10A)

NOT SHOWN

12шт.

14

21E3-0011

RELAY

1шт.

15

21M6-40052

FLASHER UNIT ASSY

1шт.

16

B21830050

PLATE-FUSE

1шт.

17

21FH-72210

BRACKET-RELAY

NON-UL, UL-E

1шт.

17

21FH-02111

BRACKET-RELAY

20BC, UL-EE #0002

1шт.

17

21FH-02111

BRACKET-RELAY

25BC, UL-EE #0034

1шт.

17

21FH-02111

BRACKET-RELAY

30BC, UL-EE #0001

1шт.

17

21FH-02111

BRACKET-RELAY

32BC, UL-EE #0005

1шт.

17-1

21FH-72061

BRACKET

NOT SHOWN

1шт.

17-2

91FH-00100

DECAL-BRACKET RELAY

NOT SHOWN

1шт.

18

21FH-72071

SWITCH ASSY

1шт.

18-1

21F6-20220

MOUNTING-SWITCH

NOT SHOWN

1шт.

18-2

21E6-10460

COVER

NOT SHOWN

1шт.

19

21FH-12050

SWITCH ASSY-PARKING

1шт.

19-1

310006190

SWITCH-MICRO

NOT SHOWN

1шт.

19-2

21FH-15050

HARNESS-P SWITCH

NOT SHOWN

1шт.

20

F12140020

GROMMET

2шт.

21

21FG-10810

STROBE LAMP-AMBER

AMBER

1шт.

21

21HA-20310

LAMP-BEACON, AMBER

AMBER, 20BC-7 #0001

1шт.

21

21FG-10810

STROBE LAMP-AMBER

AMBER #0007

1шт.

21

21HA-20310

LAMP-BEACON, AMBER

AMBER, 25BC-7 #0008

1шт.

21

21HA-20310

LAMP-BEACON, AMBER

AMBER #0001

1шт.

21

21FG-10810

STROBE LAMP-AMBER

AMBER, 30BC-7 #0003

1шт.

21

21HA-20310

LAMP-BEACON, AMBER

AMBER, 32BC-7 #0004

1шт.

21

F23842010

STROBE LAMP-RED

RED

1шт.

21

21HA-20320

LAMP-BEACON, RED

RED, 20BC-7 #0001

1шт.

21

F23842010

STROBE LAMP-RED

RED #0007

1шт.

21

21HA-20320

LAMP-BEACON, RED

RED, 25BC-7 #0008

1шт.

21

21HA-20320

LAMP-BEACON, RED

RED, 30BC-7 #0001

1шт.

21

F23842010

STROBE LAMP-RED

RED #0003

1шт.

21

21HA-20320

LAMP-BEACON, RED

RED, 32BC-7 #0004

1шт.

21

21FG-10820

STROBE LAMP-BLUE

BLUE

1шт.

21-1

21FG-10860

GLOBE-AMBER

NOT SHOWN

1шт.

21

21HA-20330

LAMP-BEACON, BLUE

BLUE, 20BC-7 #0001

1шт.

21

21FG-10820

STROBE LAMP-BLUE

BLUE #0003

1шт.

21

21HA-20330

LAMP-BEACON, BLUE

BLUE, 25BC-7 #0004

1шт.

21

21HA-20330

LAMP-BEACON, BLUE

BLUE, 30BC-7 #0001

1шт.

21

21FG-10820

STROBE LAMP-BLUE

BLUE #0007

1шт.

21

21HA-20330

LAMP-BEACON, BLUE

BLUE, 32BC-7 #0008

1шт.

21-1

21FG-10860

GLOBE-AMBER

NOT SHOWN

1шт.

21-1

21FG-10850

GLOBE-RED

NOT SHOWN

1шт.

21-1

21FG-10870

GLOBE-BLUE

NOT SHOWN

1шт.

22

21FH-72011

BRACKET-BEACON

BEACON LAMP

1шт.

22

21FH-72012

BRACKET-BEACON LAMP

BEACON LAMP #0001

1шт.

22

21FH-72011

BRACKET-BEACON

BEACON LAMP #0003

1шт.

22

21FH-72012

BRACKET-BEACON LAMP

BEACON LAMP #0004

1шт.

22

21FH-72012

BRACKET-BEACON LAMP

BEACON LAMP #0001

1шт.

22

21FH-72011

BRACKET-BEACON

BEACON LAMP #0007

1шт.

22

21FH-72012

BRACKET-BEACON LAMP

BEACON LAMP #0008

1шт.

23

21FM-02031

SWITCH ASSY-SBR

1шт.

23-1

21FM-02041

SWITCH-SBR

NOT SHOWN

1шт.

23-2

21FM-05030

HARNESS-SBR

NOT SHOWN

1шт.

24

21M6-00400

SWITCH-BEACON

BEACON LAMP

1шт.

24-1

21S1-31510

SWITCH

NOT SHOWN

1шт.

24-2

21E6-10540

INSERT-BEACON

NOT SHOWN

1шт.

25

21FY-72080

STRAP-STATIC

1шт.

26

F12840010

LAMP SUB ASSY-WORK

REAR WORK LAMP

1шт.

26

F12840011

LAMP SUB ASSY-WORK

20BC-7 #0001

1шт.

26

F12840010

LAMP SUB ASSY-WORK

REAR WORK LAMP #0003

1шт.

26

F12840011

LAMP SUB ASSY-WORK

25BC-7 #0004

1шт.

26

F12840011

LAMP SUB ASSY-WORK

30BC-7 #0001

1шт.

26

F12840010

LAMP SUB ASSY-WORK

REAR WORK LAMP #0007

1шт.

26

F12840011

LAMP SUB ASSY-WORK

32BC-7 #0008

1шт.

26-1

S866-120550

BULB

1шт.

27

21E6-10460

COVER

W/O REAR W/LAMP

1шт.

27

21M8-01120

SWITCH-W/LAMP(12V)

REAR WORK LAMP

1шт.

27-1

21E6-10510

INSERT (WORK LIGHT)

NOT SHOWN

1шт.

27-2

511106

SWITCH

NOT SHOWN

1шт.

28

S661-250800

CAP-RUBBER

1шт.

28

S681-190400

GROMMET

1шт.

29

21HE-73011

DISPLAY

1шт.

30

21FS-02030

BRACKET-FAN

1шт.

31

S109-080856

BOLT-SOCKET

8шт.

32

S411-080006

WASHER-SPRING

8шт.

33

S132-061526

SCREW-W/WASHER

10шт.

34

S681-290400

GROMMET

1шт.

35

S035-082026

BOLT-W/WASHER

4шт.

36

S035-081526

BOLT-W/WASHER

8шт.

37

S131-051246

SCREW-W/WASHER

4шт.

38

S132-062026

SCREW-W/WASHER

2шт.

39

21FM-02050

BRACKET-FAN

1шт.

40

S151-050156

SCREW-TAPPING

8шт.

41

S131-051526

SCREW-W/WASHER

2шт.

42

S035-082026

BOLT-W/WASHER

BEACON LAMP

2шт.

43

S661-250800

CAP-RUBBER

1шт.

43

S681-190400

GROMMET

BEACON LAMP

1шт.

44

S205-04100B

NUT-HEX

20BC-7

3шт.

44

S205-041006

NUT-HEX

25BC-7 #0033

3шт.

44

S205-04100B

NUT-HEX

25BC-7 #0034

3шт.

44

S205-041006

NUT-HEX

30BC-7 #0025

3шт.

44

S205-04100B

NUT-HEX

30BC-7 #0026

3шт.

44

S205-041006

NUT-HEX

32BC-7 #0004

3шт.

44

S205-04100B

NUT-HEX

32BC-7 #0005

3шт.

45

S411-040006

WASHER-SPRING

3шт.

46

21E6-10460

COVER

1шт.

47

21FH-02122

COVER ASSY-FUSE&RELAY

20BC #0002

1шт.

47

21FH-02122

COVER ASSY-FUSE&RELAY

25BC #0034

1шт.

47

21FH-02122

COVER ASSY-FUSE&RELAY

30BC #0001

1шт.

47

21FH-02122

COVER ASSY-FUSE&RELAY

32BC #0005

1шт.

48

91FH-00100

DECAL-BRACKET RELAY

20BC #0002

1шт.

48

91FH-00100

DECAL-BRACKET RELAY

25BC #0034

1шт.

48

91FH-00100

DECAL-BRACKET RELAY

30BC #0001

1шт.

48

91FH-00100

DECAL-BRACKET RELAY

32BC #0005

1шт.

49

91HE-00580

WARNING-UL

20BC #0002

3шт.

49

91HE-00580

WARNING-UL

25BC #0034

3шт.

49

91HE-00580

WARNING-UL

30BC #0001

3шт.

49

91HE-00580

WARNING-UL

32BC #0005

3шт.
