Запчасти Hyundai 16/18/20B-7 PAGE 7140 MAST HYDRAULIC PIPING(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

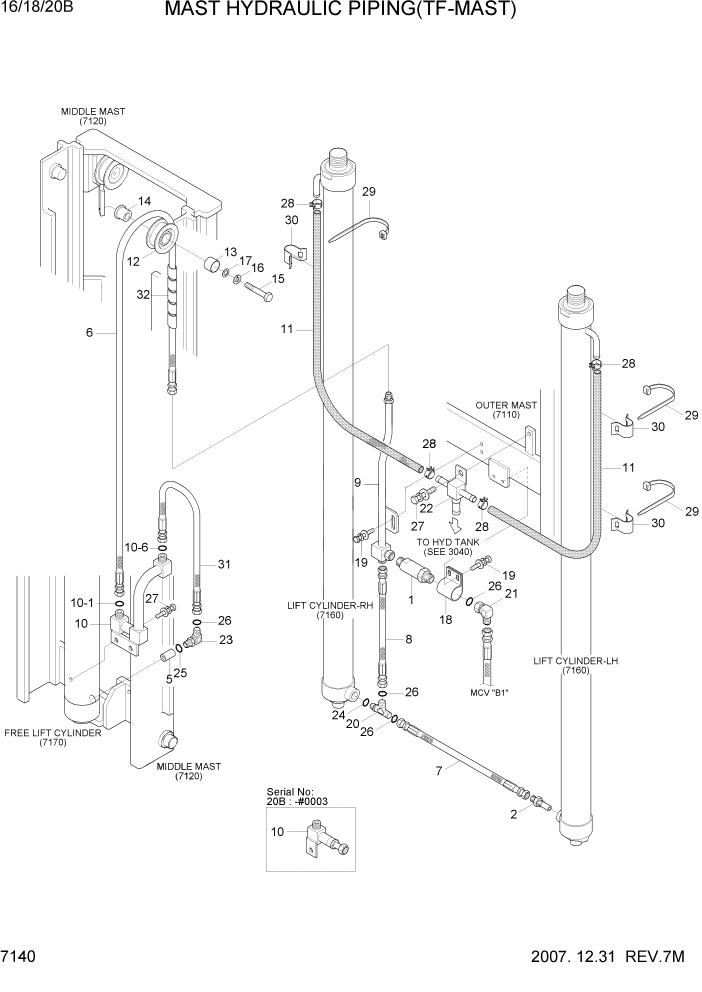

Схема запчастей Hyundai 16/18/20B-7 - PAGE 7140 MAST HYDRAULIC PIPING(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

Артикул

Название

Примечание

Количество

1

31FJ-05100

VALVE-FLOW REGULATOR

1шт.

2

31FG-05200

VALVE-VELOCITY FUSE

1шт.

5

EE19170100

DOWN SAFETY VALVE

1шт.

6

P910-084035

HOSE ASSY-ORFS 0X0

TF370, 16B #0002

1шт.

6

33FY-83010

HOSE ASSY

TF370, 16B #0003

1шт.

6

P910-084035

HOSE ASSY-ORFS 0X0

TF370, 18B #0001

1шт.

6

33FY-83010

HOSE ASSY

TF370, 18B #0002

1шт.

6

P910-084035

HOSE ASSY-ORFS 0X0

TF370, 20B #0005

1шт.

6

33FY-83010

HOSE ASSY

TF370, 20B #0006

1шт.

6

P910-084039

HOSE ASSY-ORFS 0X0

TF400, 16B #0002

1шт.

6

33FY-83020

HOSE ASSY

TF400, 16B #0003

1шт.

6

P910-084039

HOSE ASSY-ORFS 0X0

TF400, 18B #0001

1шт.

6

33FY-83020

HOSE ASSY

TF400, 18B #0002

1шт.

6

P910-084039

HOSE ASSY-ORFS 0X0

TF400, 20B #0005

1шт.

6

33FY-83020

HOSE ASSY

TF400, 20B #0006

1шт.

6

P910-084043

HOSE ASSY-ORFS 0X0

TF430, 16B #0002

1шт.

6

33FY-83030

HOSE ASSY

TF430, 16B #0003

1шт.

6

P910-084043

HOSE ASSY-ORFS 0X0

TF430, 18B #0001

1шт.

6

33FY-83030

HOSE ASSY

TF430, 18B #0002

1шт.

6

P910-084043

HOSE ASSY-ORFS 0X0

TF430, 20B #0005

1шт.

6

33FY-83030

HOSE ASSY

TF430, 20B #0006

1шт.

6

P910-084047

HOSE ASSY-ORFS 0X0

TF450, 16B #0002

1шт.

6

33FY-83040

HOSE ASSY

TF450, 16B #0003

1шт.

6

P910-084047

HOSE ASSY-ORFS 0X0

TF450, 18B #0001

1шт.

6

33FY-83040

HOSE ASSY

TF450, 18B #0002

1шт.

6

P910-084047

HOSE ASSY-ORFS 0X0

TF450, 20B #0005

1шт.

6

33FY-83040

HOSE ASSY

TF450, 20B #0006

1шт.

6

P910-084049

HOSE ASSY-ORFS 0X0

TF470, 16B #0002

1шт.

6

33FY-83050

HOSE ASSY

TF470, 16B #0003

1шт.

6

P910-084049

HOSE ASSY-ORFS 0X0

TF470, 18B #0001

1шт.

6

33FY-83050

HOSE ASSY

TF470, 18B #0002

1шт.

6

P910-084049

HOSE ASSY-ORFS 0X0

TF470, 20B #0005

1шт.

6

33FY-83050

HOSE ASSY

TF470, 20B #0006

1шт.

6

P910-084053

HOSE ASSY-ORFS 0X0

TF500, 16B #0002

1шт.

6

33FY-83060

HOSE ASSY

TF500, 16B #0003

1шт.

6

P910-084053

HOSE ASSY-ORFS 0X0

TF500, 18B #0001

1шт.

6

33FY-83060

HOSE ASSY

TF500, 18B #0002

1шт.

6

P910-084053

HOSE ASSY-ORFS 0X0

TF500, 20B #0005

1шт.

6

33FY-83060

HOSE ASSY

TF500, 20B #0006

1шт.

6

P910-084061

HOSE ASSY-ORFS 0X0

TF550, 16B #0002

1шт.

6

33FY-83070

HOSE ASSY

TF550, 16B #0003

1шт.

6

P910-084061

HOSE ASSY-ORFS 0X0

TF550, 18B #0001

1шт.

6

33FY-83070

HOSE ASSY

TF550, 18B #0002

1шт.

6

P910-084061

HOSE ASSY-ORFS 0X0

TF550, 20B #0005

1шт.

6

33FY-83070

HOSE ASSY

TF550, 20B #0006

1шт.

6

P910-084069

HOSE ASSY-ORFS 0X0

TF600, 16B #0002

1шт.

6

33FY-83080

HOSE ASSY

TF600, 16B #0003

1шт.

6

P910-084069

HOSE ASSY-ORFS 0X0

TF600, 18B #0001

1шт.

6

33FY-83080

HOSE ASSY

TF600, 18B #0002

1шт.

6

P910-084069

HOSE ASSY-ORFS 0X0

TF600, 20B #0005

1шт.

6

33FY-83080

HOSE ASSY

TF600, 20B #0006

1шт.

6

P910-084077

HOSE ASSY-ORFS 0X0

TF650, 16B #0002

1шт.

6

33FY-83090

HOSE ASSY

TF650, 16B #0003

1шт.

6

P910-084077

HOSE ASSY-ORFS 0X0

TF650, 18B #0001

1шт.

6

33FY-83090

HOSE ASSY

TF650, 18B #0002

1шт.

6

P910-084077

HOSE ASSY-ORFS 0X0

TF650, 20B #0005

1шт.

6

33FY-83090

HOSE ASSY

TF650, 20B #0006

1шт.

6

P910-084085

HOSE ASSY-ORFS 0X0

TF700, 16B #0002

1шт.

6

33FY-83100

HOSE ASSY

TF700, 16B #0003

1шт.

6

P910-084085

HOSE ASSY-ORFS 0X0

TF700, 18B #0001

1шт.

6

33FY-83100

HOSE ASSY

TF700, 18B #0002

1шт.

6

P910-084085

HOSE ASSY-ORFS 0X0

TF700, 20B #0005

1шт.

6

33FY-83100

HOSE ASSY

TF700, 20B #0006

1шт.

7

31FY-82000

HOSE ASSY

1шт.

8

33HH-83020

HOSE ASSY-ORFS 0X0

1шт.

8

P910-084009

HOSE ASSY-ORFS 0X0

16B #0001 - #0038

1шт.

8

P913-084009

HOSE ASSY-ORFS 0X0

16B #0039

1шт.

8

P910-084009

HOSE ASSY-ORFS 0X0

18B #0001 - #0028

1шт.

8

P913-084009

HOSE ASSY-ORFS 0X0

18B #0029

1шт.

8

33HH-83020

HOSE ASSY-ORFS 0X0

20B #0003

1шт.

8

P910-084009

HOSE ASSY-ORFS 0X0

20B #0004 - #0041

1шт.

8

P913-084009

HOSE ASSY-ORFS 0X0

20B #0042

1шт.

9

33FY-83001

PIPE WA

1шт.

10

33FY-84000

PIPE WA

1шт.

10

33FY-84002

PIPE WA

16/18B #0001

1шт.

10

33FY-84001

PIPE WA

20B #0003

1шт.

10

33FY-84002

PIPE WA

20B #0004

1шт.

10-1

S621-014001

O-RING

16/18B #0001

2шт.

10-1

S621-014001

O-RING

20B #0004

2шт.

11

P760-013085

HOSE-RUBBER

TF370

2шт.

11

P760-013095

HOSE-RUBBER

TF400

2шт.

11

P760-013105

HOSE-RUBBER

TF430

2шт.

11

P760-013115

HOSE-RUBBER

TF450

2шт.

11

P760-013120

HOSE-RUBBER

TF470

2шт.

11

P760-013130

HOSE-RUBBER

TF500

2шт.

11

P760-013150

HOSE-RUBBER

TF550

2шт.

11

P760-013170

HOSE-RUBBER

TF600

2шт.

11

P760-013190

HOSE-RUBBER

TF650

2шт.

11

P760-013210

HOSE-RUBBER

TF700

2шт.

12

FMB0200610

PULLEY-HOSE

16B #0055

1шт.

12

33HH-80500

PULLEY-HOSE

16B #0056

1шт.

12

FMB0200610

PULLEY-HOSE

18B #0042

1шт.

12

33HH-80500

PULLEY-HOSE

18B #0043

1шт.

12

FMB0200610

PULLEY-HOSE

20B #0065

1шт.

12

33HH-80500

PULLEY-HOSE

20B #0066

1шт.

13

S731-020025

BUSHING-DU

16B #0055

1шт.

13

S731-020025

BUSHING-DU

16B #0056

1шт.

13

S731-020025

BUSHING-DU

18B #0042

1шт.

13

S731-020025

BUSHING-DU

18B #0043

1шт.

13

S731-020025

BUSHING-DU

20B #0065

1шт.

13

S731-020025

BUSHING-DU

20B #0066

1шт.

14

33FY-85000

PIN-HOSE PULLEY

16B #0055

1шт.

14

31FV-90150

PIN-HOSE PULLEY

16B #0056

1шт.

14

33FY-85000

PIN-HOSE PULLEY

18B #0042

1шт.

14

31FV-90150

PIN-HOSE PULLEY

18B #0043

1шт.

14

33FY-85000

PIN-HOSE PULLEY

20B #0065

1шт.

14

31FV-90150

PIN-HOSE PULLEY

20B #0066

1шт.

15

S017-120556

BOLT-HEX

16B #0055

1шт.

15

S017-120456

BOLT-HEX

16B #0056

1шт.

15

S017-120556

BOLT-HEX

18B #0042

1шт.

15

S017-120456

BOLT-HEX

18B #0043

1шт.

15

S017-120556

BOLT-HEX

20B #0065

1шт.

15

S017-120456

BOLT-HEX

20B #0066

1шт.

16

S411-120006

WASHER-SPRING

1шт.

17

S441-120006

WASHER-HARDENED

1шт.

18

F12500182

CLAMP-F/REG

1шт.

19

S035-082036

BOLT-W/WASHER

4шт.

20

X820-085353

TEE-R/TYPE,ORFS

1шт.

21

X850-535300

ELBOW-90,SWIVEL,ORFS

1шт.

22

31FG-80501

TEE-RETURN

16B #0073

1шт.

22

31HN-80500

TEE-RETURN

16B #0074

1шт.

22

31FG-80501

TEE-RETURN

18B #0040

1шт.

22

31HN-80500

TEE-RETURN

18B #0041

1шт.

22

31FG-80501

TEE-RETURN

20B #0076

1шт.

22

31HN-80500

TEE-RETURN

20B #0077

1шт.

23

X520-110016

ELBOW-90,ORFS

1шт.

24

S631-018004

O-RING

1шт.

25

S631-024004

O-RING

1шт.

26

S621-014001

O-RING

5шт.

27

S037-102026

BOLT-W/WASHER

2шт.

27

S037-102526

BOLT-W/WASHER

16/18B #0001

2шт.

27

S037-102026

BOLT-W/WASHER

20B #0003

2шт.

27

S037-102526

BOLT-W/WASHER

20B #0004

2шт.

28

33HA-83350

CLIP-HOSE

16B #0073

4шт.

28

33HA-83340

CLIP-HOSE

16B #0074

4шт.

28

33HA-83350

CLIP-HOSE

18B #0040

4шт.

28

33HA-83340

CLIP-HOSE

18B #0041

4шт.

28

33HA-83350

CLIP-HOSE

4шт.

28

33HA-83350

CLIP-HOSE

20B #0079

4шт.

28

33HA-83340

CLIP-HOSE

20B #0080

4шт.

29

S552-102370

CLAMP-BAND

4шт.

30

31FA-80110

CLAMP-HOSE

4шт.

31

P910-084011

HOSE ASSY-ORFS 0X0

1шт.

32

P753-080006

PROTECT COVER-HOSE

16B #0002

1шт.

32

P753-080006

PROTECT COVER-HOSE

18B #0001

1шт.

32

P753-080006

PROTECT COVER-HOSE

20B #0005

1шт.

Выбрано товаров: 146
