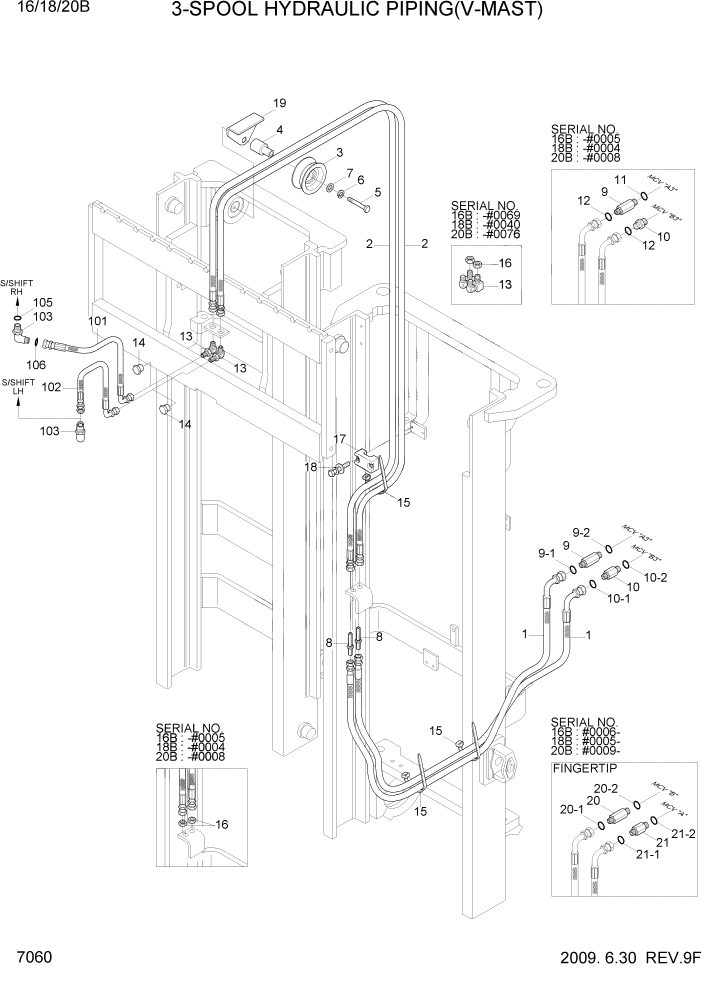

Запчасти Hyundai 16/18/20B-7 PAGE 7060 3-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
1
P933-044027
HOSE ASSY-ORFS 0X90
16B #0054
2шт.
1
P933-043027
HOSE ASSY-ORFS 0X90
16B #0055
2шт.
1
P933-044027
HOSE ASSY-ORFS 0X90
18B #0036
2шт.
1
P933-043027
HOSE ASSY-ORFS 0X90
18B #0037
2шт.
1
P933-044027
HOSE ASSY-ORFS 0X90
20B #0063
2шт.
1
P933-043027
HOSE ASSY-ORFS 0X90
20B #0064
2шт.
2
P910-064040
HOSE ASSY-ORFS 0X0
V250,16B #0054
2шт.
2
P910-043040
HOSE ASSY-ORFS 0X0
V250,16B #0055
2шт.
2
P910-064040
HOSE ASSY-ORFS 0X0
V250,18B #0036
2шт.
2
P910-043040
HOSE ASSY-ORFS 0X0
V250,18B #0037
2шт.
2
P910-064040
HOSE ASSY-ORFS 0X0
V250,20B #0063
2шт.
2
P910-043040
HOSE ASSY-ORFS 0X0
V250,20B #0064
2шт.
2
P910-064044
HOSE ASSY-ORFS 0X0
V270,16B #0054
2шт.
2
P910-043044
HOSE ASSY-ORFS 0X0
V270,16B #0055
2шт.
2
P910-064044
HOSE ASSY-ORFS 0X0
V270,18B #0036
2шт.
2
P910-043044
HOSE ASSY-ORFS 0X0
V270,18B #0037
2шт.
2
P910-064044
HOSE ASSY-ORFS 0X0
V270,20B #0063
2шт.
2
P910-043044
HOSE ASSY-ORFS 0X0
V270,20B #0064
2шт.
2
P910-043050
HOSE ASSY-ORFS 0X0
V300,16B #0055
2шт.
2
P910-043050
HOSE ASSY-ORFS 0X0
V300,18B #0037
2шт.
2
P910-043050
HOSE ASSY-ORFS 0X0
V300,20B #0064
2шт.
2
P910-064056
HOSE ASSY-ORFS 0X0
V330,16B #0054
2шт.
2
P910-043056
HOSE ASSY-ORFS 0X0
V330,16B #0055
2шт.
2
P910-064056
HOSE ASSY-ORFS 0X0
V330,18B #0036
2шт.
2
P910-043056
HOSE ASSY-ORFS 0X0
V330,18B #0037
2шт.
2
P910-064056
HOSE ASSY-ORFS 0X0
V330,20B #0063
2шт.
2
P910-043056
HOSE ASSY-ORFS 0X0
V330,20B #0064
2шт.
2
P910-064060
HOSE ASSY-ORFS 0X0
V350,16B #0054
2шт.
2
P910-043060
HOSE ASSY-ORFS 0X0
V350,16B #0055
2шт.
2
P910-064060
HOSE ASSY-ORFS 0X0
V350,18B #0036
2шт.
2
P910-043060
HOSE ASSY-ORFS 0X0
V350,18B #0037
2шт.
2
P910-064060
HOSE ASSY-ORFS 0X0
V350,20B #0063
2шт.
2
P910-043060
HOSE ASSY-ORFS 0X0
V350,20B #0064
2шт.
2
P910-064070
HOSE ASSY-ORFS 0X0
V400,16B #0054
2шт.
2
P910-043070
HOSE ASSY-ORFS 0X0
V400,16B #0055
2шт.
2
P910-064070
HOSE ASSY-ORFS 0X0
V400,18B #0036
2шт.
2
P910-043070
HOSE ASSY-ORFS 0X0
V400,18B #0037
2шт.
2
P910-064070
HOSE ASSY-ORFS 0X0
V400,20B #0063
2шт.
2
P910-043070
HOSE ASSY-ORFS 0X0
V400,20B #0064
2шт.
2
P910-064084
HOSE ASSY-ORFS 0X0
V450,16B #0054
2шт.
2
P910-043084
HOSE ASSY-ORFS 0X0
V450,16B #0055
2шт.
2
P910-064084
HOSE ASSY-ORFS 0X0
V450,18B #0036
2шт.
2
P910-043084
HOSE ASSY-ORFS 0X0
V450,18B #0037
2шт.
2
P910-064084
HOSE ASSY-ORFS 0X0
V450,20B #0063
2шт.
2
P910-043084
HOSE ASSY-ORFS 0X0
V450,20B #0064
2шт.
2
P910-064094
HOSE ASSY-ORFS 0X0
V500,16B #0054
2шт.
2
P910-043094
HOSE ASSY-ORFS 0X0
V500,16B #0055
2шт.
2
P910-064094
HOSE ASSY-ORFS 0X0
V500,18B #0036
2шт.
2
P910-043094
HOSE ASSY-ORFS 0X0
V500,18B #0037
2шт.
2
P910-064094
HOSE ASSY-ORFS 0X0
V500,20B #0063
2шт.
2
P910-043094
HOSE ASSY-ORFS 0X0
V500,20B #0064
2шт.
2
P910-064104
HOSE ASSY-ORFS 0X0
V550,16B #0054
2шт.
2
P910-043104
HOSE ASSY-ORFS 0X0
V550,16B #0055
2шт.
2
P910-064104
HOSE ASSY-ORFS 0X0
V550,18B #0036
2шт.
2
P910-043104
HOSE ASSY-ORFS 0X0
V550,18B #0037
2шт.
2
P910-064104
HOSE ASSY-ORFS 0X0
V550,20B #0063
2шт.
2
P910-043104
HOSE ASSY-ORFS 0X0
V550,20B #0064
2шт.
3
31HH-80300
PULLEY-HOSE
1шт.
5
S017-120606
BOLT-HEX
1шт.
8
X540-120001
CONNECTOR-ORFS
2шт.
9
33FY-90130
CONNECTOR
16B #0005
1шт.
9
31HG-90170
CONNECTOR
16B #0006
1шт.
9
33FY-90130
CONNECTOR
18B #0004
1шт.
9
31HG-90170
CONNECTOR
18B #0005
1шт.
9
33FY-90130
CONNECTOR
20B #0008
1шт.
9
31HG-90170
CONNECTOR
20B #0009
1шт.
10
X515-107523
CONNECTOR-LONG,ORFS
16B #0005
1шт.
10
31HG-90140
CONNECTOR
16B #0006
1шт.
10
X515-107523
CONNECTOR-LONG,ORFS
18B #0004
1шт.
10
31HG-90140
CONNECTOR
18B #0005
1шт.
10
X515-107523
CONNECTOR-LONG,ORFS
20B #0008
1шт.
10
31HG-90140
CONNECTOR
20B #0009
1шт.
13
31FY-90500
ELBOW WA
16B #0073
2шт.
13
31HN-90700
ELBOW-90,ORFS
16B #0074
2шт.
13
31FY-90500
ELBOW WA
18B #0040
2шт.
13
31HN-90700
ELBOW-90,ORFS
18B #0041
2шт.
13
31FY-90500
ELBOW WA
20B #0076
2шт.
13
31HN-90700
ELBOW-90,ORFS
20B #0077
2шт.
14
X710-100102
CAP-HYD,ORFS
2шт.
15
S552-102370
CLAMP-BAND
4шт.
16
33FP-90380-DA
NUT
16B #0005
4шт.
16
33FP-90380-DA
NUT
16B #0006 - #0073
2шт.
16
33FP-90380-DA
NUT
18B #0004
4шт.
16
33FP-90380-DA
NUT
18B #0005 - #0040
2шт.
16
33FP-90380-DA
NUT
20B #0008
4шт.
16
33FP-90380-DA
NUT
20B #0009 - #0076
2шт.
17
33FP-90200
CLAMP
1шт.
18
S035-063526
BOLT-W/WASHER
2шт.
19
61HH-18510
GUARD
1шт.
20
33FY-90610
CONNECTOR
16B #0006
1шт.
20
33FY-90610
CONNECTOR
18B #0005
1шт.
20
33FY-90610
CONNECTOR
20B #0009
1шт.
20-1
S611-012001
O-RING
16B #0006
1шт.
20-1
S611-012001
O-RING
18B #0005
1шт.
20-1
S611-012001
O-RING
20B #0009
1шт.
21
33FY-90620
CONNECTOR
16B #0006
1шт.
21
33FY-90620
CONNECTOR
18B #0005
1шт.
21
33FY-90620
CONNECTOR
20B #0009
1шт.
21-1
S611-012001
O-RING
16B #0006
1шт.
21-1
S611-012001
O-RING
18B #0005
1шт.
21-1
S611-012001
O-RING
20B #0009
1шт.
101
P910-043006
HOSE ASSY-ORFS 0X0
16B, S/SHIFT #0001 - #0073
1шт.
101
P910-043008
HOSE ASSY-ORFS 0X0
16B, S/SHIFT #0074 - #0081
1шт.
101
P930-043009
HOSE ASSY-ORFS 0X90
16B, S/SHIFT #0082
1шт.
101
P910-043006
HOSE ASSY-ORFS 0X0
18B, S/SHIFT #0001 - #0040
1шт.
101
P910-043008
HOSE ASSY-ORFS 0X0
18B, S/SHIFT #0041 - #0041
1шт.
101
P930-043009
HOSE ASSY-ORFS 0X90
18B, S/SHIFT #0042
1шт.
101
P910-043006
HOSE ASSY-ORFS 0X0
20B, S/SHIFT #0001 - #0076
1шт.
101
P910-043008
HOSE ASSY-ORFS 0X0
20B, S/SHIFT #0077 - #0112
1шт.
101
P930-043009
HOSE ASSY-ORFS 0X90
20B, S/SHIFT #0113
1шт.
102
P910-044006
HOSE ASSY-ORFS 0X0
16B, S/SHIFT #0001 - #0073
1шт.
102
P910-043006
HOSE ASSY-ORFS 0X0
16B, S/SHIFT #0074 - #0081
1шт.
102
P930-043007
HOSE ASSY-ORFS 0X90
18B, S/SHIFT #0082
1шт.
102
P910-044006
HOSE ASSY-ORFS 0X0
18B, S/SHIFT #0001 - #0040
1шт.
102
P910-043006
HOSE ASSY-ORFS 0X0
18B, S/SHIFT #0041 - #0041
1шт.
102
P930-043007
HOSE ASSY-ORFS 0X90
18B, S/SHIFT #0042
1шт.
102
P910-044006
HOSE ASSY-ORFS 0X0
20B, S/SHIFT #0001 - #0076
1шт.
102
P910-043006
HOSE ASSY-ORFS 0X0
20B, S/SHIFT #0077 - #0112
1шт.
102
P930-043007
HOSE ASSY-ORFS 0X90
20B, S/SHIFT #0113
1шт.
103
X520-310001
ELBOW-90,ORFS
16B, S/SHIFT #0081
2шт.
103
X520-310001
ELBOW-90,ORFS
16B, S/SHIFT #0082
1шт.
103
X520-310001
ELBOW-90,ORFS
18B, S/SHIFT #0041
2шт.
103
X520-310001
ELBOW-90,ORFS
18B, S/SHIFT #0042
1шт.
103
X520-310001
ELBOW-90,ORFS
20B, S/SHIFT #0112
2шт.
103
X520-310001
ELBOW-90,ORFS
20B, S/SHIFT #0113
1шт.
104
33FY-90600
CONNECTOR
16B #0073
1шт.
104
33FY-90600
CONNECTOR
18B #0040
1шт.
104
33FY-90600
CONNECTOR
20B #0076
1шт.
105
S611-012001
O-RING
16B #0074
2шт.
105
S611-012001
O-RING
18B #0041
2шт.
105
S611-012001
O-RING
20B #0077
2шт.
105
S611-012001
O-RING
16B, S/SHIFT #0081
2шт.
105
S611-012001
O-RING
16B, S/SHIFT #0082
1шт.
105
S611-012001
O-RING
18B, S/SHIFT #0041
2шт.
105
S611-012001
O-RING
18B, S/SHIFT #0042
1шт.
105
S611-012001
O-RING
20B, S/SHIFT #0112
2шт.
105
S611-012001
O-RING
20B, S/SHIFT #0113
1шт.
107
33FY-90600
CONNECTOR
1шт.
