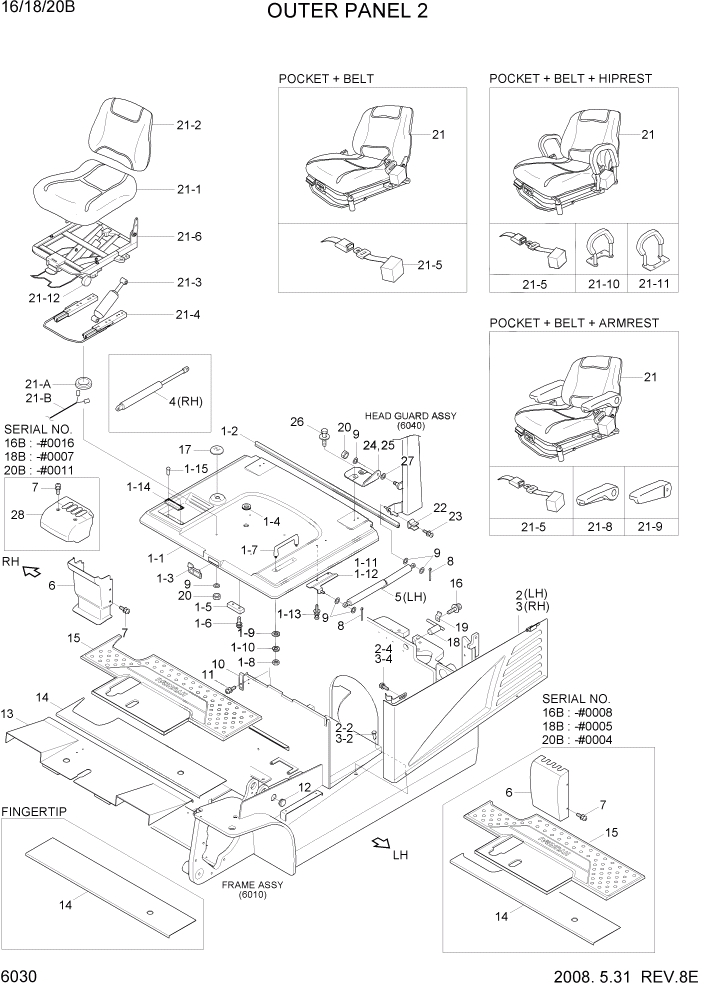

Запчасти Hyundai 16/18/20B-7 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

1

71HE-11002

BATTERY COVER S/ASSY

16B #0005

1шт.

1

71HE-11003

BATTERY COVER S/ASSY

16B #0006

1шт.

1

71HE-12002

BATTERY COVER S/ASSY

18B #0004

1шт.

1

71HE-12003

BATTERY COVER S/ASSY

18B #0005

1шт.

1

71HE-12002

BATTERY COVER S/ASSY

20B #0008

1шт.

1

71HE-12003

BATTERY COVER S/ASSY

20B #0009

1шт.

1

71HE-12002

BATTERY COVER S/ASSY

18/20B

1шт.

1-1

71HE-11012

BATTERY COVER

16B #0005

1шт.

1-1

71HE-11013

BATTERY COVER

16B #0006

1шт.

1-1

71HE-12011

BATTERY COVER

18B #0004

1шт.

1-1

71HE-12012

BATTERY COVER

18B #0005

1шт.

1-1

71HE-12011

BATTERY COVER

20B #0008

1шт.

1-1

71HE-12012

BATTERY COVER

20B #0009

1шт.

1-2

S772-010000

WEATHER STRIP

1шт.

1-3

71FH-10380

LATCH ASSY

1шт.

1-4

S681-230800

GROMMET

16B #0005

1шт.

1-4

S681-410800

GROMMET

16B #0006

1шт.

1-4

S681-230800

GROMMET

18B #0004

1шт.

1-4

S681-410800

GROMMET

18B #0005

1шт.

1-4

S681-230800

GROMMET

20B #0008

1шт.

1-4

S681-410800

GROMMET

20B #0009

1шт.

1-5

F12100190

CUSHION

2шт.

1-6

S131-051546

SCREW-W/WASHER

4шт.

1-7

71FH-10140

HANDLE

1шт.

1-8

S205-08100B

NUT-HEX

2шт.

1-9

S403-082006

WASHER-PLAIN

2шт.

1-1

S411-080006

WASHER-SPRING

2шт.

1-11

71HE-10021

BRACKET-LH SPRING

16B

1шт.

1-11

71HE-12020

BRACKET-LH SPRING

18/20B

1шт.

1-12

71HE-10031

BRACKET-RH SPRING

16B

1шт.

1-12

71HE-12030

BRACKET-RH SPRING

18/20B

1шт.

1-13

S035-062026

BOLT-W/WASHER

4шт.

1-14

71FH-10181

CLIP

1шт.

1-15

9055000309

RIVET

2шт.

2

71HE-10200

SIDE COVER-LH

16B

1шт.

2

71HE-10101

SIDE COVER-LH

18/20B

1шт.

2-2

S491-080222

PIN-CLEVIS

2шт.

2-4

S132-061256

SCREW-W/WASHER

2шт.

3

71HE-10210

SIDE COVER-RH

16B

1шт.

3

71HE-10111

SIDE COVER-RH

18/20B

1шт.

3-2

S491-080222

PIN-CLEVIS

2шт.

3-4

S132-061256

SCREW-W/WASHER

2шт.

4

71HE-12301

GAS SPRING

16/18B #0001

1шт.

4

71HE-12300

GAS SPRING

20B #0003

1шт.

4

71HE-12301

GAS SPRING

20B #0004

1шт.

5

71HE-12052

GAS SPRING

16/18B #0001

1шт.

5

71HE-12051

GAS SPRING

20B #0003

1шт.

5

71HE-12052

GAS SPRING

20B #0004

1шт.

6

B51110112

COVER-CONTROL VLV

16B #0005

1шт.

6

71FH-16201

COVER-MCV

16B #0006

1шт.

6

B51110112

COVER-CONTROL VLV

18B #0004

1шт.

6

71FH-16201

COVER-MCV

18B #0005

1шт.

6

B51110112

COVER-CONTROL VLV

20B #0008

1шт.

6

71FH-16201

COVER-MCV

20B #0009

1шт.

7

S132-061546

SCREW-W/WASHER

16B #0005

4шт.

7

S002-06015B

SCREW-TRUS HEAD

16B #0006 - #0016

6шт.

7

S002-06015B

SCREW-TRUS HEAD

16B #0017

4шт.

7

S132-061546

SCREW-W/WASHER

18B #0004

4шт.

7

S002-06015B

SCREW-TRUS HEAD

18B #0005 - #0007

6шт.

7

S002-06015B

SCREW-TRUS HEAD

18B #0008

4шт.

7

S132-061546

SCREW-W/WASHER

20B #0008

4шт.

7

S002-06015B

SCREW-TRUS HEAD

20B #0009 - #0011

6шт.

7

S002-06015B

SCREW-TRUS HEAD

20B #0012

4шт.

8

S461-080206

PIN-SPLIT

4шт.

9

S403-082006

WASHER-PLAIN

12шт.

10

71FH-10190

BRACKET-LOCK

1шт.

11

S179-060156

SCREW-SOCKET RD HD

2шт.

12

S661-400800

CAP-RUBBER

2шт.

13

71FY-11053

FLOOR PLATE-FRONT

1шт.

14

71FY-11062

FLOOR PLATE-REAR

16B #0005

1шт.

14

71FY-11063

FLOOR PLATE-REAR

16B #0006

1шт.

14

71FY-11062

FLOOR PLATE-REAR

18B #0004

1шт.

14

71FY-11063

FLOOR PLATE-REAR

18B #0005

1шт.

14

71FY-11062

FLOOR PLATE-REAR

20B #0008

1шт.

14

71FY-11063

FLOOR PLATE-REAR

20B #0009

1шт.

14

71FY-11080

FLOOR PLATE-REAR

16B #0006

1шт.

14

71FY-11080

FLOOR PLATE-REAR

18B #0005

1шт.

14

71FY-11080

FLOOR PLATE-REAR

20B #0009

1шт.

15

71HE-10071

MAT-FLOOR

16B #0005

1шт.

15

71HE-10072

MAT-FLOOR

16B #0006

1шт.

15

71HE-10071

MAT-FLOOR

18B #0004

1шт.

15

71HE-10072

MAT-FLOOR

18B #0005

1шт.

15

71HE-10071

MAT-FLOOR

20B #0008

1шт.

15

71HE-10072

MAT-FLOOR

20B #0009

1шт.

16

S035-082556

BOLT-W/WASHER

1шт.

17

71FH-10230

CAP-COVER

1шт.

18

71FH-10280

STOPPER-BATTERY

1шт.

19

B51110220

CLIP

1шт.

20

S275-08000B

NUT-SELF LOCKING

6шт.

21

71FH-10511

SEAT ASSY(PKT)

1шт.

21

71FH-10521

SEAT ASSY(PKT+BT)

1шт.

21

71FH-10531

SEAT ASSY(PKT+BT+HR)

1шт.

21

71FH-10550

SEAT ASSY(PKT+BT+HR)

16B,FINGERTIP #0006

1шт.

21

71FH-10550

SEAT ASSY(PKT+BT+HR)

18B,FINGERTIP #0005

1шт.

21

71FH-10550

SEAT ASSY(PKT+BT+HR)

20B,FINGERTIP #0009

1шт.

21

71FH-10541

SEAT ASSY(PKT+BT+AR)

1шт.

21

71FH-10560

SEAT ASSY(PKT+BT+AR)

16B,FINGERTIP #0006

1шт.

21

71FH-10560

SEAT ASSY(PKT+BT+AR)

18B,FINGERTIP #0005

1шт.

21

71FH-10560

SEAT ASSY(PKT+BT+AR)

20B,FINGERTIP #0009

1шт.

21-A

310006540

SWITCH-SEAT

OPSS,FINGERTIP

1шт.

21

F12120300

SEAT ASSY(PKT)

16B #0083

1шт.

21-B

B51800050

HARNESS-SEAT

OPSS,FINGERTIP

1шт.

21-1

H31013-100C

CUSHION ASSY

1шт.

21

F12120300

SEAT ASSY(PKT)

18B #0047

1шт.

21-2

H31013-200B

BACK ASSY

1шт.

21-3

H31013-360

SHOCK ABSORBER ASSY

1шт.

21-4

H31013-600B

SLIDE TRACK ASSY

1шт.

21

F12120300

SEAT ASSY(PKT)

20B #0115

1шт.

21-5

89890-8A610

BELT-SEAT

WITH BELT

1шт.

21-6

H31023-300G

SUSPENSION

1шт.

21-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST

1шт.

21-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST

1шт.

21-1

H31010-700

HIP RESTRAINT-LH

WITH HIP-REST

1шт.

21-11

H31015-700

HIP RESTRAINT-RH

WITH HIP-REST

1шт.

21-12

71FH-10590

KNOB-RECLINER

1шт.

21

71FH-10570

SEAT ASSY(PKT+BT)

16B #0083

1шт.

21

71FH-10570

SEAT ASSY(PKT+BT)

18B #0047

1шт.

21

71FH-10570

SEAT ASSY(PKT+BT)

20B #0115

1шт.

21-A

310006540

SWITCH-SEAT

OPSS,FINGERTIP

1шт.

21-1

H31013-100C

CUSHION ASSY

1шт.

21-3

H31013-360

SHOCK ABSORBER ASSY

1шт.

21-5

89890-8A610

BELT-SEAT

WITH BELT

1шт.

21-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST

1шт.

21-B

B51800050

HARNESS-SEAT

OPSS,FINGERTIP

1шт.

26

S035-083056

BOLT-W/WASHER

4шт.

21-2

H31013-200B

BACK ASSY

1шт.

27

S403-10200B

WASHER-PLAIN

2шт.

21-4

H31013-600B

SLIDE TRACK ASSY

1шт.

28

71FH-16211

UPPER COVER

16B #0006 - #0016

1шт.

21-6

H31023-300G

SUSPENSION

1шт.

21-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST

1шт.

28

71FH-16211

UPPER COVER

18B #0005 - #0007

1шт.

28

71FH-16211

UPPER COVER

20B #0009 - #0011

1шт.

21-1

H31010-700

HIP RESTRAINT-LH

WITH HIP-REST

1шт.

21-11

H31015-700

HIP RESTRAINT-RH

WITH HIP-REST

1шт.

21-12

71FH-10590

KNOB-RECLINER

1шт.

22

71MH-54290

HOLDER-ROD

#0112

2шт.

22

71FH-16240

HOLDER

16B #0113

2шт.

22

71MH-54290

HOLDER-ROD

#0056

2шт.

22

71FH-16240

HOLDER

18B #0057

2шт.

22

71MH-54290

HOLDER-ROD

#0143

2шт.

22

71FH-16240

HOLDER

20B #0144

2шт.

23

S131-051046

SCREW-W/WASHER

2шт.

24

71HE-10121

HINGE-LH

1шт.

25

71HE-10131

HINGE-RH

1шт.

26

S035-083056

BOLT-W/WASHER

4шт.

27

S403-10200B

WASHER-PLAIN

2шт.

28

71FH-16211

UPPER COVER

16B #0006 - #0016

1шт.

28

71FH-16211

UPPER COVER

18B #0005 - #0007

1шт.

28

71FH-16211

UPPER COVER

20B #0009 - #0011

1шт.
