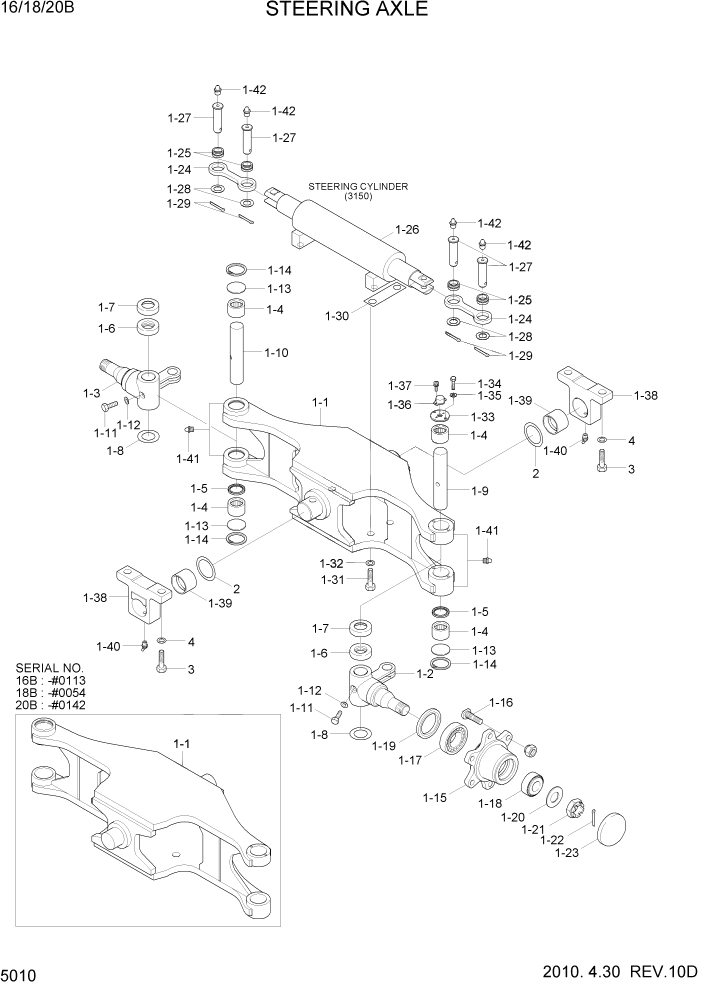

Запчасти Hyundai 16/18/20B-7 PAGE 5010 STEERING AXLE РУЛЕВОЕ & СИСТЕМА УПРАВЛЕНИЯ

1

81HE-50011

STEERING AXLE ASSY

16B #0020

1шт.

1

81HE-50012

STEERING AXLE ASSY

16B #0021 - #0113

1шт.

1

81HE-50013

STEERING AXLE ASSY

16B #0114

1шт.

1

81HE-50011

STEERING AXLE ASSY

18B #0010

1шт.

1

81HE-50012

STEERING AXLE ASSY

18B #0011 - #0054

1шт.

1

81HE-50013

STEERING AXLE ASSY

18B #0055

1шт.

1

81HE-50011

STEERING AXLE ASSY

20B #0014

1шт.

1

81HE-50012

STEERING AXLE ASSY

20B #0015 - #0142

1шт.

1

81HE-50013

STEERING AXLE ASSY

20B #0143

1шт.

1-1

81HE-50101

STEERING AXLE WA

16B #0020

1шт.

1-1

81HE-50102

STEERING AXLE WA

16B #0021 - #0113

1шт.

1-1

81HE-50103

STEERING AXLE WA

16B #0114

1шт.

1-1

81HE-50101

STEERING AXLE WA

18B #0010

1шт.

1-1

81HE-50102

STEERING AXLE WA

18B #0011 - #0054

1шт.

1-1

81HE-50103

STEERING AXLE WA

18B #0055

1шт.

1-1

81HE-50101

STEERING AXLE WA

20B #0014

1шт.

1-1

81HE-50102

STEERING AXLE WA

20B #0015 - #0142

1шт.

1-1

81HE-50103

STEERING AXLE WA

20B #0143

1шт.

1-2

81HE-50021

KNUCKLE-LH

1шт.

1-3

81HE-50031

KNUCKLE-RH

1шт.

1-4

9022900008

BEARING-NEEDLE

4шт.

1-5

1322001400

SEAL-OIL

2шт.

1-6

9021301206

BEARING-THRUST

2шт.

1-7

3555001800-01

CAP-BEARING THRUST

2шт.

1-8

FBC0500170

SHIM(0.13T)

2шт.

1-9

81HE-50040

PIN-KING,LH

1шт.

1-1

81HE-50050

PIN-KING,RH

1шт.

1-11

FAD0500150

BOLT-SPECIAL

2шт.

1-12

S411-100006

WASHER-SPRING

2шт.

1-13

81FG-50400

PLUG-PLATE

3шт.

1-14

S602-050004

RING-RETAINING

3шт.

1-15

81FY-57130

HUB

2шт.

1-16

3677010800-02

BOLT-HUB

12шт.

1-17

81FA-53070

BEARING-TAPER ROLLER

2шт.

1-18

81FG-50700

BEARING-T/ROLLER

2шт.

1-19

81FA-52400

SEAL-OIL,T6285

2шт.

1-2

81FA-52500

WASHER

2шт.

1-21

81F7-51210

NUT

2шт.

1-22

S461-630562

PIN-SPLIT

2шт.

1-23

Q100881001

CAP-HUB

2шт.

1-24

81HE-50060

LINK-STEERING

2шт.

1-25

6600264900

BEARING

4шт.

1-26

@

CYLINDER ASSY

NOT

1шт.

1-27

81HE-50071

PIN-LINK

4шт.

1-28

S403-181006

WASHER-PLAIN

4шт.

1-29

S461-500452

PIN-SPLIT

4шт.

1-3

81HE-50080

SHIM(0.2T)

2шт.

1-31

S017-160406

BOLT-HEX

#0113

4шт.

1-31

S017-16045D

BOLT-HEX

16B #0114

4шт.

1-31

S017-160406

BOLT-HEX

#0054

4шт.

1-31

S017-16045D

BOLT-HEX

18B #0055

4шт.

1-31

S017-160406

BOLT-HEX

#0142

4шт.

1-31

S017-16045D

BOLT-HEX

20B #0143

4шт.

1-32

S441-160006

WASHER-HARDENED

4шт.

1-33

81HE-50090

PLATE

1шт.

1-34

S015-060156

BOLT-HEX

2шт.

1-35

S411-060006

WASHER-SPRING

2шт.

1-36

21HE-72050

POTENTIOMETER ASSY

1шт.

1-37

S131-041046

SCREW-W/WASHER

1шт.

1-38

F12410011

BLOCK-TRUNNION

2шт.

1-39

FAC0500160

BUSHING

2шт.

1-4

S652-810008

NIPPLE-GREASE

2шт.

1-41

S651-060008

NIPPLE-GREASE

4шт.

1-42

S652-060008

NIPPLE-GREASE

4шт.

2

3591000800-01

SHIM(0.5T)

4шт.

3

S017-20060D

BOLT-HEX

4шт.

4

S441-200006

WASHER-HARDENED

4шт.
