Запчасти Hyundai 16/18/20B-7 PAGE 1020 CABLE(OLD) ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

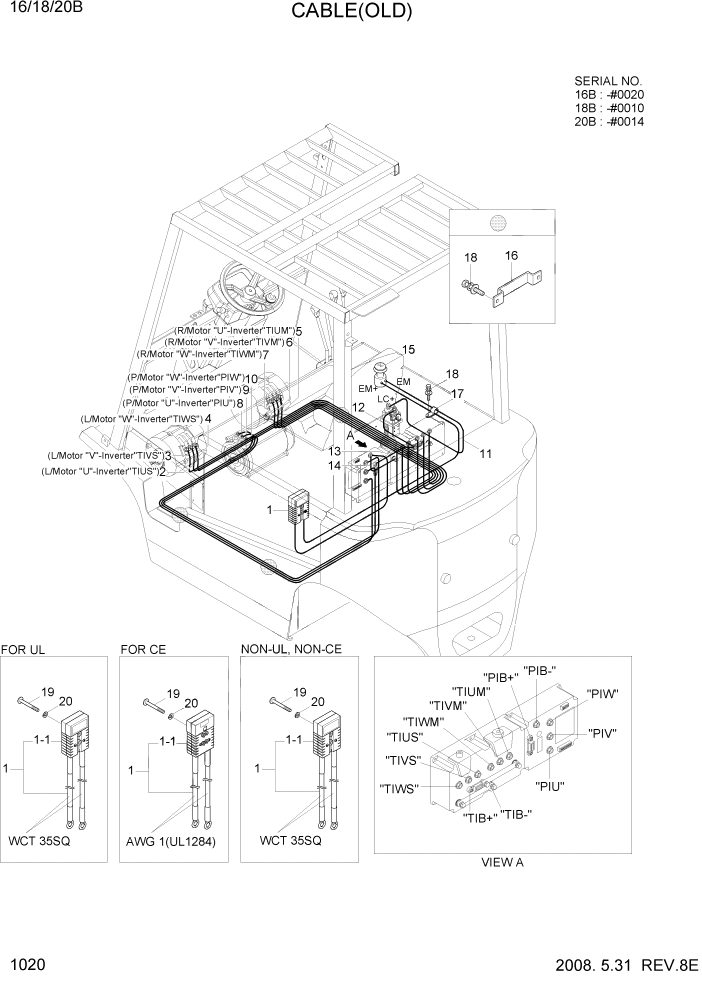

Схема запчастей Hyundai 16/18/20B-7 - PAGE 1020 CABLE(OLD) ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

Артикул

Название

Примечание

Количество

*

@

CABLE

NOT #0020

1шт.

*

@

CABLE

NOT #0010

1шт.

*

@

CABLE

NOT #0014

1шт.

1

21HE-76012

CABLE-BATTERY

STD

1шт.

1

21HE-76022

CABLE-BATTERY

FOR CE

1шт.

1

21HE-76032

CABLE-BATTERY

FOR UL

1шт.

1-1

B71800060

CONNECTOR-BATTERY

STD, FOR UL

1шт.

1-1

B52820030

CONNECTOR-SBE320

FOR CE

1шт.

2

21HE-76052

CABLE(TIUS TO LMU)

FOR CE, NON UL

1шт.

2

21HE-76182

CABLE(TIUS TO LMU)

FOR UL

1шт.

3

21HE-76062

CABLE(TIVS TO LMV)

FOR CE, NON UL

1шт.

3

21HE-76192

CABLE(TIVS TO LMV)

FOR UL

1шт.

4

21HE-76072

CABLE(TIWS TO LMW)

FOR CE, NON UL

1шт.

4

21HE-76202

CABLE(TIWS TO LMW)

FOR UL

1шт.

5

21HE-76082

CABLE(TIUM TO RMU)

FOR CE, NON UL

1шт.

5

21HE-76212

CABLE(TIUM TO RMU)

FOR UL

1шт.

6

21HE-76092

CABLE(TIVM TO RMV)

FOR CE, NON UL

1шт.

6

21HE-76222

CABLE(TIVM TO RMV)

FOR UL

1шт.

7

21HE-76102

CABLE(TIWM TO RMW)

FOR CE, NON UL

1шт.

7

21HE-76232

CABLE(TIWM TO RMW)

FOR UL

1шт.

8

21HE-76112

CABLE(PIU TO PMU)

FOR CE, NON UL

1шт.

8

21HE-76242

CABLE(PIU TO PMU)

FOR UL

1шт.

9

21HE-76122

CABLE(PIV TO PMV)

FOR CE, NON UL

1шт.

9

21HE-76252

CABLE(PIV TO PMV)

FOR UL

1шт.

10

21HE-76132

CABLE(PIW TO PMW)

FOR CE, NON UL

1шт.

10

21HE-76262

CABLE(PIW TO PMW)

FOR UL

1шт.

11

21HE-76142

CABLE(EM TO LC+)

FOR CE, NON UL

1шт.

11

21HE-76272

CABLE(EM TO LC+)

FOR UL

1шт.

12

21HE-76152

CABLE(LC TO PIB+)

FOR CE, NON UL

1шт.

12

21HE-76282

CABLE(LC TO PIB+)

FOR UL

1шт.

13

21HE-76162

CABLE(TIB+ TO PIB+)

FOR CE, NON UL

1шт.

13

21HE-76292

CABLE(TIB+ TO PIB+)

FOR UL

1шт.

14

21HE-76172

CABLE(TIB- TO PIB-)

FOR CE, NON UL

1шт.

14

21HE-76302

CABLE(TIB- TO PIB-)

FOR UL

1шт.

15

21FH-82120

SWITCH-EMERGENCY

1шт.

16

21HE-72042

BRACKET-CABLE

6шт.

17

31L6-02460

CLAMP-TUBE

1шт.

18

S035-081526

BOLT-W/WASHER

13шт.

19

S161-060406

SCREW-CROSS R/ROUND

STD, FOR UL

2шт.

19

S161-060406

SCREW-CROSS R/ROUND

FOR CE

4шт.

20

S411-060006

WASHER-SPRING

STD, FOR UL

2шт.

20

S411-060006

WASHER-SPRING

FOR CE

4шт.

Выбрано товаров: 42
