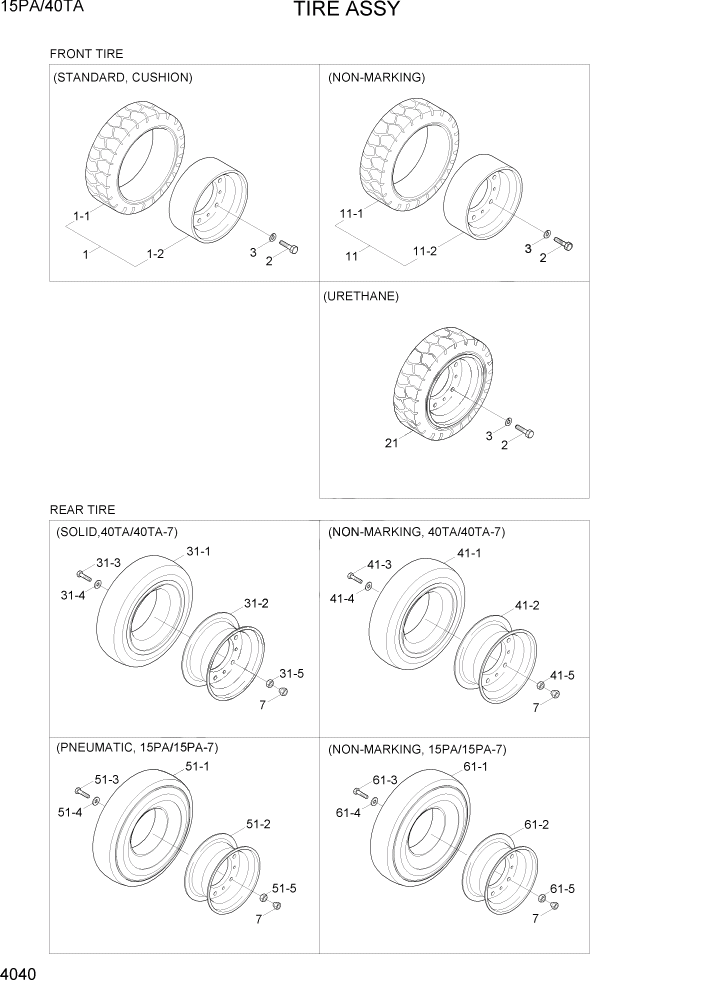

Запчасти Hyundai 15PA/40TA PAGE 4040 TIRE ASSY СИСТЕМА УПРАВЛЕНИЯ

1

3601006600-02

DRIVE TIRE-STD,FR

CUSHION

1шт.

1-1

3664020000B-05

CENTER-WHEEL

1шт.

1-2

3621009500-04

SOLID TIRE ASSY

1шт.

2

S018-16035D

BOLT-HEX

6шт.

3

S411-160006

WASHER-SPRING

6шт.

7

3678004400-DA

NUT-HUB

12шт.

11

B31440100

TIRE & RIM ASSY

NON-MARKING

1шт.

11-1

B31440110

NON-MARKING TIRE-FR

1шт.

11-2

3664020000B-05

CENTER-WHEEL

1шт.

21

B31420010

DRIVE WHEEL(URETHANE)

URETHAN

1шт.

31

6600225801

SOLID TIRE & RIM ASSY

40TA/40TA-7

2шт.

31-1

3621005700

SOLID TIRE-RR

SOLID

1шт.

31-2

3661008000B-03

DISC WHEEL ASSY

1шт.

31-3

S018-100256

BOLT-HEX

6шт.

31-4

S411-100006

WASHER-SPRING

6шт.

31-5

222110000

NUT-HEX

6шт.

41

B31450101

TIRE & RIM ASSY

40TA/40TA-7

2шт.

41-1

B31450110

NON-MARKING TIRE-RR

NON-MARKING

6шт.

41-2

3661008000B-03

DISC WHEEL ASSY

6шт.

41-3

S018-100256

BOLT-HEX

6шт.

41-4

S411-100006

WASHER-SPRING

1шт.

41-5

222110000

NUT-HEX

1шт.

51

F11410011

REAR WHEEL ASSY

15PA/15PA-7

2шт.

51-1

F11310140

PNEUMATIC TIRE-RR

PNEUMATIC

1шт.

51-2

3661008000B-03

DISC WHEEL ASSY

6шт.

51-3

S018-100256

BOLT-HEX

6шт.

51-4

S411-100006

WASHER-SPRING

6шт.

51-5

S206-10100B

NUT-HEX

1шт.

61

F21404001

TIRE & RIM ASSY

15PA/15PA-7

2шт.

61-1

F21404010

NO-MARKING TIRE-REAR

NON-MARKING

1шт.

61-2

3661008000B-03

DISC WHEEL ASSY

1шт.

61-3

S018-100256

BOLT-HEX

6шт.

61-4

S411-100006

WASHER-SPRING

6шт.

61-5

S206-10100B

NUT-HEX

6шт.
