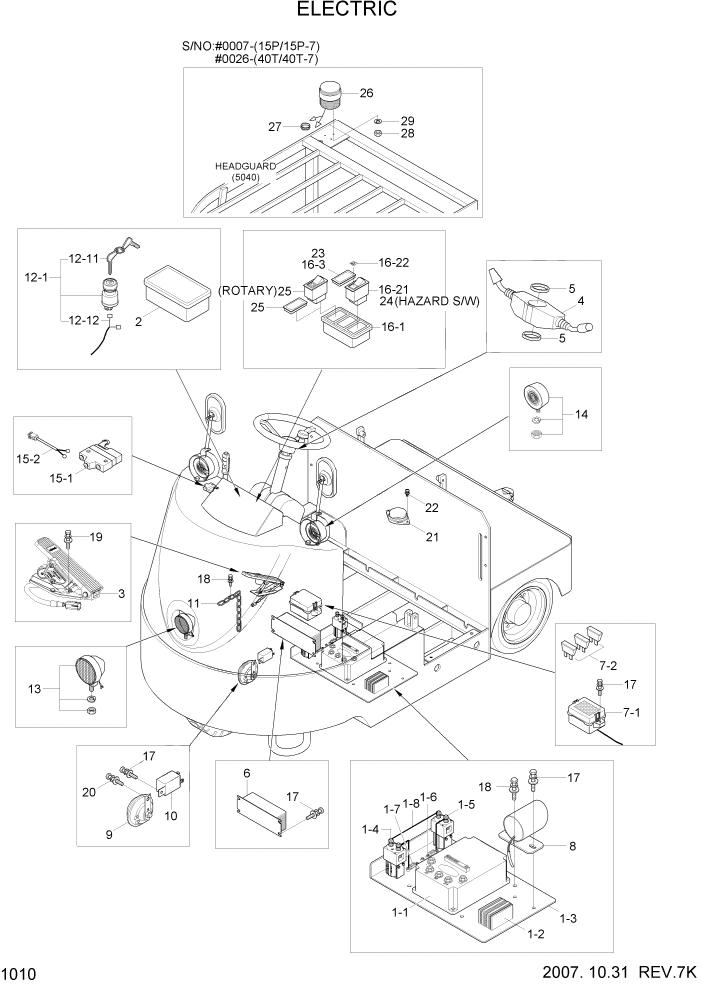

Запчасти Hyundai 15P/15P-7/40T/40T-7 PAGE 1010 ELECTRIC ЭЛЕКТРИЧЕСКАЯ СИСТЕМА
№
Артикул
Название
Примечание
Количество
1
21HB-78010
CONTROL PANEL ASSY
15/15P-7 #0039
1шт.
1
21HB-78011
CONTROL PANEL ASSY
15/15P-7 #0040
1шт.
1
21HB-78010
CONTROL PANEL ASSY
40/40T-7 #0179
1шт.
1
21HB-78011
CONTROL PANEL ASSY
40/40T-7 #0180
1шт.
1-1
21HB-78020
CONTROLLER
1шт.
1-2
21HB-78030
ACCESSORY
15/15P-7 #0039
1шт.
1-2
21HB-78031
ACCESSORY
15/15P-7 #0040
1шт.
1-2
21HB-78030
ACCESSORY
40/40T-7 #0179
1шт.
1-2
21HB-78031
ACCESSORY
40/40T-7 #0180
1шт.
N1-3
21HB-78050
BASE PLATE
NOT
1шт.
1-4
21HB-78060
CONTACTOR SW80B-156
1шт.
1-5
21HB-78070
CONTACTOR SW180B-8
1шт.
1-6
21HB-78080
FUSE 250A
1шт.
1-7
21HB-78090
FUSE 50A
1шт.
N1-8
21HB-78100
CABLE ASSY
NOT
1шт.
2
21HB-73010
DISPLAY
1шт.
3
21HB-78040
ACCELERATOR ASSY
1шт.
4
B51830010
SWITCH-COMBINATION
1шт.
5
F12140020
GROMMET
2шт.
6
21FH-52010
DC-DC CONVERTER
15P/15P-7 #0001
1шт.
6
21HB-72110
DC-DC CONVERTER
15P/15P-7 #0002
1шт.
6
21FH-52010
DC-DC CONVERTER
40T/40T-7 #0003
1шт.
6
21HB-72110
DC-DC CONVERTER
40T/40T-7 #0004
1шт.
7
21HB-72030
FUSE BOX ASSY
1шт.
7-1
21HB-72040
COVER & DECAL
1шт.
7-2
S841-101000
FUSE-10A
15шт.
8
21FD-30310
BUZZER-BACK
15P/15P-7 #0035
1шт.
8
21FD-30311
BUZZER-BACK, 12V
15P/15P-7 #0036 - #0062
1шт.
8
21FD-30312
BACK BUZZER(12V)
15P/15P-7 #0063
1шт.
8
21FD-30310
BUZZER-BACK
40T/40T-7 #0126
1шт.
8
21FD-30311
BUZZER-BACK, 12V
40T/40T-7 #0127 - #0276
1шт.
8
21FD-30312
BACK BUZZER(12V)
40T/40T-7 #0277
1шт.
9
21M8-00070
HORN-HIGH
1шт.
11
B21860050
CHAIN-STATIC
1шт.
12
21FH-82060
SWITCH ASSY-KEY
1шт.
12-1
21FH-52050
SWITCH-KEY
1шт.
12-11
21FH-52080
KEY
2шт.
12-12
21FH-85030
HARNESS-KEY SWITCH
1шт.
13
F12840010
LAMP SUB ASSY-WORK
15P/15P-7 #0062
1шт.
13
F12840011
LAMP SUB ASSY-WORK
15P/15P-7 #0063
1шт.
13
F12840010
LAMP SUB ASSY-WORK
40T/40T-7 #0276
1шт.
13
F12840011
LAMP SUB ASSY-WORK
40T/40T-7 #0277
1шт.
13-1
S866-120550
BULB
NOT SHOWN
1шт.
14
F12840020
LAMP-FLASHER
2шт.
14-1
S863-072308
BULB(23/8W)
NOT SHOWN
1шт.
15
21HB-72050
SWITCH ASSY-PARK
1шт.
15-1
310006190
SWITCH-MICRO
1шт.
15-2
21HB-75030
HARNESS-PARK SWITCH
1шт.
16
21HB-72060
SWITCH ASSY-HAZARD
15P/15P-7 #0001
1шт.
16
21FH-72071
SWITCH ASSY
15P/15P-7 #0002
1шт.
16
21HB-72060
SWITCH ASSY-HAZARD
40T/40T-7 #0003
1шт.
16
21FH-72071
SWITCH ASSY
40T/40T-7 #0004
1шт.
16-1
21F6-20220
MOUNTING-SWITCH
1шт.
16-2
21M5-25000
SWITCH-HAZARD
1шт.
16-21
21S1-31510
SWITCH
1шт.
16-22
21E6-10600
INSERT (HARZARD)
1шт.
17
S035-061522
BOLT-W/WASHER
9шт.
18
S035-082022
BOLT-W/WASHER
5шт.
19
S035-082522
BOLT-W/WASHER
2шт.
20
S035-081522
BOLT-W/WASHER
1шт.
21
310006540
SWITCH-SEAT
1шт.
22
S132-06152V
SCREW-W/WASHER
2шт.
24
21M5-25000
SWITCH-HAZARD
40T/40T-7, OPT #0004
1шт.
25
21M6-00400
SWITCH-BEACON
15P/15P-7, OPT #0007
1шт.
25
21M6-00400
SWITCH-BEACON
40T/40T-7, OPT #0026
1шт.
26
21HA-20320
LAMP-BEACON, RED
15P/15P-7, OPT #0063
1шт.
26
21HA-20320
LAMP-BEACON, RED
40T/40T-7, OPT #0277
1шт.
26
21FG-10810
STROBE LAMP-AMBER
15P/15P-7, OPT #0011 - #0062
1шт.
26
21HA-20310
LAMP-BEACON, AMBER
15P/15P-7, OPT #0063
1шт.
26
21FG-10810
STROBE LAMP-AMBER
40T/40T-7, OPT #0036 - #0276
1шт.
26
21HA-20310
LAMP-BEACON, AMBER
40T/40T-7, OPT #0277
1шт.
26
21HA-20330
LAMP-BEACON, BLUE
15P/15P-7, OPT #0063
1шт.
26
21HA-20330
LAMP-BEACON, BLUE
40T/40T-7, OPT #0277
1шт.
26-1
21FG-10850
GLOBE-RED
RED,NOT SHOWN
1шт.
26-1
21FG-10860
GLOBE-AMBER
AMBER,NOT SHOWN
1шт.
26-1
21FG-10870
GLOBE-BLUE
BLUE,NOT SHOWN
1шт.
27
S681-190400
GROMMET
15P/15P-7, OPT
1шт.
27
S681-190400
GROMMET
40T/40T-7, OPT
1шт.
28
S203-041002
NUT-HEX
15P/15P-7, OPT
3шт.
28
S203-041002
NUT-HEX
40T/40T-7, OPT
3шт.
29
S411-040002
WASHER-SPRING
15P/15P-7, OPT
3шт.
29
S411-040002
WASHER-SPRING
40T/40T-7, OPT
3шт.
