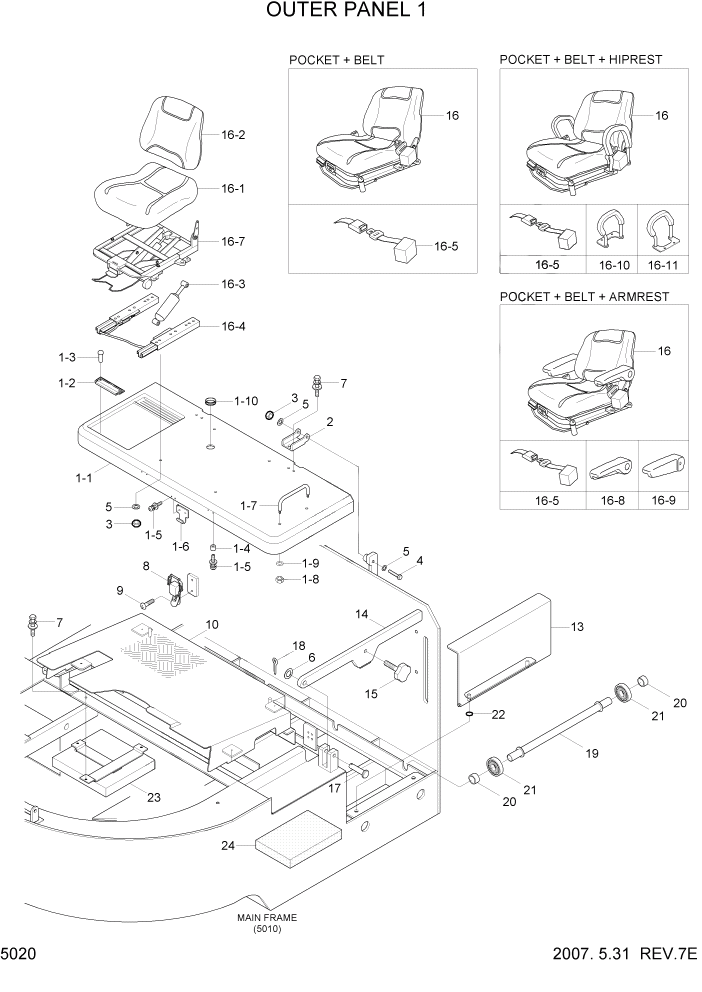

Запчасти Hyundai 15P/15P-7/40T/40T-7 PAGE 5020 OUTER PANEL 1 РАМА & КОРПУС
№
Артикул
Название
Примечание
Количество
1
71HB-10012
BATT COVER ASSY
1шт.
1-1
71HB-10212
COVER-BATTERY
15P/15P-7 #0012
1шт.
1-1
71HB-10213
COVER-BATTERY
40T/40T-7 #0013
1шт.
1-1
71HB-10212
COVER-BATTERY
15P/15P-7 #0025
1шт.
1-1
71HB-10213
COVER-BATTERY
40T/40T-7 #0026
1шт.
1-2
71FH-10181
CLIP
1шт.
1-3
9055000309
RIVET
2шт.
1-4
F12100190
CUSHION
2шт.
1-5
S131-05154V
SCREW-W/WASHER
6шт.
1-6
71HB-10220
HOOK
1шт.
1-7
71FH-10140
HANDLE
1шт.
1-8
S275-080002
NUT-SELF LOCKING
2шт.
1-9
S403-08200V
WASHER-PLAIN
4шт.
1-1
S681-230800
GROMMET
1шт.
2
71HB-10122
HINGE
2шт.
3
S275-080002
NUT-SELF LOCKING
6шт.
4
S017-08090V
BOLT-HEX
2шт.
5
S403-08200V
WASHER-PLAIN
8шт.
6
S403-12200V
WASHER-PLAIN
1шт.
7
S035-08252V
BOLT-W/WASHER
#0010
4шт.
7
S035-08252V
BOLT-W/WASHER
#0011
7шт.
7
S035-08252V
BOLT-W/WASHER
#0044
4шт.
7
S035-08252V
BOLT-W/WASHER
#0045
7шт.
8
71HB-10080
LATCH
1шт.
9
S131-05102V
SCREW-W/WASHER C/RD
2шт.
10
71HB-10101
FLOOR SUB ASSY
15P/15P-7 #0001
1шт.
10
71HB-10100
FLOOR SUB ASSY
40T/40T-7 #0002
1шт.
10
71HB-10101
FLOOR SUB ASSY
40T/40T-7 #0003
1шт.
10-1
71HB-10053
PLATE-FLOOR
1шт.
10-2
2636050800
RUBBER-CUSHION
1шт.
10-3
S132-06205V
SCREW-W/WASHER C/RD
1шт.
13
71HB-10092
COVER-SIDE
1шт.
14
71HB-10022
BAR-SAFETY
1шт.
15
6600095600
KNOB
1шт.
16
71FH-10510
SEAT ASSY(PKT)
15P/15P-7 #0035
1шт.
16
71FH-10511
SEAT ASSY(PKT)
15P/15P-7 #0036
1шт.
16
71FH-10510
SEAT ASSY(PKT)
40T/40T-7 #0131
1шт.
16
71FH-10511
SEAT ASSY(PKT)
40T/40T-7 #0132
1шт.
16
71FH-10520
SEAT ASSY(PKT+BT)
15P/15P-7 #0035
1шт.
16
71FH-10521
SEAT ASSY(PKT+BT)
15P/15P-7 #0036
1шт.
16
71FH-10520
SEAT ASSY(PKT+BT)
40T/40T-7 #0131
1шт.
16
71FH-10521
SEAT ASSY(PKT+BT)
40T/40T-7 #0132
1шт.
16
71FH-10530
SEAT ASSY(PKT+BT+HR)
15P/15P-7 #0035
1шт.
16
71FH-10531
SEAT ASSY(PKT+BT+HR)
15P/15P-7 #0036
1шт.
16
71FH-10530
SEAT ASSY(PKT+BT+HR)
40T/40T-7 #0131
1шт.
16
71FH-10531
SEAT ASSY(PKT+BT+HR)
40T/40T-7 #0132
1шт.
16
71FH-10540
SEAT ASSY(PKT+BT+AR)
15P/15P-7 #0035
1шт.
16
71FH-10541
SEAT ASSY(PKT+BT+AR)
15P/15P-7 #0036
1шт.
16
71FH-10540
SEAT ASSY(PKT+BT+AR)
40T/40T-7 #0131
1шт.
16
71FH-10541
SEAT ASSY(PKT+BT+AR)
40T/40T-7 #0132
1шт.
16
F12120300
SEAT ASSY(PKT)
NON SUSPENSION
1шт.
16-A
310006540
SWITCH-SEAT
NOT SHOWN
1шт.
16-B
B51800050
HARNESS-SEAT
NOT SHOWN
1шт.
16-1
H31013-100
CUSION ASSY
15P/15P-7 #0001 - #0035
1шт.
16-1
H31013-100C
CUSION ASSY
15P/15P-7 #0036
1шт.
16-1
H31013-100
CUSION ASSY
40T/40T-7 #0001 - #0131
1шт.
16-1
H31013-100C
CUSION ASSY
40T/40T-7 #0132
1шт.
16-2
H31013-200
BACK ASSY
15P/15P-7 #0001 - #0035
1шт.
16-2
H31013-200B
BACK ASSY
15P/15P-7 #0036
1шт.
16-2
H31013-200
BACK ASSY
40T/40T-7 #0001 - #0131
1шт.
16-2
H31013-200B
BACK ASSY
40T/40T-7 #0132
1шт.
16-3
H31013-360
SHOCK ABSORBER ASSY
#0001
1шт.
16-4
H31013-600
SLIDE TRACK ASSY
15P/15P-7 #0001 - #0035
1шт.
16-4
H31013-600B
SLIDE TRACK ASSY
15P/15P-7 #0036
1шт.
16-4
H31013-600
SLIDE TRACK ASSY
40T/40T-7 #0001 - #0131
1шт.
16-4
H31013-600B
SLIDE TRACK ASSY
40T/40T-7 #0132
1шт.
16-5
89890-8A610
BELT-SEAT
WITH BELT #0001
1шт.
16-7
H31023-301
SUSPENSION
15P/15P-7 #0001 - #0035
1шт.
16-7
H31023-301G
SUSPENSION
15P/15P-7 #0036
1шт.
16-7
H31023-301
SUSPENSION
40T/40T-7 #0001 - #0131
1шт.
16-7
H31023-301G
SUSPENSION
40T/40T-7 #0132
1шт.
16-8
H31010-500
ARM RESTRAINT-LH
WITH ARM-REST #0001
1шт.
16-9
H31015-500
ARM RESTRAINT-RH
WITH ARM-REST #0001
1шт.
16-1
H31010-700
HIP RESTRAINT-LH
WITH HIP-REST #0001
1шт.
16-11
H31015-700
HIP RESTRAINT-RH
WITH HIP-REST #0001
1шт.
17
S491-120652
PIN-CLEVIS
1шт.
18
S461-320182
PIN-SPLIT
1шт.
19
41FP-00590
SHAFT-ROLLER
3шт.
20
41FP-00580
COLLAR
6шт.
21
9021051304
BEARING-BALL
6шт.
23
71HB-10230
COVER
#0011
1шт.
23
71HB-10230
COVER
#0045
1шт.
24
71HB-10240
SPONGE
#0011
1шт.
24
71HB-10240
SPONGE
#0045
1шт.
Выбрано товаров: 85
