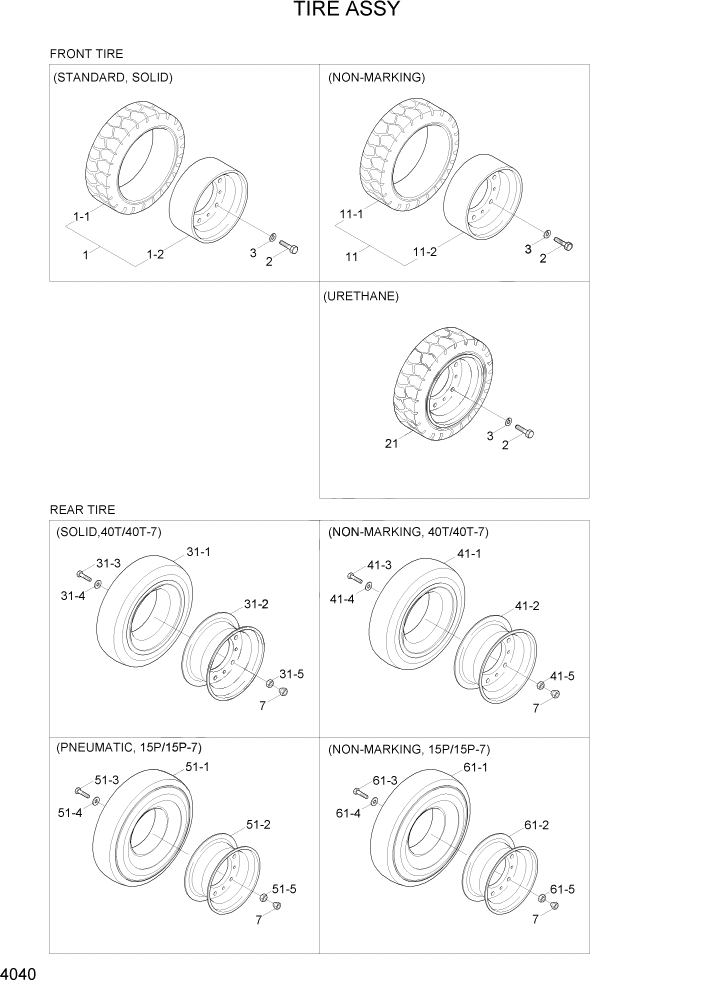

Запчасти Hyundai 15P/15P-7/40T/40T-7 PAGE 4040 TIRE ASSY СИСТЕМА УПРАВЛЕНИЯ

1

3601006600-02

DRIVE TIRE-STD,FR

SOLID

1шт.

1-1

3621009500-04

SOLID TIRE ASSY

1шт.

1-2

3664020000B-05

CENTER-WHEEL

1шт.

1-2

3621009500-04

SOLID TIRE ASSY

1шт.

2

S018-16035D

BOLT-HEX

6шт.

3

S411-160006

WASHER-SPRING

6шт.

7

3678004400-02

NUT-HUB

12шт.

11

B31440100

TIRE & RIM ASSY

NON-MARKING

1шт.

11-1

B31440110

NON-MARKING TIRE-FR

1шт.

11-2

3664020000B-05

CENTER-WHEEL

1шт.

21

B31420010

DRIVE WHEEL(URETHANE)

URETHANE

1шт.

31

6600225800

SOLID TIRE & RIM ASSY

40T/40T-7,SOLID

2шт.

31-1

3621005700

SOLID TIRE-RR

1шт.

31-2

3661008000B-03

DISC WHEEL ASSY

1шт.

31-3

S018-100252

BOLT-HEX

6шт.

31-4

S411-100002

WASHER-SPRING

6шт.

31-5

222110000

NUT-HEX

6шт.

41

B31450100

TIRE & RIM ASSY

40T/40T-7,NON-M

2шт.

41-1

B31450110

NON-MARKING TIRE-RR

1шт.

41-2

3661008000B-03

DISC WHEEL ASSY

1шт.

41-3

S018-100252

BOLT-HEX

6шт.

41-4

S411-100002

WASHER-SPRING

6шт.

41-5

222110000

NUT-HEX

6шт.

51

F11410010

REAR WHEEL ASSY

15P/15P-7,PNEU

2шт.

51-1

F11310140

PNEUMATIC TIRE-RR

1шт.

51-2

3661008000B-03

DISC WHEEL ASSY

1шт.

51-3

S018-100252

BOLT-HEX

6шт.

51-4

S411-100002

WASHER-SPRING

6шт.

51-5

S206-101002

NUT-HEX

6шт.

61

F21404000

TIRE & RIM ASSY(SOLID)

15P/15P-7,NON-M

1шт.

61-1

F21404010

NO-MARKING TIRE-REAR

1шт.

61-2

3661008000B-03

DISC WHEEL ASSY

1шт.

61-3

S018-100252

BOLT-HEX

6шт.

61-4

S411-100002

WASHER-SPRING

6шт.

61-5

S206-101002

NUT-HEX

6шт.
