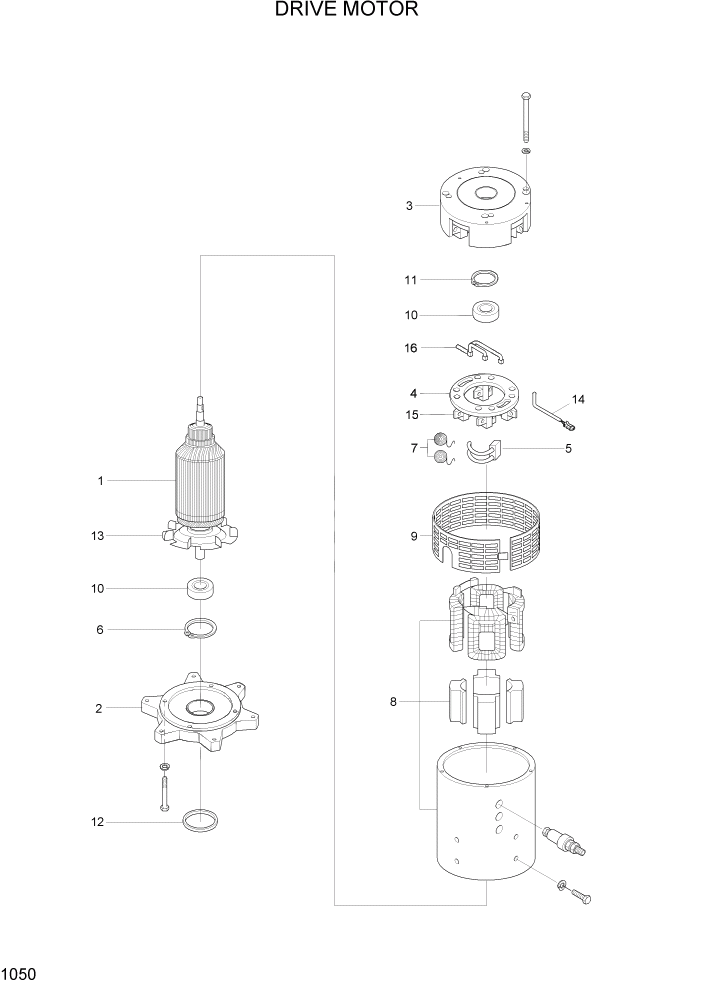

Запчасти Hyundai 15P/15P-7/40T/40T-7 PAGE 1050 DRIVE MOTOR ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

*

21HB-72010

MOTOR-TRACTION

1шт.

1

21HB-79070

ARMATURE & FAN ASSY

1шт.

2

21HB-79080

END HEAD-DRIVE

1шт.

3

21HB-79090

END HEAD-COMM

1шт.

4

21HB-79100

BRUSH BOX ASSY

1шт.

5

21HB-79110

BRUSH

8шт.

6

21HB-79120

WASHER-SPRING

2шт.

7

21HB-79130

SPRING-BRUSH

8шт.

8

21HB-79140

FRAME & FIELD ASSY

1шт.

9

21HB-79150

HEADBAND ASSY

1шт.

10

21HB-79160

BEARING

1шт.

11

21HB-79170

RING-RETAINING

1шт.

12

21HB-79180

OIL SEAL

1шт.

13

21HB-79430

FAN

1шт.

14

21HB-79440

KIT-CONNECTOR

1шт.

15

21HB-79450

KIT-B.W.I SERVICE

1шт.

16

21HB-79460

KIT-BRUSH LEAD & TM'L

1шт.
