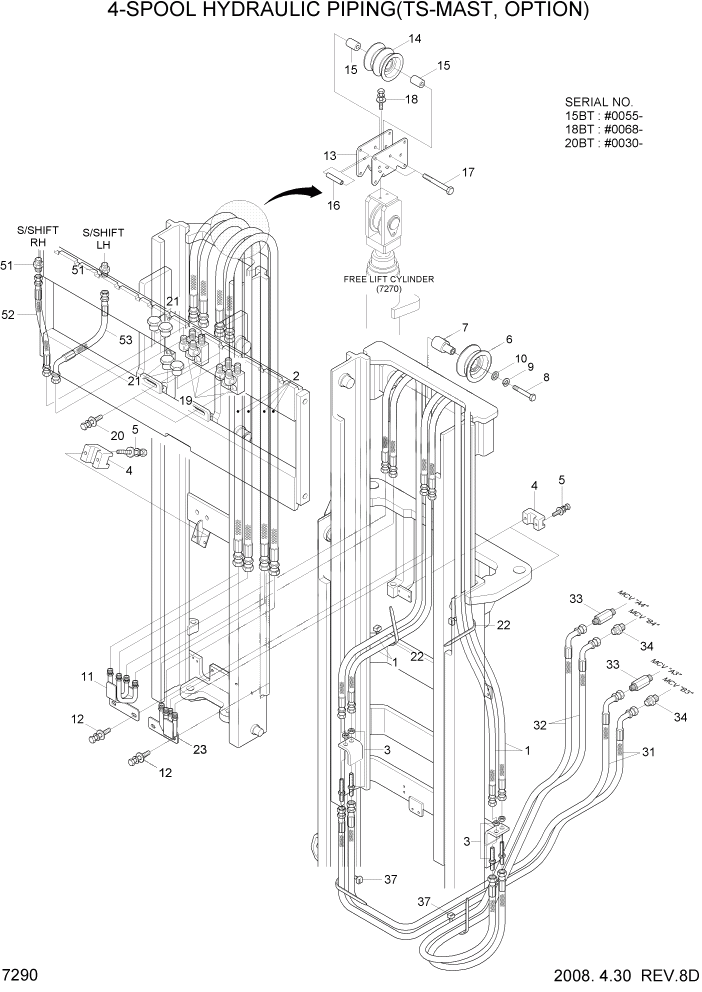

Запчасти Hyundai 15/18/20BT PAGE 7290 4-SPOOL HYDRAULIC PIPING(TS-MAST,OPTION) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

@

4-SPOOL HYD PIPING

NOT #0055

1шт.

*

@

4-SPOOL HYD PIPING

NOT #0068

1шт.

*

@

4-SPOOL HYD PIPING

NOT #0030

1шт.

1

P910-043041

HOSE ASSY-ORFS 0X0

TS370

4шт.

1

P910-043045

HOSE ASSY-ORFS 0X0

TS400

4шт.

1

P910-043049

HOSE ASSY-ORFS 0X0

TS430

4шт.

1

P910-043053

HOSE ASSY-ORFS 0X0

TS450

4шт.

1

P910-043055

HOSE ASSY-ORFS 0X0

TS470

4шт.

1

P910-043059

HOSE ASSY-ORFS 0X0

TS500

4шт.

1

P910-043067

HOSE ASSY-ORFS 0X0

TS550

4шт.

1

P910-043075

HOSE ASSY-ORFS 0X0

TS600

4шт.

1

P910-043083

HOSE ASSY-ORFS 0X0

TS650

4шт.

1

P910-043091

HOSE ASSY-ORFS 0X0

TS700

4шт.

2

P910-043035

HOSE ASSY-ORFS 0X0

TS370

4шт.

2

P910-043037

HOSE ASSY-ORFS 0X0

TS400

4шт.

2

P910-043039

HOSE ASSY-ORFS 0X0

TS430

4шт.

2

P910-043040

HOSE ASSY-ORFS 0X0

TS450

4шт.

2

P910-043042

HOSE ASSY-ORFS 0X0

TS470

4шт.

2

P910-043044

HOSE ASSY-ORFS 0X0

TS500

4шт.

2

P910-043047

HOSE ASSY-ORFS 0X0

TS550

4шт.

2

P910-043051

HOSE ASSY-ORFS 0X0

TS600

4шт.

2

P910-043055

HOSE ASSY-ORFS 0X0

TS650

4шт.

2

P910-043059

HOSE ASSY-ORFS 0X0

TS700

4шт.

3

X540-120001

CONNECTOR-ORFS

4шт.

4

33FP-90200

CLAMP

4шт.

5

S035-063526

BOLT-W/WASHER

8шт.

6

31HH-80300

PULLEY-HOSE

2шт.

7

31FV-90130

PIN-HOSE PULLEY

2шт.

8

S017-120606

BOLT-HEX

2шт.

9

S411-120006

WASHER-SPRING

2шт.

10

S441-12000B

WASHER-HARDENED

2шт.

11

34FY-90150

TUBE WA

1шт.

12

S035-082026

BOLT-W/WASHER

4шт.

13

34FY-90120

PLATE

2шт.

14

34FY-90110

ROLLER-HOSE

10шт.

15

S731-007010

BUSHING-DU

20шт.

16

34FY-90130

SPACER

4шт.

17

S035-066526

BOLT-W/WASHER

14шт.

18

S035-081526

BOLT-W/WASHER

4шт.

19

31HG-90130

ELBOW-90

4шт.

20

S037-102526

BOLT-W/WASHER

4шт.

21

X710-100102

CAP-DUST

4шт.

22

S552-102370

CLAMP-BAND

4шт.

23

34FY-91210

TUBE WA

1шт.

31

P933-044027

HOSE ASSY-ORFS 0X90

2шт.

32

P933-044030

HOSE ASSY-ORFS 0X90

2шт.

33

31HG-90170

CONNECTOR

2шт.

33-1

S621-011001

O-RING

2шт.

33-2

S611-016001

O-RING(INCH)

2шт.

34

31HG-90140

CONNECTOR

2шт.

34-1

S621-011001

O-RING

2шт.

34-2

S611-016001

O-RING(INCH)

2шт.

35

33FY-90610

CONNECTOR

FINGERTIP

2шт.

35-1

S611-012001

O-RING

FINGERTIP

2шт.

35-2

S621-011001

O-RING

FINGERTIP

2шт.

36

33FY-90620

CONNECTOR

FINGERTIP

2шт.

36-1

S611-012001

O-RING

FINGERTIP

2шт.

36-2

S621-011001

O-RING

FINGERTIP

2шт.

37

S552-102370

CLAMP-BAND

6шт.

51

X520-310001

ELBOW-90,ORFS

2шт.

52

P910-043006

HOSE ASSY-ORFS 0X0

1шт.

53

P930-043006

HOSE ASSY-ORFS 0X90

1шт.
