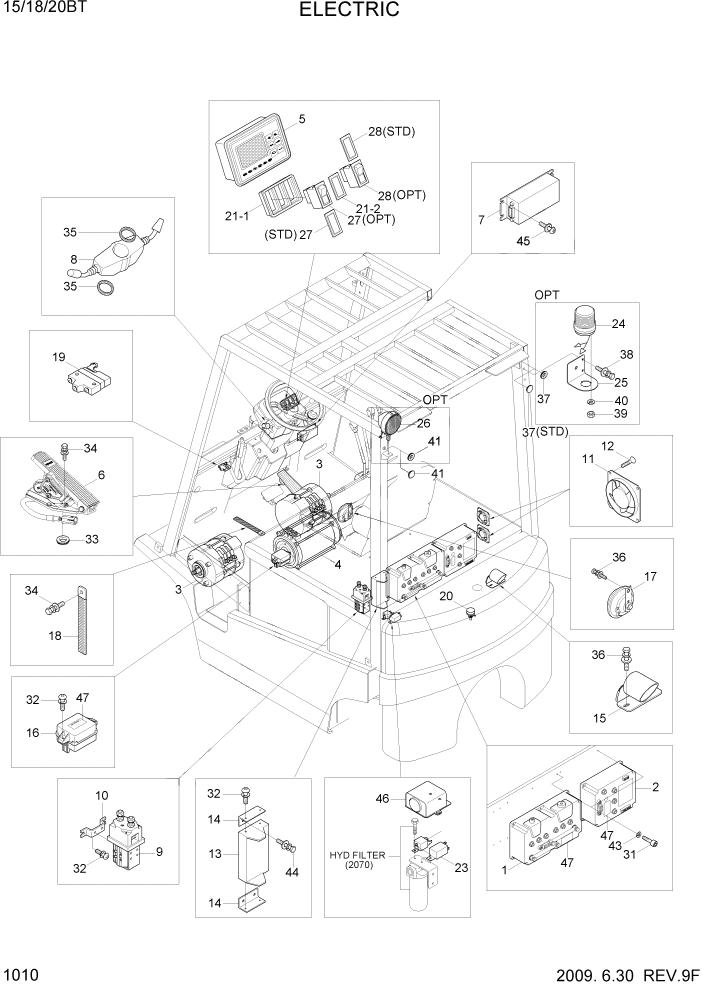

Запчасти Hyundai 15/18/20BT PAGE 1010 ELECTRIC ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

21HE-78010

INVERTER-DUALAC2

1шт.

1-1

21FH-08040

FUSE 350A

NOT SHOWN #0001

1шт.

2

21HE-78020

INVERTER-AC2

1шт.

2-1

21FH-08030

FUSE(300A)

NOT SHOWN #0001

1шт.

3

21FY-72011

MOTOR-TRACTION,AC

SEE 1050

2шт.

4

21FY-72020

MOTOR-PUMP,AC

SEE 1060

1шт.

4

21FY-72100

MOTOR-PUMP,AC

SEE 1060,FOR UL

1шт.

5

21HE-73011

DISPLAY

1шт.

6

21FY-78170

ACCELERATOR ASSY

#0128

1шт.

6

21FY-78171

ACCELERATOR ASSY

15BT #0129

1шт.

6

21FY-78170

ACCELERATOR ASSY

#0209

1шт.

6

21FY-78171

ACCELERATOR ASSY

18BT #0210

1шт.

6

21FY-78170

ACCELERATOR ASSY

#0122

1шт.

6

21FY-78171

ACCELERATOR ASSY

20BT #0123

1шт.

7

21FH-72260

DC-DC CONVERTER

1шт.

8

B51830010

SWITCH-COMBINATION

1шт.

9

21FY-72090

CONTACTOR-SW200B

1шт.

10

310005130

BRACKET-SW200

1шт.

11

21FY-72110

FAN-612NGHH

2шт.

12

S151-040146

SCREW-TAPPING

8шт.

13

21HE-72030

FAN ASSY

1шт.

14

21HE-72021

BRACKET-FAN

2шт.

15

21FD-30311

BUZZER-BACK, 12V

#0106

1шт.

15

21FD-30312

BUZZER-BACK

15BT #0107

1шт.

15

21FD-30311

BUZZER-BACK, 12V

#0171

1шт.

15

21FD-30312

BUZZER-BACK

18BT #0172

1шт.

15

21FD-30311

BUZZER-BACK, 12V

#0071

1шт.

15

21FD-30312

BUZZER-BACK

20BT #0072

1шт.

15

21FD-30311

BACKUP ALARM(12V)

1шт.

16

21FH-72050

FUSE BOX ASSY

1шт.

16-1

21FH-72160

COVER & DECAL

NOT SHOWN

1шт.

16-2

S841-101500

FUSE-15A

NOT SHOWN

3шт.

16-3

S841-101000

FUSE-10A

NOT SHOWN

12шт.

17

21M8-00070

HORN-HIGH

1шт.

18

21FY-72080

STRAP-STATIC

1шт.

19

21FH-12050

SWITCH ASSY-PARKING

1шт.

19-1

310006190

SWITCH-MICRO

NOT SHOWN

1шт.

19-2

21FH-15050

HARNESS-P SWITCH

NOT SHOWN

1шт.

20

B51830030

STEERING SENSOR

1шт.

21

21FH-72071

SWITCH ASSY

1шт.

21-1

21F6-20220

MOUNTING-SWITCH

1шт.

21-2

21E6-10460

COVER

1шт.

22

21E3-0011

RELAY

1шт.

23

21M6-40052

FLASHER UNIT ASSY

1шт.

24

21FG-10810

STROBE LAMP-AMBER

BEACON LAMP #0106

1шт.

24

21HA-20310

LAMP-BEACON, AMBER

15BT #0107

1шт.

24

21FG-10810

STROBE LAMP-AMBER

BEACON LAMP #0171

1шт.

24

21HA-20310

LAMP-BEACON, AMBER

18BT #0172

1шт.

24

21FG-10810

STROBE LAMP-AMBER

BEACON LAMP #0071

1шт.

24

21HA-20310

LAMP-BEACON, AMBER

20BT #0072

1шт.

24

F23842010

STROBE LAMP-RED

BEACON LAMP #0106

1шт.

24

21HA-20320

LAMP-BEACON, RED

15BT #0107

1шт.

24

F23842010

STROBE LAMP-RED

BEACON LAMP #0171

1шт.

24

21HA-20320

LAMP-BEACON, RED

18BT #0172

1шт.

24

F23842010

STROBE LAMP-RED

BEACON LAMP #0071

1шт.

24

21HA-20320

LAMP-BEACON, RED

20BT #0072

1шт.

24

21FG-10820

STROBE LAMP-BLUE

BEACON LAMP #0106

1шт.

24

21HA-20330

LAMP-BEACON, BLUE

15BT #0107

1шт.

24

21FG-10820

STROBE LAMP-BLUE

BEACON LAMP #0171

1шт.

24

21HA-20330

LAMP-BEACON, BLUE

18BT #0172

1шт.

24

21FG-10820

STROBE LAMP-BLUE

BEACON LAMP #0071

1шт.

24

21HA-20330

LAMP-BEACON, BLUE

20BT #0072

1шт.

25

21FH-72011

BRACKET-BEACON

BEACON LAMP #0071

1шт.

25

21FH-72012

BRACKET-BEACON LAMP

15BT #0072

1шт.

25

21FH-72011

BRACKET-BEACON

BEACON LAMP #0106

1шт.

25

21FH-72012

BRACKET-BEACON LAMP

18BT #0107

1шт.

25

21FH-72011

BRACKET-BEACON

BEACON LAMP #0171

1шт.

25

21FH-72012

BRACKET-BEACON LAMP

20BT #0072

1шт.

26

F12840010

LAMP SUB ASSY-WORK

REAR WORK LAMP #0071

1шт.

26

F12840011

LAMP SUB ASSY-WORK

15BT #0072

1шт.

26

F12840010

LAMP SUB ASSY-WORK

REAR WORK LAMP #0106

1шт.

26

F12840011

LAMP SUB ASSY-WORK

18BT #0107

1шт.

26

F12840010

LAMP SUB ASSY-WORK

REAR WORK LAMP #0171

1шт.

26

F12840011

LAMP SUB ASSY-WORK

20BT #0172

1шт.

27

21E6-10460

COVER

STD

1шт.

27

21M8-01120

SWITCH-W/LAMP(12V)

REAR WORK LAMP

1шт.

28

21E6-10460

COVER

STD

1шт.

28

21M6-00400

SWITCH-BEACON

BEACON LAMP

1шт.

31

S109-060556

BOLT-SOCKET

10шт.

32

S132-061526

SCREW-W/WASHER

8шт.

33

S681-290400

GROMMET

1шт.

34

S035-082026

BOLT-W/WASHER

3шт.

35

F12140020

GROMMET

2шт.

36

S035-081526

BOLT-W/WASHER

3шт.

37

S661-250800

CAP-RUBBER

STD

1шт.

37

S681-190400

GROMMET

BEACON LAMP

1шт.

38

S035-082026

BOLT-W/WASHER

BEACON LAMP

2шт.

39

S205-041006

NUT-HEX

15BT, B/LAMP #0158

3шт.

39

S205-04100B

NUT-HEX

15BT, B/LAMP #0159

3шт.

39

S205-041006

NUT-HEX

18BT, B/LAMP #0209

3шт.

39

S205-04100B

NUT-HEX

18BT, B/LAMP #0210

3шт.

39

S205-041006

NUT-HEX

20BT, B/LAMP #0122

3шт.

39

S205-04100B

NUT-HEX

20BT, B/LAMP #0123

3шт.

40

S411-040006

WASHER-SPRING

BEACON LAMP

3шт.

41

S661-250800

CAP-RUBBER

STD

1шт.

41

S681-190400

GROMMET

REAR WORK LAMP

1шт.

43

S411-060006

WASHER-SPRING

10шт.

44

S131-041026

SCREW-W/WASHER

4шт.

45

S132-061256

SCREW-W/WASHER

4шт.

46

21FH-02080

RELAY COVER

15BT, FOR UL #0126

1шт.

46

21FH-02080

RELAY COVER

18BT, FOR UL #0181

1шт.

46

21FH-02080

RELAY COVER

20BT, FOR UL #0079

1шт.

47

91HE-00580

WARNING-UL

15BT, FOR UL #0126

3шт.

47

91HE-00580

WARNING-UL

18BT, FOR UL #0181

3шт.

47

91HE-00580

WARNING-UL

20BT, FOR UL #0079

3шт.
