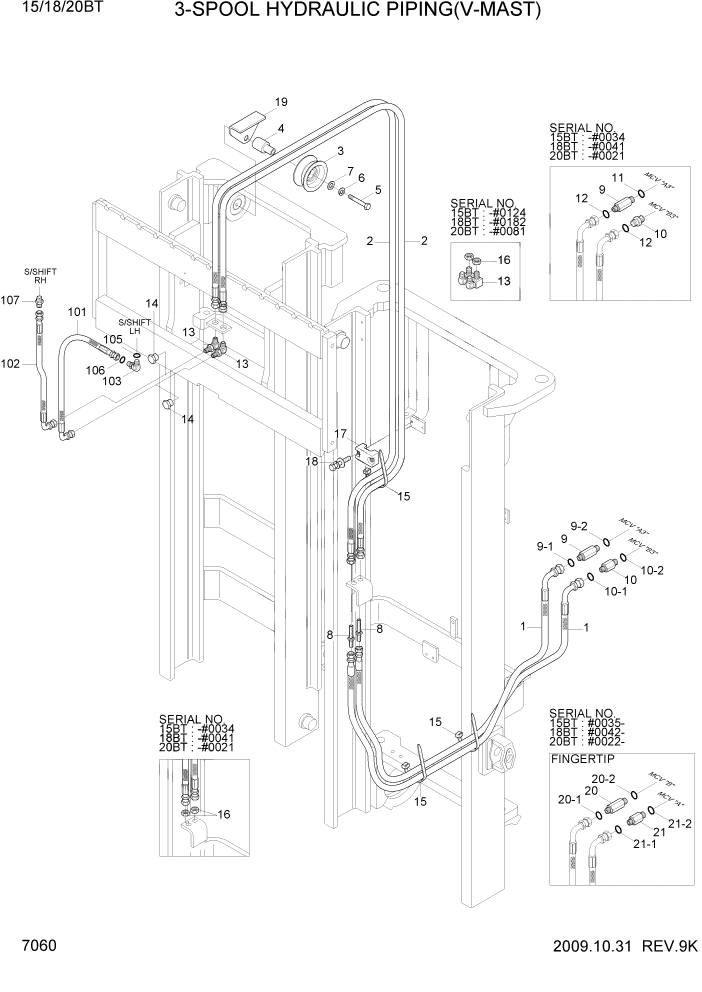

Запчасти Hyundai 15/18/20BT PAGE 7060 3-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P933-044027

HOSE ASSY-ORFS 0X90

15BT #0099

2шт.

1

P933-043027

HOSE ASSY-ORFS 0X90

15BT #0100

2шт.

1

P933-044027

HOSE ASSY-ORFS 0X90

18BT #0166

2шт.

1

P933-043027

HOSE ASSY-ORFS 0X90

18BT #0167

2шт.

1

P933-044027

HOSE ASSY-ORFS 0X90

20BT #0069

2шт.

1

P933-043027

HOSE ASSY-ORFS 0X90

20BT #0070

2шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

V250,15BT #0099

2шт.

2

P910-043040

HOSE ASSY-ORFS 0X0

V250,15BT #0100

2шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

V250,18BT #0166

2шт.

2

P910-043040

HOSE ASSY-ORFS 0X0

V250,18BT #0167

2шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

V250,20BT #0069

2шт.

2

P910-043040

HOSE ASSY-ORFS 0X0

V250,20BT #0070

2шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

V270,15BT #0099

2шт.

2

P910-043044

HOSE ASSY-ORFS 0X0

V270,15BT #0100

2шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

V270,18B #0166

2шт.

2

P910-043044

HOSE ASSY-ORFS 0X0

V270,18B #0167

2шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

V270,20B #0069

2шт.

2

P910-043044

HOSE ASSY-ORFS 0X0

V270,20B #0070

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

V300,15BT #0099

2шт.

2

P910-043050

HOSE ASSY-ORFS 0X0

V300,15BT #0100

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

V300,18B #0166

2шт.

2

P910-043050

HOSE ASSY-ORFS 0X0

V300,18B #0167

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

V300,20B #0069

2шт.

2

P910-043050

HOSE ASSY-ORFS 0X0

V300,20B #0070

2шт.

2

P910-064056

HOSE ASSY-ORFS 0X0

V330,15BT #0099

2шт.

2

P910-043056

HOSE ASSY-ORFS 0X0

V330,15BT #0100

2шт.

2

P910-064056

HOSE ASSY-ORFS 0X0

V330,18B #0166

2шт.

2

P910-043056

HOSE ASSY-ORFS 0X0

V330,18B #0167

2шт.

2

P910-064056

HOSE ASSY-ORFS 0X0

V330,20B #0069

2шт.

2

P910-043056

HOSE ASSY-ORFS 0X0

V330,20B #0070

2шт.

2

P910-064060

HOSE ASSY-ORFS 0X0

V350,15BT #0099

2шт.

2

P910-043060

HOSE ASSY-ORFS 0X0

V350,15BT #0100

2шт.

2

P910-064060

HOSE ASSY-ORFS 0X0

V350,18B #0166

2шт.

2

P910-043060

HOSE ASSY-ORFS 0X0

V350,18B #0167

2шт.

2

P910-064060

HOSE ASSY-ORFS 0X0

V350,20B #0069

2шт.

2

P910-043060

HOSE ASSY-ORFS 0X0

V350,20B #0070

2шт.

2

P910-064064

HOSE ASSY-ORFS 0X0

V370,15BT #0099

2шт.

2

P910-043064

HOSE ASSY-ORFS 0X0

V370,15BT #0100

2шт.

2

P910-064064

HOSE ASSY-ORFS 0X0

V370,18B #0166

2шт.

2

P910-043064

HOSE ASSY-ORFS 0X0

V370,18B #0167

2шт.

2

P910-064064

HOSE ASSY-ORFS 0X0

V370,20B #0069

2шт.

2

P910-043064

HOSE ASSY-ORFS 0X0

V370,20B #0070

2шт.

2

P910-064070

HOSE ASSY-ORFS 0X0

V400,15BT #0099

2шт.

2

P910-043070

HOSE ASSY-ORFS 0X0

V400,15BT #0100

2шт.

2

P910-064070

HOSE ASSY-ORFS 0X0

V400,18B #0166

2шт.

2

P910-043070

HOSE ASSY-ORFS 0X0

V400,18B #0167

2шт.

2

P910-064070

HOSE ASSY-ORFS 0X0

V400,20B #0069

2шт.

2

P910-043070

HOSE ASSY-ORFS 0X0

V400,20B #0070

2шт.

2

P910-064084

HOSE ASSY-ORFS 0X0

V450,15BT #0099

2шт.

2

P910-043084

HOSE ASSY-ORFS 0X0

V450,15BT #0100

2шт.

2

P910-064084

HOSE ASSY-ORFS 0X0

V450,18B #0166

2шт.

2

P910-043084

HOSE ASSY-ORFS 0X0

V450,18B #0167

2шт.

2

P910-064084

HOSE ASSY-ORFS 0X0

V450,20B #0069

2шт.

2

P910-043084

HOSE ASSY-ORFS 0X0

V450,20B #0070

2шт.

2

P910-064094

HOSE ASSY-ORFS 0X0

V500,15BT #0099

2шт.

2

P910-043094

HOSE ASSY-ORFS 0X0

V500,15BT #0100

2шт.

2

P910-064094

HOSE ASSY-ORFS 0X0

V500,18B #0166

2шт.

2

P910-043094

HOSE ASSY-ORFS 0X0

V500,18B #0167

2шт.

2

P910-064094

HOSE ASSY-ORFS 0X0

V500,20B #0069

2шт.

2

P910-043094

HOSE ASSY-ORFS 0X0

V500,20B #0070

2шт.

2

P910-064104

HOSE ASSY-ORFS 0X0

V550,15BT #0099

2шт.

2

P910-043104

HOSE ASSY-ORFS 0X0

V550,15BT #0100

2шт.

2

P910-064104

HOSE ASSY-ORFS 0X0

V550,18B #0166

2шт.

2

P910-043104

HOSE ASSY-ORFS 0X0

V550,18B #0167

2шт.

2

P910-064104

HOSE ASSY-ORFS 0X0

V550,20B #0069

2шт.

2

P910-043104

HOSE ASSY-ORFS 0X0

V550,20B #0070

2шт.

3

31HH-80300

PULLEY-HOSE

1шт.

4

31FV-90130

PIN-HOSE PULLEY

1шт.

5

S017-120606

BOLT-HEX

1шт.

6

S411-120006

WASHER-SPRING

1шт.

7

S441-120006

WASHER-HARDENED

1шт.

8

X540-120001

CONNECTOR-ORFS

2шт.

9

33FY-90130

CONNECTOR

15BT #0034

1шт.

9

31HG-90170

CONNECTOR

15BT #0035

1шт.

9

33FY-90130

CONNECTOR

18BT #0041

1шт.

9

31HG-90170

CONNECTOR

18BT #0042

1шт.

9

33FY-90130

CONNECTOR

20BT #0021

1шт.

9

31HG-90170

CONNECTOR

20BT #0022

1шт.

9-1

S621-011001

O-RING

15BT #0035

1шт.

9-1

S621-011001

O-RING

18BT #0042

1шт.

9-1

S621-011001

O-RING

20BT #0022

1шт.

9-2

S611-016001

O-RING

15BT #0035

1шт.

9-2

S611-016001

O-RING

18BT #0042

1шт.

9-2

S611-016001

O-RING

20BT #0022

1шт.

10

X515-107523

CONNECTOR-LONG,ORFS

15BT #0034

1шт.

10

31HG-90140

CONNECTOR

15BT #0035

1шт.

10

X515-107523

CONNECTOR-LONG,ORFS

18BT #0041

1шт.

10

31HG-90140

CONNECTOR

18BT #0042

1шт.

10

X515-107523

CONNECTOR-LONG,ORFS

20BT #0021

1шт.

10

31HG-90140

CONNECTOR

20BT #0022

1шт.

10-1

S621-011001

O-RING

15BT #0035

1шт.

10-1

S621-011001

O-RING

18BT #0042

1шт.

10-1

S621-011001

O-RING

20BT #0022

1шт.

10-2

S611-016001

O-RING

15BT #0035

1шт.

10-2

S611-016001

O-RING

18BT #0042

1шт.

10-2

S611-016001

O-RING

20BT #0022

1шт.

11

S621-011001

O-RING

15BT #0034

2шт.

11

S621-011001

O-RING

18BT #0041

2шт.

11

S621-011001

O-RING

20BT #0021

2шт.

12

S631-014001

O-RING

15BT #0034

2шт.

12

S631-014001

O-RING

18BT #0041

2шт.

12

S631-014001

O-RING

20BT #0021

2шт.

13

31FY-90500

ELBOW WA

15BT #0124

2шт.

13

31HN-90700

ELBOW-90,ORFS

15BT #0125

2шт.

13

31FY-90500

ELBOW WA

18BT #0182

2шт.

13

31HN-90700

ELBOW-90,ORFS

18BT #0183

2шт.

13

31FY-90500

ELBOW WA

20BT #0081

2шт.

13

31HN-90700

ELBOW-90,ORFS

20BT #0082

2шт.

14

X710-100102

CAP-HYD,ORFS

2шт.

15

S552-102370

CLAMP-BAND

4шт.

16

33FP-90380-DA

NUT

15BT #0034

4шт.

16

33FP-90380-DA

NUT

15BT #0035 - #0124

2шт.

16

33FP-90380-DA

NUT

18BT #0041

4шт.

16

33FP-90380-DA

NUT

18BT #0042 - #0182

2шт.

16

33FP-90380-DA

NUT

20BT #0021

4шт.

16

33FP-90380-DA

NUT

20BT #0022 - #0081

2шт.

17

33FP-90200

CLAMP

1шт.

18

S035-063526

BOLT-W/WASHER

2шт.

19

61HH-18510

GUARD

1шт.

20

33FY-90610

CONNECTOR

15BT #0035

1шт.

20

33FY-90610

CONNECTOR

18BT #0042

1шт.

20

33FY-90610

CONNECTOR

20BT #0022

1шт.

20-1

S611-012001

O-RING

15BT #0035

1шт.

20-1

S611-012001

O-RING

18BT #0042

1шт.

20-1

S611-012001

O-RING

20BT #0022

1шт.

20-2

S621-011001

O-RING

15BT #0035

1шт.

20-2

S621-011001

O-RING

18BT #0042

1шт.

20-2

S621-011001

O-RING

20BT #0022

1шт.

21

33FY-90620

CONNECTOR

15BT #0035

1шт.

21

33FY-90620

CONNECTOR

18BT #0042

1шт.

21

33FY-90620

CONNECTOR

20BT #0022

1шт.

21-1

S611-012001

O-RING

15BT #0035

1шт.

21-1

S611-012001

O-RING

18BT #0042

1шт.

21-1

S611-012001

O-RING

20BT #0022

1шт.

21-2

S621-011001

O-RING

15BT #0035

1шт.

21-2

S621-011001

O-RING

18BT #0042

1шт.

21-2

S621-011001

O-RING

20BT #0022

1шт.

101

P910-044008

HOSE ASSY-ORFS 0X0

S/SHIFT,15BT #0001 - #0124

1шт.

101

P910-043008

HOSE ASSY-ORFS 0X0

S/SHIFT,15BT #0125 - #0132

1шт.

101

P930-043009

HOSE ASSY-ORFS 0X90

S/SHIFT,15BT #0133

1шт.

101

P910-044008

HOSE ASSY-ORFS 0X0

S/SHIFT,18BT #0001 - #0182

1шт.

101

P910-044008

HOSE ASSY-ORFS 0X0

S/SHIFT,18BT #0183 - #0193

1шт.

101

P930-043009

HOSE ASSY-ORFS 0X90

S/SHIFT,18BT #0194

1шт.

101

P910-044008

HOSE ASSY-ORFS 0X0

S/SHIFT,20BT #0001 - #0081

1шт.

101

P910-044008

HOSE ASSY-ORFS 0X0

S/SHIFT,20BT #0082 - #0098

1шт.

101

P930-043009

HOSE ASSY-ORFS 0X90

S/SHIFT,20BT #0099

1шт.

102

P910-044006

HOSE ASSY-ORFS 0X0

S/SHIFT,15BT #0001 - #0124

1шт.

102

P910-043006

HOSE ASSY-ORFS 0X0

S/SHIFT,15BT #0125 - #0132

1шт.

102

P930-043007

HOSE ASSY-ORFS 0X90

S/SHIFT,15BT #0133

1шт.

102

P910-044006

HOSE ASSY-ORFS 0X0

S/SHIFT,18BT #0001 - #0182

1шт.

102

P910-043006

HOSE ASSY-ORFS 0X0

S/SHIFT,18BT #0183 - #0193

1шт.

102

P930-043007

HOSE ASSY-ORFS 0X90

S/SHIFT,18BT #0194

1шт.

102

P910-044006

HOSE ASSY-ORFS 0X0

S/SHIFT,20BT #0001 - #0081

1шт.

102

P910-043006

HOSE ASSY-ORFS 0X0

S/SHIFT,20BT #0082 - #0098

1шт.

102

P930-043007

HOSE ASSY-ORFS 0X90

S/SHIFT,20BT #0099

1шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,15BT #0132

2шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,15BT #0133

1шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,18BT #0193

2шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,18BT #0194

1шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,20BT #0098

2шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,20BT #0099

1шт.

104

33FY-90600

CONNECTOR

15BT #0124

1шт.

104

33FY-90600

CONNECTOR

18BT #0182

1шт.

104

33FY-90600

CONNECTOR

20BT #0081

1шт.

105

S611-012001

O-RING

S/SHIFT,15BT #0125 - #0132

2шт.

105

S611-012001

O-RING

S/SHIFT,15BT #0133

1шт.

105

S611-012001

O-RING

S/SHIFT,18BT #0183 - #0193

2шт.

105

S611-012001

O-RING

S/SHIFT,18BT #0194

1шт.

105

S611-012001

O-RING

S/SHIFT,20BT #0082 - #0098

2шт.

105

S611-012001

O-RING

S/SHIFT,20BT #0099

1шт.

106

S621-011001

O-RING

S/SHIFT,15BT #0125 - #0132

2шт.

106

S621-011001

O-RING

S/SHIFT,15BT #0133

1шт.

106

S621-011001

O-RING

S/SHIFT,18BT #0183 - #0193

2шт.

106

S621-011001

O-RING

S/SHIFT,18BT #0194

1шт.

104-2

S621-011001

O-RING,ORFS

20BT #0022

1шт.

106

S621-011001

O-RING

S/SHIFT,20BT #0082 - #0098

2шт.

106

S621-011001

O-RING

S/SHIFT,20BT #0099

1шт.

107

33FY-90600

CONNECTOR

1шт.

107

33FY-90600

CONNECTOR

18BT #0194

1шт.

107

33FY-90600

CONNECTOR

20BT #0099

1шт.
