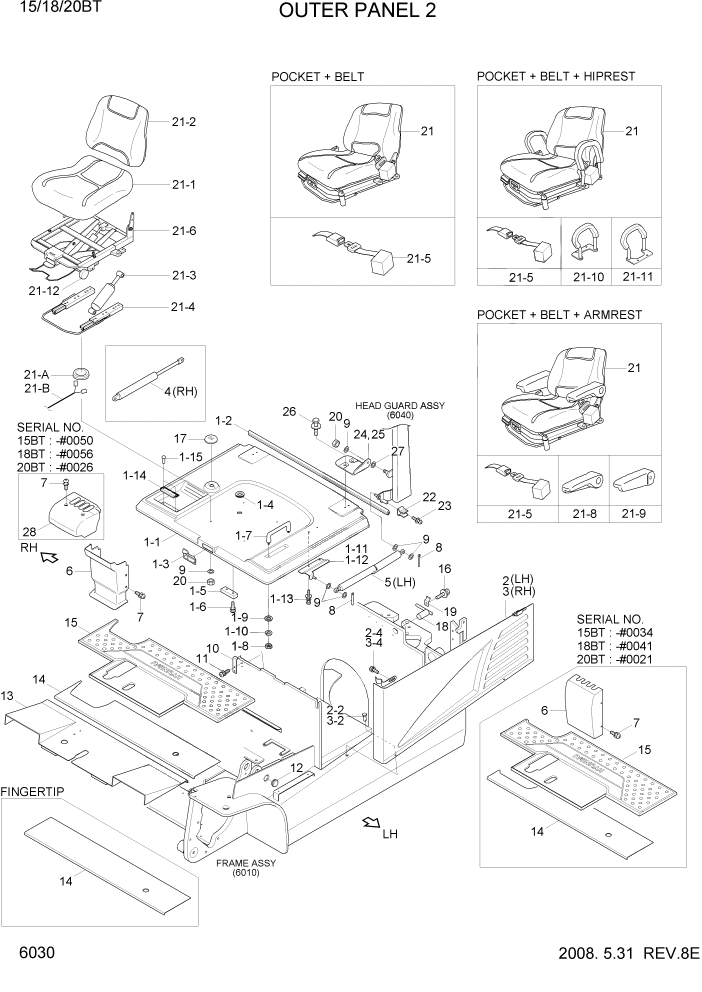

Запчасти Hyundai 15/18/20BT PAGE 6030 OUTER PANEL 2 СТРУКТУРА
№
Артикул
Название
Примечание
Количество
1
71HE-11002
BATTERY COVER S/ASSY
15BT #0006
1шт.
1
71HE-11003
BATTERY COVER S/ASSY
15BT #0007 - #0034
1шт.
1
71HE-11004
BATTERY COVER S/ASSY
15BT #0035
1шт.
1
71HE-12002
BATTERY COVER S/ASSY
18BT #0041
1шт.
1
71HE-12003
BATTERY COVER S/ASSY
18BT #0042
1шт.
1
71HE-11002
BATTERY COVER S/ASSY
15BT
1шт.
1
71HE-12002
BATTERY COVER S/ASSY
20BT #0021
1шт.
1
71HE-12003
BATTERY COVER S/ASSY
20BT #0022
1шт.
1
71HE-12002
BATTERY COVER S/ASSY
18/20BT
1шт.
1-1
71HE-11011
BATTERY COVER
15BT #0006
1шт.
1-1
71HE-11012
BATTERY COVER
15BT #0007 - #0034
1шт.
1-1
71HE-11013
BATTERY COVER
15BT #0035
1шт.
1-1
71HE-12011
BATTERY COVER
18BT #0041
1шт.
1-1
71HE-12012
BATTERY COVER
18BT #0042
1шт.
1-1
71HE-12011
BATTERY COVER
20BT #0021
1шт.
1-1
71HE-12012
BATTERY COVER
20BT #0022
1шт.
1-2
S772-010000
WEATHER STRIP
1шт.
1-3
71FH-10380
LATCH ASSY
1шт.
1-4
S681-230800
GROMMET
15BT #0034
1шт.
1-4
S681-410800
GROMMET
15BT #0035
1шт.
1-4
S681-230800
GROMMET
18BT #0041
1шт.
1-4
S681-410800
GROMMET
18BT #0042
1шт.
1-4
S681-230800
GROMMET
20BT #0021
1шт.
1-4
S681-410800
GROMMET
20BT #0022
1шт.
1-5
F12100190
CUSHION
2шт.
1-7
71FH-10140
HANDLE
1шт.
1-9
S403-082006
WASHER-PLAIN
2шт.
1-1
S411-080006
WASHER-SPRING
2шт.
1-11
71HE-10021
BRACKET-LH SPRING
15BT
1шт.
1-11
71HE-12020
BRACKET-LH SPRING
18/20BT
1шт.
1-12
71HE-10031
BRACKET-RH SPRING
15BT
1шт.
1-12
71HE-12030
BRACKET-RH SPRING
18/20BT
1шт.
1-14
71FH-10181
CLIP
1шт.
1-15
9055000309
RIVET
2шт.
2
71HE-10200
SIDE COVER-LH
15BT
1шт.
2
71HE-10101
SIDE COVER-LH
18/20BT
1шт.
2-2
S491-080222
PIN-CLEVIS
2шт.
2-4
S132-061256
SCREW-W/WASHER
2шт.
3
71HE-10210
SIDE COVER-RH
15BT
1шт.
3
71HE-10111
SIDE COVER-RH
18/20BT
1шт.
3-2
S491-080222
PIN-CLEVIS
2шт.
3-4
S132-061256
SCREW-W/WASHER
2шт.
4
71HE-12300
GAS SPRING
15BT #0006
1шт.
4
71HE-12301
GAS SPRING
15BT #0007
1шт.
4
71HE-12300
GAS SPRING
18BT #0009
1шт.
4
71HE-12301
GAS SPRING
18BT #0010
1шт.
4
71HE-12300
GAS SPRING
20BT #0004
1шт.
4
71HE-12301
GAS SPRING
20BT #0005
1шт.
5
71HE-12051
GAS SPRING
15BT #0006
1шт.
5
71HE-12052
GAS SPRING
15BT #0007
1шт.
5
71HE-12051
GAS SPRING
18BT #0009
1шт.
5
71HE-12052
GAS SPRING
18BT #0010
1шт.
5
71HE-12051
GAS SPRING
20BT #0004
1шт.
5
71HE-12052
GAS SPRING
20BT #0005
1шт.
6
B51110112
COVER-CONTROL VLV
15BT #0034
1шт.
6
71FH-16201
COVER-MCV
15BT #0035
1шт.
6
B51110112
COVER-CONTROL VLV
18BT #0041
1шт.
6
71FH-16201
COVER-MCV
18BT #0042
1шт.
6
B51110112
COVER-CONTROL VLV
20BT #0021
1шт.
6
71FH-16201
COVER-MCV
20BT #0022
1шт.
7
S132-061546
SCREW-W/WASHER
15BT #0034
4шт.
7
S132-061546
SCREW-W/WASHER
18BT #0041
4шт.
7
S132-061546
SCREW-W/WASHER
20BT #0021
4шт.
8
S461-080206
PIN-SPLIT
4шт.
9
S403-082006
WASHER-PLAIN
12шт.
10
71FH-10190
BRACKET-LOCK
1шт.
11
S179-060156
SCREW-SOCKET RD HD
2шт.
12
S661-400800
CAP-RUBBER
2шт.
13
71FY-11053
FLOOR PLATE-FRONT
1шт.
14
71FY-11062
FLOOR PLATE-REAR
15BT #0034
1шт.
14
71FY-11063
FLOOR PLATE-REAR
15BT #0035
1шт.
14
71FY-11062
FLOOR PLATE-REAR
18BT #0041
1шт.
14
71FY-11063
FLOOR PLATE-REAR
18BT #0042
1шт.
14
71FY-11062
FLOOR PLATE-REAR
20BT #0021
1шт.
14
71FY-11063
FLOOR PLATE-REAR
20BT #0022
1шт.
14
71FY-11080
FLOOR PLATE-REAR
15BT,FINGERTIP #0035
1шт.
14
71FY-11080
FLOOR PLATE-REAR
18BT,FINGERTIP #0042
1шт.
14
71FY-11080
FLOOR PLATE-REAR
20BT,FINGERTIP #0022
1шт.
15
71HE-10071
MAT-FLOOR
15BT #0034
1шт.
15
71HE-10072
MAT-FLOOR
15BT #0035
1шт.
15
71HE-10071
MAT-FLOOR
18BT #0041
1шт.
15
71HE-10072
MAT-FLOOR
18BT #0042
1шт.
15
71HE-10071
MAT-FLOOR
20BT #0021
1шт.
15
71HE-10072
MAT-FLOOR
20BT #0022
1шт.
16
S035-082556
BOLT-W/WASHER
1шт.
17
71FH-10230
CAP-COVER
1шт.
18
71FH-10280
STOPPER-BATTERY
1шт.
19
B51110220
CLIP
1шт.
20
S275-08000B
NUT-SELF LOCKING
6шт.
21
71FH-10511
SEAT ASSY(PKT)
1шт.
21
71FH-10521
SEAT ASSY(PKT+BT)
1шт.
21
71FH-10531
SEAT ASSY(PKT+BT+HR)
1шт.
21
71FH-10550
SEAT ASSY(PKT+BT+HR)
15BT,FINGERTIP #0035
1шт.
21
71FH-10550
SEAT ASSY(PKT+BT+HR)
18BT,FINGERTIP #0042
1шт.
21
71FH-10550
SEAT ASSY(PKT+BT+HR)
20BT,FINGERTIP #0022
1шт.
21
71FH-10541
SEAT ASSY(PKT+BT+AR)
1шт.
21
71FH-10560
SEAT ASSY(PKT+BT+AR)
15BT,FINGERTIP #0035
1шт.
21
71FH-10560
SEAT ASSY(PKT+BT+AR)
18BT,FINGERTIP #0042
1шт.
21
71FH-10560
SEAT ASSY(PKT+BT+AR)
20BT,FINGERTIP #0022
1шт.
21
F12120300
SEAT ASSY(PKT)
15BT #0133
1шт.
21
F12120300
SEAT ASSY(PKT)
18BT #0194
1шт.
21
F12120300
SEAT ASSY(PKT)
20BT #0101
1шт.
21
71FH-10570
SEAT ASSY(PKT+BT)
15BT #0133
1шт.
21
71FH-10570
SEAT ASSY(PKT+BT)
18BT #0194
1шт.
21-B
B51800050
HARNESS-SEAT
OPSS,FINGERTIP
1шт.
21
71FH-10570
SEAT ASSY(PKT+BT)
20BT #0101
1шт.
21-A
310006540
SWITCH-SEAT
OPSS,FINGERTIP
1шт.
21-B
B51800050
HARNESS-SEAT
OPSS,FINGERTIP
1шт.
21-1
H31013-100C
CUSHION ASSY
1шт.
21-2
H31013-200B
BACK ASSY
1шт.
21-3
H31013-360
SHOCK ABSORBER ASSY
1шт.
21-4
H31013-600B
SLIDE TRACK ASSY
1шт.
21-5
89890-8A610
BELT-SEAT
WITH BELT
1шт.
21-6
H31023-300G
SUSPENSION
1шт.
21-8
H31010-500
ARM RESTRAINT-LH
WITH ARM-REST
1шт.
21-9
H31015-500
ARM RESTRAINT-RH
WITH ARM-REST
1шт.
21-1
H31010-700
HIP RESTRAINT-LH
WITH HIP-REST
1шт.
21-11
H31015-700
HIP RESTRAINT-RH
WITH HIP-REST
1шт.
21-12
71FH-10590
KNOB-RECLINER
1шт.
22
71MH-54290
HOLDER-ROD
#0158
2шт.
22
71FH-16240
HOLDER
15BT #0159
2шт.
22
71MH-54290
HOLDER-ROD
#0209
2шт.
22
71FH-16240
HOLDER
18BT #0210
2шт.
22
71MH-54290
HOLDER-ROD
#0122
2шт.
22
71FH-16240
HOLDER
20BT #0123
2шт.
23
S131-051046
SCREW-W/WASHER
2шт.
24
71HE-10121
HINGE-LH
1шт.
25
71HE-10131
HINGE-RH
1шт.
26
S035-083056
BOLT-W/WASHER
4шт.
27
S403-10200B
WASHER-PLAIN
2шт.
28
71FH-16211
UPPER COVER
15BT #0035 - #0050
1шт.
28
71FH-16211
UPPER COVER
18BT #0042 - #0056
1шт.
28
71FH-16211
UPPER COVER
20BT #0022 - #0026
1шт.
Выбрано товаров: 142
