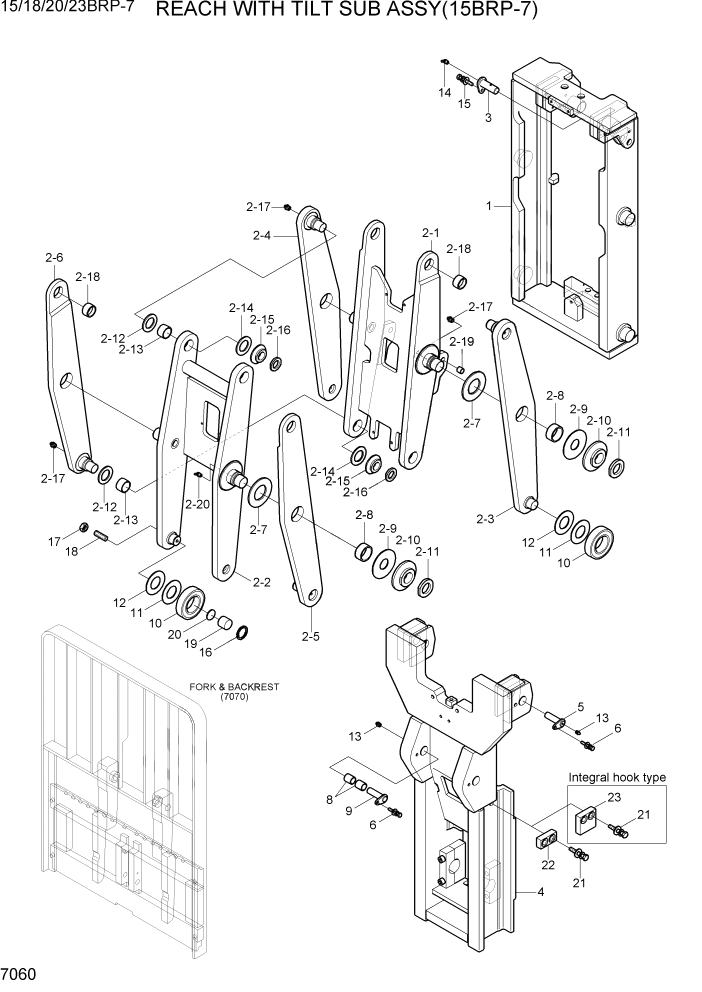

Запчасти Hyundai 15/18/20/23BRP-7 PAGE 7060 REACH WITH TILT SUB ASSY (15BRP-7) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

63HR-31013

REACH SUPPORT WA

1шт.

2

63HR-33012

REACH ARM SUB ASSY

1шт.

2-1

63HR-33102

ARM INNER WA-1ST

1шт.

2-2

63HR-33202

ARM INNER WA-2ND

1шт.

2-3

63HR-33301

ARM OUTER WA-LH 1ST

1шт.

2-4

63HR-33401

ARM OUTER WA-RH 1ST

1шт.

2-5

63HR-33501

ARM OUTER WA-LH 2ND

1шт.

2-6

63HR-33601

ARM OUTER WA-RH 2ND

1шт.

2-7

63HR-34401

WASHER-THRUST

4шт.

2-8

63HR-34800

BUSHING

4шт.

2-9

63HR-34701

WASHER THRUST

4шт.

2-1

63HR-34502

NUT-FLANGED

4шт.

2-11

S211-08000B

NUT-ROLLER BEARING

4шт.

2-12

63HR-33701

WASHER THRUST

4шт.

2-13

63HR-34810

BUSHING

4шт.

2-14

63HR-33801

WASHER THRUST

4шт.

2-15

63HR-33902

NUT-FLANGED

4шт.

2-16

S211-07000B

NUT-ROLLING BEARING

4шт.

2-17

S651-810008

NIPPLE-GREASE

6шт.

2-18

Y810-025011

BEARING-SPHERICAL

4шт.

2-19

S731-020015

BUSHING-DU

2шт.

2-2

S652-810008

NIPPLE-GREASE

2шт.

3

63HR-26203

PIN WA

2шт.

4

63HR-21012

CARRIAGE WA

1шт.

5

63HR-24102

PIN WA

2шт.

6

S035-082026

BOLT-W/WASHER

4шт.

8

S731-025030

BUSHING-DU

4шт.

9

63HR-26402

PIN WA

2шт.

10

61FY-18100

L/ROLLER BEARING(99)

STD

4шт.

10

61FY-18110

L/ROLLER BEARING(98.7)

UNDERSIZE

4шт.

10

61FY-18120

L/ROLLER BEARING(99.3)

OVERSIZE

4шт.

11

5261101800

SHIM(0.5T)

2шт.

12

5261101900

SHIM(1.0T)

2шт.

13

S651-060008

NIPPLE-GREASE

4шт.

14

S653-060008

NIPPLE-GREASE

2шт.

15

S035-081526

BOLT-W/WASHER

2шт.

16

S601-035004

RING-RETAINING

2шт.

17

S205-12100B

NUT-HEX

2шт.

18

S111-120306

SCREW-SET HEX SOCKET

2шт.

19

61FY-27050

BUSHING

2шт.

20

61FY-27060

BACK PLATE

2шт.

21

S037-123526

BOLT-W/WASHER

4шт.

22

63HR-21601

STOPPER

2шт.

23

63HR-21610

STOPPER

2шт.
