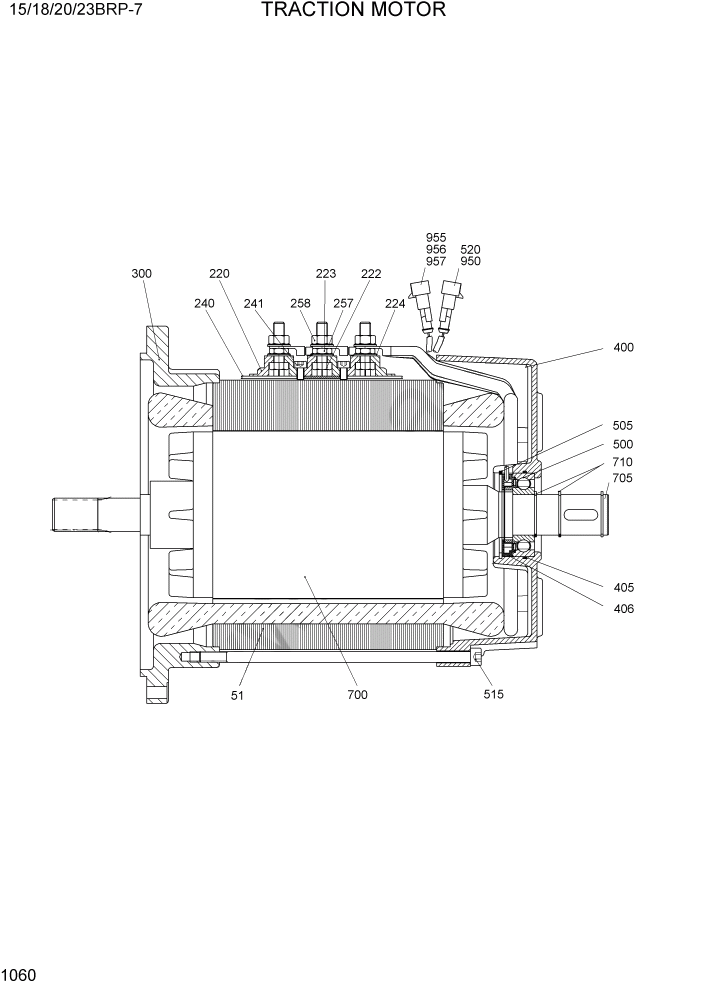

Запчасти Hyundai 15/18/20/23BRP-7 PAGE 1060 TRACTION MOTOR ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

*

21HR-72010

MOTOR-TRACTION

1шт.

N51

@

STATOR-CPL

NOT

1шт.

220

ZTBA-00007

TERMINAL

1шт.

N222

50046156

SCREW-HEXAGON

NOT

3шт.

N223

50014732

NUT-HEXAGON

NOT

3шт.

N224

50014673

DISK

NOT

3шт.

N240

@

BASE-TERMINAL

NOT

1шт.

N241

@

CYLINDER SCREW

NOT

2шт.

N257

50014673

DISK

NOT

3шт.

N258

50014730

NUT-HEXAGON

NOT

3шт.

N300

50060656

RING

NOT

1шт.

N400

@

COMMUTATOR

NOT

1шт.

405

ZTBA-00016

O-RING

1шт.

N406

@

RING-DISTANCE

NOT

1шт.

500

ZTBA-00034

BEARING-SENSOR

1шт.

N505

@

CIRCLIP

NOT

1шт.

N515

@

SCREW

NOT

4шт.

520

ZTBA-00035

SENSOR-TEMP

1шт.

N700

@

ROTOR CPL

NOT

1шт.

705

ZTBA-00043

KEY

1шт.

N710

@

CIRCLIP

NOT

3шт.

N950

@

CONNECTOR

NOT

1шт.

N955

@

CONNECTOR

NOT

1шт.

N956

@

FLAT-TABS, AMP

NOT

4шт.

N957

@

PLUG-SEAL, AMP

NOT

4шт.

N9999

@

S.D AC MOTOR

NOT

4шт.

N

@

NOT SUPPLIED PARTS

NOT

1шт.
