Запчасти Hyundai HBR14/HBR15/HBR18-7 PAGE 8020 DECALS(ENGLISH) ДРУГИЕ ЧАСТИ

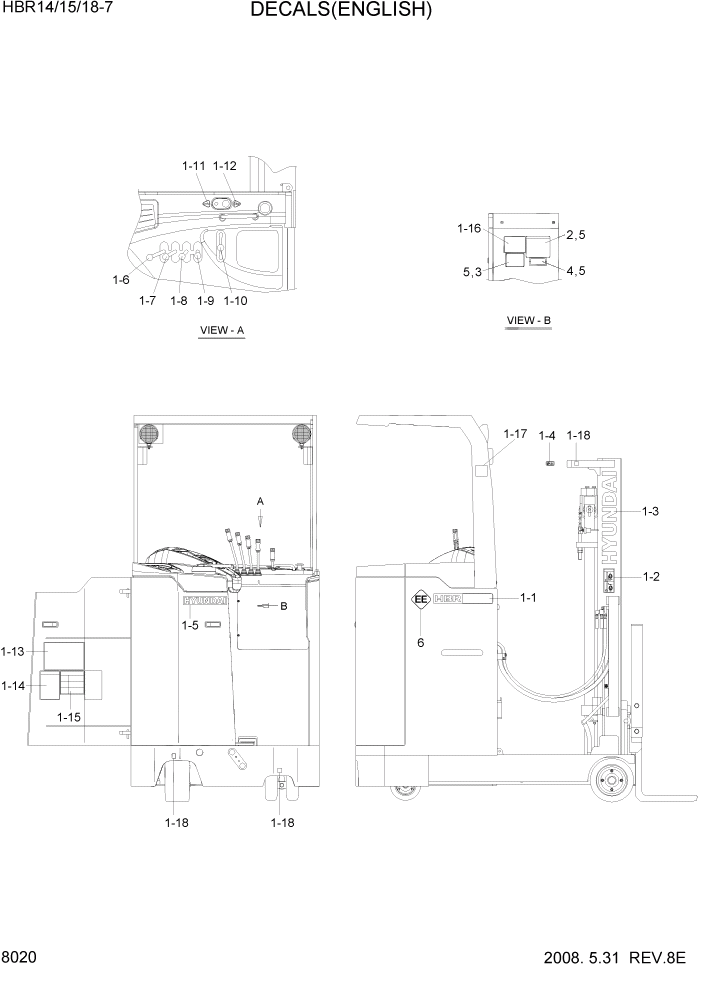

Схема запчастей Hyundai HBR14/HBR15/HBR18-7 - PAGE 8020 DECALS(ENGLISH) ДРУГИЕ ЧАСТИ

Артикул

Название

Примечание

Количество

1

91FP-00020

DECAL KIT

HBR14-7

1шт.

1

91FP-00040

DECAL KIT

HBR15-7

1шт.

1

91FP-00060

DECAL KIT

HBR18-7

1шт.

1-1

91FP-00110

NAME DECAL,HBR14-7

HBR14-7

2шт.

1-1

91FP-00120

NAME DECAL,HBR15-7

HBR15-7

2шт.

1-1

91FP-00130

NAME DECAL,HBR18-7

HBR18-7

2шт.

1-2

91FH-00320

DECAL-WARNING MAST

2шт.

1-3

91FY-00171

DECAL-HYUNDAI LOGO

2шт.

1-4

91FH-00330

DECAL-HAND CAUTION

1шт.

1-5

91FP-00240

DECAL-HYUNDAI LOGO

1шт.

1-6

91FP-00250

DECAL-LABEL

1шт.

1-7

91FP-00260

DECAL-LABEL

1шт.

1-8

91FP-00270

DECAL-LABEL

1шт.

1-9

91FP-00280

DECAL-LABEL

1шт.

1-1

91FP-00290

DECAL-LABEL

1шт.

1-11

91FP-00310

DECAL-LABEL,RT/LT

1шт.

1-12

91FP-00320

DECAL-LABEL,HORN

1шт.

1-13

91FP-00230

DECAL-CIRCUIT DIAGRAM

HBR14-7 #0006

1шт.

1-13

91FP-00231

DECAL-CIRCUIT DIAGRAM

HBR14-7 #0007 - #0027

1шт.

1-13

91FP-00232

DECAL-CIRCUIT DIAGRAM

HBR14-7 #0028

1шт.

1-13

91FP-00230

DECAL-CIRCUIT DIAGRAM

HBR15-7 #0018

1шт.

1-13

91FP-00231

DECAL-CIRCUIT DIAGRAM

HBR15-7 #0019 - #0097

1шт.

1-13

91FP-00232

DECAL-CIRCUIT DIAGRAM

HBR15-7 #0098

1шт.

1-13

91FP-00230

DECAL-CIRCUIT DIAGRAM

HBR18-7 #0022

1шт.

1-13

91FP-00231

DECAL-CIRCUIT DIAGRAM

HBR18-7 #0023 - #0070

1шт.

1-13

91FP-00232

DECAL-CIRCUIT DIAGRAM

HBR18-7 #0071

1шт.

1-14

91FP-00220

MAINTENANCE INST

HBR14-7 #0059

1шт.

1-14

91FP-00221

MAINTENANCE INST

HBR14-7 #0060

1шт.

1-14

91FP-00220

MAINTENANCE INST

HBR15-7 #0119

1шт.

1-14

91FP-00221

MAINTENANCE INST

HBR15-7 #0120

1шт.

1-14

91FP-00220

MAINTENANCE INST

HBR18-7 #0119

1шт.

1-14

91FP-00221

MAINTENANCE INST

HBR18-7 #0120

1шт.

1-15

91FH-00350

CAUTION-BAT HANDLING

1шт.

1-16

91FP-00160

LOAD CAPACITY CHART

HBR14-7(V)

1шт.

1-16

91FP-00360

LOAD CAPACITY CHART

HBR14-7,USA(V)

1шт.

1-16

91FP-00410

LOAD CAPACITY CHART

HBR14-7(TF)

1шт.

1-16

91FP-00460

LOAD CAPACITY CHART

HBR14-7,USA(TF)

1шт.

1-16

91FP-00170

LOAD CAPACITY CHART

HBR15-7(V)

1шт.

1-16

91FP-00370

LOAD CAPACITY CHART

HBR15-7,USA(V)

1шт.

1-16

91FP-00420

LOAD CAPACITY CHART

HBR15-7(TF)

1шт.

1-16

91FP-00470

LOAD CAPACITY CHART

HBR15-7,USA(TF)

1шт.

1-16

91FP-00180

LOAD CAPACITY CHART

HBR18-7(V)

1шт.

1-16

91FP-00380

LOAD CAPACITY CHART

HBR18-7,USA(V)

1шт.

1-16

91FP-00430

LOAD CAPACITY CHART

HBR18-7(TF)

1шт.

1-16

91FP-00480

LOAD CAPACITY CHART

HBR18-7,USA(TF)

1шт.

1-17

91FP-00340

DECAL-HOOK

HBR14-7 #0039

1шт.

1-17

91FP-00340

DECAL-HOOK

HBR15-7 #0122

1шт.

1-17

91FP-00340

DECAL-HOOK

HBR18-7 #0122

1шт.

1-18

91FP-00350

DECAL-HANGER

HBR14-7 #0039

4шт.

1-18

91FP-00350

DECAL-HANGER

HBR15-7 #0122

4шт.

1-18

91FP-00350

DECAL-HANGER

HBR18-7 #0122

4шт.

2

2D0900060

WARNING-SAFETY

1шт.

3

91FY-00181

NAME PLATE-CE EXPORT

HBR14-7 #0067

1шт.

3

91FY-00182

NAME PLATE-CE EXPORT

HBR14-7 #0068

1шт.

3

91FY-00181

NAME PLATE-CE EXPORT

HBR15-7 #0193

1шт.

3

91FY-00182

NAME PLATE-CE EXPORT

HBR15-7 #0194

1шт.

3

91FY-00181

NAME PLATE-CE EXPORT

HBR18-7 #0201

1шт.

3

91FY-00182

NAME PLATE-CE EXPORT

HBR18-7 #0202

1шт.

3

91FY-00221

NAME PLATE

USA, HBR14-7 #0067

1шт.

3

91FY-00222

NAME PLATE

USA, HBR14-7 #0068

1шт.

3

91FY-00221

NAME PLATE

USA, HBR15-7 #0193

1шт.

3

91FY-00222

NAME PLATE

USA, HBR15-7 #0194

1шт.

3

91FY-00221

NAME PLATE

USA, HBR18-7 #0201

1шт.

3

91FY-00222

NAME PLATE

USA, HBR18-7 #0202

1шт.

N4

2D07000700

LABEL-UL

NOT

1шт.

4

91FH-00730

LABEL - EE

UL-EE,HBR14-7 #0022 - #0027

1шт.

4

91FH-00731

LABEL-EE

UL-EE,HBR14-7 #0028

1шт.

4

91FH-00730

LABEL - EE

UL-EE,HBR15-7 #0057 - #0097

1шт.

4

91FH-00731

LABEL-EE

UL-EE,HBR15-7 #0098

1шт.

4

91FH-00730

LABEL - EE

UL-EE,HBR18-7 #0061 - #0070

1шт.

4

91FH-00731

LABEL-EE

UL-EE,HBR18-7 #0071

1шт.

5

9055000300

RIVET

10шт.

6

91FH-00700

DECAL-EE

UL-EE,HBR14-7 #0022

2шт.

6

91FH-00700

DECAL-EE

UL-EE,HBR15-7 #0057

2шт.

6

91FH-00700

DECAL-EE

UL-EE,HBR18-7 #0061

2шт.

Выбрано товаров: 75
