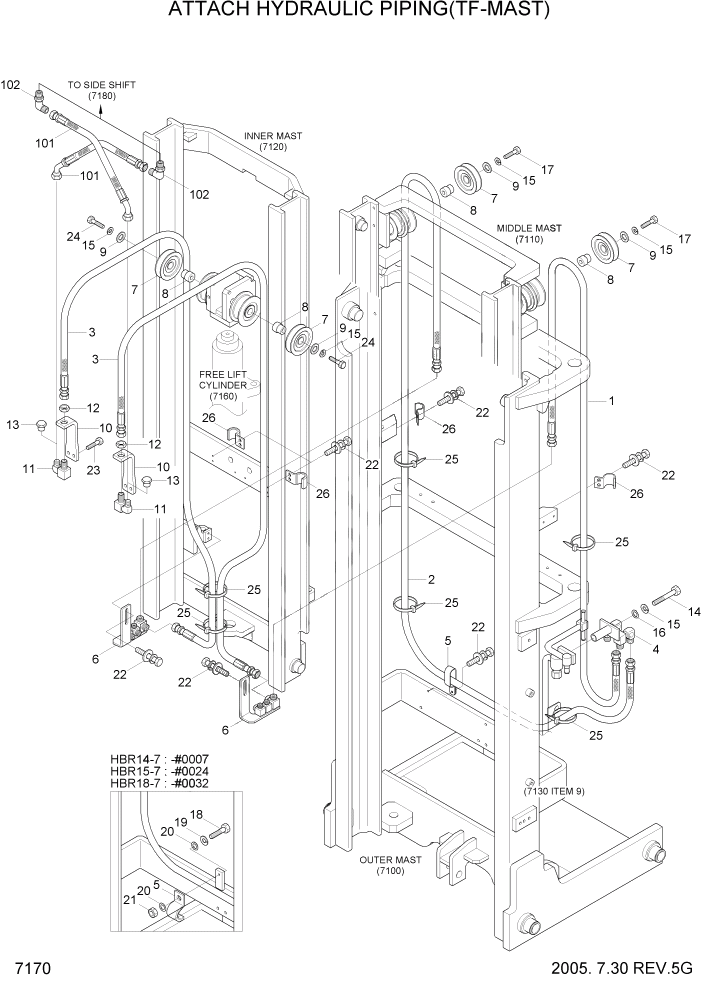

Запчасти Hyundai HBR14/HBR15/HBR18-7 PAGE 7170 ATTACH HYDRAULIC PIPING(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
1
P910-064048
HOSE ASSY-ORFS 0X0
TF370
1шт.
1
P910-064052
HOSE ASSY-ORFS 0X0
TF400
1шт.
1
P910-064056
HOSE ASSY-ORFS 0X0
TF430
1шт.
1
P910-064060
HOSE ASSY-ORFS 0X0
TF450
1шт.
1
P910-064062
HOSE ASSY-ORFS 0X0
TF470
1шт.
1
P910-064066
HOSE ASSY-ORFS 0X0
TF500
1шт.
1
P910-064073
HOSE ASSY-ORFS 0X0
TF550
1шт.
1
P910-064081
HOSE ASSY-ORFS 0X0
TF600
1шт.
1
P910-064089
HOSE ASSY-ORFS 0X0
TF650
1шт.
1
P910-064097
HOSE ASSY-ORFS 0X0
TF700
1шт.
2
P910-064072
HOSE ASSY-ORFS 0X0
TF370
1шт.
2
P910-064076
HOSE ASSY-ORFS 0X0
TF400
1шт.
2
P910-064080
HOSE ASSY-ORFS 0X0
TF430
1шт.
2
P910-064084
HOSE ASSY-ORFS 0X0
TF450
1шт.
2
P910-064086
HOSE ASSY-ORFS 0X0
TF470
1шт.
2
P910-064090
HOSE ASSY-ORFS 0X0
TF500
1шт.
2
P910-064097
HOSE ASSY-ORFS 0X0
TF550
1шт.
2
P910-064105
HOSE ASSY-ORFS 0X0
TF600
1шт.
2
P910-064113
HOSE ASSY-ORFS 0X0
TF650
1шт.
2
P910-064121
HOSE ASSY-ORFS 0X0
TF700
1шт.
3
P910-064033
HOSE ASSY-ORFS 0X0
TF370,HBR14-7 #0007
2шт.
3
P910-064039
HOSE ASSY-ORFS 0X0
TF370,HBR14-7 #0008
2шт.
3
P910-064033
HOSE ASSY-ORFS 0X0
TF370,HBR15-7 #0024
2шт.
3
P910-064039
HOSE ASSY-ORFS 0X0
TF370,HBR15-7 #0025
2шт.
3
P910-064033
HOSE ASSY-ORFS 0X0
TF370,HBR18-7 #0032
2шт.
3
P910-064039
HOSE ASSY-ORFS 0X0
TF370,HBR18-7 #0033
2шт.
3
P910-064037
HOSE ASSY-ORFS 0X0
TF400,HBR14-7 #0007
2шт.
3
P910-064037
HOSE ASSY-ORFS 0X0
TF400,HBR15-7 #0024
2шт.
3
P910-064037
HOSE ASSY-ORFS 0X0
TF400,HBR18-7 #0032
2шт.
3
P910-064043
HOSE ASSY-ORFS 0X0
TF430,HBR14-7 #0008
2шт.
3
P910-064043
HOSE ASSY-ORFS 0X0
TF430,HBR15-7 #0025
2шт.
3
P910-064043
HOSE ASSY-ORFS 0X0
TF430,HBR18-7 #0033
2шт.
3
P910-064045
HOSE ASSY-ORFS 0X0
TF450,HBR14-7 #0007
2шт.
3
P910-064044
HOSE ASSY-ORFS 0X0
TF450,HBR14-7 #0008
2шт.
3
P910-064045
HOSE ASSY-ORFS 0X0
TF450,HBR15-7 #0024
2шт.
3
P910-064044
HOSE ASSY-ORFS 0X0
TF450,HBR15-7 #0025
2шт.
3
P910-064045
HOSE ASSY-ORFS 0X0
TF450,HBR18-7 #0032
2шт.
3
P910-064044
HOSE ASSY-ORFS 0X0
TF450,HBR18-7 #0033
2шт.
3
P910-064047
HOSE ASSY-ORFS 0X0
TF470,HBR14-7 #0007
2шт.
3
P910-064046
HOSE ASSY-ORFS 0X0
TF470,HBR14-7 #0008
2шт.
3
P910-064047
HOSE ASSY-ORFS 0X0
TF470,HBR15-7 #0024
2шт.
3
P910-064046
HOSE ASSY-ORFS 0X0
TF470,HBR15-7 #0025
2шт.
3
P910-064047
HOSE ASSY-ORFS 0X0
TF470,HBR18-7 #0032
2шт.
3
P910-064046
HOSE ASSY-ORFS 0X0
TF470,HBR18-7 #0033
2шт.
3
P910-064051
HOSE ASSY-ORFS 0X0
TF500,HBR14-7 #0007
2шт.
3
P910-064048
HOSE ASSY-ORFS 0X0
TF500,HBR14-7 #0008
2шт.
3
P910-064051
HOSE ASSY-ORFS 0X0
TF500,HBR15-7 #0024
2шт.
3
P910-064048
HOSE ASSY-ORFS 0X0
TF500,HBR15-7 #0025
2шт.
3
P910-064051
HOSE ASSY-ORFS 0X0
TF500,HBR18-7 #0032
2шт.
3
P910-064048
HOSE ASSY-ORFS 0X0
TF500,HBR18-7 #0033
2шт.
3
P910-064058
HOSE ASSY-ORFS 0X0
TF550,HBR14-7 #0007
2шт.
3
P910-064051
HOSE ASSY-ORFS 0X0
TF550,HBR14-7 #0008
2шт.
3
P910-064058
HOSE ASSY-ORFS 0X0
TF550,HBR15-7 #0024
2шт.
3
P910-064051
HOSE ASSY-ORFS 0X0
TF550,HBR15-7 #0025
2шт.
3
P910-064058
HOSE ASSY-ORFS 0X0
TF550,HBR18-7 #0032
2шт.
3
P910-064051
HOSE ASSY-ORFS 0X0
TF550,HBR18-7 #0033
2шт.
3
P910-064066
HOSE ASSY-ORFS 0X0
TF600,HBR14-7 #0007
2шт.
3
P910-064055
HOSE ASSY-ORFS 0X0
TF600,HBR14-7 #0008
2шт.
3
P910-064066
HOSE ASSY-ORFS 0X0
TF600,HBR15-7 #0024
2шт.
3
P910-064055
HOSE ASSY-ORFS 0X0
TF600,HBR15-7 #0025
2шт.
3
P910-064066
HOSE ASSY-ORFS 0X0
TF600,HBR18-7 #0032
2шт.
3
P910-064055
HOSE ASSY-ORFS 0X0
TF600,HBR18-7 #0033
2шт.
3
P910-064059
HOSE ASSY-ORFS 0X0
TF650,HBR14-7 #0008
2шт.
3
P910-064059
HOSE ASSY-ORFS 0X0
TF650,HBR15-7 #0025
2шт.
3
P910-064059
HOSE ASSY-ORFS 0X0
TF650,HBR18-7 #0033
2шт.
3
P910-064082
HOSE ASSY-ORFS 0X0
TF700,HBR14-7 #0007
2шт.
3
P910-064063
HOSE ASSY-ORFS 0X0
TF700,HBR14-7 #0008
2шт.
3
P910-064082
HOSE ASSY-ORFS 0X0
TF700,HBR15-7 #0024
2шт.
3
P910-064063
HOSE ASSY-ORFS 0X0
TF700,HBR15-7 #0025
2шт.
3
P910-064082
HOSE ASSY-ORFS 0X0
TF700,HBR18-7 #0032
2шт.
3
P910-064063
HOSE ASSY-ORFS 0X0
TF700,HBR18-7 #0033
2шт.
4
31FS-90110
ELBOW WA
1шт.
5
31FS-80400
CLAMP-HOSE
HBR14-7 #0007
1шт.
5
31L6-02460
CLAMP-TUBE
HBR14-7 #0008
1шт.
5
31FS-80400
CLAMP-HOSE
HBR15-7 #0024
1шт.
5
31L6-02460
CLAMP-TUBE
HBR15-7 #0025
1шт.
5
31FS-80400
CLAMP-HOSE
HBR18-7 #0032
1шт.
5
31L6-02460
CLAMP-TUBE
HBR18-7 #0033
1шт.
7
F42500010
PULLEY-HOSE
4шт.
8
33FP-90700
PIN-H/PULLEY
4шт.
9
232110000
WASHER-PLAIN
4шт.
10
33FP-90710
SUPPORT-ELBOW
2шт.
11
31FS-90500
ELBOW WA
2шт.
13
X710-100103
CAP-ORFS
STD
2шт.
14
S017-100802
BOLT-HEX
1шт.
15
S411-100002
WASHER-SPRING
5шт.
16
S403-101002
WASHER-PLAIN
1шт.
17
S017-100852
BOLT-HEX
2шт.
18
S017-080302
BOLT-HEX
HBR14-7 #0007
1шт.
18
S017-080302
BOLT-HEX
HBR15-7 #0024
1шт.
18
S017-080302
BOLT-HEX
HBR18-7 #0032
1шт.
19
S411-080002
WASHER-SPRING
HBR14-7 #0007
1шт.
19
S411-080002
WASHER-SPRING
HBR15-7 #0024
1шт.
19
S411-080002
WASHER-SPRING
HBR18-7 #0032
1шт.
20
S403-081002
WASHER-PLAIN
HBR14-7 #0007
2шт.
20
S403-081002
WASHER-PLAIN
HBR15-7 #0024
2шт.
20
S403-081002
WASHER-PLAIN
HBR18-7 #0032
2шт.
21
S205-081002
NUT-HEX
HBR14-7 #0007
1шт.
21
S205-081002
NUT-HEX
HBR15-7 #0024
1шт.
21
S205-081002
NUT-HEX
HBR18-7 #0032
1шт.
22
S035-082022
BOLT-W/WASHER
HBR14-7 #0007
8шт.
22
S035-082022
BOLT-W/WASHER
HBR14-7 #0008
11шт.
22
S035-082022
BOLT-W/WASHER
HBR15-7 #0024
8шт.
22
S035-082022
BOLT-W/WASHER
HBR15-7 #0025
11шт.
22
S035-082022
BOLT-W/WASHER
HBR18-7 #0032
8шт.
22
S035-082022
BOLT-W/WASHER
HBR18-7 #0033
11шт.
23
S035-082522
BOLT-W/WASHER
4шт.
24
S017-100452
BOLT-HEX
2шт.
25
S552-102370
CLAMP-BAND
8шт.
26
FMB0000310
CLAMP-HOSE
4шт.
101
P923-064006
HOSE ASSY-ORFS 0X45
SIDE SHIFT
2шт.
102
31FG-80400
ELBOW-90
SIDE SHIFT
2шт.
