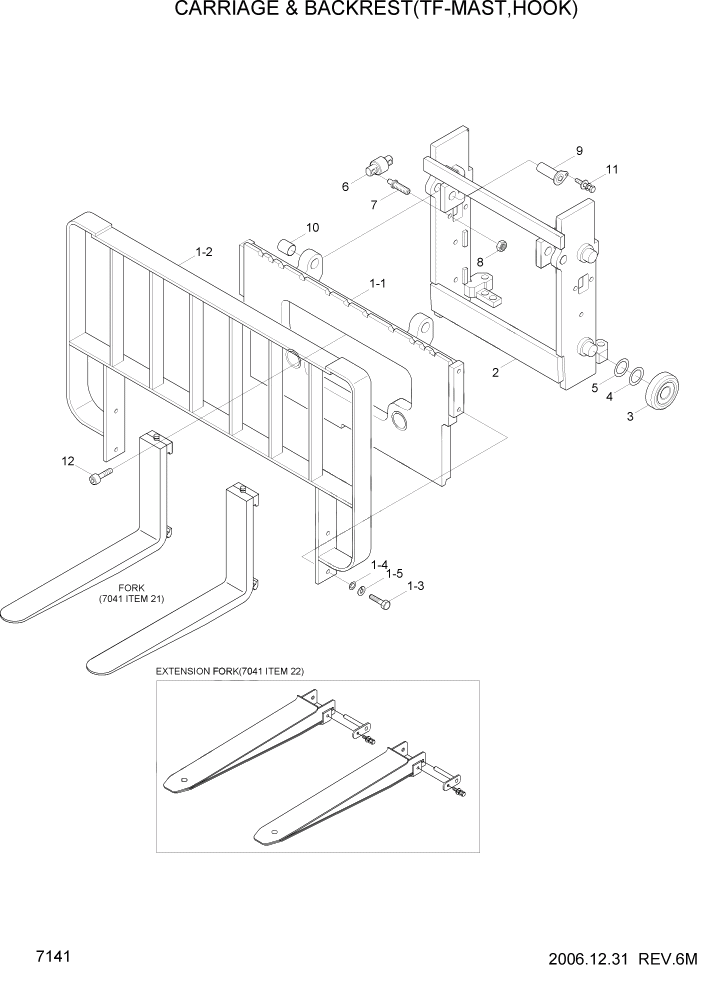

Запчасти Hyundai HBR14/HBR15/HBR18-7 PAGE 7141 CARR & BACKREST(TF-MAST,HOOK) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

63FP-27020

CARR & BACKREST ASSY

HBR14-7 #0007

1шт.

*

63FP-27021

CARR & BACKREST ASSY

HBR14-7 #0008

1шт.

*

63FP-27020

CARR & BACKREST ASSY

HBR15-7 #0024

1шт.

*

63FP-27021

CARR & BACKREST ASSY

HBR15-7 #0025

1шт.

*

63FP-27020

CARR & BACKREST ASSY

HBR18-7 #0032

1шт.

*

63FP-27021

CARR & BACKREST ASSY

HBR18-7 #0033

1шт.

1

61FP-25020

FINGER BAR/BKREST SUB

HBR14-7 #0007

1шт.

1

63FP-25020

FINGER BAR/BKREST SUB ASS'Y

HBR14-7 #0008 - #0031

1шт.

1

63FP-25021

FINGER BAR/BKREST SUB ASS'Y

#0032

1шт.

1

61FP-25020

FINGER BAR/BKREST SUB

HBR15-7 #0024

1шт.

1

63FP-25020

FINGER BAR/BKREST SUB ASS'Y

HBR15-7 #0025 - #0110

1шт.

1

63FP-25021

FINGER BAR/BKREST SUB ASS'Y

#0111

1шт.

1

61FP-25020

FINGER BAR/BKREST SUB

HBR18-7 #0032

1шт.

1

63FP-25020

FINGER BAR/BKREST SUB ASS'Y

HBR18-7 #0033 - #0107

1шт.

1

63FP-25021

FINGER BAR/BKREST SUB ASS'Y

#0108

1шт.

1-1

61FP-22020

FINGER BAR(HOOK)

HBR14-7 #0007

1шт.

1-1

63FP-22020

FINGER BAR(HOOK TYPE)

HBR14-7 #0008 - #0031

1шт.

1-1

63FP-22020

FINGER BAR(HOOK TYPE)

#0032

1шт.

1-1

61FP-22020

FINGER BAR(HOOK)

HBR15-7 #0024

1шт.

1-1

63FP-22020

FINGER BAR(HOOK TYPE)

HBR15-7 #0025 - #0110

1шт.

1-1

63FP-22020

FINGER BAR(HOOK TYPE)

#0111

1шт.

1-1

61FP-22020

FINGER BAR(HOOK)

HBR18-7 #0032

1шт.

1-1

63FP-22020

FINGER BAR(HOOK TYPE)

HBR18-7 #0033

1шт.

1-1

63FP-22020

FINGER BAR(HOOK TYPE)

#0033

1шт.

1-2

61FP-23330

BACKREST WA

1шт.

1-3

S017-160352

BOLT-HEX

4шт.

1-4

S403-161002

WASHER-PLAIN

4шт.

1-5

S411-160002

WASHER-SPRING

4шт.

2

63FP-21020

CARRIAGE WA(HOOK)

1шт.

3

6600181000-01

BEARING-LIFT ROLLER

4шт.

4

5261101800

SHIM(0.5T)

4шт.

5

5261101900

SHIM(1.0T)

4шт.

6

6600207000

BEARING-SIDE ROLLER

2шт.

7

F11500660

BOLT-ADJUST

4шт.

8

S205-161002

NUT-HEX

4шт.

9

1223018300

PIN-FINGER BAR

2шт.

10

S731-025030

BUSHING-DU

2шт.

11

S035-082022

BOLT-W/WASHER

2шт.

12

S109-120306

BOLT-SOCKET

HBR14-7 #0039

1шт.

12

S109-120306

BOLT-SOCKET

HBR15-7 #0124

1шт.

12

S109-120306

BOLT-SOCKET

HBR18-7 #0129

1шт.
