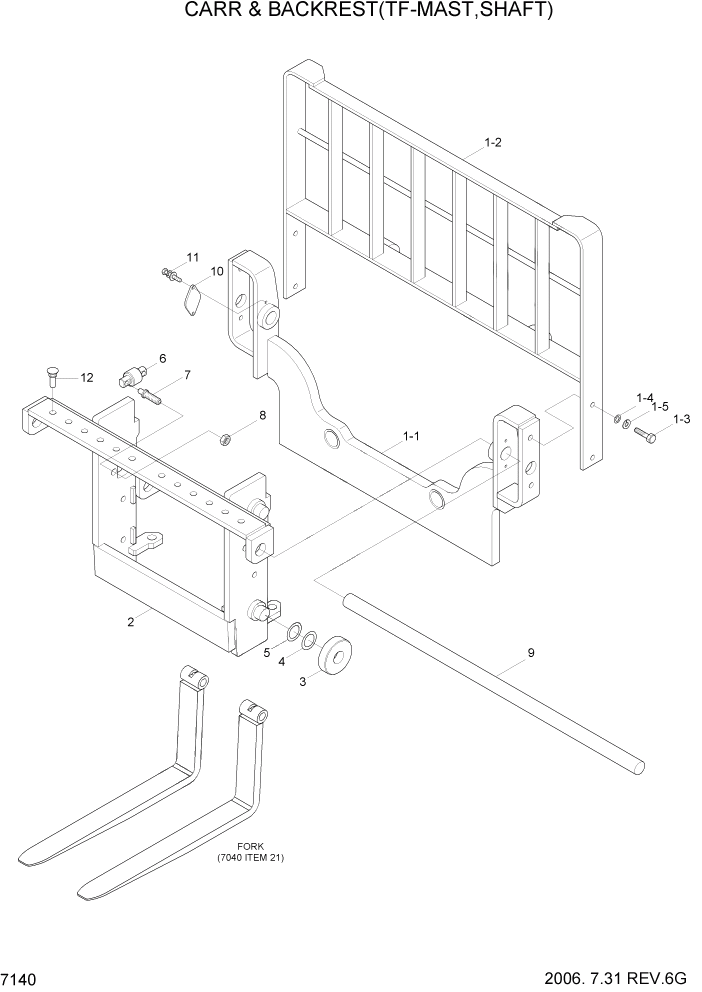

Запчасти Hyundai HBR14/HBR15/HBR18-7 PAGE 7140 CARR & BACKREST(TF-MAST,SHAFT) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

63FP-27011

CARR & BACKREST ASSY

1шт.

1

61FP-25011

TILT BAR & BACKREST SUB

#0031

1шт.

1

61FP-25012

TILT BAR & BACKREST SUB

#0032

1шт.

1

61FP-25011

TILT BAR & BACKREST SUB

#0110

1шт.

1

61FP-25012

TILT BAR & BACKREST SUB

#0111

1шт.

1

61FP-25011

TILT BAR & BACKREST SUB

#0107

1шт.

1

61FP-25012

TILT BAR & BACKREST SUB

#0108

1шт.

1-1

61FP-22011

TILT BAR WA(SHAFT)

#0031

1шт.

1-1

61FP-22012

TILT BAR WA(SHAFT)

#0032

1шт.

1-1

61FP-22011

TILT BAR WA(SHAFT)

#0110

1шт.

1-1

61FP-22012

TILT BAR WA(SHAFT)

#0111

1шт.

1-1

61FP-22011

TILT BAR WA(SHAFT)

#0107

1шт.

1-1

61FP-22012

TILT BAR WA(SHAFT)

#0108

1шт.

1-2

61FP-23431

BACKREST WA

1шт.

1-3

S017-140302

BOLT-HEX

4шт.

1-4

S403-141002

WASHER-PLAIN

4шт.

1-5

S411-140002

WASHER-SPRING

4шт.

2

63FP-21011

CARRIAGE WA(SHAFT)

HBR14-7 #0007

1шт.

2

63FP-21011

CARRIAGE WA(SHAFT)

HBR14-7,ILLUST #0008

1шт.

2

63FP-21011

CARRIAGE WA(SHAFT)

HBR15-7 #0024

1шт.

2

63FP-21011

CARRIAGE WA(SHAFT)

HBR15-7,ILLUST #0025

1шт.

2

63FP-21011

CARRIAGE WA(SHAFT)

HBR18-7 #0032

1шт.

2

63FP-21011

CARRIAGE WA(SHAFT)

HBR18-7,ILLUST #0033

1шт.

3

6600181000-01

BEARING-LIFT ROLLER

4шт.

4

5261101800

SHIM(0.5T)

4шт.

5

5261101900

SHIM(1.0T)

4шт.

6

6600207000

BEARING-SIDE ROLLER

2шт.

7

F11500660

BOLT-ADJUST

4шт.

8

S205-161002

NUT-HEX

4шт.

9

61FP-27100

HANGER BAR-FORK

1шт.

10

61FP-27200

COVER

2шт.

11

S035-082022

BOLT-W/WASHER

4шт.

12

5253003300

PIN-FORK SET

2шт.
