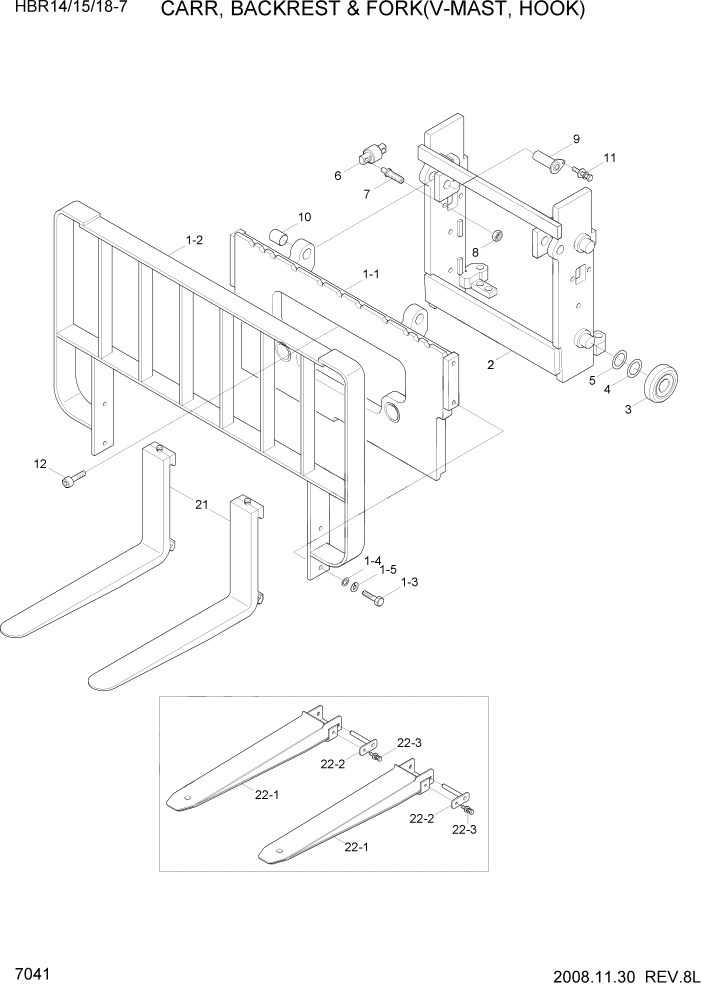

Запчасти Hyundai HBR14/HBR15/HBR18-7 PAGE 7041 CARR,BACKREST & FORK(V-MAST,HOOK) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

61FP-27020

CARR & BKREST ASSY(HOOK)

HBR14-7 #0001 - #0031

1шт.

*

61FP-27021

CARR & BKREST ASSY(HOOK)

HBR14-7 #0032

1шт.

*

61FP-27020

CARR & BKREST ASSY(HOOK)

HBR15-7 #0001 - #0110

1шт.

*

61FP-27021

CARR & BKREST ASSY(HOOK)

HBR15-7 #0111

1шт.

*

61FP-27020

CARR & BKREST ASSY(HOOK)

HBR18-7 #0001 - #0107

1шт.

*

61FP-27021

CARR & BKREST ASSY(HOOK)

HBR18-7 #0108

1шт.

1

61FP-25020

FINGER BAR/BKREST SUB

HBR14-7 #0031

1шт.

1

61FP-25021

FINGER BAR/BKREST SUB

HBR14-7 #0032

1шт.

1

61FP-25020

FINGER BAR/BKREST SUB

HBR15-7 #0110

1шт.

1

61FP-25021

FINGER BAR/BKREST SUB

HBR15-7 #0111

1шт.

1

61FP-25020

FINGER BAR/BKREST SUB

HBR18-7 #0107

1шт.

1

61FP-25021

FINGER BAR/BKREST SUB

HBR18-7 #0108

1шт.

1-1

61FP-22020

FINGER BAR(HOOK)

HBR14-7 #0031

1шт.

1-1

61FP-22021

FINGER BAR(HOOK TYPE)

HBR14-7 #0032

1шт.

1-1

61FP-22020

FINGER BAR(HOOK)

HBR15-7 #0110

1шт.

1-1

61FP-22021

FINGER BAR(HOOK TYPE)

HBR15-7 #0111

1шт.

1-1

61FP-22020

FINGER BAR(HOOK)

HBR18-7 #0107

1шт.

1-1

61FP-22021

FINGER BAR(HOOK TYPE)

HBR18-7 #0108

1шт.

1-2

61FP-23330

BACKREST WA

1шт.

1-3

S017-160352

BOLT-HEX

4шт.

1-4

S403-161002

WASHER-PLAIN

4шт.

1-5

S411-160002

WASHER-SPRING

4шт.

2

61FP-21020

CARRIAGE WA(HOOK)

HBR14-7 #0007

1шт.

2

61FP-21020

CARRIAGE WA(HOOK)

HBR14-7,ILLUST #0008

1шт.

2

61FP-21020

CARRIAGE WA(HOOK)

HBR15-7 #0024

1шт.

2

61FP-21020

CARRIAGE WA(HOOK)

HBR15-7,ILLUST #0025

1шт.

2

61FP-21020

CARRIAGE WA(HOOK)

HBR14-7 #0032

1шт.

2

61FP-21020

CARRIAGE WA(HOOK)

HBR14-7,ILLUST #0033

1шт.

3

6600181000-01

BEARING-LIFT ROLLER

4шт.

4

5261101800

SHIM(0.5)

4шт.

5

5261101900

SHIM(1.0T)

4шт.

6

6600207000

BEARING-SIDE ROLLER

2шт.

7

F11500660

BOLT-ADJUST

4шт.

8

S205-161002

NUT-HEX

4шт.

9

1223018300

PIN-FINGER BAR

2шт.

10

S731-025030

BUSHING-DU

2шт.

11

S035-082022

BOLT-W/WASHER

2шт.

12

S109-120306

BOLT-SOCKET

HBR14-7 #0039

1шт.

12

S109-120306

BOLT-SOCKET

HBR15-7 #0124

1шт.

12

S109-120306

BOLT-SOCKET

HBR18-7 #0129

1шт.

21

64FP-12010

FORK ASSY(750)

INI

2шт.

21

64FP-12020

FORK ASSY(850)

INI

2шт.

21

64FP-12030

FORK ASSY(900)

INI

2шт.

21

64FP-12040

FORK ASSY(1050)

INI

2шт.

21

64FP-12050

FORK ASSY(1200)

INI

2шт.

21

64FP-12060

FORK ASSY(1350)

INI

2шт.

21

64FP-12070

FORK ASSY(1500)

INI

2шт.

21

64FY-12010

FORK ASSY(750)

HBR14-7,CASCADE #0078

2шт.

21

64FY-12010

FORK ASSY(750)

HBR15-7,CASCADE #0216

2шт.

21

64FY-12010

FORK ASSY(750)

HBR18-7,CASCADE #0250

2шт.

21

64FY-12020

FORK ASSY(850)

HBR14-7,CASCADE #0078

2шт.

21

64FY-12020

FORK ASSY(850)

HBR15-7,CASCADE #0216

2шт.

21

64FY-12020

FORK ASSY(850)

HBR18-7,CASCADE #0250

2шт.

21

64FY-12030

FORK ASSY(900)

HBR14-7,CASCADE #0078

2шт.

21

64FY-12030

FORK ASSY(900)

HBR15-7,CASCADE #0216

2шт.

21

64FY-12030

FORK ASSY(900)

HBR18-7,CASCADE #0250

2шт.

21

64FY-12040

FORK ASSY(1050)

HBR14-7,CASCADE #0078

2шт.

21

64FY-12040

FORK ASSY(1050)

HBR15-7,CASCADE #0216

2шт.

21

64FY-12040

FORK ASSY(1050)

HBR18-7,CASCADE #0250

2шт.

21

64FY-12050

FORK ASSY(1200)

HBR14-7,CASCADE #0078

2шт.

21

64FY-12050

FORK ASSY(1200)

HBR15-7,CASCADE #0216

2шт.

21

64FY-12050

FORK ASSY(1200)

HBR18-7,CASCADE #0250

2шт.

21

64FY-12060

FORK ASSY(1350)

HBR14-7,CASCADE #0078

2шт.

21

64FY-12060

FORK ASSY(1350)

HBR15-7,CASCADE #0216

2шт.

21

64FY-12060

FORK ASSY(1350)

HBR18-7,CASCADE #0250

2шт.

21

64FY-12070

FORK ASSY(1500)

HBR14-7,CASCADE #0078

2шт.

21

64FY-12070

FORK ASSY(1500)

HBR15-7,CASCADE #0216

2шт.

21

64FY-12070

FORK ASSY(1500)

HBR18-7,CASCADE #0250

2шт.

22

69FJ-81010

EXT FORK ASSY(1300L)

2шт.

22

69FJ-81020

EXT FORK ASSY(1500L)

2шт.

22

69FJ-81030

EXT FORK ASSY(1700L)

2шт.

22-1

69FJ-81100

EXT FORK (1300L)

1шт.

22-1

69FJ-81200

EXT FORK (1500L)

1шт.

22-1

69FJ-81300

EXT FORK (1700L)

1шт.

22-2

69FJ-81500

LOCKING PIN

1шт.

22-3

S037-102022

BOLT-W/WASHER

1шт.
