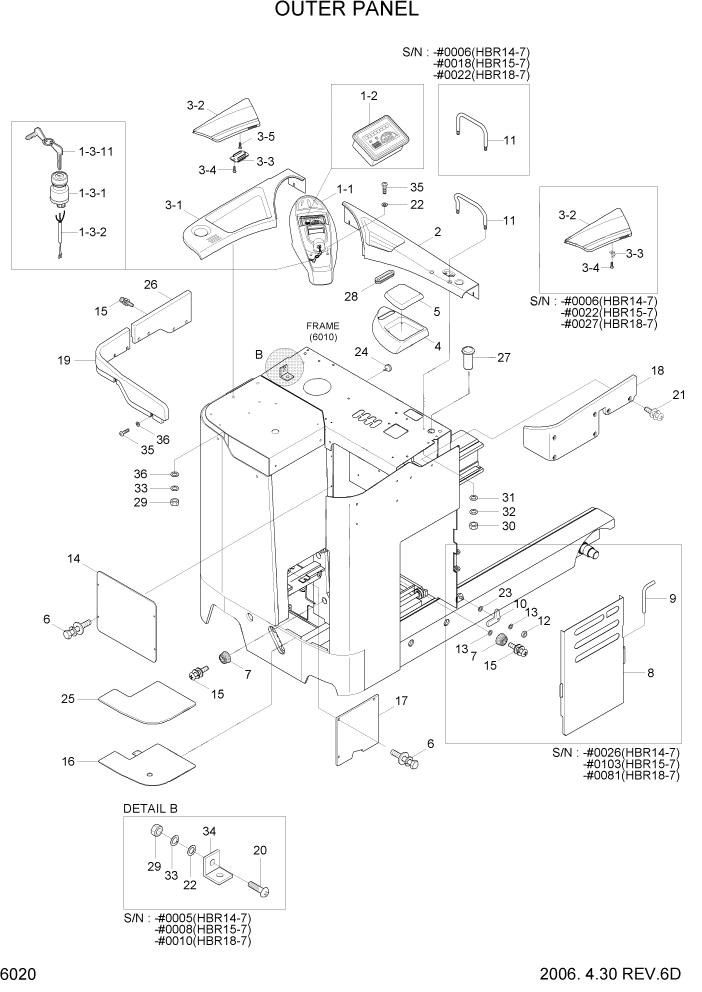

Запчасти Hyundai HBR14/HBR15/HBR18-7 PAGE 6020 OUTER PANEL СТРУКТУРА

*

@

OUTER PANEL

NOT #0001

1шт.

1

71FP-10310

CENTER COVER ASSY

1шт.

1-1

71FP-10121

COVER-CENTER

1шт.

1-2

B51870010

PANEL-MONITOR

SEE 1010

1шт.

1-3

21FH-82060

SWITCH ASSY-KEY

SEE 1010

1шт.

1-3-1

21FH-52050

SWITCH-KEY

1шт.

1-3-11

21FH-52080

KEY

2шт.

1-3-2

21FH-85030

HARNESS-KEY SWITCH

1шт.

2

71FP-10132

COVER-RH

1шт.

3

71FP-10320

COVER ASSY-LH

1шт.

3-1

71FP-10141

COVER-LH

HBR14-7 #0006

1шт.

3-1

71FP-10142

COVER-LH

HBR14-7 #0007

1шт.

3-1

71FP-10141

COVER-LH

HBR15-7 #0022

1шт.

3-1

71FP-10142

COVER-LH

HBR15-7 #0023

1шт.

3-1

71FP-10141

COVER-LH

HBR18-7 #0027

1шт.

3-1

71FP-10142

COVER-LH

HBR18-7 #0028

1шт.

3-2

71FP-10191

LID

1шт.

3-3

71FP-10251

SPRING

HBR14-7 #0006

1шт.

3-3

71FP-10350

MAGNETIC CATCH

HBR14-7 #0007

1шт.

3-3

71FP-10251

SPRING

HBR15-7 #0022

1шт.

3-3

71FP-10350

MAGNETIC CATCH

HBR15-7 #0023

1шт.

3-3

71FP-10251

SPRING

HBR18-7 #0027

1шт.

3-3

71FP-10350

MAGNETIC CATCH

HBR18-7 #0028

1шт.

3-4

S151-050106

SCREW-TAPPING

HBR14-7 #0006

1шт.

3-4

S141-030102

SCREW-FLAT HD

HBR14-7 #0007

2шт.

3-4

S151-050106

SCREW-TAPPING

HBR15-7 #0022

1шт.

3-4

S141-030102

SCREW-FLAT HD

HBR15-7 #0023

2шт.

3-4

S151-050106

SCREW-TAPPING

HBR18-7 #0027

1шт.

3-4

S141-030102

SCREW-FLAT HD

HBR18-7 #0028

2шт.

3-5

S141-040102

SCREW-FLAT HD

HBR14-7 #0007

2шт.

3-5

S141-040102

SCREW-FLAT HD

HBR15-7 #0023

2шт.

3-5

S141-040102

SCREW-FLAT HD

HBR18-7 #0028

2шт.

4

71FP-10151

BASE-ARM GUARD

1шт.

5

71FP-10161

PAD-ARM

1шт.

6

S179-080206

SCREW-SOCKET RD HD

HBR14-7 #0005

7шт.

6

S035-082026

BOLT-W/WASHER

HBR14-7 #0006

7шт.

6

S179-080206

SCREW-SOCKET RD HD

HBR15-7 #0008

7шт.

6

S035-082026

BOLT-W/WASHER

HBR15-7 #0009

7шт.

6

S179-080206

SCREW-SOCKET RD HD

HBR18-7 #0010

7шт.

6

S035-082026

BOLT-W/WASHER

HBR18-7 #0011

7шт.

7

2636050800

RUBBER-CUSHION

HBR14-7 #0005

2шт.

7

2636050800

RUBBER-CUSHION

HBR14-7 #0006

3шт.

7

2636050800

RUBBER-CUSHION

HBR15-7 #0008

2шт.

7

2636050800

RUBBER-CUSHION

HBR15-7 #0009

3шт.

7

2636050800

RUBBER-CUSHION

HBR18-7 #0010

2шт.

7

2636050800

RUBBER-CUSHION

HBR18-7 #0011

3шт.

8

71FP-10042

COVER-BATTERY

HBR14-7 #0005

1шт.

8

71FP-10043

COVER-BATTERY

HBR14-7 #0006 - #0026

1шт.

8

71FP-10042

COVER-BATTERY

HBR15-7 #0008

1шт.

8

71FP-10043

COVER-BATTERY

HBR15-7 #0009 - #0103

1шт.

8

71FP-10042

COVER-BATTERY

HBR18-7 #0010

1шт.

8

71FP-10043

COVER-BATTERY

HBR18-7 #0011 - #0081

1шт.

9

2636057600-03

PIN-BAT STOPPER

HBR14-7 #0026

1шт.

9

2636057600-03

PIN-BAT STOPPER

HBR15-7 #0103

1шт.

9

2636057600-03

PIN-BAT STOPPER

HBR18-7 #0081

1шт.

10

71FP-10280

STOPPER

HBR14-7 #0026

1шт.

10

71FP-10280

STOPPER

HBR15-7 #0103

1шт.

10

71FP-10280

STOPPER

HBR18-7 #0081

1шт.

11

71FP-10291

GRIP

HBR14-7 #0006

1шт.

11

71FP-10292

GRIP

HBR14-7 #0007

1шт.

11

71FP-10291

GRIP

HBR15-7 #0018

1шт.

11

71FP-10292

GRIP

HBR15-7 #0019

1шт.

11

71FP-10291

GRIP

HBR18-7 #0022

1шт.

11

71FP-10292

GRIP

HBR18-7 #0023

1шт.

12

S275-100006

NUT-SELF LOCKING

1шт.

13

S403-102006

WASHER-PLAIN

HBR14-7 #0005

3шт.

13

S403-102006

WASHER-PLAIN

HBR14-7 #0006

2шт.

13

S403-102006

WASHER-PLAIN

HBR15-7 #0008

3шт.

13

S403-102006

WASHER-PLAIN

HBR15-7 #0009

2шт.

13

S403-102006

WASHER-PLAIN

HBR18-7 #0010

3шт.

13

S403-102006

WASHER-PLAIN

HBR18-7 #0011

2шт.

14

71FP-10051

COVER

1шт.

15

S175-060156

SCREW-SOCKET RD HD

HBR14-7 #0005

13шт.

15

S132-062066

SCREW-W/WASHER C/RD

HBR14-7 #0006

9шт.

15

S175-060156

SCREW-SOCKET RD HD

HBR15-7 #0008

13шт.

15

S132-062066

SCREW-W/WASHER C/RD

HBR15-7 #0009

9шт.

15

S175-060156

SCREW-SOCKET RD HD

HBR18-7 #0010

13шт.

15

S132-062066

SCREW-W/WASHER C/RD

HBR18-7 #0011

9шт.

16

71FP-10330

FLOOR PLATE ASSY

1шт.

16-1

71FP-10062

PLATE-FLOOR

1шт.

16-2

F12100190

CUSHION

1шт.

16-3

S131-051546

SCREW-W/WASHER

2шт.

17

71FP-10071

COVER-PEDAL

1шт.

18

71FP-10083

GUARD-HIP

1шт.

19

71FP-10092

GUARD-HAND

1шт.

20

S175-060256

SCREW-SOCKET RD HD

HBR14-7 #0005

7шт.

20

S132-062566

SCREW-W/WASHER

HBR14-7 #0006

1шт.

20

S175-060256

SCREW-SOCKET RD HD

HBR15-7 #0008

7шт.

20

S132-062566

SCREW-W/WASHER

HBR15-7 #0009

1шт.

20

S175-060256

SCREW-SOCKET RD HD

HBR18-7 #0010

7шт.

20

S132-062566

SCREW-W/WASHER

HBR18-7 #0011

1шт.

21

S175-060106

SCREW-SOCKET RD HD

HBR14-7 #0005

6шт.

21

S132-061026

SCREW-W/WASHER

HBR14-7 #0006

5шт.

21

S175-060106

SCREW-SOCKET RD HD

HBR15-7 #0008

6шт.

21

S132-061026

SCREW-W/WASHER

HBR15-7 #0009

5шт.

21

S175-060106

SCREW-SOCKET RD HD

HBR18-7 #0010

6шт.

21

S132-061026

SCREW-W/WASHER

HBR18-7 #0011

5шт.

22

S403-062006

WASHER-PLAIN

HBR14-7 #0005

38шт.

22

S403-062006

WASHER-PLAIN

HBR14-7 #0006

4шт.

22

S403-062006

WASHER-PLAIN

HBR15-7 #0008

38шт.

22

S403-062006

WASHER-PLAIN

HBR15-7 #0009

4шт.

22

S403-062006

WASHER-PLAIN

HBR18-7 #0010

38шт.

22

S403-062006

WASHER-PLAIN

HBR18-7 #0011

4шт.

23

S403-122006

WASHER-PLAIN

HBR14-7 #0026

1шт.

23

S403-122006

WASHER-PLAIN

HBR15-7 #0103

1шт.

23

S403-122006

WASHER-PLAIN

HBR18-7 #0081

1шт.

24

FAC0700820-01

KNOB

2шт.

25

71FP-10271

MAT-FLOOR

1шт.

26

71FP-10201

GUARD-FRONT

1шт.

27

71FP-10261

BUTTON-EMERGANCE

1шт.

28

71FS-10162

BOOT-LEVER

1шт.

29

S205-061006

NUT-HEX

17шт.

30

S205-081006

NUT-HEX

2шт.

31

S403-082006

WASHER-PLAIN

HBR14-7 #0005

9шт.

31

S403-082006

WASHER-PLAIN

HBR14-7 #0006

2шт.

31

S403-082006

WASHER-PLAIN

HBR15-7 #0008

9шт.

31

S403-082006

WASHER-PLAIN

HBR15-7 #0009

2шт.

31

S403-082006

WASHER-PLAIN

HBR18-7 #0010

9шт.

31

S403-082006

WASHER-PLAIN

HBR18-7 #0011

2шт.

32

S411-080006

WASHER-SPRING

2шт.

33

S411-060006

WASHER-SPRING

HBR14-7 #0005

18шт.

33

S411-060006

WASHER-SPRING

HBR14-7 #0006

17шт.

33

S411-060006

WASHER-SPRING

HBR15-7 #0008

18шт.

33

S411-060006

WASHER-SPRING

HBR15-7 #0009

17шт.

33

S411-060006

WASHER-SPRING

HBR18-7 #0010

18шт.

33

S411-060006

WASHER-SPRING

HBR18-7 #0011

17шт.

34

71FP-10340

BRACKET

HBR14-7 #0005

1шт.

34

71FP-10340

BRACKET

HBR15-7 #0008

1шт.

34

71FP-10340

BRACKET

HBR18-7 #0010

1шт.

35

S161-060156

SCREW-RD HD

HBR14-7 #0006

12шт.

35

S161-060156

SCREW-RD HD

HBR15-7 #0009

12шт.

35

S161-060156

SCREW-RD HD

HBR18-7 #0011

12шт.

36

S403-065006

WASHER-PLAIN

HBR14-7 #0006

25шт.

36

S403-065006

WASHER-PLAIN

HBR15-7 #0009

25шт.

36

S403-065006

WASHER-PLAIN

HBR18-7 #0011

25шт.
