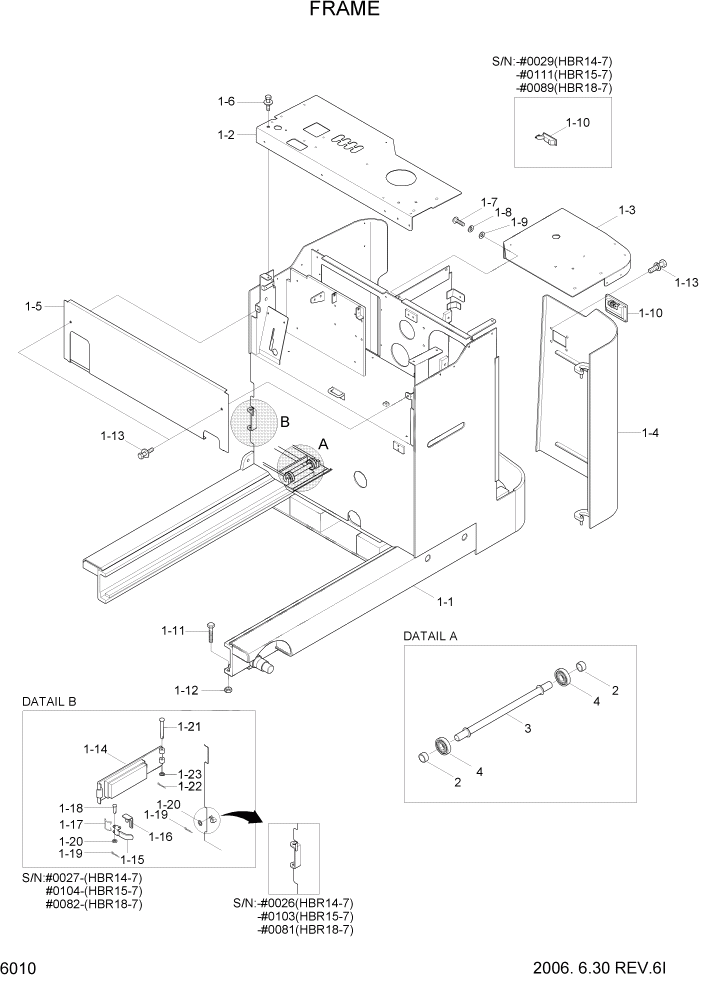

Запчасти Hyundai HBR14/HBR15/HBR18-7 PAGE 6010 FRAME СТРУКТУРА
№
Артикул
Название
Примечание
Количество
*
@
FRAME
NOT #0001
1шт.
1
41FP-11001
FRAME ASSY
HBR14-7, STD #0006
1шт.
1
41FP-11002
FRAME ASSY
HBR14-7, STD #0007 - #0026
1шт.
1
41FP-11003
FRAME ASSY
HBR14-7, STD #0027 - #0029
1шт.
1
41FP-11004
FRAME ASSY
HBR14-7, STD #0030
1шт.
1
41FP-12001
FRAME ASSY
HBR14-7, WIDE #0006
1шт.
1
41FP-12002
FRAME ASSY
HBR14-7, WIDE #0007 - #0026
1шт.
1
41FP-12003
FRAME ASSY
HBR14-7, WIDE #0027 - #0029
1шт.
1
41FP-12004
FRAME ASSY
HBR14-7, WIDE #0030
1шт.
1
41FP-21001
FRAME ASSY
HBR15-7, STD #0022
1шт.
1
41FP-21002
FRAME ASSY
HBR15-7, STD #0023 - #0103
1шт.
1
41FP-21003
FRAME ASSY
HBR15-7, STD #0104 - #0111
1шт.
1
41FP-21004
FRAME ASSY
HBR15-7, STD #0112
1шт.
1
41FP-22001
FRAME ASSY
HBR15-7, WIDE #0022
1шт.
1
41FP-22002
FRAME ASSY
HBR15-7, WIDE #0023 - #0103
1шт.
1
41FP-22003
FRAME ASSY
HBR15-7, WIDE #0104 - #0111
1шт.
1
41FP-22004
FRAME ASSY
HBR15-7, WIDE #0112
1шт.
1
41FP-31001
FRAME ASSY
HBR18-7, STD #0027
1шт.
1
41FP-31002
FRAME ASSY
HBR18-7, STD #0028 - #0081
1шт.
1
41FP-31003
FRAME ASSY
HBR18-7, STD #0082 - #0089
1шт.
1
41FP-31004
FRAME ASSY
HBR18-7, STD #0090
1шт.
1
41FP-32001
FRAME ASSY
HBR18-7, WIDE #0027
1шт.
1
41FP-32002
FRAME ASSY
HBR18-7, WIDE #0028 - #0081
1шт.
1
41FP-32003
FRAME ASSY
HBR18-7, WIDE #0082 - #0089
1шт.
1
41FP-32004
FRAME ASSY
HBR18-7, WIDE #0090
1шт.
1-1
41FP-10012
FRAME WA-R14
HBR14-7, STD #0005
1шт.
1-1
41FP-10013
FRAME WA-R14
HBR14-7, STD #0006 - #0026
1шт.
1-1
41FP-10014
FRAME WA-R14
HBR14-7, STD #0027 - #0029
1шт.
1-1
41FP-10015
FRAME WA-R14
HBR14-7, STD #0030
1шт.
1-1
41FP-10022
FRAME WA-R14
HBR14-7, WIDE #0005
1шт.
1-1
41FP-10023
FRAME WA-R14
HBR14-7, WIDE #0006 - #0026
1шт.
1-1
41FP-10024
FRAME WA-R14
HBR14-7, WIDE #0027 - #0029
1шт.
1-1
41FP-10025
FRAME WA-R14
HBR14-7, WIDE #0030
1шт.
1-1
41FP-20012
FRAME WA-R15
HBR15-7, STD #0008
1шт.
1-1
41FP-20013
FRAME WA-R15
HBR15-7, STD #0009 - #0103
1шт.
1-1
41FP-20014
FRAME WA-R15
HBR15-7, STD #0104 - #0111
1шт.
1-1
41FP-20015
FRAME WA-R15
HBR15-7, STD #0112
1шт.
1-1
41FP-20022
FRAME WA-R15
HBR15-7, WIDE #0008
1шт.
1-1
41FP-20023
FRAME WA-R15
HBR15-7, WIDE #0009 - #0103
1шт.
1-1
41FP-20024
FRAME WA-R15
HBR15-7, WIDE #0104 - #0111
1шт.
1-1
41FP-20025
FRAME WA-R15
HBR15-7, WIDE #0112
1шт.
1-1
41FP-30012
FRAME WA-R18
HBR18-7, STD #0010
1шт.
1-1
41FP-30013
FRAME WA-R18
HBR18-7, STD #0011 - #0081
1шт.
1-1
41FP-30014
FRAME WA-R18
HBR18-7, STD #0082 - #0089
1шт.
1-1
41FP-30015
FRAME WA-R18
HBR18-7, STD #0090
1шт.
1-1
41FP-30022
FRAME WA-R18
HBR18-7, WIDE #0010
1шт.
1-1
41FP-30023
FRAME WA-R18
HBR18-7, WIDE #0011 - #0081
1шт.
1-1
41FP-30024
FRAME WA-R18
HBR18-7, WIDE #0082 - #0089
1шт.
1-1
41FP-30025
FRAME WA-R18
HBR18-7, WIDE #0090
1шт.
1-2
71FP-10022
MAIN COVER
HBR14-7 #0005
1шт.
1-2
71FP-10023
MAIN COVER
HBR14-7 #0006
1шт.
1-2
71FP-10022
MAIN COVER
HBR15-7 #0008
1шт.
1-2
71FP-10023
MAIN COVER
HBR15-7 #0009
1шт.
1-2
71FP-10022
MAIN COVER
HBR18-7 #0010
1шт.
1-2
71FP-10023
MAIN COVER
HBR18-7 #0011
1шт.
1-3
71FP-10031
COVER WA
HBR14-7 #0005
1шт.
1-3
71FP-10032
COVER WA
HBR14-7 #0006 - #0006
1шт.
1-3
71FP-10033
COVER WA
HBR14-7 #0007
1шт.
1-3
71FP-10031
COVER WA
HBR15-7 #0008
1шт.
1-3
71FP-10032
COVER WA
HBR15-7 #0009 - #0022
1шт.
1-3
71FP-10033
COVER WA
HBR15-7 #0023
1шт.
1-3
71FP-10031
COVER WA
HBR18-7 #0010
1шт.
1-3
71FP-10032
COVER WA
HBR18-7 #0011 - #0027
1шт.
1-3
71FP-10033
COVER WA
HBR18-7 #0028
1шт.
1-4
71FP-10011
SIDE DOOR ASSY
HBR14-7 #0029
1шт.
1-4
71FP-10012
SIDE DOOR WA
HBR14-7 #0030
1шт.
1-4
71FP-10011
SIDE DOOR ASSY
HBR15-7 #0111
1шт.
1-4
71FP-10012
SIDE DOOR WA
HBR15-7 #0112
1шт.
1-4
71FP-10011
SIDE DOOR ASSY
HBR18-7 #0089
1шт.
1-4
71FP-10012
SIDE DOOR WA
HBR18-7 #0090
1шт.
1-5
71FP-10101
COVER-FRONT
HBR14-7 #0005
1шт.
1-5
71FP-10102
COVER-FRONT
HBR14-7 #0006
1шт.
1-5
71FP-10101
COVER-FRONT
HBR15-7 #0008
1шт.
1-5
71FP-10102
COVER-FRONT
HBR15-7 #0009
1шт.
1-5
71FP-10101
COVER-FRONT
HBR18-7 #0010
1шт.
1-5
71FP-10102
COVER-FRONT
HBR18-7 #0011
1шт.
1-7
S179-080206
SCREW-SOCKET RD HD
4шт.
1-8
S411-080006
WASHER-SPRING
4шт.
1-9
S403-082006
WASHER-PLAIN
4шт.
1-1
B52110200
LATCH
#0029
1шт.
1-1
71FP-10410
LATCH-FRONT
HBR14-7 #0030
1шт.
1-1
B52110200
LATCH
HBR14-7 #0111
1шт.
1-1
71FP-10410
LATCH-FRONT
HBR15-7 #0112
1шт.
1-1
B52110200
LATCH
HBR18-7 #0089
1шт.
1-1
71FP-10410
LATCH-FRONT
#0090
1шт.
1-11
206512045
BOLT-FULL THREAD
1шт.
1-12
221312000
NUT-HEX
2шт.
1-14
71FP-10360
STOPPER-BATTERY
HBR14-7 #0027
1шт.
1-14
71FP-10360
STOPPER-BATTERY
HBR15-7 #0104
1шт.
1-14
71FP-10360
STOPPER-BATTERY
HBR18-7 #0082
1шт.
1-15
71FP-10370
LATCH
HBR14-7 #0027
1шт.
1-15
71FP-10370
LATCH
HBR15-7 #0104
1шт.
1-15
71FP-10370
LATCH
HBR18-7 #0082
1шт.
1-16
71FP-10380
PLATE-SAFETY
HBR14-7 #0027
1шт.
1-16
71FP-10380
PLATE-SAFETY
HBR15-7 #0104
1шт.
1-16
71FP-10380
PLATE-SAFETY
HBR18-7 #0082
1шт.
1-17
71FP-10390
SPRING
HBR14-7 #0027
1шт.
1-17
71FP-10390
SPRING
HBR15-7 #0104
1шт.
1-17
71FP-10390
SPRING
HBR18-7 #0082
1шт.
1-18
S491-080452
PIN-CLEVIS
HBR14-7 #0027
1шт.
1-18
S491-080452
PIN-CLEVIS
HBR15-7 #0104
1шт.
1-18
S491-080452
PIN-CLEVIS
HBR18-7 #0082
1шт.
1-19
S461-200152
PIN-SPLIT
HBR14-7 #0027
2шт.
1-19
S461-200152
PIN-SPLIT
HBR15-7 #0104
2шт.
1-19
S461-200152
PIN-SPLIT
HBR18-7 #0082
2шт.
1-2
S403-082002
WASHER-PLAIN
HBR14-7 #0027
2шт.
1-2
S403-082002
WASHER-PLAIN
HBR15-7 #0104
2шт.
1-2
S403-082002
WASHER-PLAIN
HBR18-7 #0082
2шт.
1-21
S491-100952
PIN-CLEVIS
HBR14-7 #0027
1шт.
1-21
S491-100952
PIN-CLEVIS
HBR15-7 #0104
1шт.
1-21
S491-100952
PIN-CLEVIS
HBR18-7 #0082
1шт.
1-22
S461-320152
PIN-SPLIT
HBR14-7 #0027
1шт.
1-22
S461-320152
PIN-SPLIT
HBR15-7 #0104
1шт.
1-22
S461-320152
PIN-SPLIT
HBR18-7 #0082
1шт.
1-23
S403-102002
WASHER-PLAIN
HBR14-7 #0027
1шт.
1-23
S403-102002
WASHER-PLAIN
HBR15-7 #0104
1шт.
1-23
S403-102002
WASHER-PLAIN
HBR18-7 #0082
1шт.
1-24
71FP-10400
BRACKET
HBR14-7 #0030
1шт.
1-24
71FP-10400
BRACKET
HBR15-7 #0112
1шт.
1-24
71FP-10400
BRACKET
HBR18-7 #0090
1шт.
2
41FP-00580
COLLAR
6шт.
3
41FP-00590
SHAFT-ROLLER
3шт.
4
9021051304
BEARING-BALL
6шт.
