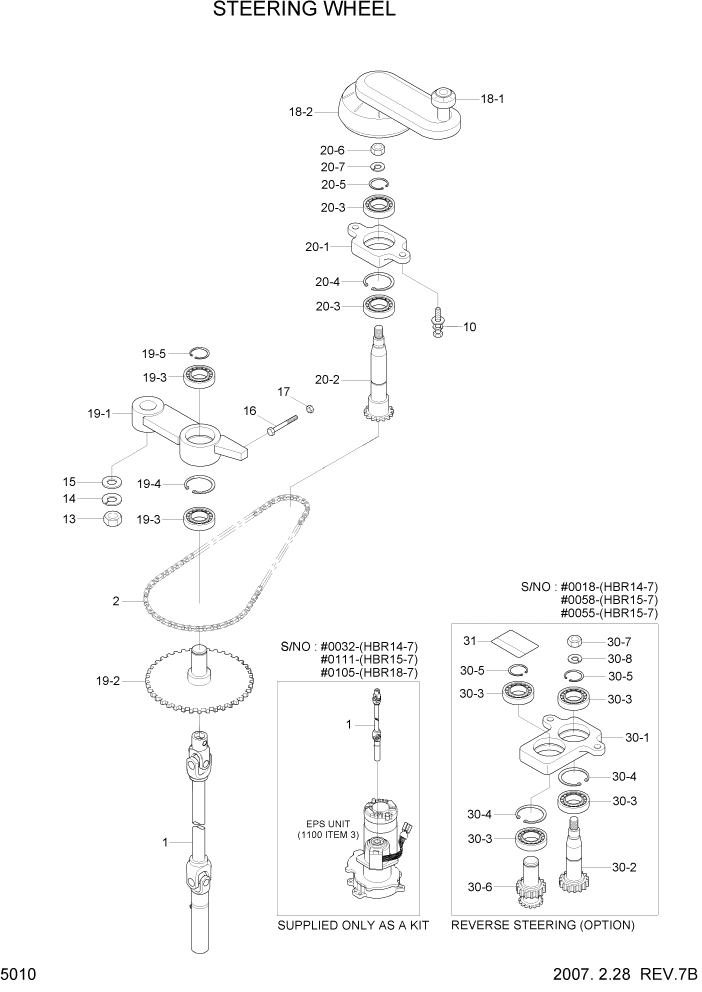

Запчасти Hyundai HBR14/HBR15/HBR18-7 PAGE 5010 STEERING LINKAGE СИСТЕМА УПРАВЛЕНИЯ

1

31FP-10011

U-JOINT ASSY

HBR14-7 #0031

1шт.

1

31FP-10012

U-JOINT ASSY

HBR14-7 #0032

1шт.

1

31FP-10011

U-JOINT ASSY

HBR15-7 #0110

1шт.

1

31FP-10012

U-JOINT ASSY

HBR15-7 #0111

1шт.

1

31FP-10011

U-JOINT ASSY

HBR18-7 #0104

1шт.

1

31FP-10012

U-JOINT ASSY

HBR18-7 #0105

1шт.

2

31FP-10020

CHAIN ROLLER

HBR14-7,STD #0037

1шт.

2

31FP-10021

CHAIN ROLLER

HBR14-7,STD #0038

1шт.

2

31FP-10020

CHAIN ROLLER

HBR15-7,STD #0115

1шт.

2

31FP-10021

CHAIN ROLLER

HBR15-7,STD #0116

1шт.

2

31FP-10020

CHAIN ROLLER

HBR18-7,STD #0109

1шт.

2

31FP-10021

CHAIN ROLLER

HBR18-7,STD #0110

1шт.

2

31FP-10140

CHAIN ROLLER

HBR14-7,REV #0018 - #0037

1шт.

2

31FP-10141

CHAIN ROLLER

HBR14-7,REV #0038

1шт.

2

31FP-10140

CHAIN ROLLER

HBR15-7,REV #0058 - #0115

1шт.

2

31FP-10141

CHAIN ROLLER

HBR15-7,REV #0116

1шт.

2

31FP-10140

CHAIN ROLLER

HBR18-7,REV #0055 - #0109

1шт.

2

31FP-10141

CHAIN ROLLER

HBR18-7,REV #0110

1шт.

10

S035-103526

BOLT-W/WASHER

2шт.

13

S205-161006

NUT-HEX

1шт.

14

S411-160006

WASHER-SPRING

1шт.

15

S403-162006

WASHER-PLAIN

1шт.

16

909267100

BOLT

1шт.

17

S205-081006

NUT-HEX

1шт.

18

31FP-10070

WHEEL-STEERING

1шт.

18-1

31FS-10060

STEER WHEEL ASSY

1шт.

18-2

31FS-10070

KNOB-STEER WHEEL

1шт.

19

31FP-10080

SPROCKET SUB ASSY

HBR14-7 #0037

1шт.

19

31FP-10081

SPROCKET SUB ASSY

HBR14-7 #0038

1шт.

19

31FP-10080

SPROCKET SUB ASSY

HBR15-7 #0115

1шт.

19

31FP-10081

SPROCKET SUB ASSY

HBR15-7 #0116

1шт.

19

31FP-10080

SPROCKET SUB ASSY

HBR18-7 #0109

1шт.

19

31FP-10081

SPROCKET SUB ASSY

HBR18-7 #0110

1шт.

19-1

31FP-10040

BRACKET-STEERING

1шт.

19-2

31FP-10050

SPROCKET ASSY

HBR14-7 #0037

1шт.

19-2

31FP-10051

SPROCKET ASSY

HBR14-7 #0038

1шт.

19-2

31FP-10050

SPROCKET ASSY

HBR15-7 #0115

1шт.

19-2

31FP-10051

SPROCKET ASSY

HBR15-7 #0116

1шт.

19-2

31FP-10050

SPROCKET ASSY

HBR17-7 #0109

1шт.

19-2

31FP-10051

SPROCKET ASSY

HBR17-7 #0110

1шт.

19-3

9021051204

BEARING-BALL

2шт.

19-4

S601-020004

RING-RETAINING

1шт.

19-5

S602-047004

RING-RETAINING

1шт.

20

31FP-10090

SHAFT SUB ASSY

1шт.

20-1

31FP-10030

BRACKET-STEER WHEEL

1шт.

20-2

31FP-10061

SHAFT-STEER WHEEL

1шт.

20-3

9021051204

BEARING-BALL

2шт.

20-4

S601-020004

RING-RETAINING

1шт.

20-5

S602-047004

RING-RETAINING

1шт.

20-6

S205-121006

NUT-HEX

1шт.

20-7

S411-120006

WASHER-SPRING

1шт.

30

31FP-10100

SHAFT SUB ASSY-REVERSE

HBR14-7,OPT #0018

1шт.

30

31FP-10100

SHAFT SUB ASSY-REVERSE

HBR15-7,OPT #0058

1шт.

30

31FP-10100

SHAFT SUB ASSY-REVERSE

HBR18-7,OPT #0055

1шт.

30-1

31FP-10110

BRACKET-STEER WHEEL

1шт.

30-2

31FP-10120

SHAFT-STEER WHEEL

1шт.

30-3

9021051204

BEARING-BALL

2шт.

30-4

S601-020004

RING-RETAINING

1шт.

30-5

S602-047004

RING-RETAINING

1шт.

30-6

31FP-10130

IDLER

1шт.

30-7

S205-121006

NUT-HEX

1шт.

30-8

S411-120006

WASHER-SPRING

1шт.

31

31FH-10090

DECAL-REVERSE STEER

HBR14-7,OPT #0018

1шт.

31

31FH-10090

DECAL-REVERSE STEER

HBR15-7,OPT #0058

1шт.

31

31FH-10090

DECAL-REVERSE STEER

HBR18-7,OPT #0055

1шт.
