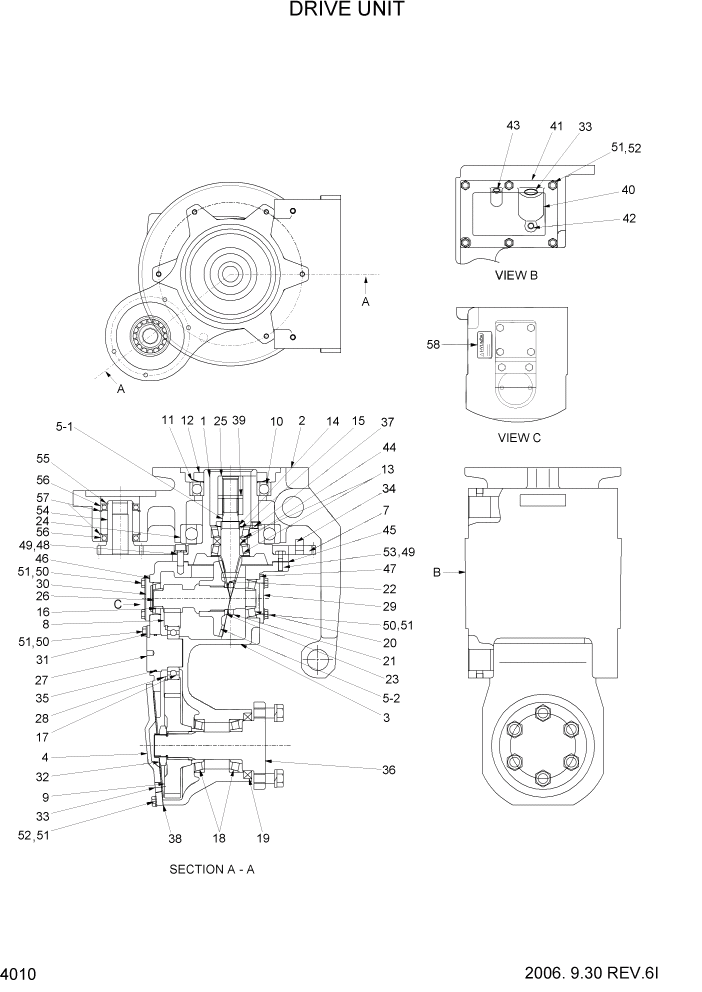

Запчасти Hyundai HBR14/HBR15/HBR18-7 PAGE 4010 DRIVE UNIT СИЛОВАЯ СИСТЕМА

*

81FP-30010

DRIVE UNIT ASSY

HBR14-7 #0012

1шт.

*

81FP-30011

DRIVE UNIT ASSY

HBR14-7 #0013 - #0037

1шт.

*

81FP-30012

DRIVE UNIT ASSY

HBR14-7 #0038

1шт.

*

81FP-30010

DRIVE UNIT ASSY

HBR15-7 #0032

1шт.

*

81FP-30011

DRIVE UNIT ASSY

HBR15-7 #0033 - #0115

1шт.

*

81FP-30012

DRIVE UNIT ASSY

HBR15-7 #0116

1шт.

*

81FP-30010

DRIVE UNIT ASSY

HBR18-7 #0042

1шт.

*

81FP-30011

DRIVE UNIT ASSY

HBR18-7 #0043 - #0109

1шт.

*

81FP-30012

DRIVE UNIT ASSY

HBR18-7 #0110

1шт.

1

3331052800

COVER-GEAR CASE

1шт.

2

B21320010

BRACKET-DRIVE

HBR14-7 #0012

1шт.

2

81FP-30100

BRACKET-UNIT

HBR14-7 #0013

1шт.

2

B21320010

BRACKET-DRIVE

HBR15-7 #0032

1шт.

2

81FP-30100

BRACKET-UNIT

HBR15-7 #0033

1шт.

2

B21320010

BRACKET-DRIVE

HBR18-7 #0042

1шт.

2

81FP-30100

BRACKET-UNIT

HBR18-7 #0043

1шт.

3

3331051900

CASE-D/GEAR BOX

1шт.

4

3332024200

COVER-DR/UNIT

1шт.

5

3314012000-K

BEVEL GEAR SET

#0001

1шт.

N5-1

3314011900

PINION-SPIRAL

NOT

1шт.

N5-2

3314012000

BEVEL GEAR-SPIRAL

NOT

1шт.

7

B21320030

GEAR-STEERING

HBR14-7 #0012

1шт.

7

81FP-30200

GEAR-STEERING

HBR14-7 #0013

1шт.

7

B21320030

GEAR-STEERING

HBR15-7 #0032

1шт.

7

81FP-30200

GEAR-STEERING

HBR15-7 #0033

1шт.

7

B21320030

GEAR-STEERING

HBR18-7 #0042

1шт.

7

81FP-30200

GEAR-STEERING

HBR18-7 #0043

1шт.

8

3311036500

GEAR-IDLE

1шт.

9

3311036600

GEAR

1шт.

10

9021051017

BEARING-DR/UNIT

1шт.

11

9023017017

WASHER

1шт.

12

9023015017

NUT-BEARING

1шт.

13

9022101206

BEARING-TAPER ROLLER

2шт.

14

9023015006

NUT-LOCK BRG

1шт.

15

9023017006

WASHER-LOCK BRG

1шт.

16

9022101205

BEARING-DR/UNIT

1шт.

17

9021001209

BEARING-DR/UNIT

1шт.

18

9022102209

BEARING-DR/UNIT

2шт.

19

1322006200

SEAL

1шт.

20

9022101305

BEARING-TAPER ROLLER

1шт.

21

9023015007

NUT-BEARING

1шт.

22

9023017007

WASHER

1шт.

23

3329001500

SPACER-GEAR

1шт.

24

9021051218

BEARING-DR/UNIT

HBR14-7 #0012

1шт.

24

6218DD

BEARING

HBR14-7 #0013

1шт.

24

9021051218

BEARING-DR/UNIT

HBR15-7 #0032

1шт.

24

6218DD

BEARING

HBR15-7 #0033

1шт.

24

9021051218

BEARING-DR/UNIT

HBR18-7 #0042

1шт.

24

6218DD

BEARING

HBR18-7 #0043

1шт.

25

3329015100-01

SLEEVE

1шт.

26

3311036400

SHAFT-PINION

1шт.

27

3352004500

SHAFT-ID/GEAR

1шт.

28

2R1108500

RING-SNAP

1шт.

29

3332032400

COVER-DR/UNIT

1шт.

30

3332032500

COVER-DR/UNIT

1шт.

31

1228006400

PLATE-LOCK

1шт.

32

3329019800

NUT-DR/SHAFT

1шт.

33

9038431004

PLUG-TAPER

HBR14-7 #0012

3шт.

33

9038431004

PLUG-TAPER

HBR14-7 #0013

2шт.

33

9038431004

PLUG-TAPER

HBR15-7 #0032

3шт.

33

9038431004

PLUG-TAPER

HBR15-7 #0033

2шт.

33

9038431004

PLUG-TAPER

HBR18-7 #0042

3шт.

33

9038431004

PLUG-TAPER

HBR18-7 #0043

2шт.

34

245313032

PIN-SPRING

HBR14-7 #0012

2шт.

34

S510-163800

PIN

HBR14-7 #0013

2шт.

34

245313032

PIN-SPRING

HBR15-7 #0032

2шт.

34

S510-163800

PIN

HBR15-7 #0033

2шт.

34

245313032

PIN-SPRING

HBR18-7 #0042

2шт.

34

S510-163800

PIN

HBR18-7 #0043

2шт.

35

9027011007

O-RING

1шт.

36

3531020300

SHAFT-D/WHEEL

1шт.

37

9038431902

PLUG-TAPER

1шт.

38

1332005200

GASKET-DR/UNIT

1шт.

39

245304040

PIN-SPRING

1шт.

40

2333003000

CASE

HBR14-7 #0012

1шт.

40

3333003000

COVER-GE/CASE

HBR14-7 #0013

1шт.

40

2333003000

CASE

HBR15-7 #0032

1шт.

40

3333003000

COVER-GE/CASE

HBR15-7 #0033

1шт.

40

2333003000

CASE

HBR18-7 #0042

1шт.

40

3333003000

COVER-GE/CASE

HBR18-7 #0043

1шт.

41

1332005100

GASKET-DR/UNIT

1шт.

42

9038431001

PLUG-TAPER

1шт.

43

3341011500

AIR BREATHER

1шт.

44

1322009200

SEAL-OIL

1шт.

45

3329022000

SHIM(0.1T)

1шт.

45

3329022100

SHIM(0.2T)

1шт.

45

3329022200

SHIM(0.3T)

1шт.

45

3329022300

SHIM(0.5T)

1шт.

46

3329024400

SHIM(0.1T)

1шт.

46

3329027600

SHIM(0.15T)

1шт.

46

3329024500

SHIM(0.2T)

1шт.

46

3329024600

SHIM(0.3T)

1шт.

46

3329024700

SHIM(0.5T)

1шт.

47

3329024000

SHIM(0.1T)

1шт.

47

3329077000

SHIM(0.15T)

1шт.

47

3329024100

SHIM(0.2T)

1шт.

47

3329024200

SHIM(0.3T)

1шт.

47

3329024300

SHIM(0.5T)

1шт.

48

203510025

BOLT-SOCKET

HBR14-7 #0012

10шт.

48

203510025

BOLT-SOCKET

HBR14-7 #0013

3шт.

48

203510025

BOLT-SOCKET

HBR15-7 #0032

10шт.

48

203510025

BOLT-SOCKET

HBR15-7 #0033

3шт.

48

203510025

BOLT-SOCKET

HBR18-7 #0042

10шт.

48

203510025

BOLT-SOCKET

HBR18-7 #0043

3шт.

49

233310000

WASHER-SPRING

HBR14-7 #0012

10шт.

49

233110000

WASHER-SPRING

HBR14-7 #0013

10шт.

49

233310000

WASHER-SPRING

HBR15-7 #0032

10шт.

49

233110000

WASHER-SPRING

HBR15-7 #0033

10шт.

49

233310000

WASHER-SPRING

HBR18-7 #0042

10шт.

49

233110000

WASHER-SPRING

HBR18-7 #0043

10шт.

50

201508025

BOLT-HEX

10шт.

51

233308000

WASHER-SPRING

26шт.

52

201508020

BOLT-HEX

16шт.

53

S017-100252

BOLT-HEX

HBR14-7 #0013

7шт.

53

S017-100252

BOLT-HEX

HBR15-7 #0033

7шт.

53

S017-100252

BOLT-HEX

HBR18-7 #0043

7шт.

54

81FP-30300

GEAR-PINION

HBR14-7 #0013

1шт.

54

81FP-30300

GEAR-PINION

HBR15-7 #0033

1шт.

54

81FP-30300

GEAR-PINION

HBR18-7 #0043

1шт.

55

S601-035004

RING-RETAINING

HBR14-7 #0013

1шт.

55

S601-035004

RING-RETAINING

HBR15-7 #0033

1шт.

55

S601-035004

RING-RETAINING

HBR18-7 #0043

1шт.

56

81FP-30400

BEARING-BALL

HBR14-7 #0013

2шт.

56

81FP-30400

BEARING-BALL

HBR15-7 #0033

2шт.

56

81FP-30400

BEARING-BALL

HBR18-7 #0043

2шт.

57

S602-062004

RING-RETAINING

HBR14-7 #0013

2шт.

57

S602-062004

RING-RETAINING

HBR15-7 #0033

2шт.

57

S602-062004

RING-RETAINING

HBR18-7 #0043

2шт.

58

81FP-30500

NAME PLATE

HBR14-7 #0013

1шт.

58

81FP-30500

NAME PLATE

HBR15-7 #0033

1шт.

58

81FP-30500

NAME PLATE

HBR18-7 #0043

1шт.
