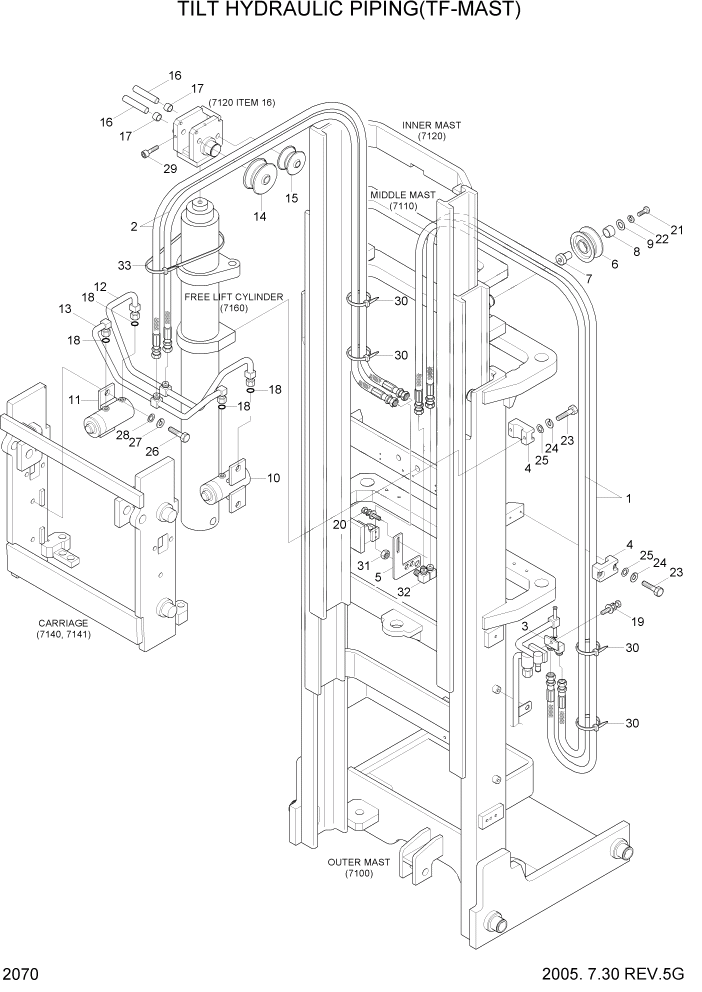

Запчасти Hyundai HBR14/HBR15/HBR18-7 PAGE 2070 TILT HYDRAULIC PIPING(TF-MAST) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

P910-044051

HOSE ASSY-ORFS 0X0

TF370

2шт.

1

P910-044055

HOSE ASSY-ORFS 0X0

TF400

2шт.

1

P910-044058

HOSE ASSY-ORFS 0X0

TF430

2шт.

1

P910-044062

HOSE ASSY-ORFS 0X0

TF450

2шт.

1

P910-044064

HOSE ASSY-ORFS 0X0

TF470

2шт.

1

P910-044068

HOSE ASSY-ORFS 0X0

TF500

2шт.

1

P910-044075

HOSE ASSY-ORFS 0X0

TF550

2шт.

1

P910-044083

HOSE ASSY-ORFS 0X0

TF600

2шт.

1

P910-044091

HOSE ASSY-ORFS 0X0

TF650

2шт.

1

P910-044099

HOSE ASSY-ORFS 0X0

TF700

2шт.

2

P910-044037

HOSE ASSY-ORFS 0X0

TF370,HBR14-7 #0007

2шт.

2

P910-044043

HOSE ASSY-ORFS 0X0

TF370,HBR14-7 #0008

2шт.

2

P910-044037

HOSE ASSY-ORFS 0X0

TF370,HBR15-7 #0024

2шт.

2

P910-044043

HOSE ASSY-ORFS 0X0

TF370,HBR15-7 #0025

2шт.

2

P910-044037

HOSE ASSY-ORFS 0X0

TF370,HBR18-7 #0032

2шт.

2

P910-044043

HOSE ASSY-ORFS 0X0

TF370,HBR18-7 #0033

2шт.

2

P910-044041

HOSE ASSY-ORFS 0X0

TF400,HBR14-7 #0007

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

TF400,HBR14-7 #0008

2шт.

2

P910-044041

HOSE ASSY-ORFS 0X0

TF400,HBR15-7 #0024

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

TF400,HBR15-7 #0025

2шт.

2

P910-044041

HOSE ASSY-ORFS 0X0

TF400,HBR18-7 #0032

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

TF400,HBR18-7 #0033

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

TF430,HBR14-7 #0007

2шт.

2

P910-044046

HOSE ASSY-ORFS 0X0

TF430,HBR14-7 #0008

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

TF430,HBR15-7 #0024

2шт.

2

P910-044046

HOSE ASSY-ORFS 0X0

TF430,HBR15-7 #0025

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

TF430,HBR18-7 #0032

2шт.

2

P910-044046

HOSE ASSY-ORFS 0X0

TF430,HBR18-7 #0033

2шт.

2

P910-044049

HOSE ASSY-ORFS 0X0

TF450,HBR14-7 #0007

2шт.

2

P910-044047

HOSE ASSY-ORFS 0X0

TF450,HBR14-7 #0008

2шт.

2

P910-044049

HOSE ASSY-ORFS 0X0

TF450,HBR15-7 #0024

2шт.

2

P910-044047

HOSE ASSY-ORFS 0X0

TF450,HBR15-7 #0025

2шт.

2

P910-044049

HOSE ASSY-ORFS 0X0

TF450,HBR18-7 #0032

2шт.

2

P910-044047

HOSE ASSY-ORFS 0X0

TF450,HBR18-7 #0033

2шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

TF470,HBR14-7 #0007

2шт.

2

P910-044049

HOSE ASSY-ORFS 0X0

TF470,HBR14-7 #0008

2шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

TF470,HBR15-7 #0024

2шт.

2

P910-044049

HOSE ASSY-ORFS 0X0

TF470,HBR15-7 #0025

2шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

TF470,HBR18-7 #0032

2шт.

2

P910-044049

HOSE ASSY-ORFS 0X0

TF470,HBR18-7 #0033

2шт.

2

P910-044055

HOSE ASSY-ORFS 0X0

TF500,HBR14-7 #0007

2шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

TF500,HBR14-7 #0008

2шт.

2

P910-044055

HOSE ASSY-ORFS 0X0

TF500,HBR15-7 #0024

2шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

TF500,HBR15-7 #0025

2шт.

2

P910-044055

HOSE ASSY-ORFS 0X0

TF500,HBR18-7 #0032

2шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

TF500,HBR18-7 #0033

2шт.

2

P910-044062

HOSE ASSY-ORFS 0X0

TF550,HBR14-7 #0007

2шт.

2

P910-044054

HOSE ASSY-ORFS 0X0

TF550,HBR14-7 #0008

2шт.

2

P910-044062

HOSE ASSY-ORFS 0X0

TF550,HBR15-7 #0024

2шт.

2

P910-044054

HOSE ASSY-ORFS 0X0

TF550,HBR15-7 #0025

2шт.

2

P910-044062

HOSE ASSY-ORFS 0X0

TF550,HBR18-7 #0032

2шт.

2

P910-044054

HOSE ASSY-ORFS 0X0

TF550,HBR18-7 #0033

2шт.

2

P910-044070

HOSE ASSY-ORFS 0X0

TF600,HBR14-7 #0007

2шт.

2

P910-044058

HOSE ASSY-ORFS 0X0

TF600,HBR14-7 #0008

2шт.

2

P910-044070

HOSE ASSY-ORFS 0X0

TF600,HBR15-7 #0024

2шт.

2

P910-044058

HOSE ASSY-ORFS 0X0

TF600,HBR15-7 #0025

2шт.

2

P910-044070

HOSE ASSY-ORFS 0X0

TF600,HBR18-7 #0032

2шт.

2

P910-044058

HOSE ASSY-ORFS 0X0

TF600,HBR18-7 #0033

2шт.

2

P910-044078

HOSE ASSY-ORFS 0X0

TF650,HBR14-7 #0007

2шт.

2

P910-044062

HOSE ASSY-ORFS 0X0

TF650,HBR14-7 #0008

2шт.

2

P910-044078

HOSE ASSY-ORFS 0X0

TF650,HBR15-7 #0024

2шт.

2

P910-044062

HOSE ASSY-ORFS 0X0

TF650,HBR15-7 #0025

2шт.

2

P910-044078

HOSE ASSY-ORFS 0X0

TF650,HBR18-7 #0032

2шт.

2

P910-044062

HOSE ASSY-ORFS 0X0

TF650,HBR18-7 #0033

2шт.

2

P910-044086

HOSE ASSY-ORFS 0X0

TF700,HBR14-7 #0007

2шт.

2

P910-044066

HOSE ASSY-ORFS 0X0

TF700,HBR14-7 #0008

2шт.

2

P910-044086

HOSE ASSY-ORFS 0X0

TF700,HBR15-7 #0024

2шт.

2

P910-044066

HOSE ASSY-ORFS 0X0

TF700,HBR15-7 #0025

2шт.

2

P910-044086

HOSE ASSY-ORFS 0X0

TF700,HBR18-7 #0032

2шт.

2

P910-044066

HOSE ASSY-ORFS 0X0

TF700,HBR18-7 #0033

2шт.

3

31FP-90100

ELBOW WA

1шт.

3-1

S621-011001

O-RING,ORFS

NOT SHOWN

4шт.

4

33FP-90200

CLAMP-HOSE

2шт.

5

33FP-90311

PLATE

1шт.

6

5673094900

PULLEY-HOSE

1шт.

7

5673095000

PIN-HOSE PULLEY

1шт.

8

S731-020025

BUSHING-DU

1шт.

9

232110000

WASHER-PLAIN

1шт.

10

31FP-08000

TILT CYLINDER-LH

1шт.

11

31FP-08100

TILT CYLINDER-RH

1шт.

12

33FP-90400

TILT PIPE WA

1шт.

12-3

S621-011001

O-RING,ORFS

NOT SHOWN

1шт.

13

33FP-90500

TILT PIPE WA

1шт.

13-3

S621-011001

O-RING,ORFS

NOT SHOWN

1шт.

14

5673094500

PULLEY-HOSE

1шт.

15

5673094600

PULLEY-HOSE

1шт.

16

5673094700

PIN-HOSE PULLEY

2шт.

17

S731-016020

BUSHING-DU

2шт.

18

S621-011001

O-RING,ORFS

4шт.

19

S037-102522

BOLT-W/WASHER

1шт.

20

S035-082022

BOLT-W/WASHER

2шт.

21

S017-100602

BOLT-HEX

1шт.

22

S411-100002

WASHER-SPRING

1шт.

23

S015-060302

BOLT-HEX

4шт.

24

S411-060002

WASHER-SPRING

4шт.

25

S403-061002

WASHER-PLAIN

4шт.

26

S017-160402

BOLT-HEX

4шт.

27

S411-160002

WASHER-SPRING

4шт.

28

S403-161002

WASHER-PLAIN

4шт.

29

S109-080206

BOLT-SOCKET

2шт.

30

S552-050203

CLAMP-BAND

5шт.

31

33FP-90380

NUT

2шт.

32

33FP-90350

ELBOW

2шт.

33

S552-102370

CLAMP-BAND

2шт.
