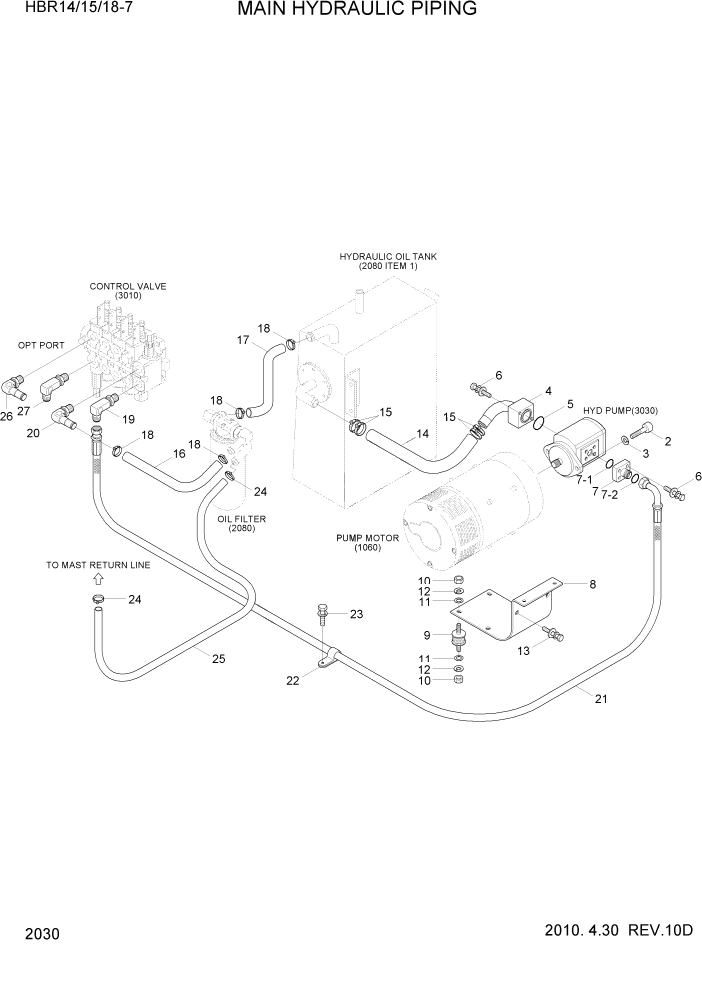

Запчасти Hyundai HBR14/HBR15/HBR18-7 PAGE 2030 MAIN HYDRAULIC PIPING ГИДРАВЛИЧЕСКАЯ СИСТЕМА

2

S109-100306

BOLT-SOCKET

2шт.

3

S411-100006

WASHER-SPRING

2шт.

4

B21640011

SUCTION PIPE

1шт.

5

S632-030001

O-RING

1шт.

6

S035-083026

BOLT-W/WASHER

6шт.

7

31FP-20020

FLANGE ASSY

1шт.

7-1

S631-024004

O-RING

1шт.

7-2

S621-014001

O-RING

1шт.

8

B21110160

BRACKET-MOTOR

1шт.

9

1191000300

CUSHION

4шт.

10

S201-081006

NUT-HEX

8шт.

11

S403-081006

WASHER-PLAIN

8шт.

12

S411-080006

WASHER-SPRING

8шт.

13

S037-102026

BOLT-W/WASHER

4шт.

14

P760-043035

HOSE-RUBBER

1шт.

15

S520-040000

CLAMP-HOSE

#0076

2шт.

15

S572-400006

CLAMP-HOSE,WIRE TYPE

HBR14-7 #0077

4шт.

15

S520-040000

CLAMP-HOSE

#0203

2шт.

15

S572-400006

CLAMP-HOSE,WIRE TYPE

HBR15-7 #0204

4шт.

15

S520-040000

CLAMP-HOSE

#0230

2шт.

15

S572-400006

CLAMP-HOSE,WIRE TYPE

HBR18-7 #0231

4шт.

16

P760-031032

HOSE-RUBBER

HBR14-7 ISO #0005

1шт.

16

P760-031037

HOSE-RUBBER

HBR14-7 ISO #0006

1шт.

16

P760-031032

HOSE-RUBBER

HBR15-7 ISO #0008

1шт.

16

P760-031037

HOSE-RUBBER

HBR15-7 ISO #0009

1шт.

16

P760-031032

HOSE-RUBBER

HBR18-7 ISO #0010

1шт.

16

P760-031037

HOSE-RUBBER

HBR18-7 ISO #0011

1шт.

16

P760-031080

HOSE-RUBBER

HBR14-7 USER #0005 - #0005

1шт.

16

P760-031076

HOSE-RUBBER

HBR14-7 USER #0006

1шт.

16

P760-031080

HOSE-RUBBER

HBR15-7 USER #0007 - #0008

1шт.

16

P760-031076

HOSE-RUBBER

HBR15-7 USER #0009

1шт.

16

P760-031080

HOSE-RUBBER

HBR18-7 USER #0008 - #0010

1шт.

16

P760-031076

HOSE-RUBBER

HBR18-7 USER #0011

1шт.

17

P760-031020

HOSE-RUBBER

1шт.

18

S520-032000

CLAMP-HOSE

4шт.

19

31FP-20050

ELBOW-SWIVEL 90

HBR14-7 #0004

1шт.

19

X520-110003

ELBOW-90,ORFS

HBR14-7 #0005

1шт.

19

31FP-20050

ELBOW-SWIVEL 90

HBR15-7 #0006

1шт.

19

X520-110003

ELBOW-90,ORFS

HBR15-7 #0007

1шт.

19

31FP-20050

ELBOW-SWIVEL 90

HBR18-7 #0007

1шт.

19

X520-110003

ELBOW-90,ORFS

HBR18-7 #0008

1шт.

20

B51610010

ELBOW-90

HBR14-7 #0004

1шт.

20

31FM-20010

ELBOW-90

HBR14-7 #0005

1шт.

20

B51610010

ELBOW-90

HBR15-7 #0006

1шт.

20

31FM-20010

ELBOW-90

HBR15-7 #0007

1шт.

20

B51610010

ELBOW-90

HBR18-7 #0007

1шт.

20

31FM-20010

ELBOW-90

HBR18-7 #0008

1шт.

21

P930-085023

HOSE ASSY-ORFS 0X90

ISO PATTERN

1шт.

21

P930-085027

HOSE ASSY-ORFS 0X90

USER PATTERN

1шт.

21

P930-084024

HOSE ASSY-ORFS 0X90

HBR15-7 USER #0007

1шт.

21

P930-084024

HOSE ASSY-ORFS 0X90

HBR18-7 USER #0008

1шт.

22

S543-240002

CLAMP-TUBE

1шт.

23

S035-081516

BOLT-W/WASHER

1шт.

24

S520-027000

CLAMP-HOSE

2шт.

25

31FA-10720

HOSE-LOW

1шт.

26

31N8-40310

ELBOW-90,ORFS,LONG

HBR14-7 #0006

1шт.

26

31N8-40310

ELBOW-90,ORFS,LONG

HBR15-7 #0009

1шт.

26

31N8-40310

ELBOW-90,ORFS,LONG

HBR18-7 #0011

1шт.

27

B51610010

ELBOW-90

HBR14-7 #0006

1шт.

27

B51610010

ELBOW-90

HBR15-7 #0009

1шт.

27

B51610010

ELBOW-90

HBR18-7 #0011

1шт.
