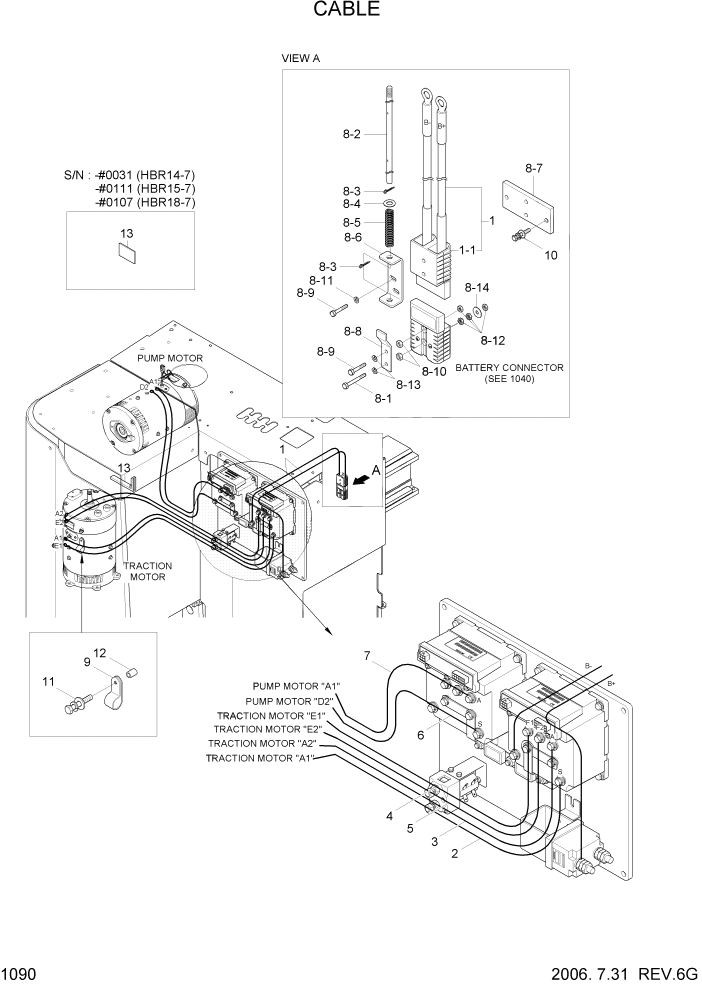

Запчасти Hyundai HBR14/HBR15/HBR18-7 PAGE 1090 CABLE ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

21FP-76010

CABLE-BATTERY

NON UL,NON CE

1шт.

1

21FP-76020

CABLE-BATTERY

FOR CE

1шт.

1

21FP-76030

CABLE-BATTERY

FOR UL-E

1шт.

1-1

B71800060

CONNECTOR-BATTERY

NON UL,NON CE

1шт.

1-1

B52820030

CONNECTOR-SBE320

FOR CE

1шт.

1-1

B71800060

CONNECTOR-BATTERY

FOR UL-E

1шт.

2

21FP-76051

CABLE(TMA1-TCS)

NON UL

1шт.

2

21FP-76111

CABLE(TMA1-TCS)

FOR UL-E

1шт.

3

21FP-76060

CABLE(TMA2-TCA)

NON UL

1шт.

3

21FP-76120

CABLE(TMA2-TCA)

FOR UL-E

1шт.

4

21FP-76071

CABLE(TME1-TCF1)

NON UL

1шт.

4

21FP-76131

CABLE(TME1-TCF1)

FOR UL-E

1шт.

5

21FP-76080

CABLE(TME2-TCF2)

NON UL

1шт.

5

21FP-76140

CABLE(TME2-TCF2)

FOR UL-E

1шт.

6

21FP-76090

CABLE(PMD2-PCS)

NON UL

1шт.

6

21FP-76150

CABLE(PMD2-PCS)

FOR UL-E

1шт.

7

21FP-76100

CABLE(PMA1-PCA)

NON UL

1шт.

7

21FP-76160

CABLE(PMA1-PCA)

FOR UL-E

1шт.

8

21FP-72070

BATTERY CONN RELEASE

NON UL

1шт.

8

21FP-72080

BATTERY CONN RELEASE

FOR UL-E

1шт.

8-1

20C106065

SCREW-RD HD

1шт.

8-2

21FP-72100

PUSH ROD

1шт.

8-3

S471-300256

PIN-SPRING

2шт.

8-4

S403-085006

WASHER-PLAIN

1шт.

8-5

B21360040

SPRING

1шт.

8-6

21FP-72090

SUPPORT-PUSH ROD

1шт.

8-7

21FP-72170

PLATE-MOUNTING

NON UL

1шт.

8-7

21FP-72180

PLATE-MOUNTING

FOR UL-E

1шт.

8-8

2671008700

BRACKET

HBR14-7 #0097

1шт.

8-8

21FP-72220

BRACKET

HBR14-7 #0098

1шт.

8-8

2671008700

BRACKET

HBR15-7 #0244

1шт.

8-8

21FP-72220

BRACKET

HBR15-7 #0245

1шт.

8-8

2671008700

BRACKET

HBR18-7 #0287

1шт.

8-8

B21360031

BRACKET

HBR18-7 #0288

1шт.

8-9

S015-060456

BOLT-HEX

3шт.

8-1

S205-081006

NUT-HEX

2шт.

8-11

S403-06100B

WASHER-PLAIN

HBR14-7 #0097

2шт.

8-11

S403-06200B

WASHER-PLAIN

HBR14-7 #0098

2шт.

8-11

S403-06100B

WASHER-PLAIN

HBR15-7 #0244

2шт.

8-11

S403-06200B

WASHER-PLAIN

HBR15-7 #0245

2шт.

8-11

S403-06100B

WASHER-PLAIN

HBR18-7 #0287

2шт.

8-11

S403-06200B

WASHER-PLAIN

HBR18-7 #0288

2шт.

8-12

S205-061006

NUT-HEX

4шт.

8-13

S411-060006

WASHER-SPRING

2шт.

8-14

S403-063006

WASHER-PLAIN

1шт.

9

34L3-01380

CLAMP

1шт.

10

S035-061526

BOLT-W/WASHER

HBR14-7 #0021

2шт.

10

S035-061522

BOLT-W/WASHER

HBR14-7 #0022

2шт.

10

S035-061526

BOLT-W/WASHER

HBR15-7 #0056

2шт.

10

S035-061522

BOLT-W/WASHER

HBR15-7 #0057

2шт.

10

S035-061526

BOLT-W/WASHER

HBR18-7 #0059

2шт.

10

S035-061522

BOLT-W/WASHER

HBR18-7 #0060

2шт.

11

S035-082526

BOLT-W/WASHER

HBR14-7 #0021

1шт.

11

S035-082522

BOLT-W/WASHER

HBR14-7 #0022

1шт.

11

S035-082526

BOLT-W/WASHER

HBR15-7 #0056

1шт.

11

S035-082522

BOLT-W/WASHER

HBR15-7 #0057

1шт.

11

S035-082526

BOLT-W/WASHER

HBR18-7 #0059

1шт.

11

S035-082522

BOLT-W/WASHER

HBR18-7 #0060

1шт.

12

81FS-30050

SPACER

1шт.

13

S791-060025

GROMMET-PLATE

HBR14-7 #0032

1шт.

13

71FH-12410

RUBBER

HBR15-7 #0111 - #0111

1шт.

13

S791-060025

GROMMET-PLATE

HBR15-7 #0112

1шт.

13

71FH-12410

RUBBER

HBR18-7 #0106 - #0107

1шт.

13

S791-060025

GROMMET-PLATE

HBR18-7 #0108

1шт.
