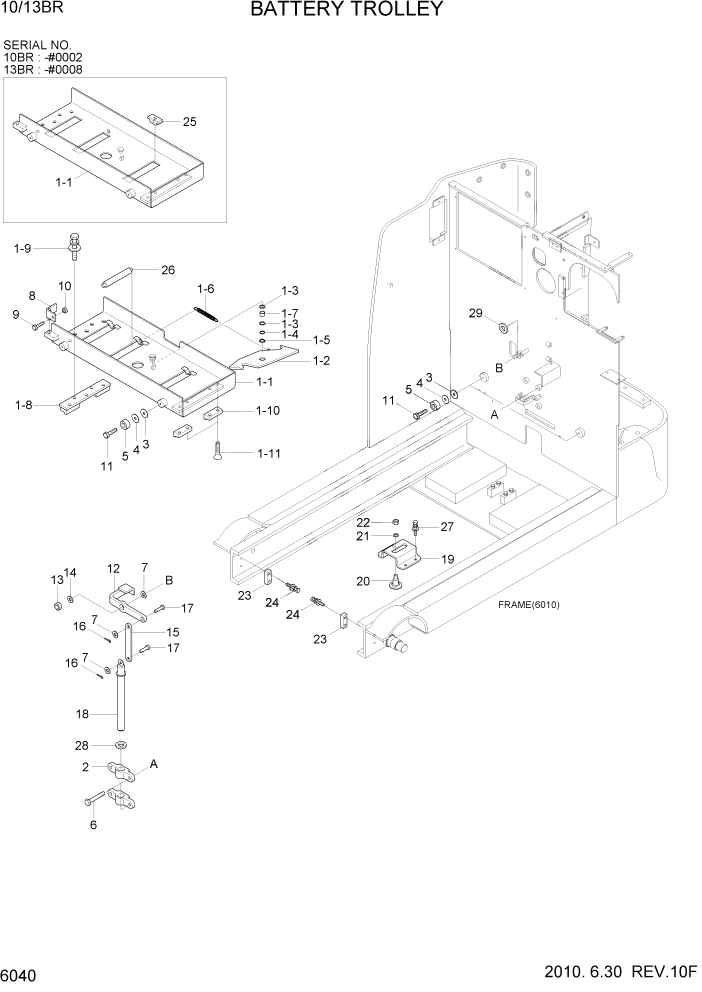

Запчасти Hyundai 10/13BR PAGE 6040 BATTERY TROLLY СТРУКТУРА

1

51HQ-10013

BATTERY TROLLEY ASSY

V-MAST #0005

1шт.

1

51HQ-10014

BATTERY TROLLEY ASSY

10BR #0006

1шт.

1

51HQ-10013

BATTERY TROLLEY ASSY

V-MAST #0010

1шт.

1

51HQ-10014

BATTERY TROLLEY ASSY

13BR #0011

1шт.

1

51HQ-20013

BATTERY TROLLEY ASSY

TF-MAST #0005

1шт.

1

51HQ-20014

BATTERY TROLLEY ASSY

10BR #0006

1шт.

1

51HQ-20013

BATTERY TROLLEY ASSY

TF-MAST #0010

1шт.

1

51HQ-20014

BATTERY TROLLEY ASSY

13BR #0011

1шт.

1-1

51HQ-11013

BATTERY TROLLEY WA

V-MAST #0005

1шт.

1-1

51HQ-11014

BATTERY TROLLEY WA

10BR #0006

1шт.

1-1

51HQ-11013

BATTERY TROLLEY WA

V-MAST #0010

1шт.

1-1

51HQ-11014

BATTERY TROLLEY WA

13BR #0011

1шт.

1-1

51HQ-21013

BATTERY TROLLEY WA

TF-MAST #0005

1шт.

1-1

51HQ-21014

BATTERY TROLLEY WA

TF-MAST #0006

1шт.

1-1

51HQ-21013

BATTERY TROLLEY WA

TF-MAST #0010

1шт.

1-1

51HQ-21014

BATTERY TROLLEY WA

TF-MAST #0011

1шт.

1-2

51HJ-11034

LEVER WA

1шт.

1-3

51HJ-11340

SHIM(2.0T)

2шт.

1-4

51HJ-11300

SHIM(0.3T)

1шт.

1-5

S601-025004

RING-RETAINING

1шт.

1-6

51FA-30050

SPRING-TENSION

1шт.

1-7

S731-025010

BUSHING-DU

1шт.

1-8

51HJ-11250

REMOVER ASSY

1шт.

1-9

S035-082526

BOLT-W/WASHER

5шт.

1-1

51HJ-11260

GUIDE

2шт.

1-11

S141-080256

SCREW-FLAT HD

4шт.

2

51FS-10023

SUPPORT

#0005

2шт.

2

51FS-10024

SUPPORT

10BR #0006

2шт.

2

51FS-10023

SUPPORT

#0010

2шт.

2

51FS-10024

SUPPORT

13BR #0011

2шт.

3

51HJ-10030

SHIM(1.0T)

4шт.

4

51HJ-10040

SHIM(0.5T)

8шт.

5

51FS-11170

STOPPER

4шт.

6

S035-082526

BOLT-W/WASHER

#0005

4шт.

6

S037-123026

BOLT-W/WASHER

10BR #0006

4шт.

6

S035-082526

BOLT-W/WASHER

#0005

4шт.

6

S037-123026

BOLT-W/WASHER

13BR #0011

4шт.

7

S403-10200B

WASHER-PLAIN

5шт.

7

S403-10200B

WASHER-PLAIN

5шт.

7

S403-10200B

WASHER-PLAIN

5шт.

8

51HJ-10050

STOPPER WA

1шт.

9

51HJ-10060

BOLT-FULL THREAD

1шт.

10

S205-12100B

NUT-HEX

#0001

1шт.

10

S205-121006

NUT-HEX

#0008

1шт.

10

S205-12100B

NUT-HEX

#0009

1шт.

11

S035-082546

BOLT-W/WASHER

4шт.

12

51HQ-11280

LEVER WA

1шт.

13

S205-10100B

NUT-HEX

10BR #0001

1шт.

13

S205-101006

NUT-HEX

13BR #0008

1шт.

13

S205-10100B

NUT-HEX

13BR #0009

1шт.

14

S403-162006

WASHER-PLAIN

1шт.

15

51FS-11050

LINK

1шт.

16

S461-320202

PIN-SPLIT

2шт.

17

S491-100302

PIN-CLEVIS

2шт.

18

51HJ-10103

PIN WA

1шт.

19

51FS-10103

PLATE

1шт.

20

51HQ-11241

PIN

1шт.

21

S403-182006

WASHER-PLAIN

1шт.

22

31FG-80430-DA

NUT-HEX

10BR

1шт.

22

31FG-80430

NUT-HEX

#0008

1шт.

22

31FG-80430-DA

NUT-HEX

13BR #0009

1шт.

23

51HQ-00010

PLATE

2шт.

24

S037-103526

BOLT-W/WASHER

4шт.

25

41FH-01260

SUPPORT

10BR #0005

6шт.

25

41FH-01260

SUPPORT

13BR #0010

6шт.

26

51HK-00100

SHAFT ASM-BATTERY

3шт.

27

S035-082026

BOLT-W/WASHER

4шт.

28

51HK-00340

DAMPER

1шт.

29

51HK-00360

DAMPER

1шт.
