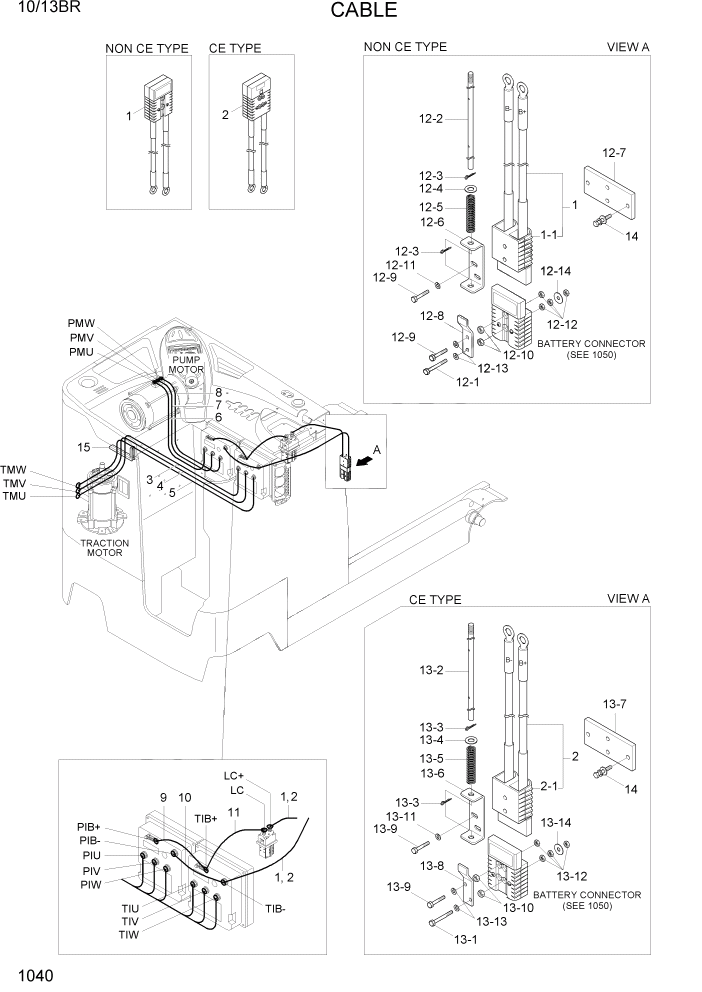

Запчасти Hyundai 10/13BR PAGE 1040 CABLE ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

21HQ-76010

CABLE-BATTERY

NON CE TYPE

1шт.

1-1

B71800060

CONNECTOR-BATTERY

NON CE TYPE

1шт.

2

21HQ-76020

CABLE-BATTERY

CE TYPE

1шт.

2-1

B52820030

CONNECTOR-SBE320

CE TYPE

1шт.

3

21HQ-76050

CABLE-TIU TO TMU

1шт.

4

21HQ-76060

CABLE-TIV TO TMV

1шт.

5

21HQ-76070

CABLE-TIW TO TMW

1шт.

6

21HQ-76080

CABLE-PIU TO PMU

1шт.

7

21HQ-76090

CABLE-PIV TO PMV

1шт.

8

21HQ-76100

CABLE-PIW TO PMW

1шт.

9

21FS-06111

CABLE-TIB+ TO PIB+

1шт.

10

21FS-06121

CABLE-TIB- TO PIB

1шт.

11

21FS-06131

CABLE-LC TO TIB+

1шт.

12

21FP-72070

BATTERY CONN RELEASE

NON CE TYPE #0005

1шт.

12

21FP-72230

BTY CONN RELEASE AY

10BR #0006

1шт.

12

21FP-72070

BATTERY CONN RELEASE

NON CE TYPE #0010

1шт.

12

21FP-72230

BTY CONN RELEASE AY

13BR #0011

1шт.

12-1

20C106065-DA

SCREW-ROUND HEAD

1шт.

12-2

21FP-72100

PUSH ROD

#0005

1шт.

12-2

21FP-72250

PUSH ROD

10BR #0006

1шт.

12-2

21FP-72100

PUSH ROD

#0010

1шт.

12-2

21FP-72250

PUSH ROD

13BR #0011

1шт.

12-3

S471-300256

PIN-SPRING

2шт.

12-4

S403-08500B

WASHER-PLAIN

1шт.

12-5

B21360040

SPRING

1шт.

12-6

21FP-72090

SUPPORT-PUSH ROD

1шт.

12-7

21FP-72170

PLATE-MOUNTING

1шт.

12-8

2671008700

BRACKET

#0005

1шт.

12-8

21FP-72220

BRACKET

10BR #0006

1шт.

12-8

2671008700

BRACKET

#0010

1шт.

12-8

21FP-72220

BRACKET

13BR #0011

1шт.

12-9

S015-060456

BOLT-HEX

3шт.

12-1

S205-08100B

NUT-HEX

2шт.

12-11

S403-06100B

WASHER-PLAIN

#0005

2шт.

12-11

S403-06200B

WASHER-PLAIN

10BR #0006

2шт.

12-11

S403-06100B

WASHER-PLAIN

#0010

2шт.

12-11

S403-06200B

WASHER-PLAIN

13BR #0011

2шт.

12-12

S205-06100B

NUT-HEX

4шт.

12-13

S411-060006

WASHER-SPRING

2шт.

12-14

S403-06300B

WASHER-PLAIN

1шт.

13

21FP-72080

BATTERY CONN RELEASE

CE TYPE #0005

1шт.

13

21FP-72240

BTY CONN RELEASE AY

10BR #0006

1шт.

13

21FP-72080

BATTERY CONN RELEASE

CE TYPE #0010

1шт.

13

21FP-72240

BTY CONN RELEASE AY

13BR #0011

1шт.

13-1

20C106065-DA

SCREW-ROUND HEAD

1шт.

13-2

21FP-72100

PUSH ROD

#0005

1шт.

13-2

21FP-72250

PUSH ROD

10BR #0006

1шт.

13-2

21FP-72100

PUSH ROD

#0010

1шт.

13-2

21FP-72250

PUSH ROD

13BR #0011

1шт.

13-3

S471-300256

PIN-SPRING

2шт.

13-4

S403-08500B

WASHER-PLAIN

1шт.

13-5

B21360040

SPRING

1шт.

13-6

21FP-72090

SUPPORT-PUSH ROD

1шт.

13-7

21FP-72180

PLATE-MOUNTING

1шт.

13-8

B21360031

BRACKET

1шт.

13-9

S015-060456

BOLT-HEX

3шт.

13-1

S205-08100B

NUT-HEX

2шт.

13-11

S403-06100B

WASHER-PLAIN

#0005

2шт.

13-11

S403-06200B

WASHER-PLAIN

10BR #0006

2шт.

13-11

S403-06100B

WASHER-PLAIN

#0010

2шт.

13-11

S403-06200B

WASHER-PLAIN

13BR #0011

2шт.

13-12

S205-06100B

NUT-HEX

4шт.

13-13

S411-060006

WASHER-SPRING

2шт.

13-14

S403-06300B

WASHER-PLAIN

1шт.

14

S035-062026

BOLT-W/WASHER

2шт.

15

S791-060025

GROMMET-PLATE

#0005

1шт.

15

S791-090027

GROMMET-PLATE

10BR #0006

1шт.

15

S791-060025

GROMMET-PLATE

#0010

1шт.

15

S791-090027

GROMMET-PLATE

13BR #0011

1шт.
