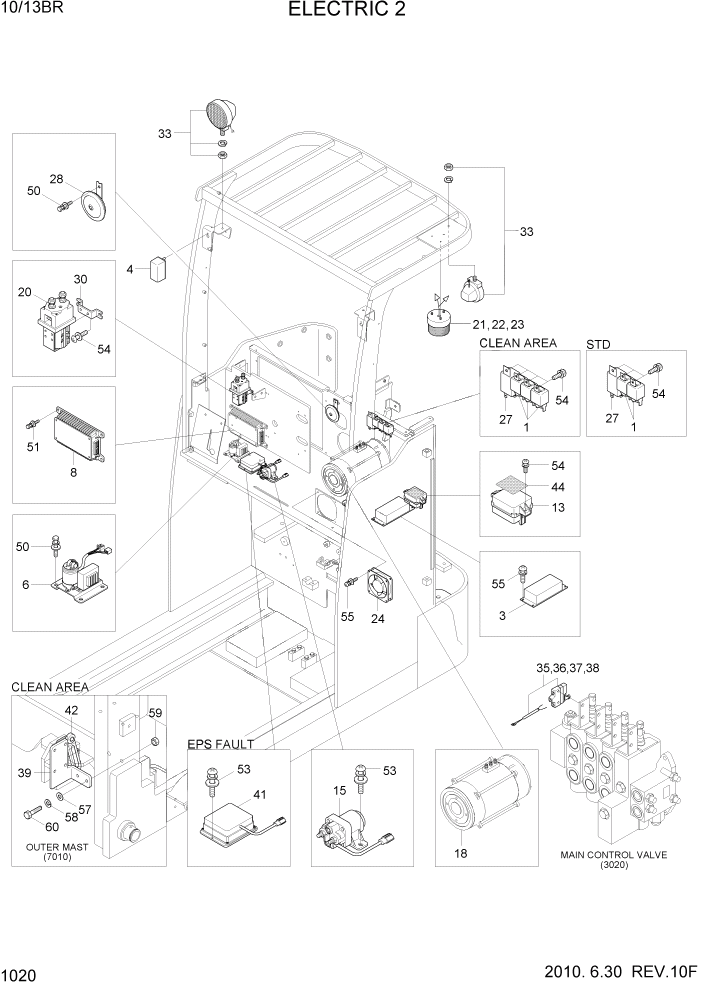

Запчасти Hyundai 10/13BR PAGE 1020 ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

21E3-0011

RELAY

STD

2шт.

1

21E3-0011

RELAY

CLEAN AREA

3шт.

3

21FH-72260

DC-DC CONVERTER

1шт.

4

21FH-77030

LAMP-TURN SIGNAL

2шт.

4-1

S861-072100

BULB-12V/21W

NOT SHOWN

1шт.

6

21FP-52080

EPS FILTER ASSY

1шт.

8

21FP-58030

EPS CONTROLLER ASSY

1шт.

13

21FS-02061

FUSE BOX ASSY

1шт.

13-1

21FS-02080

COVER & DECAL

NOT SHOWN

1шт.

13-2

S810-004201

HOUSING-PLUG

NOT SHOWN

1шт.

13-3

S814-008100

HOUSING-RECEP

NOT SHOWN

1шт.

13-4

21HB-79030

FUSE(15A)

NOT SHOWN

2шт.

13-5

21HB-79020

FUSE(10A)

NOT SHOWN

11шт.

13-6

S814-002100

HOUSING

NOT SHOWN

1шт.

13-7

21HB-79060

FUSE(30A)

NOT SHOWN

2шт.

15

21FS-02120

CONTACTOR-EPS

1шт.

18

21FY-72020

MOTOR-PUMP,AC

SEE 1070

1шт.

20

21FY-72090

CONTACTOR-SW200B

1шт.

21

21HA-20310

LAMP-BEACON, AMBER

AMBER

1шт.

21-1

21HA-21110

LENS-BEACON, AMBER

AMBER

1шт.

21-2

21HA-21140

XENON LAMP

NOT SHOWN

1шт.

22

21HA-20320

LAMP-BEACON, RED

RED

1шт.

22-1

21HA-21120

LENS-BEACON, RED

RED

1шт.

22-2

21HA-21140

XENON LAMP

NOT SHOWN

1шт.

23

21HA-20330

LAMP-BEACON, BLUE

BLUE

1шт.

23-1

21HA-21130

LENS-BEACON, BLUE

BLUE

1шт.

23-2

21HA-21140

XENON LAMP

NOT SHOWN

1шт.

24

21HE-72060

FAN

1шт.

27

21M6-40052

FLASHER UNIT ASSY

1шт.

28

21M8-00070

HORN-HIGH

#0005

1шт.

28

21M8-00071

HORN-HIGH

10BR #0006

1шт.

28

21M8-00070

HORN-HIGH

#0010

1шт.

28

21M8-00071

HORN-HIGH

13BR #0011

1шт.

30

310005130

BRACKET-SW200

1шт.

33

F12840011

LAMP SUB ASSY-WORK

FRONT LAMP

2шт.

33

F12840011

LAMP SUB ASSY-WORK

REAR, CLEAN

3шт.

33-1

21HA-12010

BULB(12V-55W,H3)

NOT SHOWN

1шт.

35

21FS-02140

SWITCH ASSY-3 SPOOL

3-SP, NORMAL

1шт.

35-1

310006190

SWITCH-MICRO

NOT SHOWN

3шт.

35-2

21FS-05060

HARNESS-3 SPOOL

NOT SHOWN

1шт.

36

21FS-02150

SWITCH ASSY-3 SPOOL

3-SP, REVERSE

1шт.

36-1

310006190

SWITCH-MICRO

NOT SHOWN

3шт.

36-2

21FS-05070

HARNESS-3 SPOOL

NOT SHOWN

1шт.

37

21FS-02041

SWITCH ASSY-4 SPOOL

4-SP, NORMAL

1шт.

37-1

310006190

SWITCH-MICRO

NOT SHOWN

4шт.

37-2

21FS-05011

HARNESS-4 SPOOL

NOT SHOWN

1шт.

38

21FS-02130

SWITCH ASSY-4 SPOOL

4-SP, REVERSE

1шт.

38-1

310006190

SWITCH-MICRO

NOT SHOWN

4шт.

38-2

21FS-05040

HARNESS-ACCESSORY

NOT SHOWN

1шт.

39

21FP-02010

BRACKET-MAST S/W

CLEAN AREA

1шт.

41

21FS-08030

EPS CONTROLLER-FAULT

EPS FAULT

1шт.

41-1

21FS-02170

CURRENT SENSOR

NOT SHOWN

1шт.

42

21FP-72211

SWITCH ASSY-MAST

CLEAN AREA

1шт.

42-1

21FM-02041

SWITCH-SBR

NOT SHOWN

1шт.

42-2

21FP-75121

HARNESS-MAST SWITCH

NOT SHOWN

1шт.

44

91HE-00580

WARNING-UL

1шт.

50

S035-081526

BOLT-W/WASHER

5шт.

51

S035-082026

BOLT-W/WASHER

4шт.

53

S131-051246

SCREW-W/WASHER

2шт.

53

S131-051246

SCREW-W/WASHER

CLEAN AREA

4шт.

54

S132-061526

SCREW-W/WASHER

11шт.

54

S132-061526

SCREW-W/WASHER

CLEAN AREA

12шт.

55

S151-050156

SCREW-TAPPING

4шт.

57

S403-08200B

WASHER-PLAIN

CLEAN AREA

2шт.

58

S411-080006

WASHER-SPRING

CLEAN AREA

2шт.

59

S205-08100B

NUT-HEX

CLEAN AREA

2шт.

60

S015-080406

BOLT-HEX

CLEAN AREA

2шт.

100

20FP-02010

COLD STORAGE GRP

SEE 1080

1шт.

101

20FP-02020

CABLE GUIDE GRP

10BR,SEE1090 #0001

1шт.

101

20FP-02020

CABLE GUIDE GRP

13BR,SEE1090 #0009

1шт.
