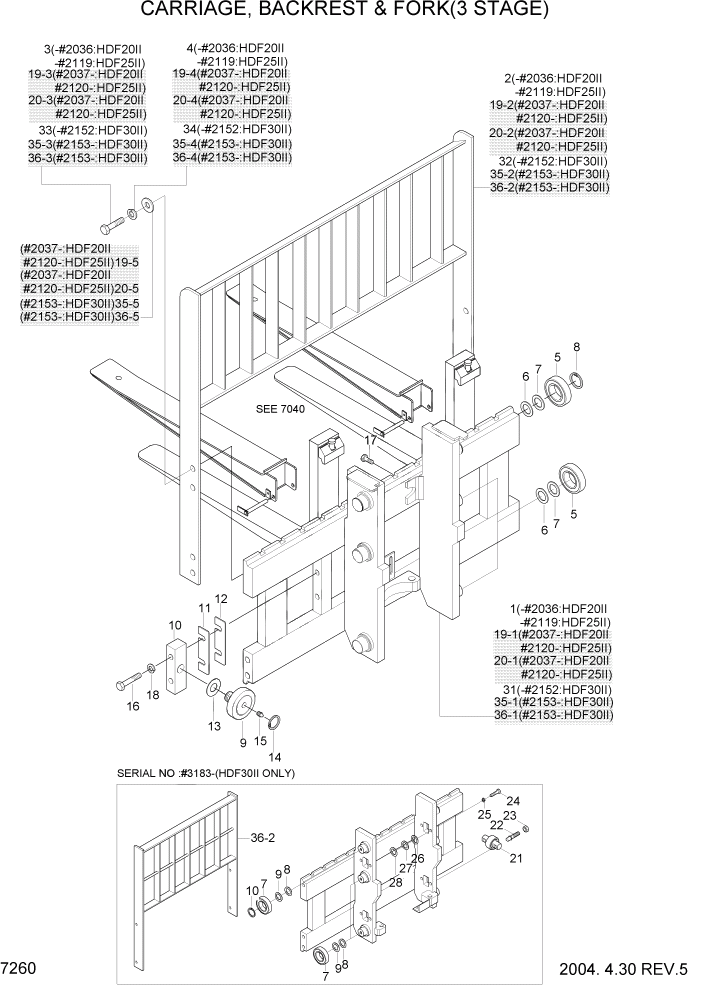

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 7260 CARRIAGE,BACKREST & FORK(3 STAGE) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
1
F12520922B
BRACKET-LIFT(S/TIRE)
HDF20-2,SINGLE #2036
1шт.
1
F12520922B
BRACKET-LIFT(S/TIRE)
HDF25-2,SINGLE #2119
1шт.
1
F12520942B
BRACKET-LIFT(D/TIRE)
HDF20-2,DOUBLE #2036
1шт.
1
F12520942B
BRACKET-LIFT(D/TIRE)
HDF25-2,DOUBLE #2119
1шт.
2
F12500710
BACKREST
HDF20-2,SINGLE #2036
1шт.
2
F12500710
BACKREST
HDF25-2,SINGLE #2119
1шт.
2
F12500910
BACKREST(DOUBLE)
HDF20-2,DOUBLE #2036
1шт.
2
F12500910
BACKREST(DOUBLE)
HDF25-2,DOUBLE #2119
1шт.
3
S018-160352
BOLT-HEX
HDF20-2,SINGLE #2036
4шт.
3
S018-160352
BOLT-HEX
HDF25-2,SINGLE #2119
4шт.
3
S018-160352
BOLT-HEX
HDF20-2,DOUBLE #2036
8шт.
3
S018-160352
BOLT-HEX
HDF25-2,DOUBLE #2119
8шт.
19
F12520900
CARR & BACKREST ASSY
HDF20-2,SINGLE #2037 - #2123
1шт.
19
F12520901
CARR & BACKREST ASSY
HDF20-2,SINGLE #2124
1шт.
19
F12520900
CARR & BACKREST ASSY
HDF25-2,SINGLE #2120 - #2416
1шт.
19
F12520901
CARR & BACKREST ASSY
HDF25-2,SINGLE #2417
1шт.
19-1
F12520922
LIFT BRACKET WA
HDF20-2,SINGLE #2037 - #2123
1шт.
19-1
F12520923B
BRACKET-LIFT(S/TIRE)
HDF20-2,SINGLE #2124
1шт.
19-1
F12520922
LIFT BRACKET WA
HDF25-2,SINGLE #2120 - #2416
1шт.
19-1
F12520923B
BRACKET-LIFT(S/TIRE)
HDF25-2,SINGLE #2417
1шт.
19-2
F12500710
BACKREST
HDF20-2,SINGLE #2037 - #2123
1шт.
19-2
F12500711
BACKREST
HDF20-2,SINGLE #2124
1шт.
19-2
F12500710
BACKREST
HDF25-2,SINGLE #2120 - #2416
1шт.
19-2
F12500711
BACKREST
HDF25-2,SINGLE #2417
1шт.
19-3
S018-160352
BOLT-HEX
HDF20-2,SINGLE #2037
4шт.
19-3
S018-160352
BOLT-HEX
HDF25-2,SINGLE #2120
4шт.
19-5
S403-161002
WASHER-PLAIN
HDF20-2,SINGLE #2037
4шт.
19-5
S403-161002
WASHER-PLAIN
HDF25-2,SINGLE #2120
4шт.
20
F12520910
CARR & BACKREST
HDF20-2,DOUBLE #2037 - #2123
1шт.
20
F12520911
CARR & BACKREST
HDF20-2,DOUBLE #2124
1шт.
20
F12520910
CARR & BACKREST
HDF25-2,DOUBLE #2120 - #2416
1шт.
20
F12520911
CARR & BACKREST
HDF25-2,DOUBLE #2417
1шт.
20-1
F12520942B
BRACKET-LIFT(D/TIRE)
HDF20-2,DOUBLE #2037 - #2123
1шт.
20-1
F12520943B
BRACKET-LIFT(D/TIRE)
HDF20-2,DOUBLE #2124
1шт.
20-1
F12520942B
BRACKET-LIFT(D/TIRE)
HDF25-2,DOUBLE #2120 - #2416
1шт.
20-1
F12520943B
BRACKET-LIFT(D/TIRE)
HDF25-2,DOUBLE #2417
1шт.
20-2
F12500910
BACKREST(DOUBLE)
HDF20-2,DOUBLE #2037 - #2123
1шт.
20-2
F12500911
BACKREST(DOUBLE)
HDF20-2,DOUBLE #2124
1шт.
20-2
F12500910
BACKREST(DOUBLE)
HDF25-2,DOUBLE #2120 - #2416
1шт.
20-2
F12500911
BACKREST(DOUBLE)
HDF25-2,DOUBLE #2417
1шт.
20-3
S018-160352
BOLT-HEX
HDF20-2,DOUBLE #2037
8шт.
20-3
S018-160352
BOLT-HEX
HDF25-2,DOUBLE #2120
8шт.
20-5
S403-161002
WASHER-PLAIN
HDF20-2,DOUBLE #2037
8шт.
20-5
S403-161002
WASHER-PLAIN
HDF25-2,DOUBLE #2120
8шт.
31
F12520931B
BRACKET-LIFT(S/TIRE)
HDF30-2,SINGLE #1413
1шт.
31
F12520932B
BRACKET-LIFT(S/TIRE)
HDF30-2,SINGLE #1414 - #2152
1шт.
31
F12520951B
BRACKET-LIFT(D/TIRE)
HDF30-2,DOUBLE #1413
1шт.
31
F12520952B
BRACKET-LIFT(D/TIRE)
HDF30-2,DOUBLE #1414 - #2152
1шт.
32
F12500830
BACKREST
HDF30-2,SINGLE #2152
1шт.
32
F12503430
BACKREST(DOUBLE)
HDF30-2,DOUBLE #2152
1шт.
33
211518040
BOLT-HEX
HDF30-2,SINGLE #2152
4шт.
33
211518040
BOLT-HEX
HDF30-2,DOUBLE #2152
8шт.
34
233318000
WASHER-SPRING
HDF30-2,SINGLE #2152
4шт.
34
233318000
WASHER-SPRING
HDF30-2,DOUBLE #2152
8шт.
35
F12520960
CARR & BACKREST ASSY
HDF30-2,SINGLE #2153 - #3182
1шт.
35
F12520962
CARR & BACKREST SUB
HDF30-2,SINGLE #3183
1шт.
35-1
F12520932B
BRACKET-LIFT(S/TIRE)
HDF30-2,SINGLE #2153 - #3182
1шт.
35-1
F12520934
CARRIAGE WA(SINGLE)
HDF30-2,SINGLE #3183
1шт.
35-2
F12500830
BACKREST
HDF30-2,SINGLE #2153
1шт.
35-3
S018-180402
BOLT-HEX
HDF30-2,SINGLE #2153
4шт.
35-5
S403-181002
WASHER-PLAIN
HDF30-2,SINGLE #2153
4шт.
36
F12520970
CARR & BACKREST
HDF30-2,DOUBLE #2153 - #2420
1шт.
36
F12520971
CARR & BACKREST
HDF30-2,DOUBLE #2421 - #3182
1шт.
36
F12520972
CARR & BACKREST SUB
HDF30-2,DOUBLE #3183
1шт.
36-1
F12520952B
BRACKET-LIFT(D/TIRE)
HDF30-2,DOUBLE #2153 - #2420
1шт.
36-1
F12520953B
BRACKET-LIFT(D/TIRE)
HDF30-2,DOUBLE #2421 - #3182
1шт.
36-1
F12520954
CARRIAGE WA(DOUBLE)
HDF30-2,DOUBLE #3183
1шт.
36-2
F12503430
BACKREST(DOUBLE)
HDF30-2,DOUBLE #2153 - #2420
1шт.
36-2
F12503431
BACKREST(DOUBLE)
HDF30-2,DOUBLE #2421
1шт.
36-3
S018-180402
BOLT-HEX
HDF30-2,DOUBLE #2153
8шт.
36-5
S403-181002
WASHER-PLAIN
HDF30-2,DOUBLE #2153
8шт.
5
6600181100-01
BEARING-ROLLER
8шт.
6
6600187900
SHIM(0.5T)
ARшт.
8
2R2104000
RING-SNAP
ARшт.
9
F12500230
BRG-SIDE ROLLER
HDF20/25-2
2шт.
10
F12500490
PLATE-SIDE ROLLER
HDF20/25-2
2шт.
11
F12500560
SHIM(1.0T)
HDF20/25-2
2шт.
12
F12500570
SHIM(0.5T)
HDF20/25-2
2шт.
13
F12500580
SHIM(0.5T)
HDF20/25-2
2шт.
14
2R2108000
RING-SNAP
HDF20/25-2
2шт.
15
2G1106000
NIPPLE-GREASE
2шт.
16
201516060
BOLT-HEX
HDF20/25-2
4шт.
17
201512015
BOLT-HEX
1шт.
18
233316000
WASHER-SPRING
HDF20/25-2
4шт.
21
61F7-28100
SIDE ROLLER ASSY
HDF30-2 #3183
4шт.
22
61F4-28040
SCREW-ADJUSTABLE
HDF30-2 #3183
4шт.
24
S017-120502
BOLT-HEX
HDF30-2 #3183
4шт.
26
F12500690
SPACER
HDF30-2 #3183
4шт.
27
F12500720
SHIM
HDF30-2 #3183
4шт.
28
F12500730
SHIM
HDF30-2 #3183
4шт.
