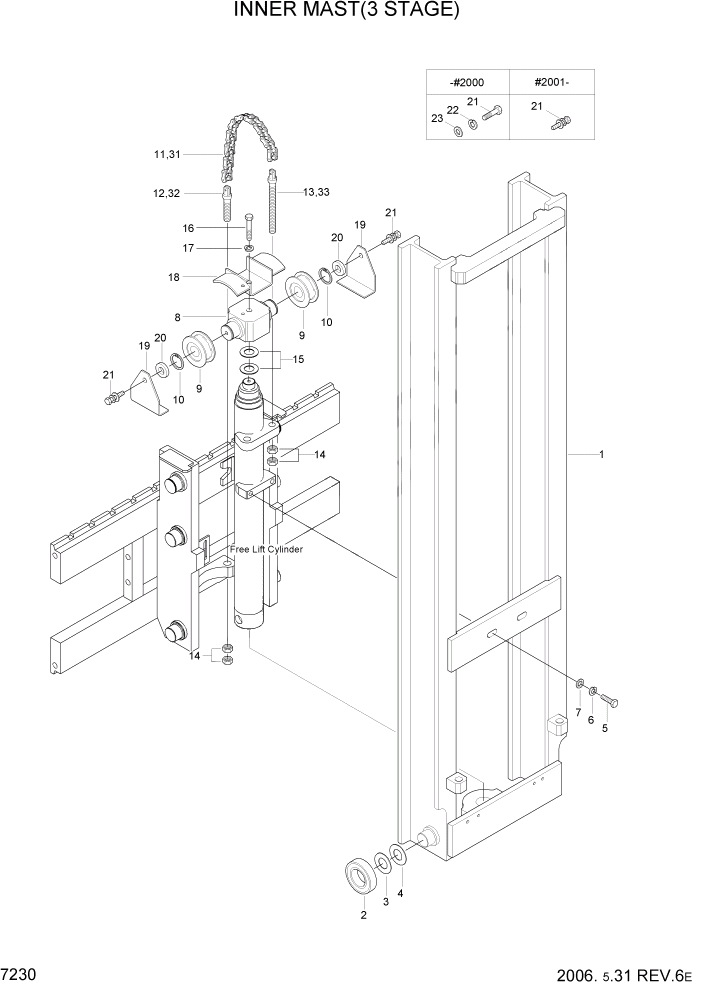

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 7230 INNER MAST(3 STAGE) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

FMC0200510B-04

MAST-INNER,TF-370

HDF20/25-2 #1554

1шт.

1

FMC0200510B-05

MAST-INNER

HDF20/25-2 #1555

1шт.

1

FMC0200510B-04

MAST-INNER,TF-370

HDF30-2 #1486

1шт.

1

FMC0200510B-05

MAST-INNER

HDF30-2 #1487

1шт.

1

FMC0200511B-04

MAST-INNER,TF-400

HDF20/25-2 #1554

1шт.

1

FMC0200511B-05

MAST-INNER

HDF20/25-2 #1555

1шт.

1

FMC0200511B-04

MAST-INNER,TF-400

HDF30-2 #1486

1шт.

1

FMC0200511B-05

MAST-INNER

HDF30-2 #1487

1шт.

1

FMC0200512B-04

MAST-INNER,TF-430

HDF20/25-2 #1554

1шт.

1

FMC0200512B-05

MAST-INNER

HDF20/25-2 #1555

1шт.

1

FMC0200512B-04

MAST-INNER,TF-430

HDF30-2 #1486

1шт.

1

FMC0200512B-05

MAST-INNER

HDF30-2 #1487

1шт.

1

FMC0200513B-04

MAST-INNER,TF-450

HDF20/25-2 #1554

1шт.

1

FMC0200513B-05

MAST-INNER

HDF20/25-2 #1555

1шт.

1

FMC0200513B-04

MAST-INNER,TF-450

HDF30-2 #1486

1шт.

1

FMC0200513B-05

MAST-INNER

HDF30-2 #1487

1шт.

1

FMC0200514B-04

MAST-INNER,TF-470

HDF20/25-2 #1554

1шт.

1

FMC0200514B-05

MAST-INNER

HDF20/25-2 #1555

1шт.

1

FMC0200514B-04

MAST-INNER,TF-470

HDF30-2 #1486

1шт.

1

FMC0200514B-05

MAST-INNER

HDF30-2 #1487

1шт.

1

FMC0200515B-04

MAST-INNER,TF-500

HDF20/25-2 #1554

1шт.

1

FMC0200515B-05

MAST-INNER

HDF20/25-2 #1555

1шт.

1

FMC0200515B-04

MAST-INNER,TF-500

HDF30-2 #1486

1шт.

1

FMC0200515B-05

MAST-INNER

HDF30-2 #1487

1шт.

1

FMC0200516B-04

MAST-INNER,TF-550

HDF20/25-2 #1554

1шт.

1

FMC0200516B-05

MAST-INNER

HDF20/25-2 #1555

1шт.

1

FMC0200516B-04

MAST-INNER,TF-550

HDF30-2 #1486

1шт.

1

FMC0200516B-05

MAST-INNER

HDF30-2 #1487

1шт.

1

FMC0200517B-04

MAST-INNER,TF-600

HDF20/25-2 #1554

1шт.

1

FMC0200517B-05

MAST-INNER

HDF20/25-2 #1555

1шт.

1

FMC0200517B-04

MAST-INNER,TF-600

HDF30-2 #1486

1шт.

1

FMC0200517B-05

MAST-INNER

HDF30-2 #1487

1шт.

2

6600181100-01

BEARING-ROLLER

2шт.

3

6600187900

SHIM(0.5T)

ARшт.

4

6600188000

SHIM(1.0T)

ARшт.

5

201514040

BOLT-HEX

2шт.

6

233314000

WASHER-SPRING

2шт.

7

231114000

WASHER-PLAIN

2шт.

8

B22520100

HEAD-CYLINDER

1шт.

9

6600359600-01

BEARING-CHAIN WHEEL

2шт.

10

2R2104000

RING-SNAP

2шт.

11

8451806300

CHAIN-LIFT

HDF20/25-2

2шт.

11

8451806500

CHAIN-FREE LIFT

HDF20/25-2

2шт.

11

8451806700

CHAIN-LIFT

HDF20/25-2

2шт.

11

8451806900

CHAIN-LIFT

HDF20/25-2

2шт.

11

8451807100

CHAIN-LIFT

HDF20/25-2

2шт.

11

8451807300

CHAIN-LIFT

HDF20/25-2

2шт.

11

8451807700

CHAIN-FREE LIFT

HDF20/25-2

2шт.

11

8451808300

CHAIN-LIFT

HDF20/25-2

2шт.

12

5243041800-01

BOLT-ANCHOR

HDF20/25-2

2шт.

13

5243044900-01

BOLT-ANCHOR

HDF20/25-2

2шт.

31

8451806300

CHAIN-LIFT

HDF30-2 #0001

2шт.

31

8451806500

CHAIN-FREE LIFT

HDF30-2 #0001

2шт.

31

8451806700

CHAIN-LIFT

HDF30-2 #0001

2шт.

31

8451806900

CHAIN-LIFT

HDF30-2 #0001

2шт.

31

8451807100

CHAIN-LIFT

HDF30-2 #0001

2шт.

31

8451807300

CHAIN-LIFT

HDF30-2 #0001

2шт.

31

8451807700

CHAIN-FREE LIFT

HDF30-2 #0001

2шт.

31

8451808300

CHAIN-LIFT

HDF30-2 #0001

2шт.

32

EE19020910

BOLT-ANCHOR

HDF30-2

2шт.

33

EE19020900

BOLT-ANCHOR

HDF30-2

2шт.

14

222118000

NUT-HEX

8шт.

15

Q101786000

SHIM

ARшт.

16

201512070

BOLT-HEX

1шт.

17

233312000

WASHER-SPRING

1шт.

18

FMB0201171

COVER-CHAIN

1шт.

19

FMC0200451

GUARD-CHAIN

#2000

2шт.

20

F42500050

SPACER

#2000

2шт.

21

201510030

BOLT-HEX

#2000

2шт.

22

233310000

WASHER-SPRING

#2000

2шт.

23

232110000

WASHER

#2000

2шт.
