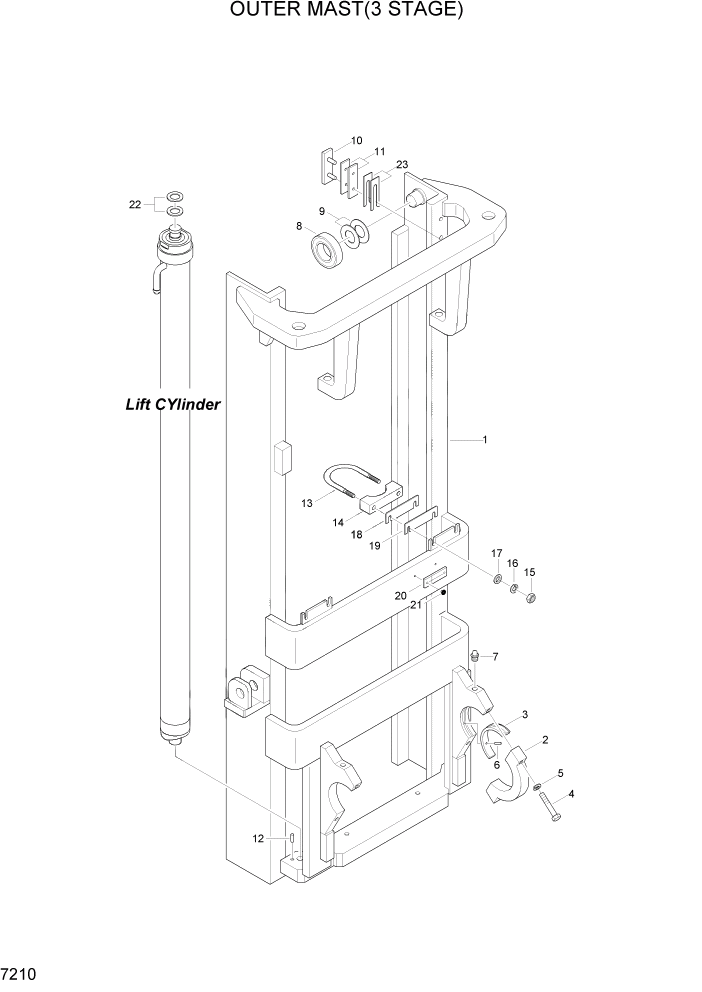

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 7210 OUTER MAST(3 STAGE) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

F12520233B

MAST-OUTER

HDF20/25-2 #1673

1шт.

1

F12520214B

MAST-OUTER

HDF20/25-2 #1674

1шт.

1

F12520213B

MAST-OUTER

HD30-2 #1596

1шт.

1

F12520214B

MAST-OUTER

HD30-2 #1597

1шт.

1

F12520223B

MAST-OUTER

HDF20/25-2 #1673

1шт.

1

F12520224B

MAST-OUTER

HDF20/25-2 #1674

1шт.

1

F12520223B

MAST-OUTER

HD30-2 #1596

1шт.

1

F12520224B

MAST-OUTER

HD30-2 #1597

1шт.

1

F12520233B

MAST-OUTER

HDF20/25-2 #1673

1шт.

1

F12520234B

MAST-OUTER

HDF20/25-2 #1674

1шт.

1

F12520233B

MAST-OUTER

HD30-2 #1596

1шт.

1

F12520234B

MAST-OUTER

HD30-2 #1597

1шт.

1

F12520243B

MAST-OUTER

HDF20/25-2 #1673

1шт.

1

F12520244B

MAST-OUTER

HDF20/25-2 #1674

1шт.

1

F12520243B

MAST-OUTER

HD30-2 #1596

1шт.

1

F12520244B

MAST-OUTER

HD30-2 #1597

1шт.

1

F12520253B

MAST-OUTER

HDF20/25-2 #1673

1шт.

1

F12520254B

MAST-OUTER

HDF20/25-2 #1674

1шт.

1

F12520253B

MAST-OUTER

HD30-2 #1596

1шт.

1

F12520254B

MAST-OUTER

HD30-2 #1597

1шт.

1

F12520263B

MAST-OUTER

HDF20/25-2 #1673

1шт.

1

F12520264B

MAST-OUTER

HDF20/25-2 #1674

1шт.

1

F12520263B

MAST-OUTER

HD30-2 #1596

1шт.

1

F12520264B

MAST-OUTER

HD30-2 #1597

1шт.

1

F12520273B

MAST-OUTER

HDF20/25-2 #1673

1шт.

1

F12520274B

MAST-OUTER

HDF20/25-2 #1674

1шт.

1

F12520273B

MAST-OUTER

HD30-2 #1596

1шт.

1

F12520274B

MAST-OUTER

HD30-2 #1597

1шт.

1

F12520283B

MAST-OUTER

HDF20/25-2 #1673

1шт.

1

F12520284B

MAST-OUTER

HDF20/25-2 #1674

1шт.

1

F12520283B

MAST-OUTER

HD30-2 #1596

1шт.

1

F12520284B

MAST-OUTER

HD30-2 #1597

1шт.

2

FMC0000170B

CAP

2шт.

3

FMC0000180

BUSHING

2шт.

4

201516085

BOLT-HEX

4шт.

5

233316000

WASHER-SPRING

4шт.

6

245310016

PIN-SPRING

2шт.

7

2G1110000

NIPPLE-GREASE

2шт.

8

6600181100-01

BEARING-ROLLER

2шт.

9

6600187900

SHIM(0.5T)

ARшт.

9

6600188000

SHIM(1.0T)

ARшт.

10

6600354700

LINER-BACK UP

2шт.

11

FMC0000150

SHIM(1.0T)

ARшт.

11

FMC0000160

SHIM(0.5T)

ARшт.

12

245016022

PIN-SPRING

2шт.

13

F12500551

U-BOLT

2шт.

14

F12500590

RUBBER

2шт.

15

221308001

NUT-HEX

4шт.

16

233308000

WASHER-SPRING

4шт.

17

231108000

WASHER-PLAIN

4шт.

18

F12500530

SHIM(1.0T)

ARшт.

19

F12500540

SHIM(0.5T)

ARшт.

20

2D0900010

NAME PLATE-MAST

HDF20/25-2 #1457

1шт.

20

2D0900130

NAME PLATE-MAST

HDF20/25-2 #1458

1шт.

20

2D0900010

NAME PLATE-MAST

HDF30-2 #1413

1шт.

20

2D0900130

NAME PLATE-MAST

HDF30-2 #1414

1шт.

21

F0202606

RIVET

2шт.

22

37B9AE2020

SHIM(0.5T)

ARшт.

22

37B9AE2050

SHIM(0.3T)

ARшт.

23

FMD0000110

SHIM(0.5T)

ARшт.

23

FMD0000111

SHIM(0.3T)

ARшт.
