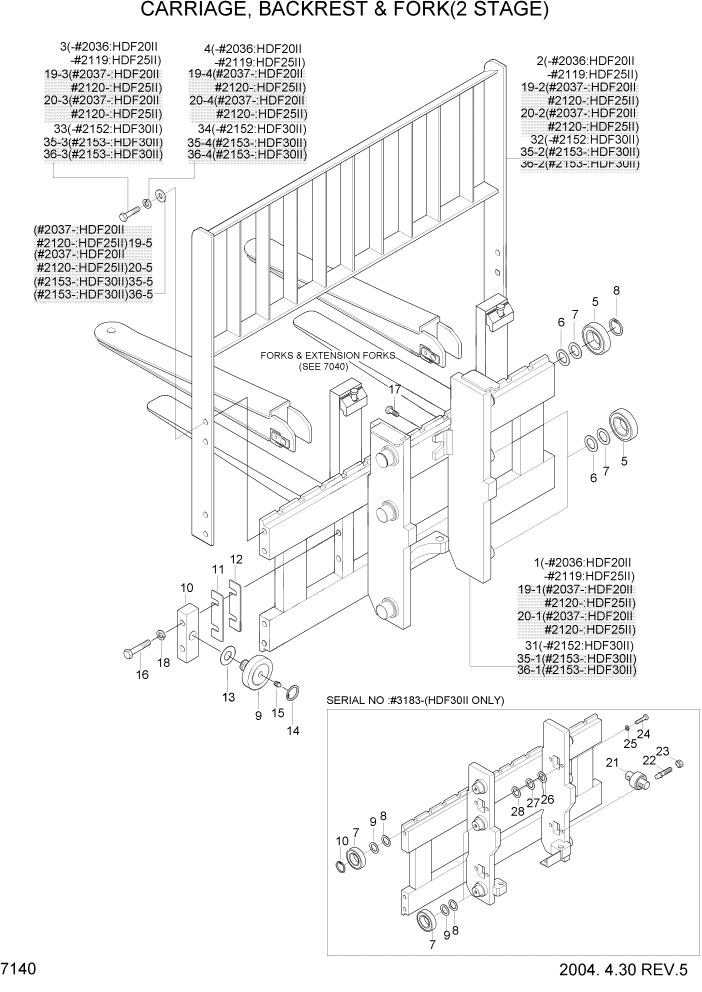

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 7140 CARRIAGE,BACKREST & FORK(2 STAGE) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
1
F12510452B
BRACKET-LIFT(S/TIRE)
HDF20-2,SINGLE #2036
1шт.
1
F12510452B
BRACKET-LIFT(S/TIRE)
HDF25-2,SINGLE #2119
1шт.
1
F12510462B
BRACKET-LIFT(D/TIRE)
HDF20-2,DOUBLE #2036
1шт.
1
F12510462B
BRACKET-LIFT(D/TIRE)
HDF25-2,DOUBLE #2119
1шт.
2
F12500710
BACKREST
HDF20-2,SINGLE #2036
1шт.
2
F12500710
BACKREST
HDF25-2,SINGLE #2119
1шт.
2
F12500910
BACKREST(DOUBLE)
HDF20-2,DOUBLE #2036
1шт.
2
F12500910
BACKREST(DOUBLE)
HDF25-2,DOUBLE #2119
1шт.
3
S018-160352
BOLT-HEX
HDF20-2,SINGLE #2036
4шт.
3
S018-160352
BOLT-HEX
HDF25-2,SINGLE #2119
4шт.
3
S018-160352
BOLT-HEX
HDF20-2,DOUBLE #2036
8шт.
3
S018-160352
BOLT-HEX
HDF25-2,DOUBLE #2119
8шт.
19
F12510440
CARR & BACKREST
HDF20-2,SINGLE #2037 - #2123
1шт.
19
F12510441
CARR & BACKREST
HDF20-2,SINGLE #2124
1шт.
19
F12510440
CARR & BACKREST
HDF25-2,SINGLE #2120 - #2416
1шт.
19
F12510441
CARR & BACKREST
HDF25-2,SINGLE #2417
1шт.
19-1
F12510452B
BRACKET-LIFT(S/TIRE)
HDF20-2,SINGLE #2037 - #2123
1шт.
19-1
F12510453B
BRACKET-LIFT(S/TIRE)
HDF20-2,SINGLE #2124
1шт.
19-1
F12510452B
BRACKET-LIFT(S/TIRE)
HDF25-2,SINGLE #2120 - #2416
1шт.
19-1
F12510453B
BRACKET-LIFT(S/TIRE)
HDF25-2,SINGLE #2417
1шт.
19-2
F12500710
BACKREST
HDF20-2,SINGLE #2037 - #2123
1шт.
19-2
F12500711
BACKREST
HDF20-2,SINGLE #2124
1шт.
19-2
F12500710
BACKREST
HDF25-2,SINGLE #2120 - #2416
1шт.
19-2
F12500711
BACKREST
HDF25-2,SINGLE #2417
1шт.
19-3
S018-160352
BOLT-HEX
HDF20-2,SINGLE #2037
1шт.
19-3
S018-160352
BOLT-HEX
HDF25-2,SINGLE #2120
1шт.
19-5
S403-161002
WASHER-PLAIN
HDF20-2,SINGLE #2037
1шт.
19-5
S403-161002
WASHER-PLAIN
HDF25-2,SINGLE #2120
1шт.
20
F12510450
CARR & BACKREST
HDF20-2,DOUBLE #2037 - #2123
1шт.
20
F12510451
CARR & BACKREST
HDF20-2,DOUBLE #2124
1шт.
20
F12510450
CARR & BACKREST
HDF25-2,DOUBLE #2120 - #2416
1шт.
20
F12510451
CARR & BACKREST
HDF25-2,DOUBLE #2417
1шт.
20-1
F12510462B
BRACKET-LIFT(D/TIRE)
HDF20-2,DOUBLE #2037 - #2123
1шт.
20-1
F12510463B
BRACKET-LIFT(D/TIRE)
HDF20-2,DOUBLE #2124
1шт.
20-1
F12510462B
BRACKET-LIFT(D/TIRE)
HDF25-2,DOUBLE #2120 - #2416
1шт.
20-1
F12510463B
BRACKET-LIFT(D/TIRE)
HDF25-2,DOUBLE #2417
1шт.
20-2
F12500910
BACKREST(DOUBLE)
HDF20-2,DOUBLE #2037 - #2123
1шт.
20-2
F12500911
BACKREST(DOUBLE)
HDF20-2,DOUBLE #2124
1шт.
20-2
F12500910
BACKREST(DOUBLE)
HDF25-2,DOUBLE #2120 - #2416
1шт.
20-2
F12500911
BACKREST(DOUBLE)
HDF25-2,DOUBLE #2417
1шт.
20-3
S018-160352
BOLT-HEX
HDF20-2,DOUBLE #2037
1шт.
20-3
S018-160352
BOLT-HEX
HDF25-2,DOUBLE #2120
1шт.
20-5
S403-161002
WASHER-PLAIN
HDF20-2,DOUBLE #2037
1шт.
20-5
S403-161002
WASHER-PLAIN
ADF20-2,DOUBLE #2120
1шт.
31
F12510471B
BRACKET-LIFT(S/TIRE)
HDF30-2 #1413
1шт.
31
F12510472B
BRACKET-LIFT(S/TIRE)
HDF30-2 #1414 - #2152
1шт.
31
F12510481B
BRACKET-LIFT(D/TIRE)
HDF30-2 #1413
1шт.
31
F12510482B
BRACKET-LIFT(D/TIRE)
HDF30-2 #1414 - #2152
1шт.
32
F12500830
BACKREST
HDF30-2 #2152
1шт.
32
F12503430
BACKREST(DOUBLE)
HDF30-2 #2152
1шт.
33
S018-180402
BOLT-HEX
HDF30-2,SINGLE #2152
4шт.
33
S018-180402
BOLT-HEX
HDF30-2,DOUBLE #2152
8шт.
35
F12510455
CARR & BACKREST
HDF30-2,SINGLE #2153 - #2420
1шт.
35
F12510456
CARR & BACKREST(SINGLE)
HDF30-2,SINGLE #2421 - #3182
1шт.
35
F12510457
CARR & BACKREST SUB
HDF30-2,SINGLE #3183
1шт.
35-1
F12510472B
BRACKET-LIFT(S/TIRE)
HDF30-2,SINGLE #2153 - #2420
1шт.
35-1
F12510473B
BRACKET-LIFT(S/TIRE)
HDF30-2,SINGLE #2421 - #3182
1шт.
35-1
F12510474
CARRIAGE WA(SINGLE)
HDF30-2,SINGLE #3183
1шт.
35-2
F12500830
BACKREST
HDF30-2,SINGLE #2153 - #2420
1шт.
35-2
F12500831
BACKREST
HDF30-2,SINGLE #2421
1шт.
35-3
S018-180402
BOLT-HEX
HDF30-2,SINGLE #2153
4шт.
35-5
S403-181002
WASHER-PLAIN
HDF30-2,SINGLE #2153
4шт.
36
F12510465
CARR & BACKREST
HDF30-2,DOUBLE #2153 - #2420
1шт.
36
F12510466
CARR & BACKREST(DUAL)
HDF30-2,DOUBLE #2421 - #3182
1шт.
36
F12510467
CARR & BACKREST SUB
HDF30-2,DOUBLE #3183
1шт.
36-1
F12510482B
BRACKET-LIFT(D/TIRE)
HDF30-2,DOUBLE #2153 - #2420
1шт.
36-1
F12510483B
BRACKET-LIFT(D/TIRE)
HDF30-2,DOUBLE #2421 - #3182
1шт.
36-1
F12510484
CARRIAGE WA(DOUBLE)
HDF30-2,DOUBLE #3183
1шт.
36-2
F12503430
BACKREST(DOUBLE)
HDF30-2,DOUBLE #2153 - #2420
1шт.
36-2
F12503431
BACKREST(DOUBLE)
HDF30-2,DOUBLE #2421
1шт.
36-3
S018-180402
BOLT-HEX
HDF30-2,DOUBLE #2153
8шт.
36-5
S403-181002
WASHER-PLAIN
HDF30-2,DOUBLE #2153
8шт.
5
6600181100-01
BEARING-ROLLER
6шт.
6
6600187900
SHIM(0.5T)
ARшт.
8
2R2104000
RING-SNAP
2шт.
9
F12500230
BEARING-SIDE ROLLER
HDF20/25-2
2шт.
10
F12500490
PLATE-SIDE ROLLER
HDF20/25-2
2шт.
11
F12500560
SHIM(1.0T)
HDF20/25-2
2шт.
12
F12500570
SHIM(0.5T)
HDF20/25-2
2шт.
13
F12500580
SHIM(0.5T)
HDF20/25-2
2шт.
14
2R2102800
RING-SNAP
HDF20/25-2
2шт.
15
2G1106000
NIPPLE-GREASE
HDF20/25-2
2шт.
16
201516060
BOLT-HEX
HDF20/25-2
4шт.
17
201512015
BOLT-HEX
1шт.
18
233316000
WASHER-SPRING
HDF20/25-2
4шт.
20
61F7-28100
SIDE ROLLER ASSY
HDF20/25-2 #3183
4шт.
21
61F4-28040
SCREW-ADJUSTABLE
HDF20/25-2 #3183
4шт.
23
S017-120502
BOLT-HEX
HDF20/25-2 #3183
4шт.
25
F12500690
SPACER
HDF20/25-2 #3183
4шт.
26
F12500720
SHIM
HDF20/25-2 #3183
4шт.
27
F12500730
SHIM
HDF20/25-2 #3183
4шт.
Выбрано товаров: 106
