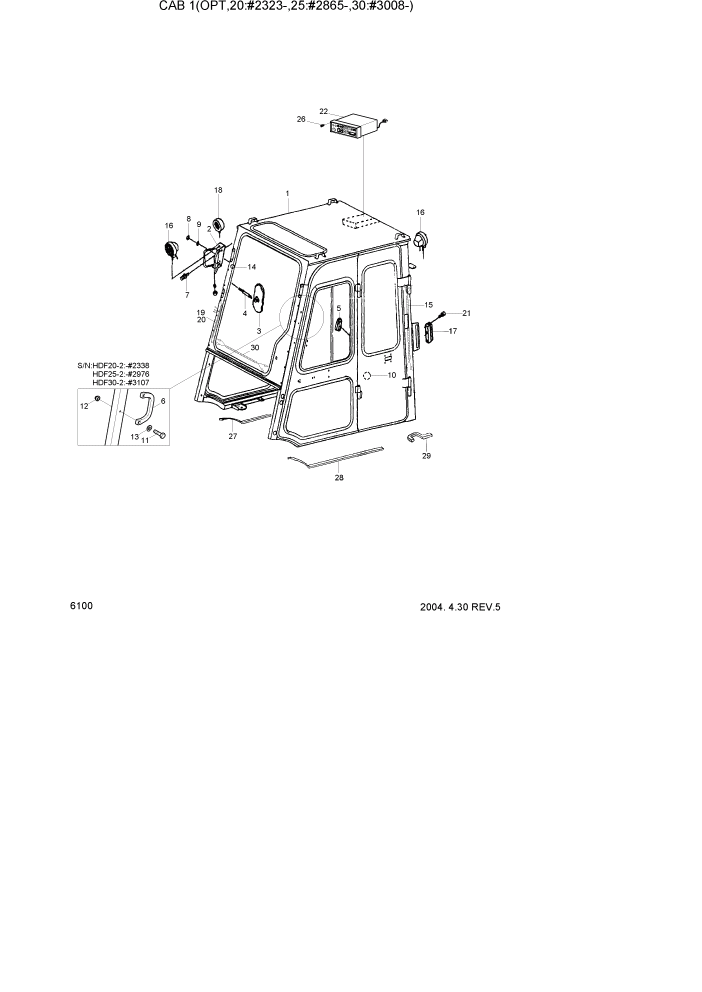

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 6100 CAB 1(OPT,20:#2323-,25:#2865-,30:#3008-) СТРУКТУРА

*

F12949000

CABIN GROUP

HDF20-2 #2323

1шт.

*

F12949000

CABIN GROUP

HDF25-2 #2865

1шт.

*

F12949000

CABIN GROUP

HDF30-2 #3008

1шт.

1

F12950000

CABIN ASSY

HDF20-2 #2337

1шт.

1

F12950001

CABIN ASSY

HDF20-2 #2338

1шт.

1

F12950000

CABIN ASSY

HDF25-2 #2976

1шт.

1

F12950001

CABIN ASSY

HDF25-2 #2977

1шт.

1

F12950000

CABIN ASSY

HDF30-2 #3107

1шт.

1

F12950001

CABIN ASSY

HDF30-2 #3108

1шт.

2

F12130093B

PROTECTOR-HEAD LAMP

2шт.

3

B52130070

MIRROR-REAR VIEW

2шт.

4

F12130140

ROD-BACK MIRROR

2шт.

5

FAC0100090-01

COVER-AIR INTAKE

1шт.

6

FAC0900100

GRIP-ASSIST

HDF20-2 #2338

1шт.

6

FAC0900100

GRIP-ASSIST

HDF25-2 #2976

1шт.

6

FAC0900100

GRIP-ASSIST

HDF30-2 #3107

1шт.

7

S035-081522

BOLT-W/WASHER

4шт.

8

S205-101002

NUT-HEX

2шт.

9

S411-100002

WASHER-SPRING

2шт.

10

F12130130

GROMMET-REAR

2шт.

11

S015-060602

BOLT-HEX

HDF20-2 #2338

2шт.

11

S015-060602

BOLT-HEX

HDF25-2 #2976

2шт.

11

S015-060602

BOLT-HEX

HDF30-2 #3107

2шт.

12

S295-060002

NUT-DOMED CAP

HDF20-2 #2338

2шт.

12

S295-060002

NUT-DOMED CAP

HDF25-2 #2976

2шт.

12

S295-060002

NUT-DOMED CAP

HDF30-2 #3107

2шт.

13

S403-062002

WASHER-PLAIN

HDF20-2 #2338

4шт.

13

S403-062002

WASHER-PLAIN

HDF25-2 #2976

4шт.

13

S403-062002

WASHER-PLAIN

HDF30-2 #3107

4шт.

14

F12130120

GROMMET-FRONT

2шт.

15

F13800140

HARNESS-WORK LAMP

1шт.

16

F12840010

LAMP-WORKING

3шт.

17

F12840050

COMB LAMP ASSY-RR

2шт.

18

F12840020

LAMP-FLASHER

2шт.

19

F32800030

HARNESS-SUPPORT(RH)

1шт.

20

F32800040

HARNESS-SUPPORT(LH)

1шт.

21

S131-051026

SCREW-W/WASHER C/RD

4шт.

22

21M6-40030

CASSETTE RADIO(USA)

U.S.A

1шт.

22

21M6-40020

CASSETTE RADIO(EU)

EU

1шт.

22

21M6-40010

CASSETTE RADIO(GEN)

GENERAL

1шт.

22

21M6-40040

CASSETTE RADIO

DOMESTIC

1шт.

26

S131-051046

SCREW-W/WASHER C/RD

4шт.

27

F12100681

SPONGE-STAY & FRAME

1шт.

28

F12100781

SPONGE-STAY & FRAME

1шт.

29

F12100770

SPONGE-STAY & FRAME

1шт.

30

F12895030

HARNESS DASH BOARD

HDF20-2 #2339

1шт.

30

F12895030

HARNESS DASH BOARD

HDF25-2 #2977

1шт.

30

F12895030

HARNESS DASH BOARD

HDF30-2 #3108

1шт.
