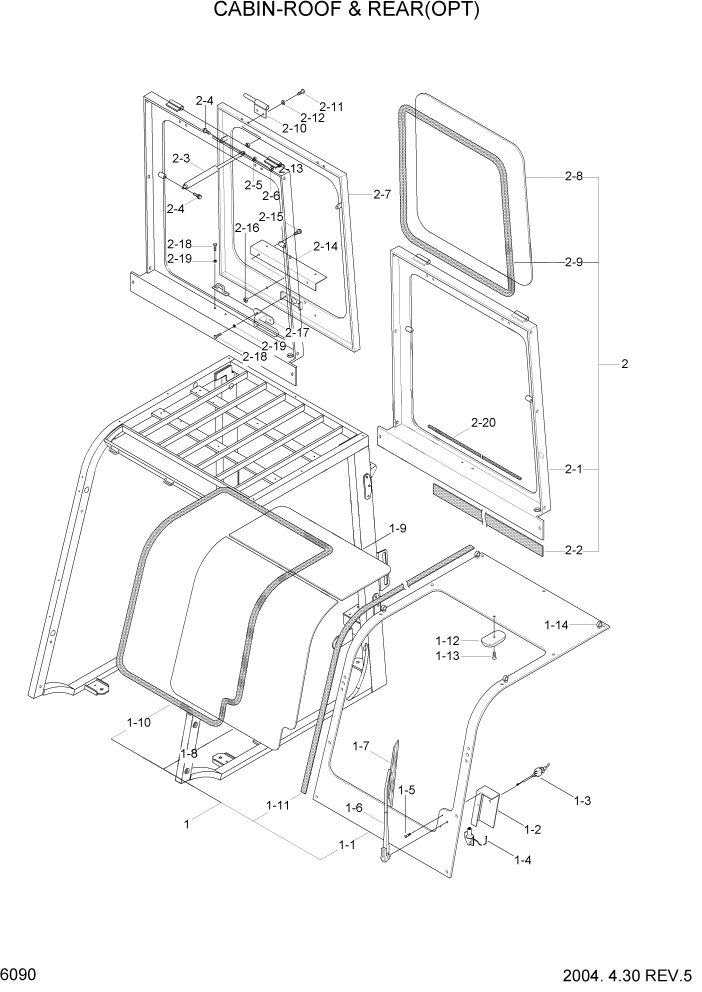

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 6090 CABIN-ROOF & REAR(OPTION) СТРУКТУРА

*

@

CABIN ROOF & REAR

NOT #2322

1шт.

*

@

CABIN ROOF & REAR

NOT #2864

1шт.

*

@

CABIN ROOF & REAR

NOT #3007

1шт.

N1

F12901500

ROOF ASSY

NOT

1шт.

1-1

SCA111000

PLATE WA

1шт.

1-2

SCA112000

COVER

1шт.

1-3

E34830040

SWITCH-TOGGLE

1шт.

1-4

F12880010

MOTOR-WIPER

1шт.

1-5

20C105016

SCREW-ROUND HEAD

2шт.

1-6

F14901020

ARM-WIPER

1шт.

1-7

F12900290

BLADE-WIPER

1шт.

1-8

SCA113000

GLASS 1

1шт.

1-9

SCA114000

GLASS 2

1шт.

1-1

@

RUBBER-H

NOT

1шт.

1-11

@

SPONGE

NOT

2шт.

1-12

F12840030

ROOM LAMP

1шт.

1-13

20C106015

SCREW-ROUND HEAD

1шт.

1-14

@

BOLT-EYE

NOT

4шт.

*

@

REAR ASSY

NOT #2322

1шт.

*

@

REAR ASSY

NOT #2864

1шт.

*

@

REAR ASSY

NOT #3007

1шт.

N2

F12901600

REAR ASSY

NOT

1шт.

2-1

SCA121000

PANEL WA-REAR

1шт.

2-2

@

SPONGE

NOT

1шт.

2-3

@

GAS SPRING

NOT

2шт.

2-4

@

BOLT-SAMS

NOT

4шт.

2-5

@

WASHER-PLAIN

NOT

4шт.

2-6

@

NUT-HEX

NOT

4шт.

2-7

SCA122000

DOOR ASSY-REAR

1шт.

2-8

SCA123000

CHASSIS ASSY

1шт.

2-9

@

RUBBER-H

NOT

1шт.

2-1

SCA124000

HINGE

2шт.

2-11

@

BOLT-SAMS

NOT

4шт.

2-12

@

WASHER-PLAIN

NOT

4шт.

2-13

@

NUT-HEX

NOT

4шт.

2-14

SCA125000

BRACKET

1шт.

2-15

@

BOLT-SAMS

NOT

2шт.

2-16

@

NUT-HEX

NOT

2шт.

2-17

@

LOCK-DOOR SET

NOT

1шт.

2-18

@

BOLT-HEX

NOT

4шт.

2-19

@

WASHER-SPRING

NOT

4шт.

2-2

@

SEAL-RUBBER

NOT

1шт.
