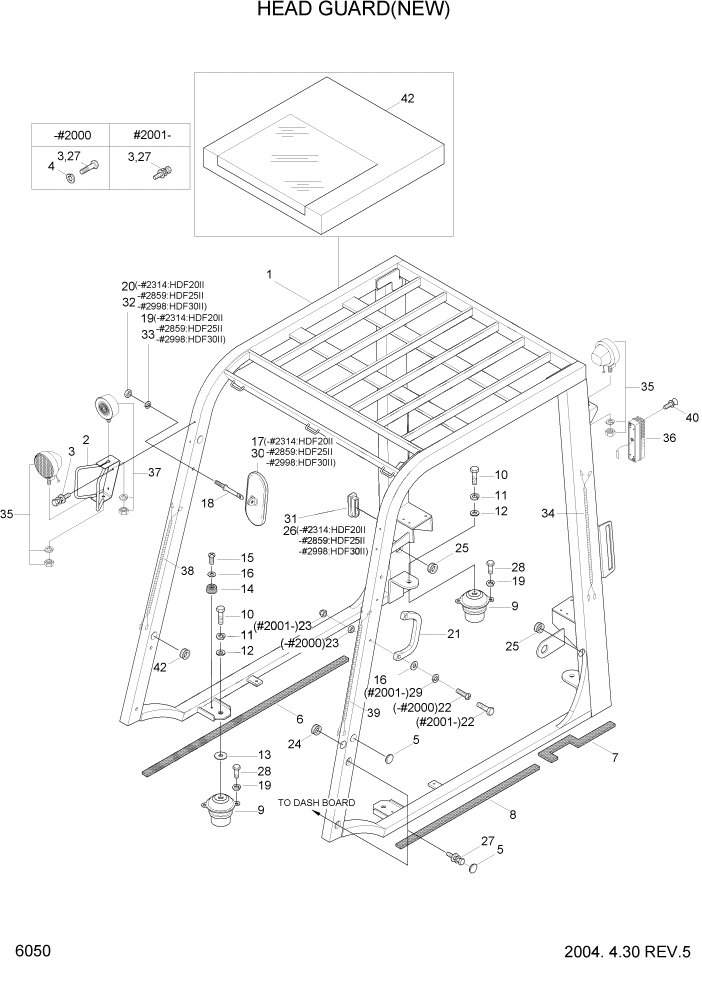

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 6050 HEAD GUARD(NEW) СТРУКТУРА

*

@

HEAD GUARD SUB ASSY

NOT #2315

1шт.

*

@

HEAD GUARD SUB ASSY

NOT #2860

1шт.

*

@

HEAD GUARD SUB ASSY

NOT #2999

1шт.

1

F12130240

GUARD-HEAD

HDF20-2 #2000

1шт.

1

F12130240B

HEAD GUARD

HDF20-2 #2001 - #2342

1шт.

1

F12130241

HEAD GUARD

HDF20-2 #2343

1шт.

1

F12130240

GUARD-HEAD

HDF25-2 #2000

1шт.

1

F12130240B

HEAD GUARD

HDF25-2 #2001 - #2987

1шт.

1

F12130241

HEAD GUARD

HDF25-2 #2988

1шт.

1

F12130240

GUARD-HEAD

HDF30-2 #2000

1шт.

1

F12130240B

HEAD GUARD

HDF30-2 #2001 - #3120

1шт.

1

F12130241

HEAD GUARD

HDF30-2 #3121

1шт.

2

F12130093

PROTECTOR-HEAD LAMP

2шт.

3

201508015

BOLT-HEX

#2000

4шт.

3

S035-081522

BOLT-W/WASHER

#2001

4шт.

16

231106000

WASHER-PLAIN

HDF20-2 #2002

4шт.

16

S403-062002

WASHER-PLAIN

HDF20-2 #2003

4шт.

16

231106000

WASHER-PLAIN

HDF25-2 #2012

4шт.

16

S403-062002

WASHER-PLAIN

HDF25-2 #2013

4шт.

16

231106000

WASHER-PLAIN

HDF30-2 #2020

4шт.

16

S403-062002

WASHER-PLAIN

HDF30-2 #2021

4шт.

18

F12130140

ROD-BACK MIRROR

2шт.

21

FAC0900100

GRIP-ASSIST

1шт.

22

20C106060

SCREW-ROUND HEAD

HDF20-2 #2002

2шт.

22

S015-060602

BOLT-HEX

HDF20-2 #2003

2шт.

22

20C106060

SCREW-ROUND HEAD

HDF25-2 #2012

2шт.

22

S015-060602

BOLT-HEX

HDF25-2 #2013

2шт.

22

20C106060

SCREW-ROUND HEAD

HDF30-2 #2020

2шт.

22

S015-060602

BOLT-HEX

HDF30-2 #2021

2шт.

23

FAC0900110

NUT-HEX

HDF20-2 #2002

2шт.

23

S295-060002

NUT-DOMED CAP

HDF20-2 #2003

2шт.

23

FAC0900110

NUT-HEX

HDF25-2 #2012

2шт.

23

S295-060002

NUT-DOMED CAP

HDF25-2 #2013

2шт.

23

FAC0900110

NUT-HEX

HDF30-2 #2020

2шт.

23

S295-060002

NUT-DOMED CAP

HDF30-2 #2021

2шт.

25

F12130130

GROMMET-REAR

2шт.

30

B52130070

MIRROR-REAR VIEW

HDF20-2 #2315

2шт.

30

B52130070

MIRROR-REAR VIEW

HDF25-2 #2860

2шт.

30

B52130070

MIRROR-REAR VIEW

HDF30-2 #2999

2шт.

31

FAC0100090-01

COVER-AIR INTAKE

HDF20-2 #2315

1шт.

31

FAC0100090-01

COVER-AIR INTAKE

HDF25-2 #2860

1шт.

31

FAC0100090-01

COVER-AIR INTAKE

HDF30-2 #2999

1шт.

32

S205-101002

NUT-HEX

HDF20-2 #2315

2шт.

32

S205-101002

NUT-HEX

HDF25-2 #2860

2шт.

32

S205-101002

NUT-HEX

HDF30-2 #2999

2шт.

33

S411-100002

WASHER-SPRING

HDF20-2 #2315

2шт.

33

S411-100002

WASHER-SPRING

HDF25-2 #2860

2шт.

33

S411-100002

WASHER-SPRING

HDF30-2 #2999

2шт.

34

F13800140

HARNESS-WORK LAMP

HDF20-2 #2315

1шт.

34

F13800140

HARNESS-WORK LAMP

HDF25-2 #2860

1шт.

34

F13800140

HARNESS-WORK LAMP

HDF30-2 #2999

1шт.

35

F12840010

LAMP-WORKING

HDF20-2 #2315

3шт.

35

F12840010

LAMP-WORKING

HDF25-2 #2860

3шт.

35

F12840010

LAMP-WORKING

HDF30-2 #2999

3шт.

36

F12840050

COMB LAMP ASSY-RR

HDF20-2 #2315

2шт.

36

F12840050

COMB LAMP ASSY-RR

HDF25-2 #2860

2шт.

36

F12840050

COMB LAMP ASSY-RR

HDF30-2 #2999

2шт.

37

F12840020

LAMP-FLASHER

HDF20-2 #2315

2шт.

37

F12840020

LAMP-FLASHER

HDF25-2 #2860

2шт.

37

F12840020

LAMP-FLASHER

HDF30-2 #2999

2шт.

38

F32800030

HARNESS-SUPPORT(RH)

HDF20-2 #2315

1шт.

38

F32800030

HARNESS-SUPPORT(RH)

HDF25-2 #2860

1шт.

38

F32800030

HARNESS-SUPPORT(RH)

HDF30-2 #2999

1шт.

39

F32800040

HARNESS-SUPPORT(LH)

HDF20-2 #2315

1шт.

39

F32800040

HARNESS-SUPPORT(LH)

HDF25-2 #2860

1шт.

39

F32800040

HARNESS-SUPPORT(LH)

HDF30-2 #2999

1шт.

40

S131-051026

SCREW-W/WASHER C/RD

HDF20-2 #2315

4шт.

40

S131-051026

SCREW-W/WASHER C/RD

HDF25-2 #2860

4шт.

40

S131-051026

SCREW-W/WASHER C/RD

HDF30-2 #2999

4шт.

41

F12130120

GROMMET-FRONT

HDF20-2 #2315

2шт.

41

F12130120

GROMMET-FRONT

HDF25-2 #2860

2шт.

41

F12130120

GROMMET-FRONT

HDF30-2 #2999

2шт.

4

233308000

WASHER-SPRING

#2000

8шт.

5

F12130200

GROMMET

6шт.

6

F12100681

SPONGE-STAY & FRAME

1шт.

7

F12100770

SPONGE-STAY & FRAME

1шт.

8

F12100781

SPONGE-STAY & FRAME

1шт.

9

Q101968000

RUBBER-MOUNTING

4шт.

10

201512025

BOLT-HEX

4шт.

11

233312000

WASHER-SPRING

4шт.

12

231112000

WASHER-PLAIN

4шт.

13

232012000

WASHER-PLAIN

2шт.

14

2636050800

RUBBER-CUSHION

2шт.

15

20C306018

SCREW-ROUND HEAD

2шт.

17

6600172100

MIRROR-BACK

HDF20-2 #2314

2шт.

17

6600172100

MIRROR-BACK

HDF25-2 #2859

2шт.

17

6600172100

MIRROR-BACK

HDF30-2 #2998

2шт.

19

233310000

WASHER-SPRING

HDF20-2 #2314

10шт.

19

233310000

WASHER-SPRING

HDF25-2 #2859

10шт.

19

233310000

WASHER-SPRING

HDF30-2 #2998

10шт.

20

221310001

NUT-HEX

HDF20-2 #2314

2шт.

20

221310001

NUT-HEX

HDF25-2 #2859

2шт.

20

221310001

NUT-HEX

HDF30-2 #2998

2шт.

24

F12130120

GROMMET-FRONT

HDF20-2 #2002

2шт.

24

F12130120

GROMMET-FRONT

HDF25-2 #2012

2шт.

24

F12130120

GROMMET-FRONT

HDF30-2 #2020

2шт.

26

FAC010001P0-01

COVER-AIR INTAKE

HDF20-2 #2314

1шт.

26

FAC010001P0-01

COVER-AIR INTAKE

HDF25-2 #2859

1шт.

26

FAC010001P0-01

COVER-AIR INTAKE

HDF30-2 #2998

1шт.

27

201508020

BOLT-HEX

#2000

4шт.

27

S037-102522

BOLT-W/WASHER

#2001

4шт.

28

201510025

BOLT-HEX

8шт.

29

S411-060002

WASHER-SPRING

HDF20-2 #2003

2шт.

29

S411-060002

WASHER-SPRING

HDF25-2 #2013

2шт.

29

S411-060002

WASHER-SPRING

HDF30-2 #2001

2шт.

42

F12970000

RAIN COVER

HDF20-2 #2337

1шт.

42

F12970000

RAIN COVER

HDF25-2 #2954

1шт.

42

F12970000

RAIN COVER

HDF30-2 #3106

1шт.
