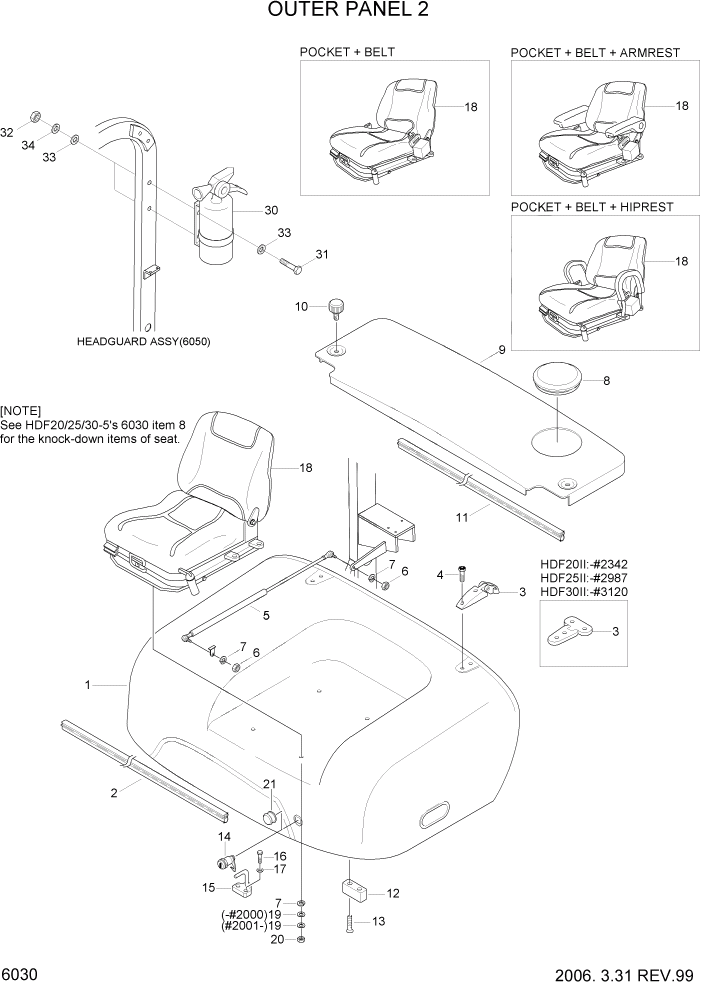

Запчасти Hyundai HDF20/HDF25/HDF30-2 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

1

F23101500

BONNET

HDF20/25-2 #1457

1шт.

1

F23101501

BONNET

HDF20/25-2 #1458 - #1584

1шт.

1

F23101502

BONNET

HDF20-2 #1585 - #2002

1шт.

1

F23101502H

BONNET

HDF20-2 #2003 - #2342

1шт.

1

F23101620

BONNET

HDF20-2 #2343

1шт.

1

F23101502

BONNET

HDF25-2 #1585 - #2023

1шт.

1

F23101502H

BONNET

HDF25-2 #2024 - #2987

1шт.

1

F23101620

BONNET

HDF25-2 #2988

1шт.

1

F23101500

BONNET

HDF30-2 #1413

1шт.

1

F23101501

BONNET

HDF30-2 #1414 - #1511

1шт.

1

F23101502

BONNET

HDF30-2 #1512 - #2026

1шт.

1

F23101502H

BONNET

HDF30-2 #2027 - #3120

1шт.

1

F23101620

BONNET

HDF25-2 #3121

1шт.

2

F12100910

WEATHER STRIP-BONNET

HDF20-2 #2342

1шт.

2

S772-038000

WEATHER STRIP

HDF20-2 #2343

1шт.

2

F12100910

WEATHER STRIP-BONNET

HDF25-2 #2987

1шт.

2

S772-038000

WEATHER STRIP

HDF25-2 #2988

1шт.

2

F12100910

WEATHER STRIP-BONNET

HDF30-2 #3120

1шт.

2

S772-038000

WEATHER STRIP

HDF30-2 #3121

1шт.

3

FHC0705300

HINGE

HDF20-2 #2342

2шт.

3

ED13020001

HINGE

HDF20-2 #2343

2шт.

3

FHC0705300

HINGE

HDF25-2 #2987

2шт.

3

ED13020001

HINGE

HDF25-2 #2988

2шт.

3

FHC0705300

HINGE

HDF30-2 #3120

2шт.

3

ED13020001

HINGE

HDF30-2 #3121

2шт.

4

20A106020

SCREW-SLOT C/SUNK

8шт.

5

FAC0701250

GAS SPRING

HDF20-2 #2514

1шт.

5

71FE-10071

GAS SPRING

HDF20-2 #2515

1шт.

5

FAC0701250

GAS SPRING

HDF25-2 #3485

1шт.

5

71FE-10071

GAS SPRING

HDF25-2 #3486

1шт.

5

FAC0701250

GAS SPRING

HDF30-2 #3840

1шт.

5

71FE-10071

GAS SPRING

HDF30-2 #3841

1шт.

6

221308001

NUT-HEX

2шт.

7

233308000

WASHER-SPRING

6шт.

8

Q101888000

COVER-RUBBER

1шт.

9

F12100970Y

SUB BONNET

HDF20-2,OPT #2002

1шт.

9

F12100970H

SUB BONNET

HDF20-2,OPT #2003

1шт.

9

F12100970Y

SUB BONNET

HDF25-2,OPT #2023

1шт.

9

F12100970H

SUB BONNET

HDF25-2,OPT #2024

1шт.

9

F12100970Y

SUB BONNET

HDF30-2,OPT #2026

1шт.

9

F12100970H

SUB BONNET

HDF30-2,OPT #2027

1шт.

9

F12910080H

SUB-BONNET(VERTICAL)

HDF20-2,STD #2304

1шт.

9

F12910080H

SUB-BONNET(VERTICAL)

HDF25-2,STD #2807

1шт.

9

F12910080H

SUB-BONNET(VERTICAL)

HDF30-2,STD #2910

1шт.

10

FAC0700820-01

KNOB

2шт.

11

FCC0700204

WEATHER STRIP-BONNET

1шт.

12

F12100630

STOPPER-BONNET

2шт.

13

20C106010

SCREW-ROUND HEAD

2шт.

14

FHC0705200

LATCH ASSY

1шт.

15

F12920030

BRACKET-LATCH

1шт.

16

201506020

BOLT-HEX

2шт.

17

232106000

WASHER-PLAIN

2шт.

18

F12120200

SEAT ASSY(PKT+BT+AR)

HDF20-2 #2001 - #2328

1шт.

18

71FF-14030

SEAT ASSY(PKT+BT+AR)

HDF20-2 #2329 - #2514

1шт.

18

71FG-10540

SEAT ASSY(PKT+BT+AR)

HDF20-2 #2515

1шт.

18

F12120200

SEAT ASSY(PKT+BT+AR)

HDF25-2 #2001 - #2885

1шт.

18

71FF-14030

SEAT ASSY(PKT+BT+AR)

HDF25-2 #2886 - #3485

1шт.

18

71FG-10540

SEAT ASSY(PKT+BT+AR)

HDF25-2 #3486

1шт.

18

F12120200

SEAT ASSY(PKT+BT+AR)

HDF30-2 #2001 - #3031

1шт.

18

71FF-14030

SEAT ASSY(PKT+BT+AR)

HDF30-2 #3032 - #3840

1шт.

18

71FG-10540

SEAT ASSY(PKT+BT+AR)

HDF30-2 #3841

1шт.

18

F12120400

SEAT ASSY(PKT+BT)

HDF20-2 #2001 - #2328

1шт.

18

71FF-14020

SEAT ASSY(PKT+BT)

HDF20-2 #2329 - #2514

1шт.

18

71FG-10530

SEAT ASSY(PKT+BT)

HDF20-2 #2515

1шт.

18

F12120400

SEAT ASSY(PKT+BT)

HDF25-2 #2001 - #2885

1шт.

18

71FF-14020

SEAT ASSY(PKT+BT)

HDF25-2 #2886 - #3485

1шт.

18

71FG-10530

SEAT ASSY(PKT+BT)

HDF25-2 #3486

1шт.

18

F12120400

SEAT ASSY(PKT+BT)

HDF30-2 #2001 - #3031

1шт.

18

71FF-14020

SEAT ASSY(PKT+BT)

HDF30-2 #3032 - #3840

1шт.

18

71FG-10530

SEAT ASSY(PKT+BT)

HDF30-2 #3841

1шт.

18

FCC0700500

SEAT ASSY(PKT+BT+HR)

HDF20-2 #2001 - #2328

1шт.

18

71FF-14040

SEAT ASSY(PKT+BT+HR)

HDF20-2 #2329 - #2514

1шт.

18

71FG-10550

SEAT ASSY(PKT+BT+HR)

HDF20-2 #2515

1шт.

18

FCC0700500

SEAT ASSY(PKT+BT+HR)

HDF25-2 #2001 - #2885

1шт.

18

71FF-14040

SEAT ASSY(PKT+BT+HR)

HDF25-2 #2886 - #3485

1шт.

18

71FG-10550

SEAT ASSY(PKT+BT+HR)

HDF25-2 #3486

1шт.

18

FCC0700500

SEAT ASSY(PKT+BT+HR)

HDF30-2 #2001 - #3031

1шт.

18

71FF-14040

SEAT ASSY(PKT+BT+HR)

HDF30-2 #3032 - #3840

1шт.

18

71FG-10550

SEAT ASSY(PKT+BT+HR)

HDF30-2 #3841

1шт.

18

F12120300

SEAT ASSY(PKT)

HDF20-2,DOM #2010 - #2328

1шт.

18

71FF-14010

SEAT ASSY(PKT)

HDF20-2,DOM #2329 - #2514

1шт.

18

71FG-10520

SEAT ASSY(PKT)

HDF20-2,DOM #2515

1шт.

18

F12120300

SEAT ASSY(PKT)

HDF25-2,DOM #2045 - #2885

1шт.

18

71FF-14010

SEAT ASSY(PKT)

HDF25-2,DOM #2886 - #3485

1шт.

18

71FG-10520

SEAT ASSY(PKT)

HDF25-2,DOM #3486

1шт.

18

F12120300

SEAT ASSY(PKT)

HDF30-2,DOM #2040 - #3031

1шт.

18

71FF-14010

SEAT ASSY(PKT)

HDF30-2,DOM #3032 - #3840

1шт.

18

71FG-10520

SEAT ASSY(PKT)

HDF30-2,DOM #3841

1шт.

18-4

89890-8A610

BELT-SEAT

HDF20-2,NO SEE #2515

1шт.

18-4

89890-8A610

BELT-SEAT

HDF25-2,NO SEE #3486

1шт.

18-4

89890-8A610

BELT-SEAT

HDF30-2,NO SEE #3841

1шт.

19

232008000

WASHER-PLAIN

#2000

4шт.

19

F21102471

WASHER-SPECIAL

#2001

4шт.

20

221108000

NUT-HEX

4шт.

21

FHC0705280

RUBBER-LATCH

OPT

1шт.

30

B52110500

EXTINGUISHER(0.8KG)

HDF30-2 #2349 - #2349

1шт.

31

S015-060652

BOLT-HEX

HDF30-2 #2349 - #2349

2шт.

32

S205-061002

NUT

HDF30-2 #2349 - #2349

2шт.

33

S403-062002

WASHER-PLAIN

HDF30-2 #2349 - #2349

4шт.

34

S411-060002

WASHER-SPRING

HDF30-2 #2349 - #2349

2шт.
